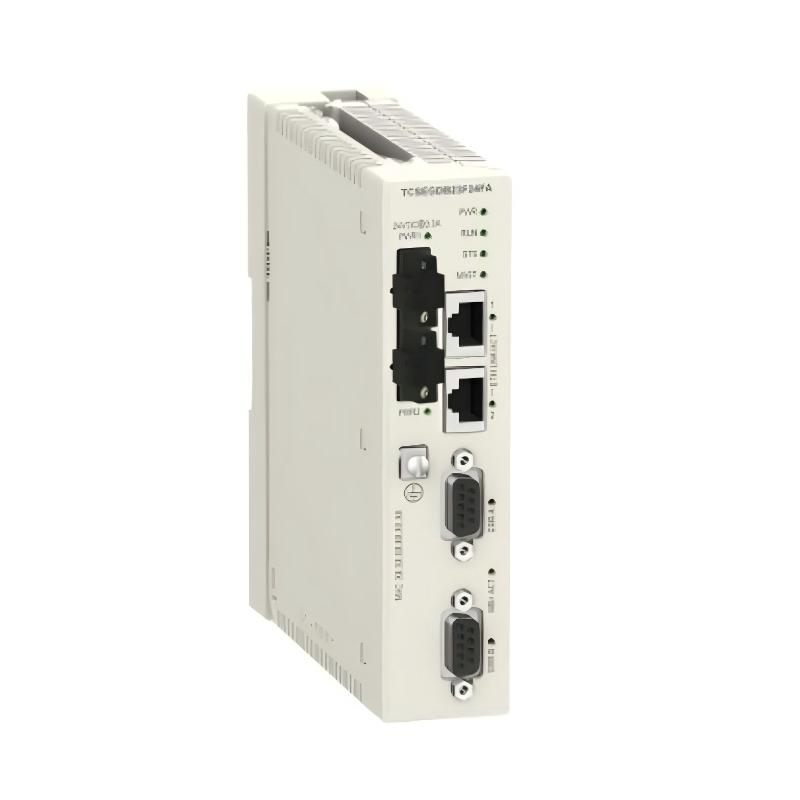

Schneider TCSEGDB23F24FA Proxy Module

Applications

• Acts as an interface between remote I/O devices and the main PLC for secure signal transmission.

• Used in distributed automation systems requiring galvanic isolation between field devices and control systems.

• Integration in industrial processes such as energy, water treatment, and chemical plants.

• Monitoring and controlling high-density I/O racks in modular automation architectures.

• Replacing or expanding existing remote I/O systems to improve signal integrity and safety.

Key Advantages

• Provides galvanic isolation to protect PLCs and field devices from voltage spikes and electrical noise.

• Supports high-speed communication for reliable real-time control.

• Compact yet robust design optimizes cabinet space while maintaining industrial durability.

• Compatible with Modicon Quantum and M580 PLC systems for seamless integration.

• Simplifies installation and maintenance in distributed I/O environments.

Technical FAQs

1. What is the primary function of this module?
It serves as a proxy interface between remote I/O devices and PLCs, providing signal isolation.

2. What types of signals does it handle?
Handles discrete digital signals from field I/O modules.

3. Is electrical isolation provided?
Yes, the module provides galvanic isolation for safe signal transfer.

4. Can it support multiple I/O racks?
Yes, it can interface with multiple remote I/O racks depending on system configuration.

5. Is it compatible with Modicon Quantum PLCs?
Yes, it fully supports Quantum and M580 platforms.

6. Can it operate in harsh industrial environments?
Yes, it is designed for high reliability in industrial conditions.

7. Are diagnostics available?
Yes, LED indicators provide status and fault monitoring for troubleshooting.

8. Can it be installed in high-density I/O cabinets?
Yes, its compact design makes it ideal for dense cabinet layouts.

9. Does it support hot swapping?
Yes, when used in compatible racks, modules can be replaced without shutting down the system.

10. What wiring is required for connection?
Standard industrial wiring to remote I/O modules using backplane or terminal connectors.
