Introduction

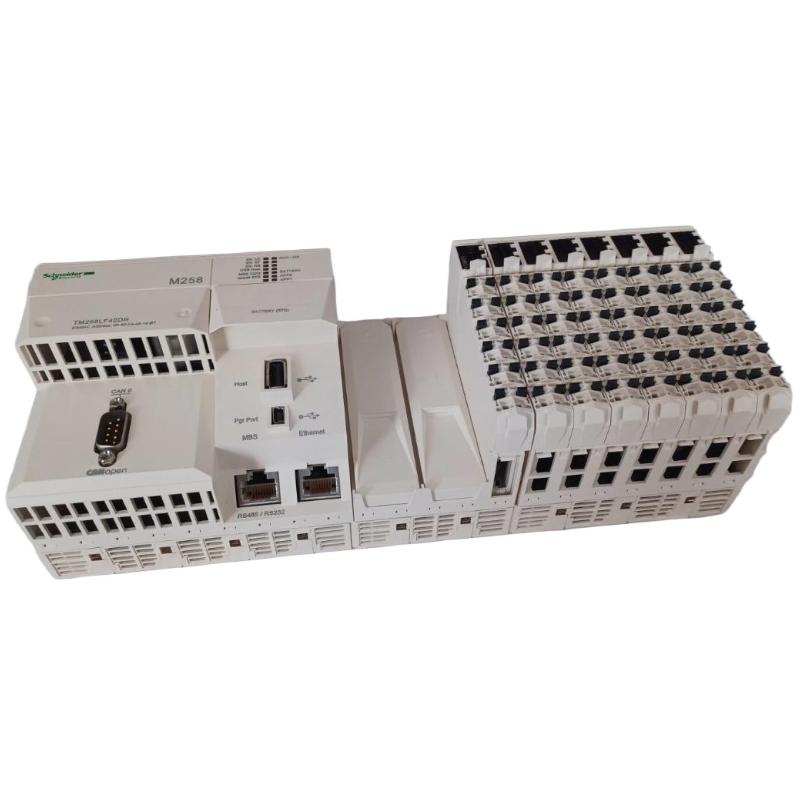

The Schneider TM258LF66DT4L Programmable Logic Controller is engineered to deliver high-speed, reliable control for industrial automation systems. With support for analog and digital modules, advanced communication protocols, and flexible programming options, it provides the performance and adaptability required for modern manufacturing and processing environments. Its compact and durable design ensures long-term reliability in demanding industrial settings.

Technical Specifications

Parameter	Details
Product Type	Programmable Logic Controller
I/O Support	Analog and Digital Modules
Communication Protocols	Ethernet TCP/IP, Modbus TCP/RTU, CANopen
Programming Languages	IEC 61131-3 (Ladder, FBD, ST)
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% (non-condensing)
Dimensions	262.5 × 99 × 85 mm
Weight	Approximately 0.8 kg

Recommended Related Models

• TM258LF16DT4L – Modicon M258 PLC Processor Module

• BMXDDI3202 – Discrete Input Module for Modicon M340/M258

• BMXDDO3202 – Discrete Output Module for Modicon M340/M258

• BMXAMI1602 – Analog Input Module for Modicon M340/M258

Popular Related Models

• TM258LF66DT4M – Modicon M258 PLC with expanded memory and I/O capacity

• BMXNOC0401 – Ethernet TCP/IP Network Module

• 140DDI35300 – Discrete Input Module for Quantum/M258

• 140DDO35300 – Discrete Output Module for Quantum/M258

Applications

• Centralized control for industrial automation processes in manufacturing and processing plants.

• Integration with distributed I/O systems for modular control architectures.

• Monitoring and control of complex machinery, conveyors, and production lines.

• Communication with SCADA, HMI, and other automation platforms via standard protocols.

• Replacement or upgrade of legacy PLC systems requiring high-speed processing and flexibility.

Key Advantages

• High-performance processing for real-time automation and control tasks.

• Flexible I/O support for analog and digital modules to meet diverse application needs.

• Compact and robust design optimized for industrial environments.

• Easy integration with Schneider Modicon Quantum and M258/M258-series systems.

• Built-in communication protocols enabling seamless connectivity with SCADA, HMI, and other PLCs.

Technical FAQs

1. What type of PLC is this?
It is a modular Programmable Logic Controller (PLC) designed for industrial automation.

2. What communication protocols does it support?
Supports Ethernet TCP/IP, Modbus TCP, Modbus RTU, and CANopen (depending on configuration).

3. Can it handle analog and digital I/O?
Yes, it supports both analog and digital modules for flexible system design.

4. What is the maximum number of I/O modules supported?
It depends on the backplane and rack configuration; typically up to the M258 rack capacity.

5. Is it compatible with SCADA/HMI systems?
Yes, it supports standard industrial protocols for seamless integration.

6. Does it provide diagnostic features?
Yes, it includes status LEDs and software-based diagnostics for system monitoring.

7. Can it operate in harsh industrial environments?
Yes, it is rated for typical industrial operating temperatures and humidity ranges.

8. Is hot swapping of I/O modules supported?
Yes, when installed in compatible backplanes, I/O modules can be replaced without shutting down the PLC.

9. What programming languages are supported?
Supports IEC 61131-3 programming languages including Ladder Diagram, Function Block, and Structured Text.

10. Can it communicate with other PLCs?
Yes, supports Ethernet and serial communication for inter-PLC networking.
