Brand:Schneider PLC Item No.:TM3AI2H Product Origin:France Product Dimensions:90 x 70 x 23.6 mm Product Weight:0.115 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

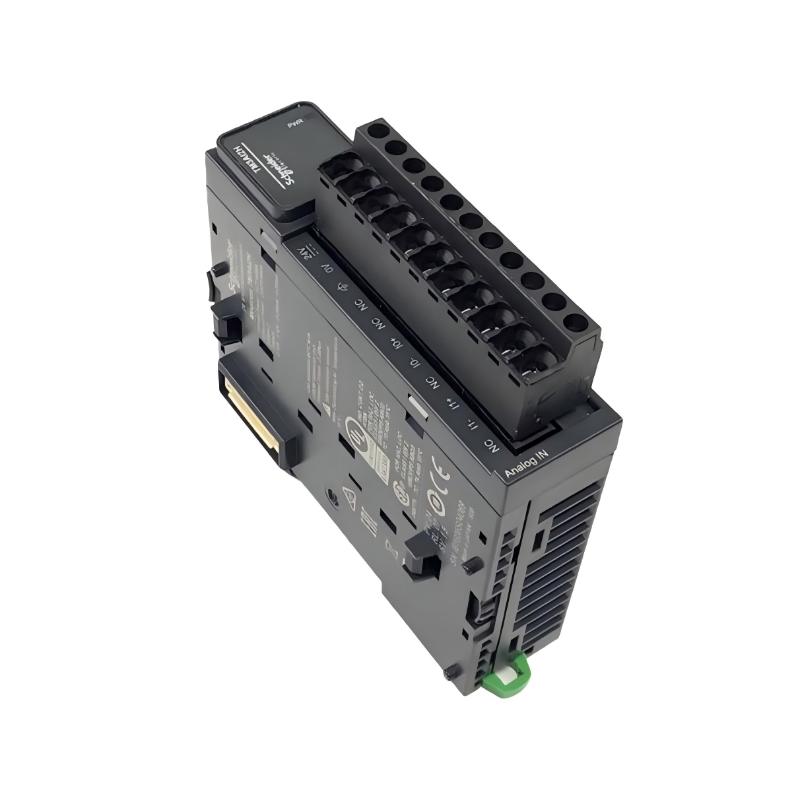

The Schneider TM3AI2H Analog Input Module is engineered for precise analog signal acquisition in industrial automation applications. With support for voltage, current, and temperature signals, it provides reliable measurement for critical process parameters. Its compact, durable design ensures seamless integration with Modicon TM3 and TM258 PLC systems, delivering both performance and flexibility in a small footprint.
Technical Specifications
Parameter
Details
Product Type
Analog Input Module
Input Channels
2 Channels
Signal Types
Voltage (0-10V), Current (4-20mA), RTD/Thermocouple
Isolation
Channel-to-channel Isolation
Mounting
Backplane / TM3 Rack
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Humidity
5% to 95% (non-condensing)
Dimensions
90 × 70 × 23.6 mm
Weight
Approximately 0.115 kg
Recommended Related Models
• TM3CPU2 – Modicon TM3 CPU Processor Module
• TM3DI8H – 8-Channel Digital Input Module
• TM3DO4H – 4-Channel Digital Output Module
• TM3AI4H – 4-Channel Analog Input Module
Popular Related Models
• TM3AO2H – 2-Channel Analog Output Module
• TM3AI4H – 4-Channel Analog Input Module
• TM3DI16H – 16-Channel Digital Input Module
• TM3DO8H – 8-Channel Digital Output Module
Applications
• Measuring analog signals such as voltage, current, and temperature in industrial automation.
• Integration with Modicon TM3 and TM258 PLC systems for flexible analog data acquisition.
• Process control in manufacturing, water treatment, and chemical processing applications.
• High-precision data acquisition for monitoring critical machinery and process parameters.
• Replacing or expanding analog input capabilities in modular PLC installations.
Key Advantages
• Provides high-accuracy analog input for precise measurement of industrial signals.
• Compatible with both voltage and current signal types for versatile applications.
• Compact and lightweight design optimizes space in control cabinets.
• Seamless integration with Modicon TM3 and TM258 PLC platforms for fast deployment.
• Industrial-grade construction ensures long-term reliability and consistent performance.
Technical FAQs
1. What types of signals does this module support?
It supports analog signals, including voltage (0-10V) and current (4-20mA).
2. How many channels are available on the module?
It provides 2 independent analog input channels.
3. Is it compatible with Modicon TM3 PLCs?
Yes, it integrates fully with TM3 and TM258 PLC systems.
4. Does it support differential or single-ended inputs?
It supports both, depending on wiring configuration.
5. Can it measure temperature with sensors?
Yes, it can interface with standard industrial temperature sensors (RTD/thermocouple) with proper configuration.
6. Is isolation provided between channels?
Yes, each channel is isolated to ensure signal integrity and protection.
7. What is the module’s resolution and accuracy?
It provides high-resolution measurement with industrial-grade accuracy (refer to datasheet for exact values).
8. Can it operate in high-noise environments?
Yes, it includes filtering and isolation features to minimize interference.
9. Does it require configuration before use?
Yes, channel scaling and type selection are configured through the PLC software.
10. Can it be hot-swapped?
Yes, when installed in compatible backplanes, it supports safe module replacement without shutting down the PLC.
