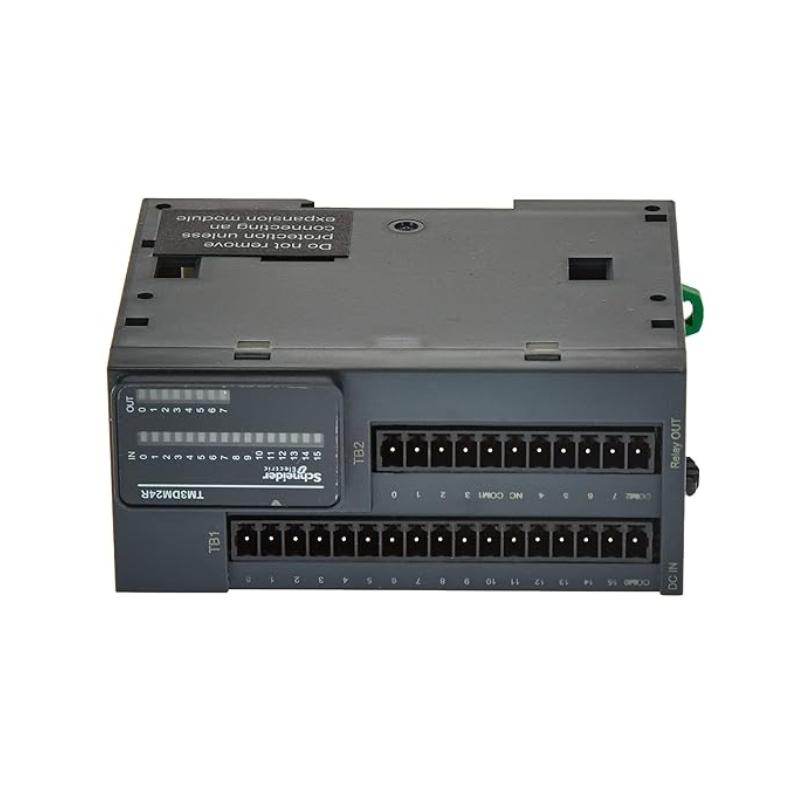

Schneider TM3DM24R Discrete I/O Modules

Applications

• Managing discrete digital signals in industrial automation systems.

• Integration with Modicon TM3 and TM258 PLCs for modular control applications.

• Monitoring and control of machinery, conveyor systems, and production lines.

• Distributed I/O setups requiring compact, reliable discrete input/output modules.

• Expansion or replacement of existing digital I/O capabilities in industrial control systems.

Key Advantages

• High-density discrete I/O channels provide flexible and scalable system design.

• Compact module design saves space in control cabinets without sacrificing performance.

• Fast signal processing ensures accurate real-time monitoring and control.

• Seamless compatibility with Modicon TM3 and TM258 PLC systems.

• Industrial-grade durability ensures long-term operation in harsh environments.

Technical FAQs

1. What types of signals does this module handle?
It handles discrete digital signals for both inputs and outputs.

2. How many channels are available?
It typically provides multiple channels (check datasheet for exact channel count).

3. Is it compatible with Modicon TM3 PLCs?
Yes, fully compatible with TM3 and TM258 platforms.

4. Can it operate in high-noise environments?
Yes, built-in filtering provides protection against electrical interference.

5. Is isolation provided between channels?
Yes, it includes isolation to ensure reliable operation and protect the PLC.

6. Can it support fast switching operations?
Yes, it is designed for high-speed discrete I/O applications.

7. Is hot swapping supported?
Yes, modules can be replaced safely when installed in compatible backplanes.

8. What wiring methods are compatible?
Supports standard industrial terminal connections for input and output wiring.

9. Are diagnostics available?
Yes, LED indicators provide status feedback for troubleshooting.

10. Can it integrate with distributed I/O networks?
Yes, ideal for modular distributed I/O systems with TM3 or TM258 PLCs.
