Brand:Schneider PLC Item No.:TSXAEY420 Product Origin:France Product Dimensions:55 x 180 x 260 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

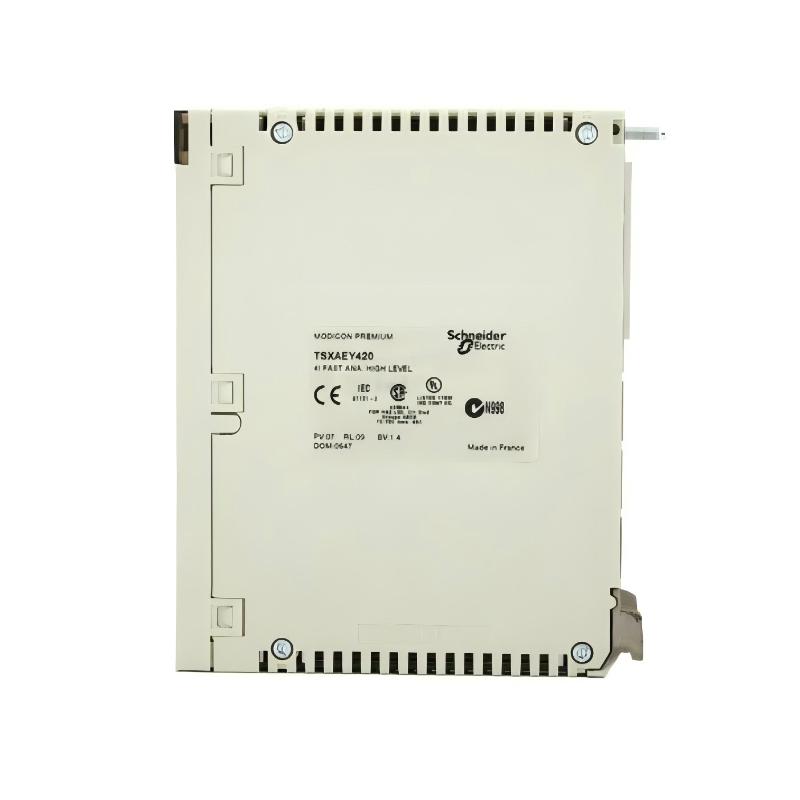

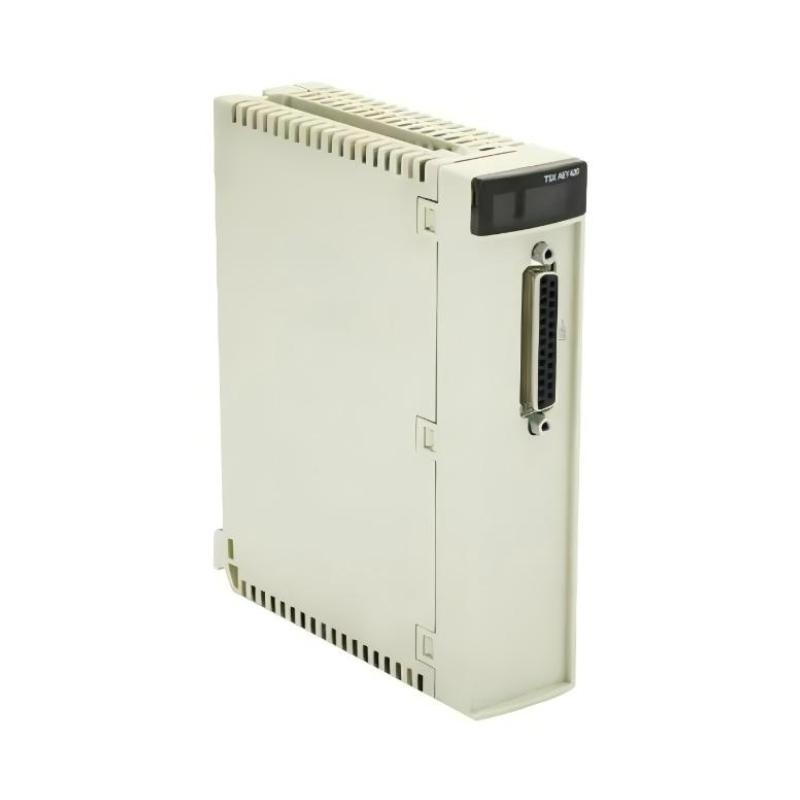

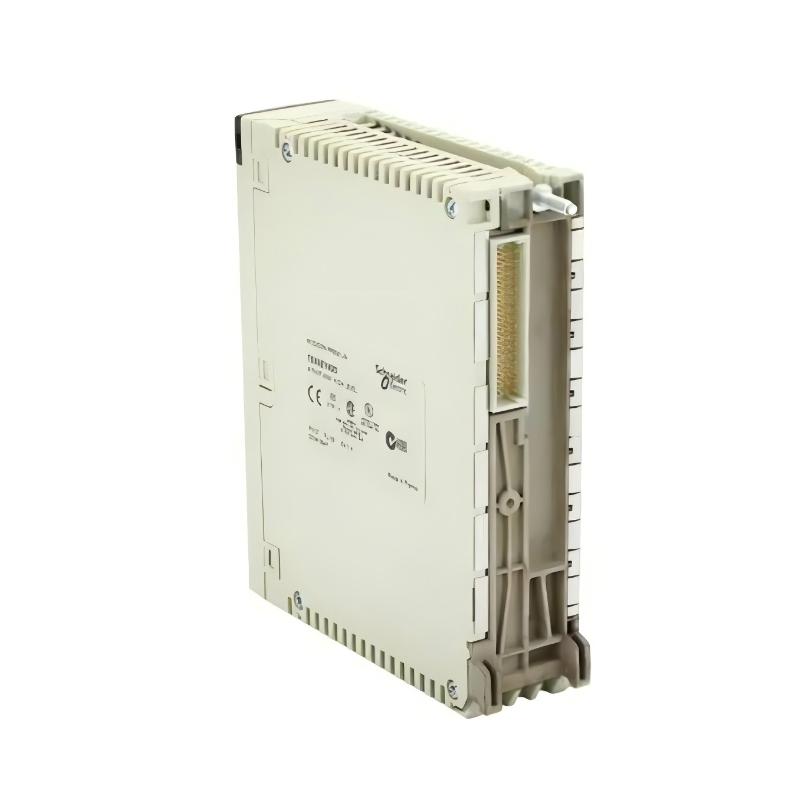

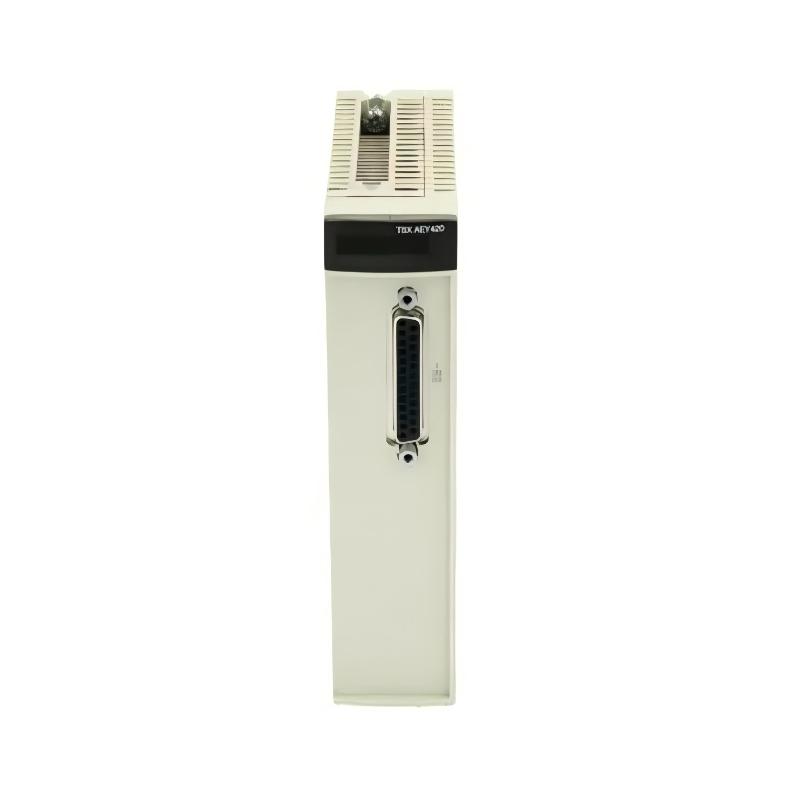

The Schneider TSXAEY420 Analog Input Module provides accurate and reliable analog signal acquisition for TSX Premium PLC systems. Designed for industrial environments, it supports voltage, current, and temperature inputs, enabling precise process monitoring and control. Its compact and robust design ensures ease of integration into distributed I/O networks while maintaining industrial-grade durability.
Technical Specifications
Parameter
Details
Product Type
Analog Input Module
Input Channels
4 Channels
Signal Types
Voltage (0–10 V), Current (4–20 mA), RTD/thermocouple
Isolation
Channel-to-channel Isolation
Mounting
TSX Premium Backplane
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Humidity
5% to 95% (non-condensing)
Dimensions
55 × 180 × 260 mm
Weight
Approximately 0.3 kg
Recommended Related Models
• TSXCPU4840 – TSX Premium CPU Processor Module
• TSXAEY430 – Analog Input Module with expanded channels
• TSXDAP842 – Analog Output Module
• TSXDEY161 – Digital Input Module
Popular Related Models
• TSXAEY421 – 4-Channel Analog Input Module (alternate version)
• TSXDEY162 – 16-Channel Digital Input Module
• TSXDOP842 – 4-Channel Analog Output Module
• TSXDEY164 – Digital Output Module
Applications
• High-precision analog signal acquisition for industrial automation systems.
• Integration with Schneider TSX Premium PLCs for centralized process control.
• Monitoring temperature, pressure, flow, and other analog process variables.
• Distributed I/O installations requiring reliable and scalable analog input solutions.
• Expanding or upgrading existing analog input capabilities in industrial control networks.
Key Advantages
• High-accuracy measurement of voltage and current signals for precise process control.
• Compact module design optimizes cabinet space while maintaining reliability.
• Supports multiple signal types for versatile industrial applications.
• Seamless integration with TSX Premium PLC systems for fast deployment.
• Industrial-grade construction ensures stable operation in harsh environments.
Technical FAQs
1. What signal types does this module support?
It supports analog voltage (0–10 V) and current (4–20 mA) signals.
2. How many channels are provided?
Typically 4 analog input channels (check datasheet for exact configuration).
3. Is it compatible with TSX Premium PLCs?
Yes, fully compatible with Schneider TSX Premium platforms.
4. Is electrical isolation provided?
Yes, channel-to-channel isolation ensures signal integrity and safety.
5. Can it interface with temperature sensors?
Yes, supports standard industrial sensors such as RTD and thermocouples.
6. What is the module’s measurement accuracy?
Provides high-resolution and industrial-grade measurement accuracy.
7. Can it operate in electrically noisy environments?
Yes, filtering and isolation minimize interference and ensure reliable signals.
8. Is configuration required before use?
Yes, channel scaling and signal type selection are configured via PLC software.
9. Can it be hot-swapped?
Yes, supports module replacement without shutting down the PLC when installed in compatible racks.
10. Is it suitable for distributed I/O networks?
Yes, designed for seamless integration in modular, distributed control architectures.
