Brand:Schneider PLC Item No.:TSXCUSBMBP Product Origin:France Product Dimensions:55 × 142 × 225 mm Product Weight:0.315 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

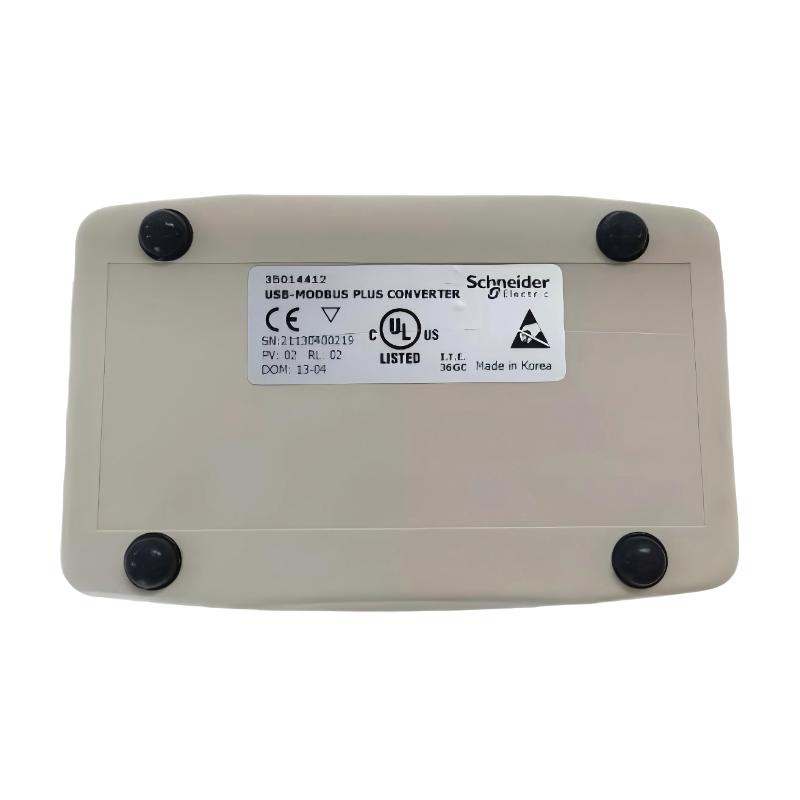

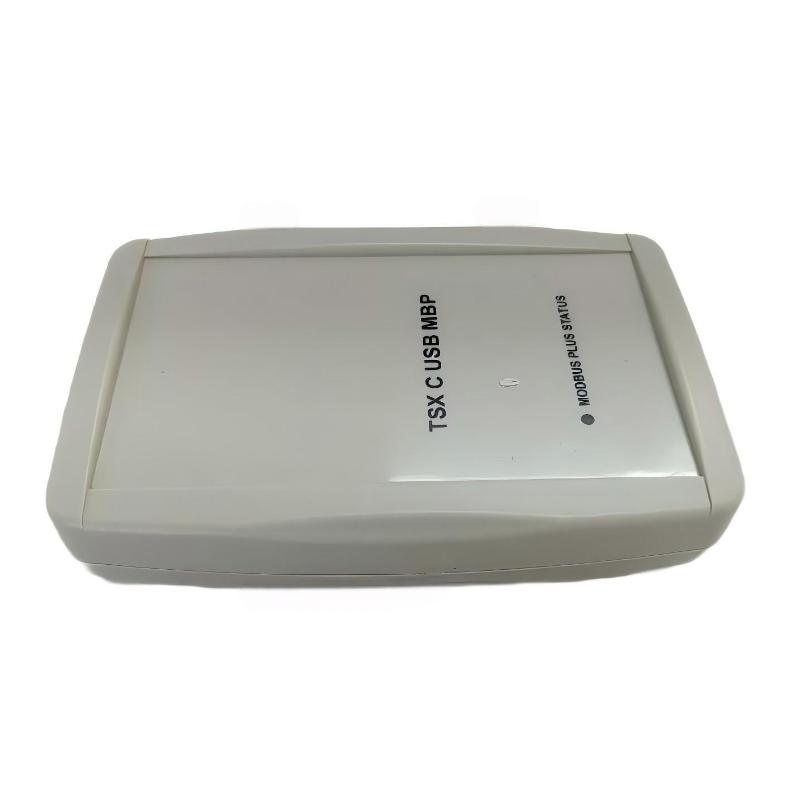

The Schneider TSXCUSBMBP Modbus Plus/USB Converter provides a seamless interface between legacy Modbus Plus networks and modern USB-enabled computers. Designed for industrial automation environments, it enables programming, monitoring, and diagnostics of TSX Premium and Modicon PLC systems. Compact, durable, and easy to install, it simplifies communication and enhances the flexibility of network management and system maintenance.
Technical Specifications
Parameter
Details
Product Type
Modbus Plus / USB Converter
Network Type
Modbus Plus
PC Interface
USB 2.0 or higher
Mounting
DIN Rail / Panel Mountable
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Humidity
5% to 95% (non-condensing)
Dimensions
55 × 142 × 225 mm
Weight
Approximately 0.315 kg
Recommended Related Models
• TSXPCX3030 – TSX Premium PC Interface Module
• TSXAEY420 – Analog Input Module
• TSXDEY161 – Digital Input Module
• TSXDOP842 – Analog Output Module
Popular Related Models
• TSXCUSBMB – USB to Modbus Plus Converter (alternate version)
• TSXAEY430 – Analog Input Module with expanded channels
• TSXDEY162 – 16-Channel Digital Input Module
• TSXDOP843 – 4-Channel Analog Output Module
Applications
• Connecting Modbus Plus industrial networks to USB-enabled PCs for configuration, monitoring, and diagnostics.
• Enabling programming and communication with Schneider TSX Premium and Modicon PLC systems.
• Facilitating data logging, troubleshooting, and remote access in industrial automation setups.
• Integrating legacy Modbus Plus networks with modern computer interfaces.
• Supporting industrial maintenance and commissioning by providing reliable USB-to-network communication.
Key Advantages
• Seamless USB connectivity for modern computers with legacy Modbus Plus networks.
• Plug-and-play installation simplifies setup and reduces configuration time.
• Supports reliable high-speed communication for monitoring and programming tasks.
• Compact and durable design optimized for industrial environments.
• Enhances flexibility in system diagnostics and network management.
Technical FAQs
1. What is the primary function of this module?
It converts Modbus Plus network signals to USB, enabling communication with PCs.
2. Is it compatible with TSX Premium PLCs?
Yes, fully compatible for programming and monitoring via USB.
3. Can it be used with Modicon PLCs?
Yes, it supports Modbus Plus communication for compatible Modicon systems.
4. Does it require software installation?
Yes, appropriate drivers and Schneider configuration software are required for operation.
5. Can it support multiple PCs simultaneously?
No, typically supports one PC connection per module at a time.
6. Is it hot-pluggable?
Yes, the USB interface allows hot-plugging without restarting the PC.
7. What network speed does it support?
Supports standard Modbus Plus network communication speeds as per Schneider specifications.
8. Is diagnostic functionality available?
Yes, network status and communication indicators help with troubleshooting.
9. What type of USB port is required?
Requires a standard USB 2.0 or higher port on the PC.
10. Can it be used for remote programming of PLCs?
Yes, it enables remote access and programming when connected to the network.
