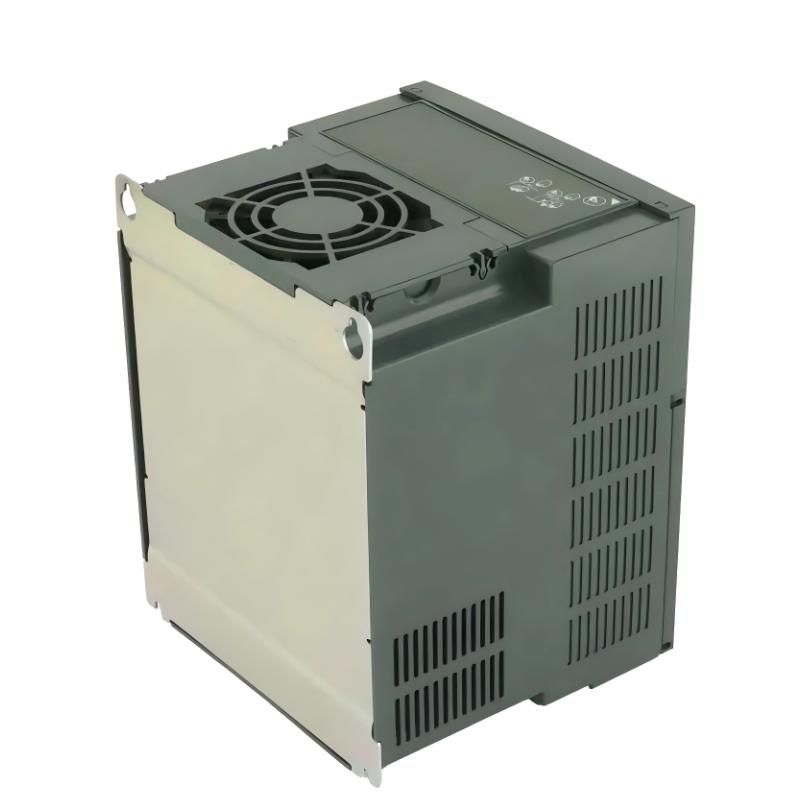

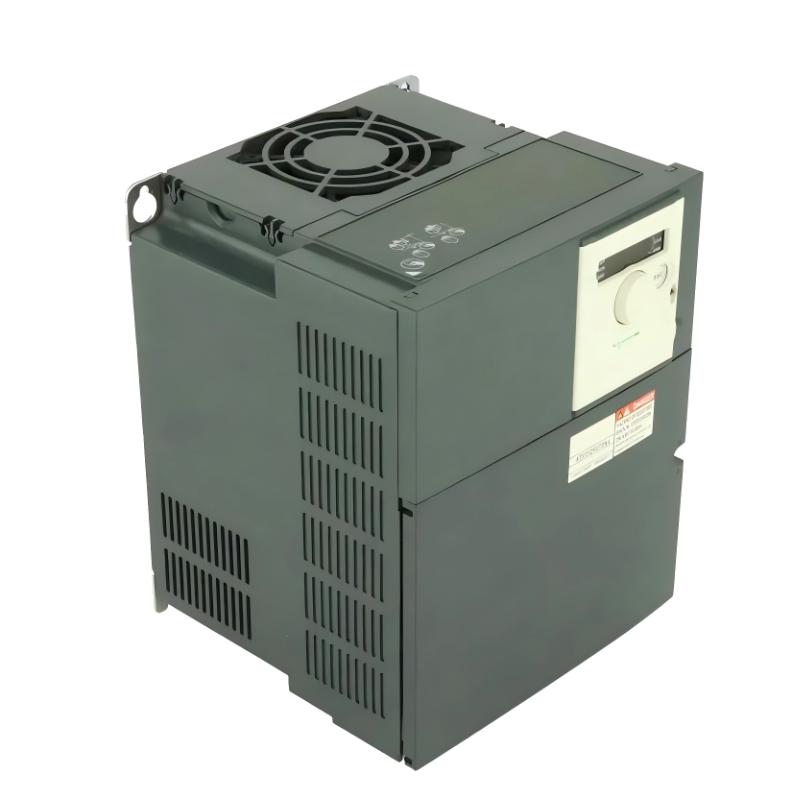

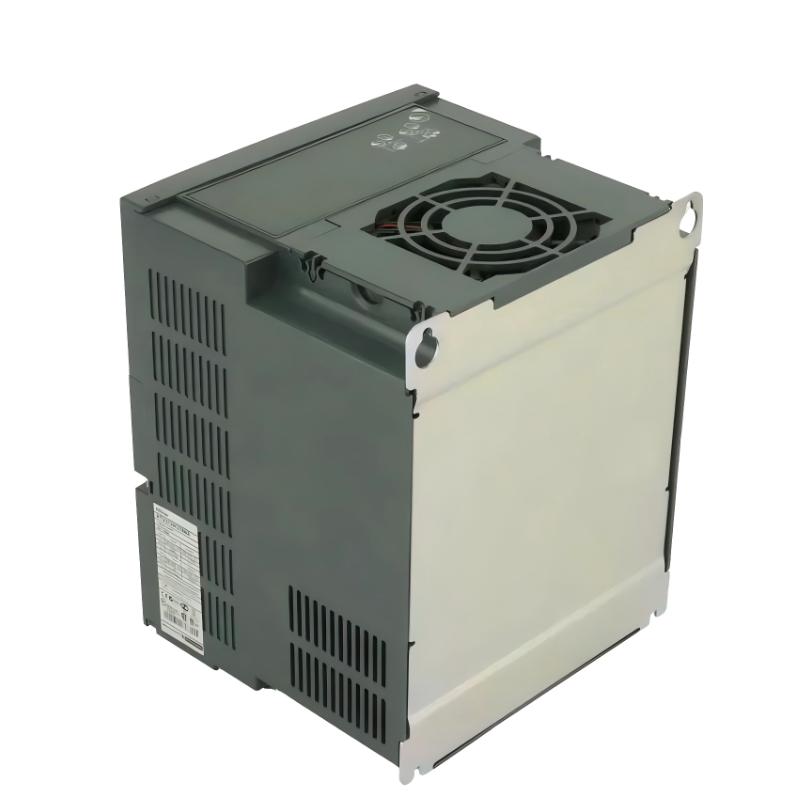

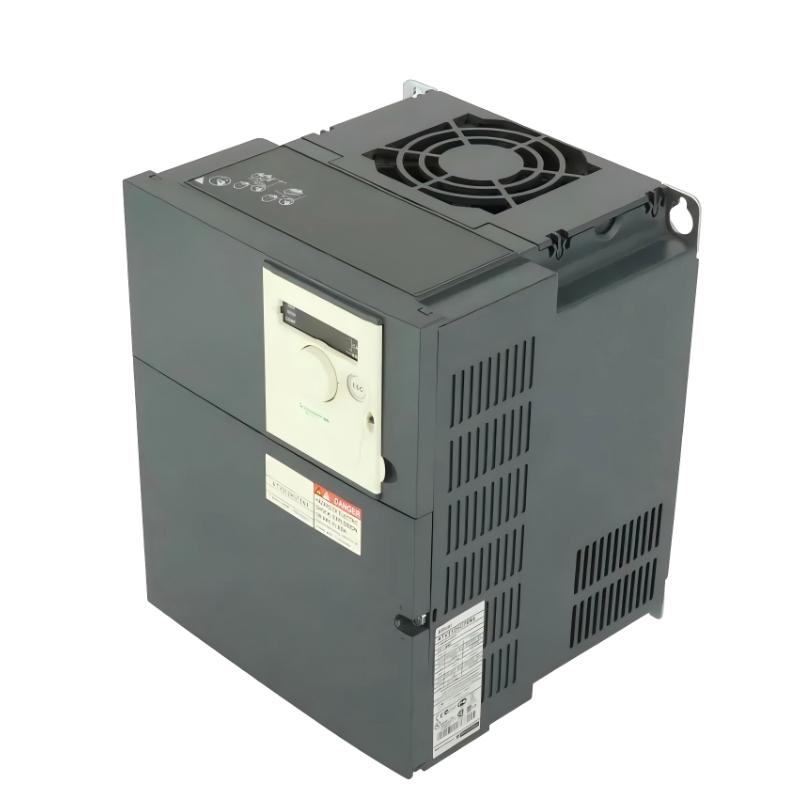

Schneider ATV312HU75N4 Altivar 312 Series 7.5kW High-Performance Variable Frequency Drive for Industrial Motor Control
Schneider ATV312HU75N4 Altivar 312 Series 7.5kW High-Performance Variable Frequency Drive for Industrial Motor Control
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV312HU75N4 Product Origin: France Product Dimensions:232 × 180 × 170 mm Product Weight:6.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV312HU75N4 from the Altivar 312 family is a versatile and highly reliable variable frequency drive engineered to deliver precise motor control in demanding industrial environments. Designed with machine builders in mind, this drive combines compact design, intuitive configuration, and consistent performance, making it an excellent choice for both new installations and system upgrades.
With its strong adaptability and stable operation, the ATV312HU75N4 helps optimize energy consumption while ensuring smooth motor acceleration and deceleration, even under variable load conditions.
Technical Specifications
Parameter
Specification
Model
ATV312HU75N4
Drive Type
Variable Frequency Drive (VFD)
Series
Altivar 312
Rated Power
7.5 kW / 10 HP
Input Voltage
380–500 V AC (3-phase)
Output Frequency
0.5 – 500 Hz
Rated Output Current
27.7 A
Control Technology
Sensorless Vector Control
Communication Protocols
Modbus, CANopen
Digital Inputs
6
Analog Inputs
3
Relay Outputs
2
Protection Class
IP20 (expandable depending on installation)
Operating Temperature
-10°C to +50°C
Dimensions (H × W × D)
232 × 180 × 170 mm
Weight
6.5 kg
Installation Method
Wall-mounted
Recommended Related Models
ATV312HU55N4 – Efficient 5.5 kW solution for medium-duty applications
ATV312HU40N4 – Compact 4 kW drive for smaller systems
ATV320U75N4 – Enhanced performance with advanced control features
ATV310HU75N4 – Economical alternative for basic control needs
ATV340U75N4 – Premium drive for complex automation systems
Popular Schneider Electric Models
Altivar 320 Series
Altivar 630 Process Drives
Altivar 930 High-End Drives
Modicon M340 PLC
Lexium Motion Control Series
Applications
The ATV312HU75N4 is tailored for a wide range of industrial and commercial applications requiring dependable motor speed control:
Conveyor systems and logistics automation
Packaging and filling machinery
Pumps, fans, and HVAC systems
Textile and ceramic machinery
Food processing equipment
General-purpose machine automation
Advantages
Optimized Energy Efficiency: Reduces operational costs through intelligent motor control
Compact Engineering: Saves valuable panel space without sacrificing performance
Quick Commissioning: User-friendly interface simplifies setup and configuration
Reliable Operation: Designed for long service life in industrial environments
Flexible Integration: Supports multiple communication protocols for system compatibility
Stable Performance: Maintains smooth operation even under fluctuating loads
Technical FAQs
1. What motor types are compatible with this drive?
It is designed primarily for three-phase asynchronous motors.
2. Is the drive suitable for continuous operation?
Yes, it is built for continuous industrial use.
3. Does it support fieldbus communication?
Yes, Modbus and CANopen are supported.
4. Can it handle variable load conditions?
Absolutely, it maintains stable performance under dynamic loads.
5. What protection level does it offer?
Standard protection is IP20, with higher ratings achievable via enclosure.
6. Is an external cooling system required?
No, it includes an integrated cooling design.
7. How is it installed?
It is designed for vertical wall mounting inside control panels.
8. Does it support energy-saving functions?
Yes, it optimizes motor efficiency and reduces energy consumption.
9. What industries commonly use this model?
Manufacturing, HVAC, packaging, and process industries widely use it.
10. Is it suitable for retrofitting older systems?
Yes, it is an excellent choice for upgrading legacy motor control systems.
