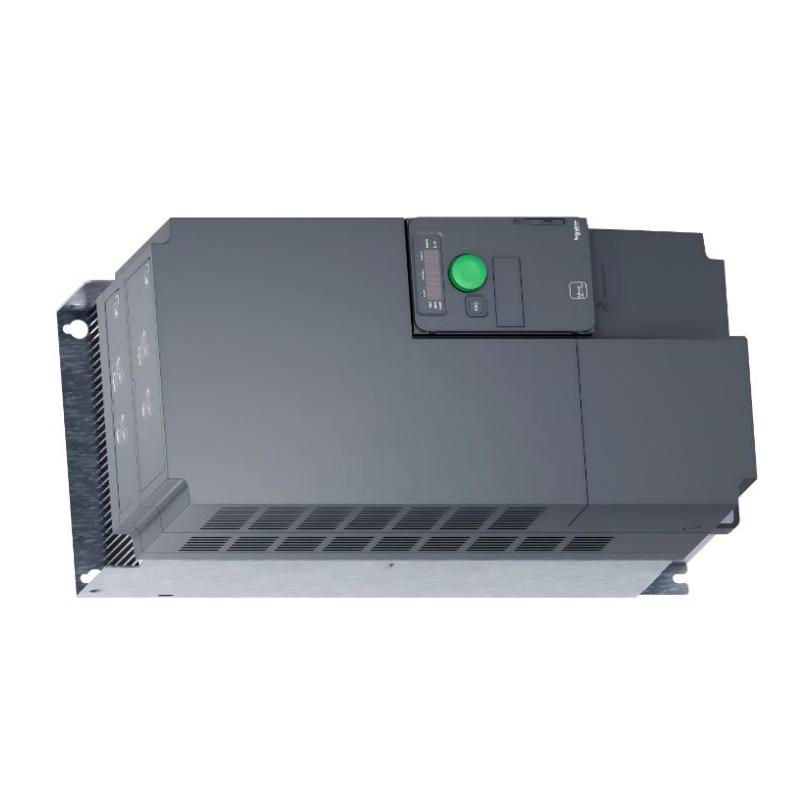

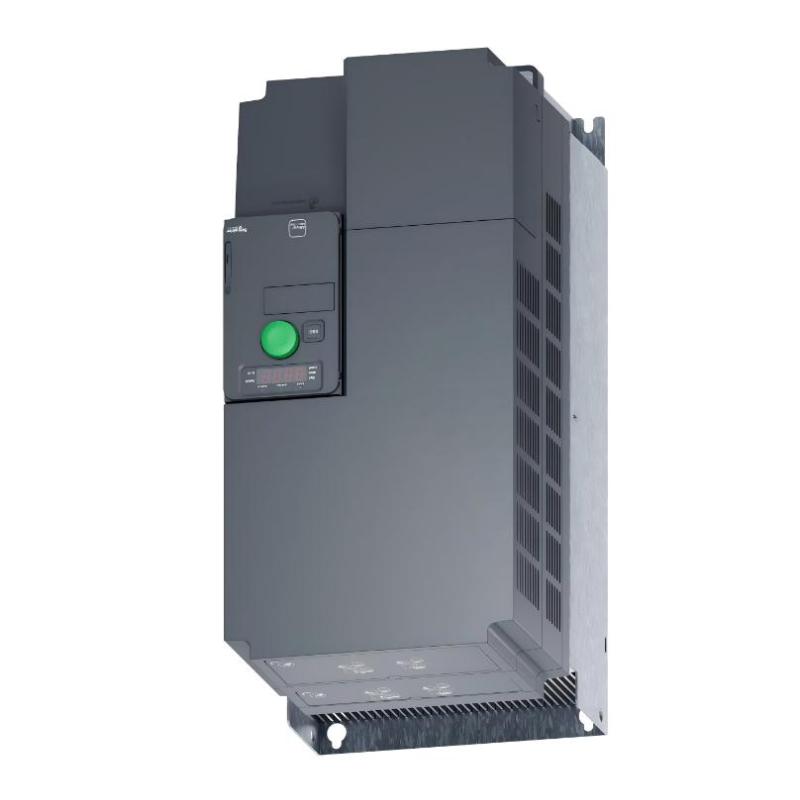

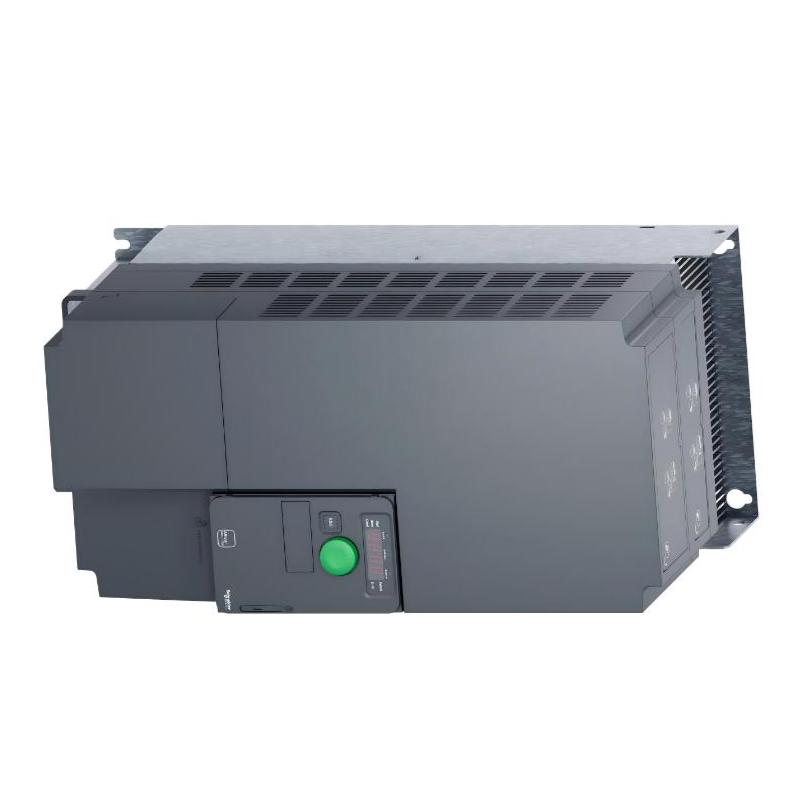

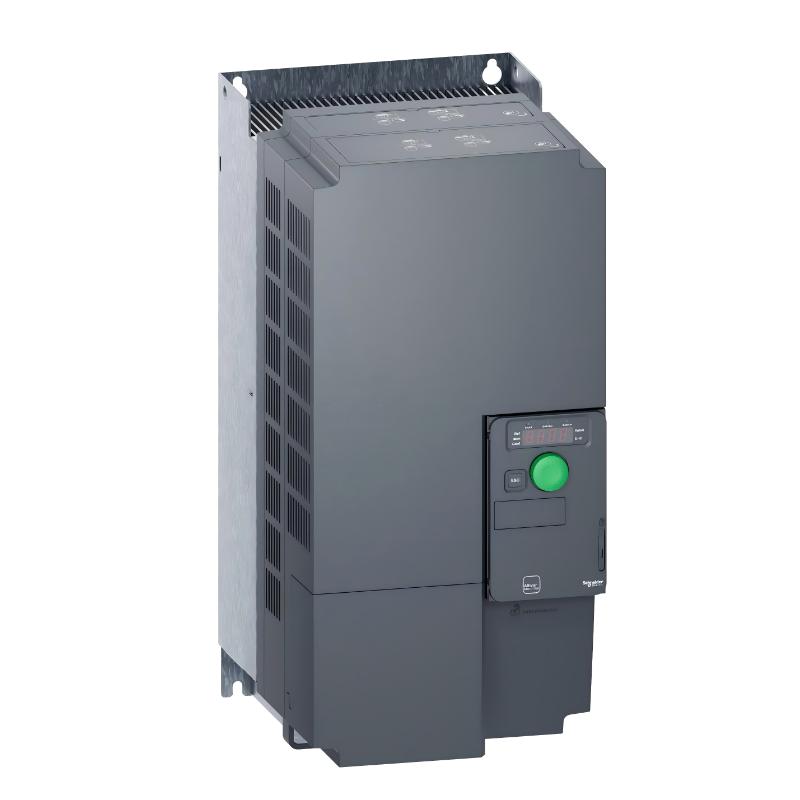

Schneider ATV320D18N4C Altivar Machine ATV320 Series 18.5kW Compact Variable Speed Drive for High-Demand Industrial Automation
Schneider ATV320D18N4C Altivar Machine ATV320 Series 18.5kW Compact Variable Speed Drive for High-Demand Industrial Automation
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV320D18N4C Product Origin: France Product Dimensions:390 × 180 × 229 mm Product Weight:11.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV320D18N4C is a powerful and compact variable speed drive from the Altivar Machine ATV320 series, purpose-built for OEMs and advanced industrial applications. Designed to handle demanding motor control tasks, this drive combines high power capacity with flexible integration, making it ideal for modern smart manufacturing systems.
With its robust architecture and advanced control algorithms, the ATV320D18N4C ensures precise speed regulation, improved machine efficiency, and enhanced operational safety. It is particularly well-suited for complex machinery requiring high reliability and continuous performance under heavy-duty conditions.
Technical Specifications
Parameter
Specification
Model
ATV320D18N4C
Product Type
Variable Speed Drive (VFD)
Series
Altivar Machine ATV320
Rated Power
18.5 kW
Input Voltage
380–500 V AC (3-phase)
Output Current
40 A
Output Frequency
Up to 500–599 Hz
Control Method
Sensorless Vector Control
Protection Rating
IP20
Mounting Type
Chassis / Compact
Communication
EtherNet/IP, Modbus, CANopen (depending on configuration)
Safety Level
SIL3 / PL e capable
Operating Temperature
Up to 60°C (with derating conditions)
Dimensions (H × W × D)
390 × 180 × 229 mm
Weight
11.7 kg
Cooling Method
Integrated air cooling
Data derived from manufacturer and distributor technical information
Recommended Related Models
ATV320D15N4C – 15 kW version for slightly lower load demands
ATV320D22N4C – 22 kW model for higher power applications
ATV320U15N4C – Book-type compact version for space-saving cabinets
ATV340D18N4 – Advanced drive with higher dynamic performance
ATV630D18N4 – Process-oriented drive for pumps and fans
Popular Schneider Electric Models
Altivar 320 Series
Altivar 340 High Performance Drives
Altivar 630 Process Drives
Modicon M580 PLC
Lexium Servo Systems
Applications
The ATV320D18N4C is engineered for demanding and precision-driven industrial environments:
Advanced packaging and high-speed production lines
Material handling and conveyor automation
CNC and machine tool systems
Food & beverage processing equipment
Textile and printing machinery
Pumps, compressors, and ventilation systems
Advantages
High Power Density: Delivers 18.5 kW performance in a compact footprint
Flexible Connectivity: Supports multiple industrial communication protocols for seamless integration
Advanced Safety: Integrated safety features up to SIL3 enhance operational protection
Robust Design: Coated boards and industrial-grade components improve durability in harsh environments
Precision Control: Optimized for complex machines requiring accurate speed and torque regulation
Thermal Efficiency: Capable of operating in high-temperature environments with stable output
Technical FAQs
1. What motor capacity does this drive support?
It is designed for motors up to 18.5 kW.
2. What is the input voltage range?
380–500 V AC, three-phase supply.
3. Is it suitable for heavy-duty applications?
Yes, it is built for continuous industrial use with high load demands.
4. Does it support industrial networks?
Yes, it integrates with common protocols like EtherNet/IP and Modbus.
5. What safety features are included?
It supports advanced safety functions up to SIL3 / PL e.
6. Can it operate in high temperatures?
Yes, it can operate up to 60°C with proper configuration.
7. What type of installation is required?
It is designed for chassis mounting inside control panels.
8. Is it suitable for OEM machine builders?
Absolutely, it is specifically optimized for OEM applications.
9. Does it support high-speed applications?
Yes, with output frequencies up to ~599 Hz.
10. What industries benefit most from this model?
Manufacturing, automation, processing, and heavy machinery sectors.
