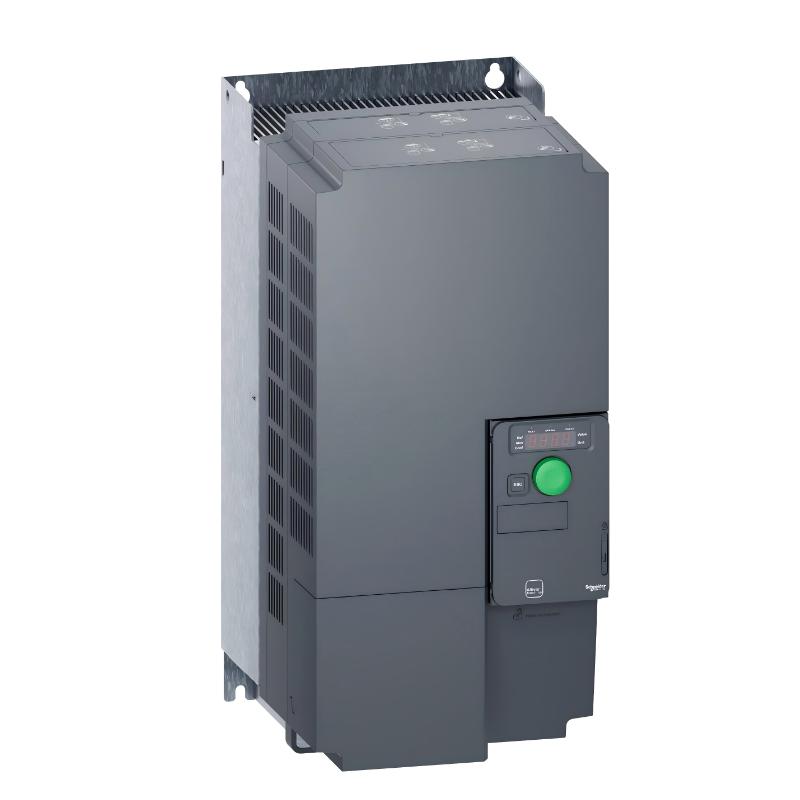

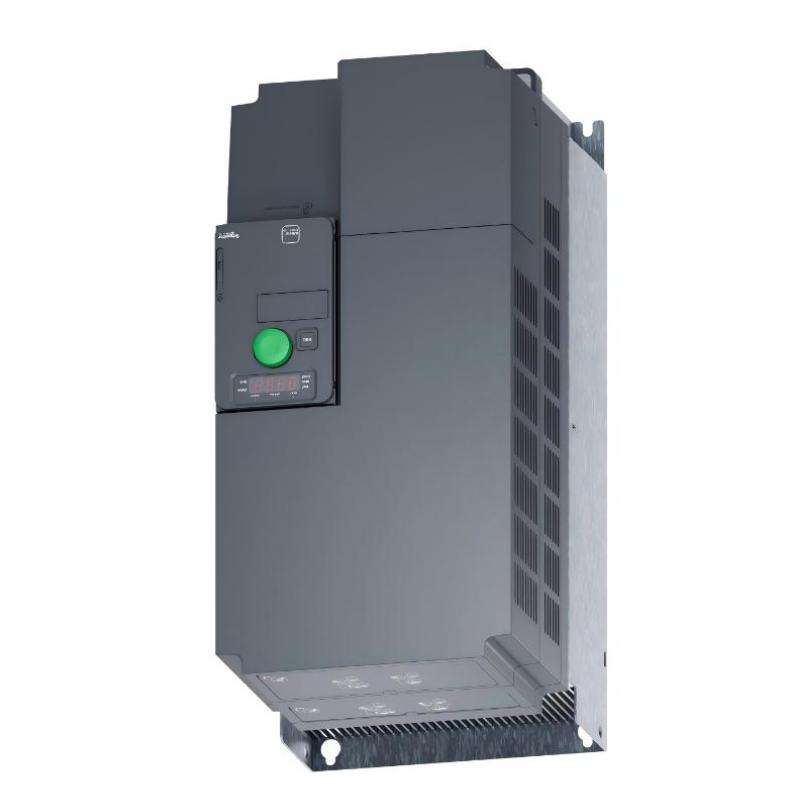

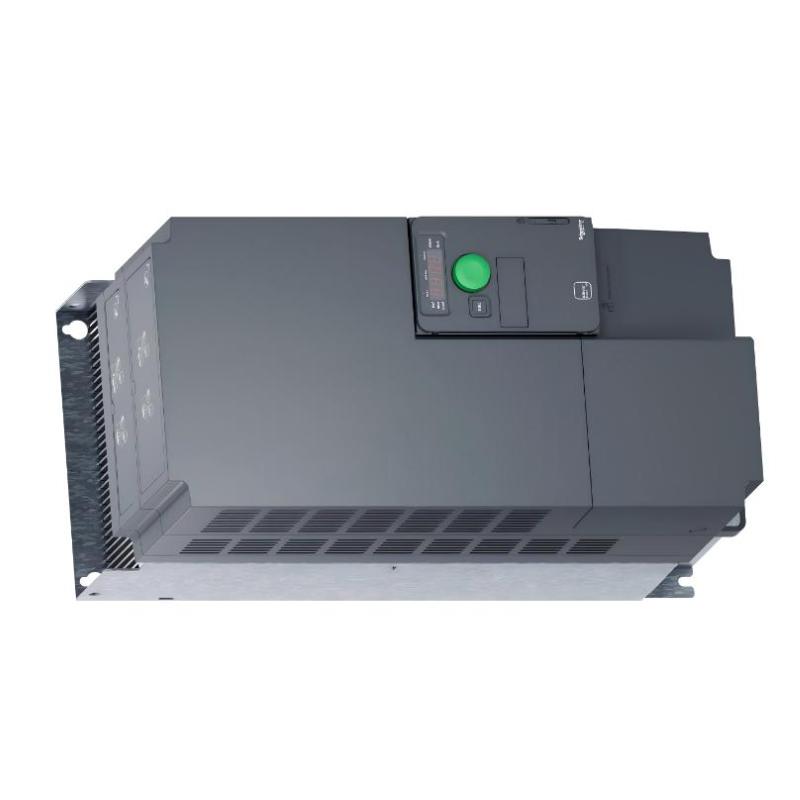

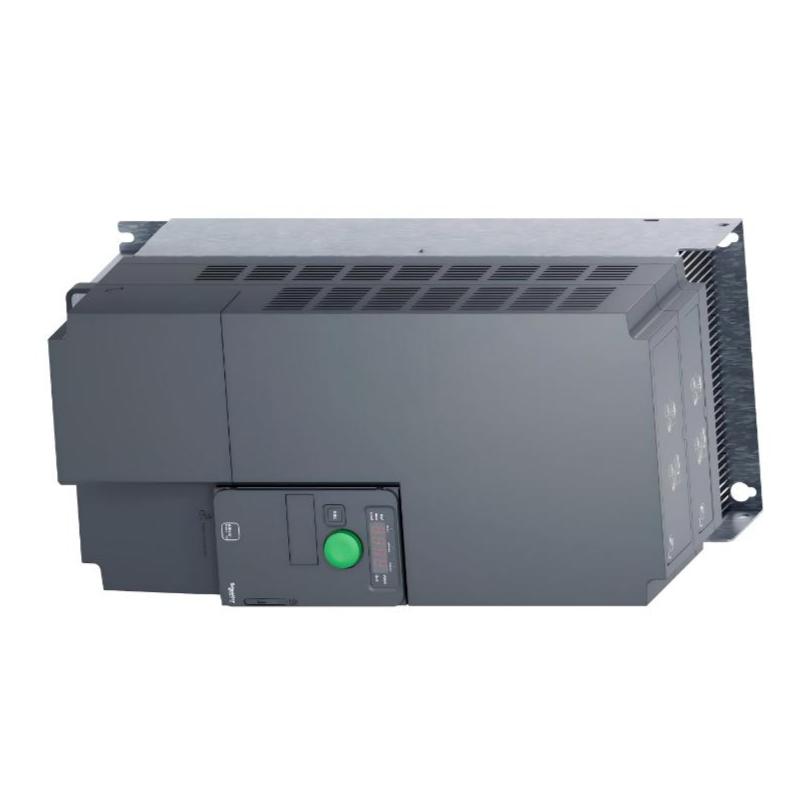

The Schneider ATV320D22N4C is a high-capacity variable speed drive from the Altivar Machine ATV320 series, engineered to meet the demands of modern industrial automation and OEM machinery. With its compact chassis design and advanced control capabilities, this drive delivers exceptional performance in applications requiring precise speed, torque, and reliability.
Designed for harsh industrial environments, the ATV320D22N4C integrates robust hardware with intelligent motor control algorithms, ensuring consistent operation, reduced downtime, and improved energy efficiency. It is an ideal solution for engineers seeking a scalable, future-ready drive platform.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV320D22N4C |
| Product Type | Variable Speed Drive (VFD) |
| Series | Altivar Machine ATV320 |
| Rated Power | 22 kW |
| Input Voltage | 380–500 V AC (3-phase) |
| Rated Output Current | 46 A |
| Output Frequency | Up to 599 Hz |
| Control Method | Sensorless Vector Control |
| Communication | Modbus, CANopen, EtherNet/IP (optional) |
| Digital Inputs | 7 |
| Protection Rating | IP20 |
| Operating Temperature | Up to 60°C (with derating) |
| Dimensions (H × W × D) | 390 × 180 × 229 mm |
| Weight | 11.8 kg |
| Mounting Type | Chassis / Panel Mount |
Key parameters verified from industrial distributor data
