Schneider ATV320U11N4B Altivar Machine ATV320 Series 1.1kW Book-Style Variable Frequency Drive for Compact and Reliable Industrial Motor Control
Schneider ATV320U11N4B Altivar Machine ATV320 Series 1.1kW Book-Style Variable Frequency Drive for Compact and Reliable Industrial Motor Control
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV320U11N4B Product Origin: France Product Dimensions:325 × 45 × 245 mm Product Weight:2.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

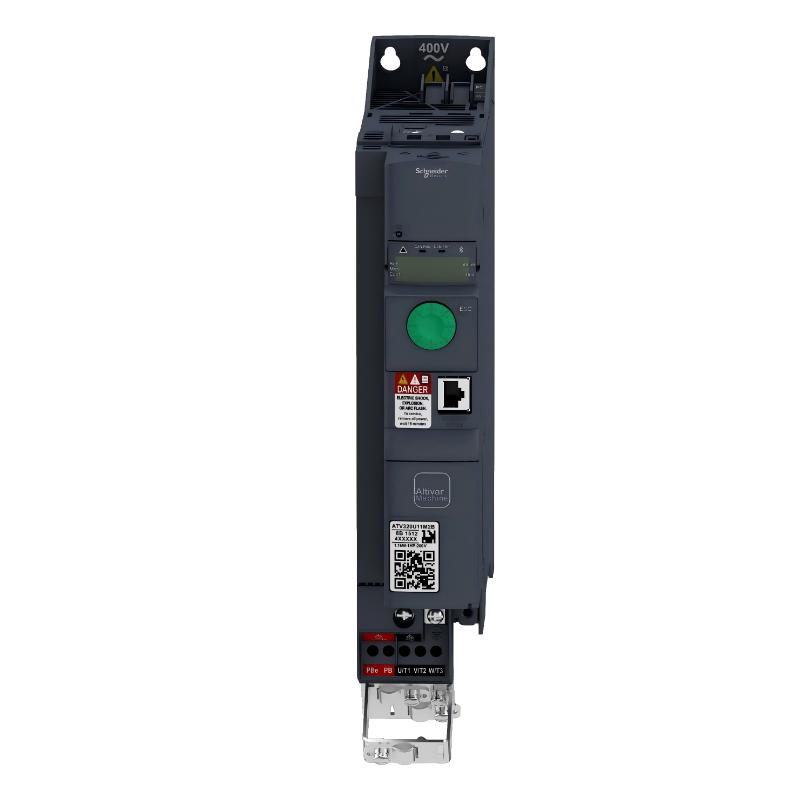

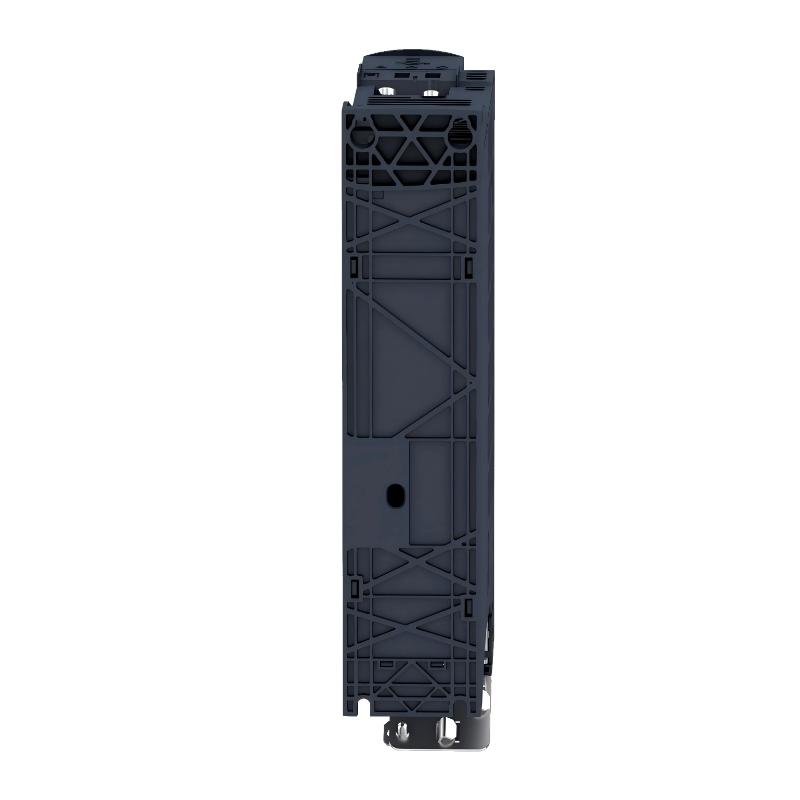

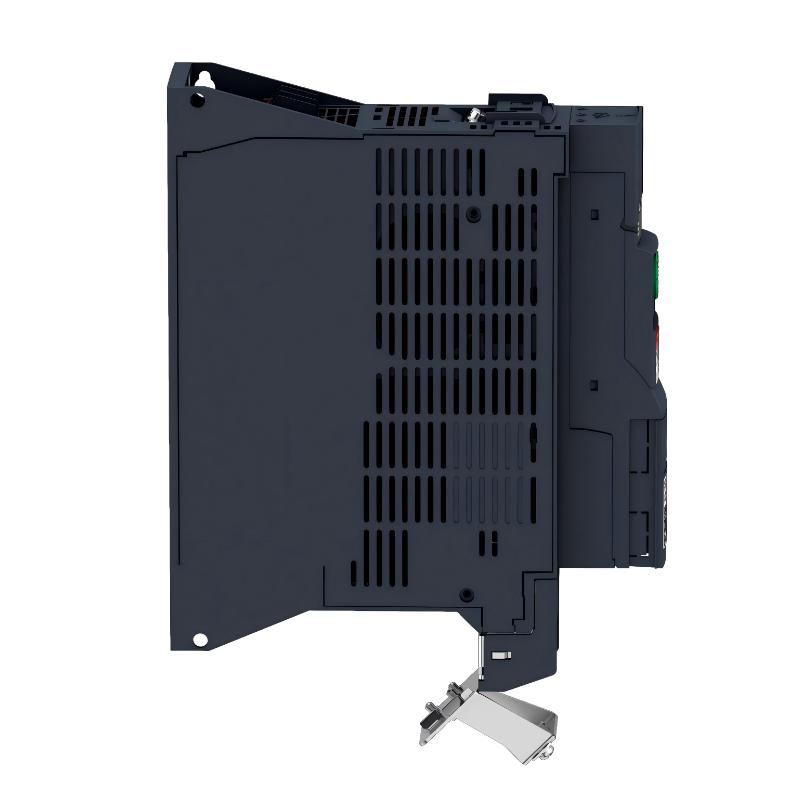

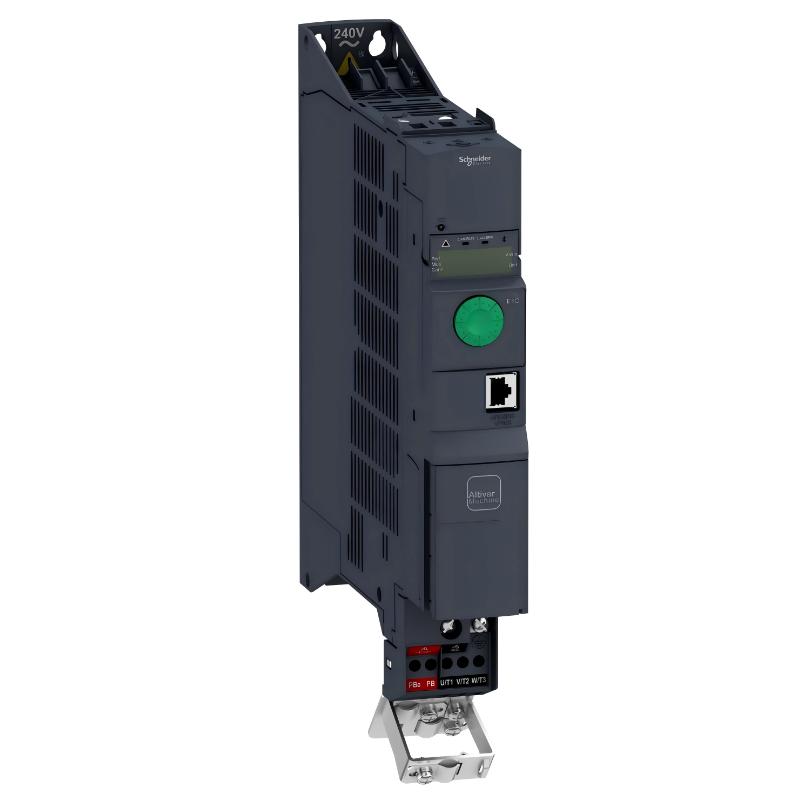

The Schneider ATV320U11N4B is a compact, book-style variable frequency drive designed for precision motor control in modern industrial environments. As part of the Altivar Machine ATV320 series, this model is optimized for machine builders who require a balance of performance, flexibility, and space efficiency.
Engineered for both synchronous and asynchronous motors, the drive delivers stable torque, smooth speed variation, and reliable operation even in demanding applications. Its modular communication capabilities and integrated EMC filter make it a highly adaptable solution for smart automation systems.
Technical Specifications
Parameter
Specification
Model
ATV320U11N4B
Product Type
Variable Frequency Drive (VFD)
Series
Altivar Machine ATV320
Rated Power
1.1 kW
Input Voltage
380–500 V AC (3-phase)
Rated Output Current
3.0 A
Output Frequency
Up to 599 Hz
Control Method
Sensorless Vector Control
Communication
Modbus, CANopen (expandable via option cards)
Form Factor
Book-style
Protection Rating
IP20
EMC Filter
Integrated (Class C2)
Operating Temperature
-10°C to +60°C
Dimensions (H × W × D)
325 × 45 × 245 mm (typical book-style size)
Weight
2.2 kg (approx.)
Mounting Type
Cabinet / Panel Mount
Recommended Related Models
ATV320U07N4B – 0.75 kW compact drive for lighter loads
ATV320U15N4B – 1.5 kW version for expanded capacity
ATV320U22N4B – 2.2 kW drive for medium-duty systems
ATV320D11N4C – Chassis-type alternative with enhanced I/O
ATV340U15N4 – High-performance drive for dynamic applications
Popular Schneider Electric Models
Altivar 320 Series Drives
Altivar 340 Performance Drives
Altivar 630 Process Drives
Modicon M221 / M241 PLC
Lexium Motion Control Systems
Applications
The ATV320U11N4B is ideal for compact and precision-oriented industrial applications:
Conveyor and material handling systems
Packaging and labeling machines
Textile and ceramic equipment
Pumps, fans, and HVAC systems
Light-duty automation lines
OEM modular machinery
Advantages
Ultra-Slim Book Design: Maximizes cabinet space efficiency for dense installations
Reliable Motor Performance: Ensures consistent torque and smooth operation across variable loads
Flexible Communication Expansion: Supports multiple industrial networks via option modules
Integrated EMC Filter: Reduces interference and simplifies compliance
High Overload Capability: Up to 170–200% torque for demanding conditions
Industrial Durability: Designed for continuous operation in harsh environments
Technical FAQs
1. What motor size is supported?
It supports motors up to 1.1 kW.
2. What is the input voltage range?
380–500 V AC, three-phase.
3. Does it support communication protocols?
Yes, Modbus and CANopen are standard, with expansion options available.
4. What makes the book-style design beneficial?
It allows vertical mounting, saving significant panel space.
5. Can it control different motor types?
Yes, it supports both synchronous and asynchronous motors.
6. What is the maximum output frequency?
Up to approximately 599 Hz.
7. Is an EMC filter included?
Yes, a Class C2 EMC filter is integrated.
8. What industries typically use this drive?
Manufacturing, packaging, HVAC, and general automation industries.
9. What is the rated output current?
Approximately 3.0 A under heavy-duty conditions.
10. Is it suitable for OEM machine builders?
Yes, it is specifically designed for OEM integration and modular machine systems.
