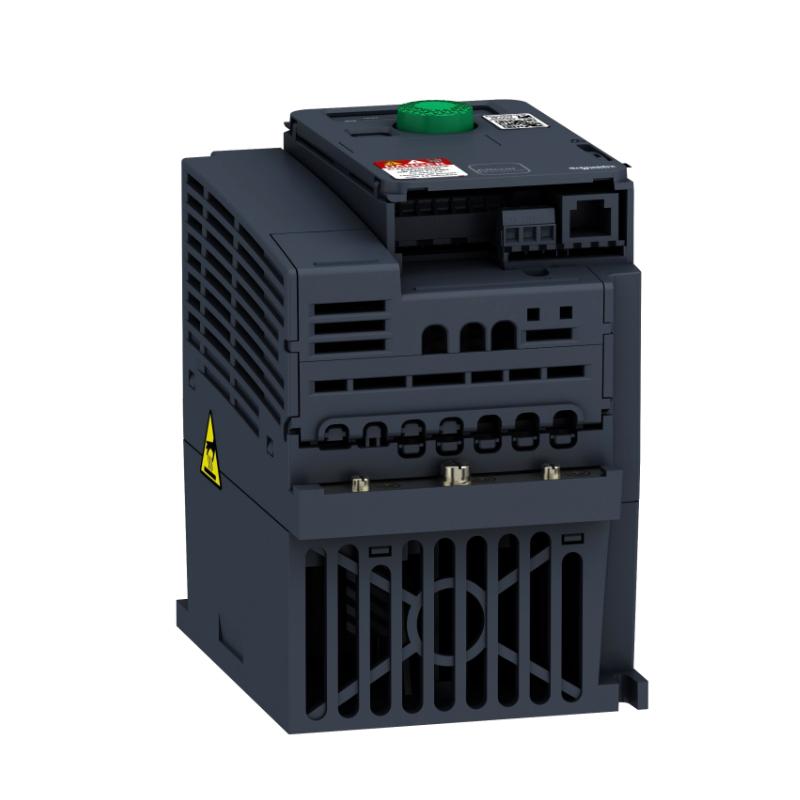

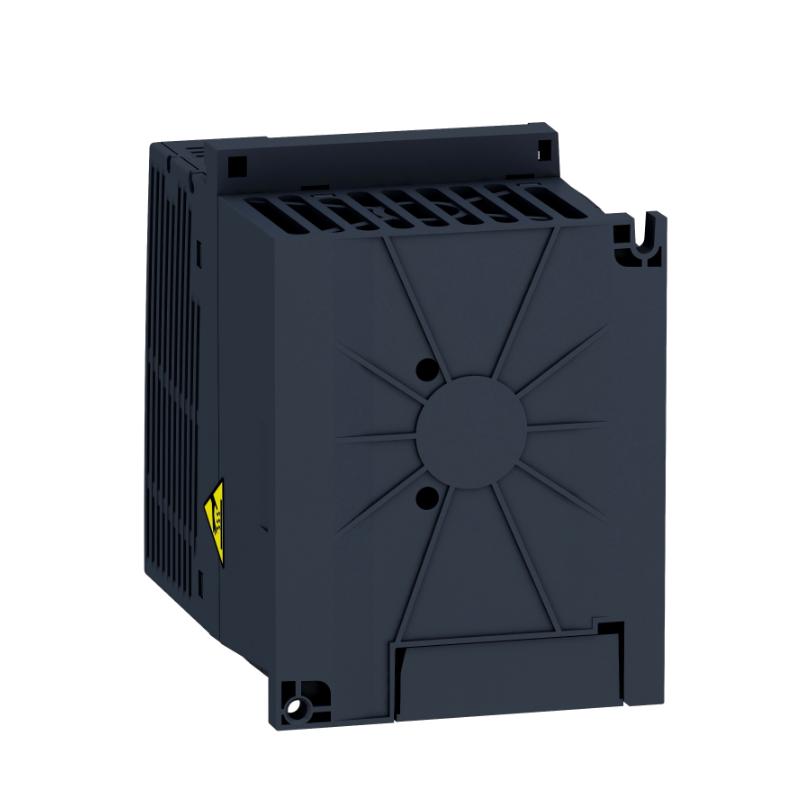

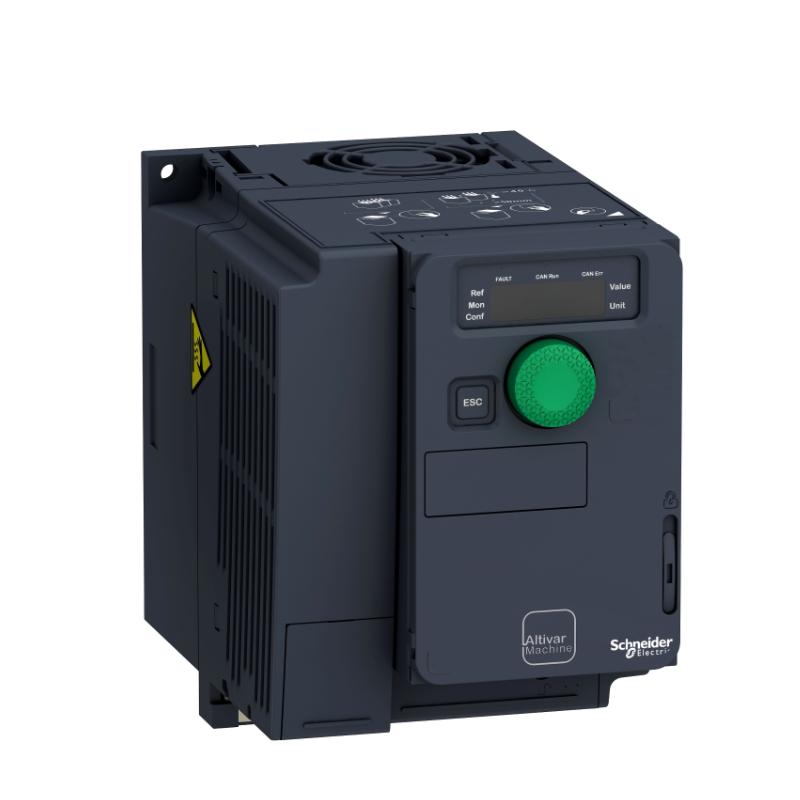

The Schneider ATV320U15N4C is a compact yet high-performance variable speed drive designed for complex industrial machines and OEM applications. As part of the Altivar Machine ATV320 series, it combines advanced motor control, flexible communication, and a space-efficient design—making it ideal for modern automation systems where precision and reliability are essential.
Built to support both asynchronous and synchronous motors, this drive delivers stable torque, smooth speed transitions, and optimized energy efficiency. Its compact form factor allows easy integration into control cabinets without sacrificing functionality or performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV320U15N4C |
| Product Type | Variable Speed Drive (VFD) |
| Series | Altivar Machine ATV320 |
| Rated Power | 1.5 kW |
| Input Voltage | 380–500 V AC (3-phase) |
| Rated Output Current | 4.1 A |
| Output Frequency | 0.1 – 599 Hz |
| Control Method | Sensorless Vector Control |
| Communication | Modbus, CANopen (expandable via option cards) |
| Digital Inputs | 7 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Protection Rating | IP20 |
| EMC Filter | Integrated Class C2 |
| Cooling Method | Forced air cooling |
| Operating Temperature | -10°C to +50°C (up to 60°C with derating) |
| Dimensions (H × W × D) | Approx. 142 × 105 × 158 mm |
| Weight | Approx. 1.3 kg |
| Mounting Type | Wall / Panel Mount |
Core specifications verified from manufacturer and distributor data
