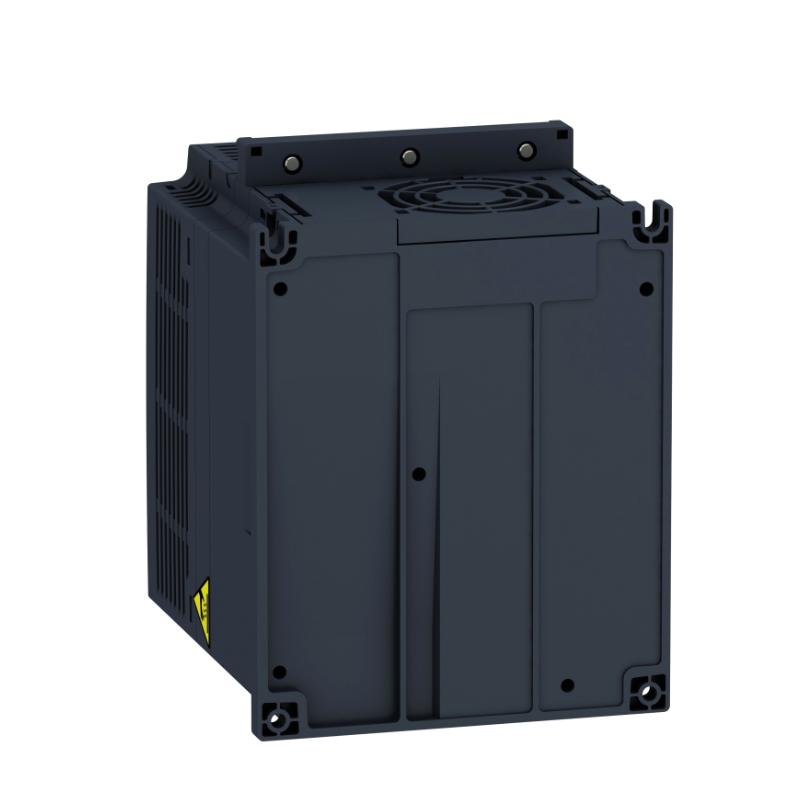

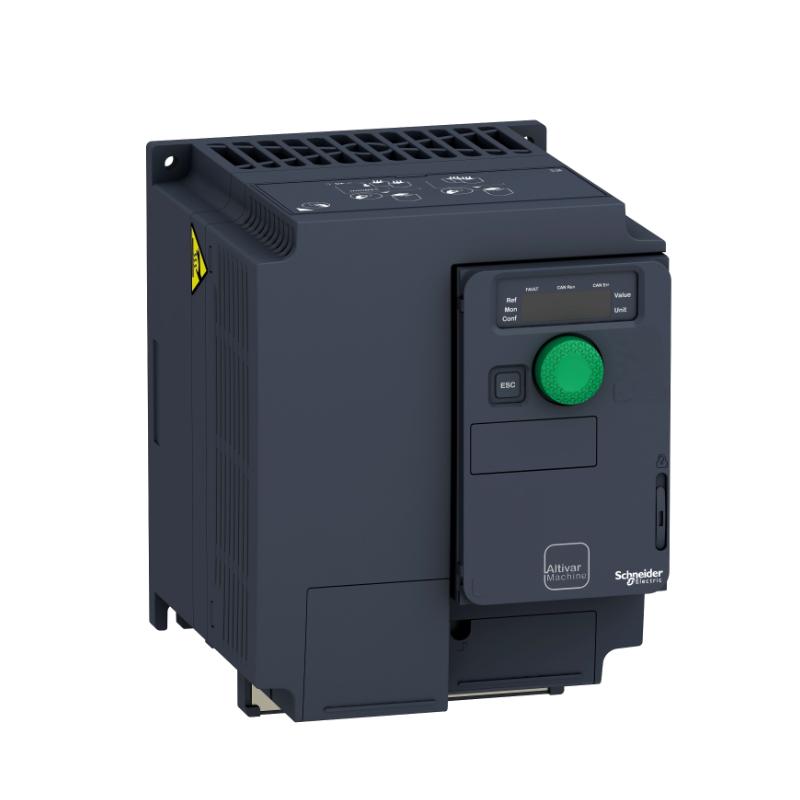

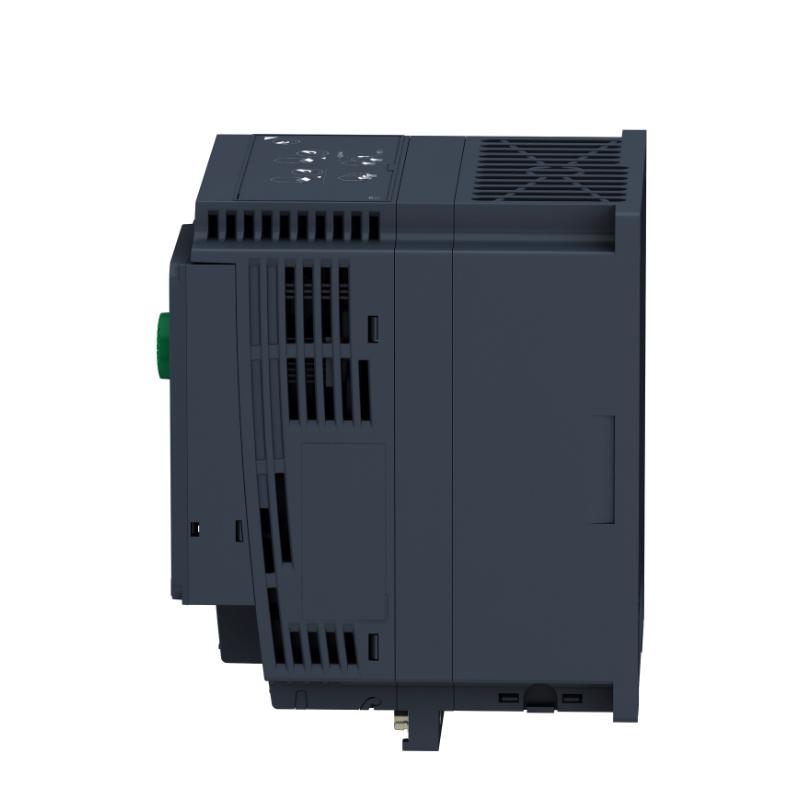

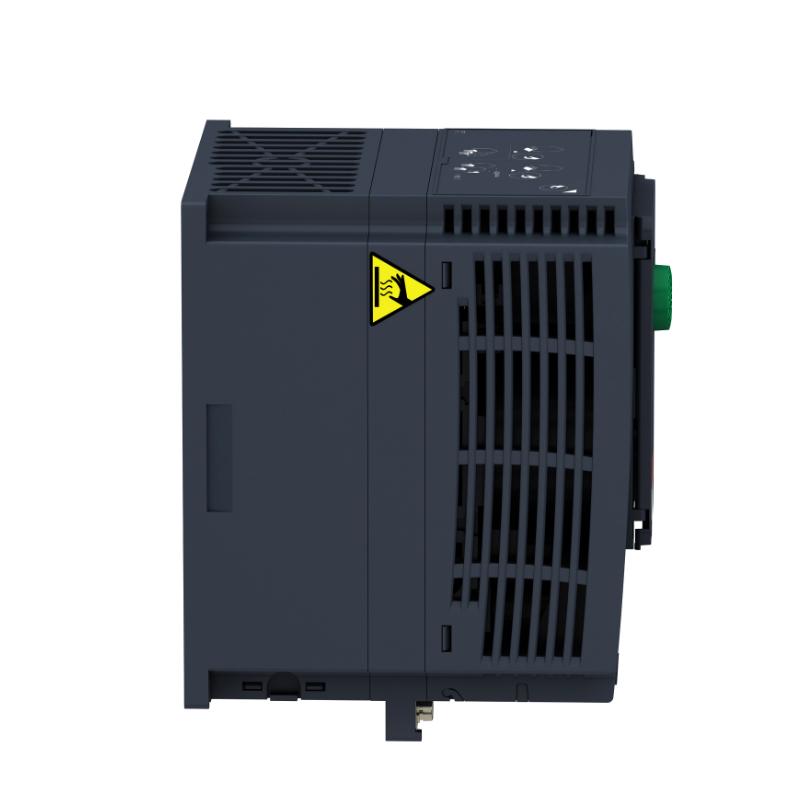

The Schneider ATV320U30N4C is a high-performance compact variable speed drive from the Altivar Machine ATV320 series, engineered for precision motor control in modern industrial systems. Designed with a space-efficient structure and advanced control capabilities, this model is ideal for OEM machine builders and automation engineers seeking both performance and flexibility.
Supporting a wide range of motor types and control modes, the ATV320U30N4C delivers stable torque, accurate speed regulation, and reliable operation across dynamic load conditions. Its compact “control block” design allows easy integration into high-density control cabinets without compromising thermal performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV320U30N4C |
| Product Type | Variable Speed Drive (VFD) |
| Series | Altivar Machine ATV320 |
| Rated Power | 3.0 kW (4 HP) |
| Input Voltage | 380–500 V AC (3-phase) |
| Rated Output Current | Approx. 7.1–11.1 A |
| Output Frequency | Up to 599 Hz |
| Control Method | V/F, Sensorless Vector Control (SVC), PMSM |
| Communication | Modbus, CANopen (expandable) |
| Digital Inputs | 7 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Protection Rating | IP20 |
| EMC Filter | Integrated |
| Safety Function | Safe Torque Off (STO) |
| Operating Temperature | -10°C to +50°C (up to 60°C with derating) |
| Dimensions (H × W × D) | Approx. 184 × 140 × 158 mm |
| Weight | Approx. 2.2 kg |
| Mounting Type | Compact / Panel Mount |
