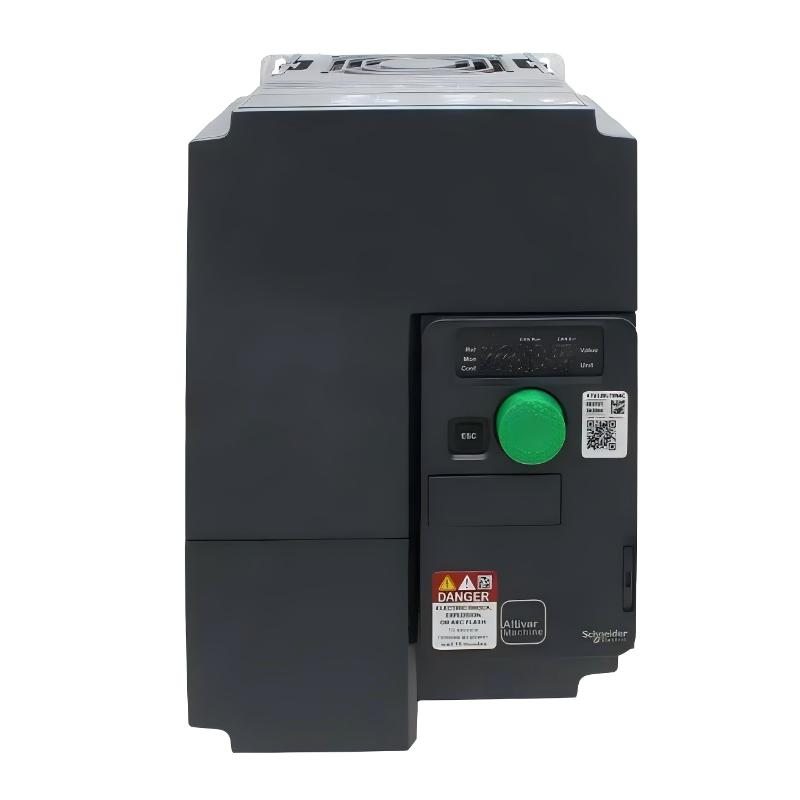

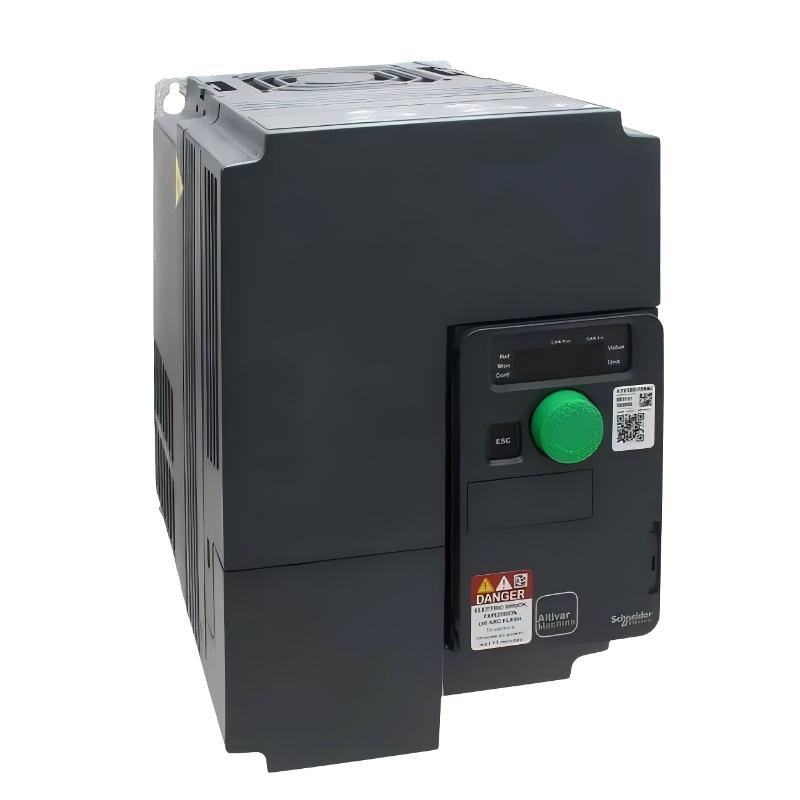

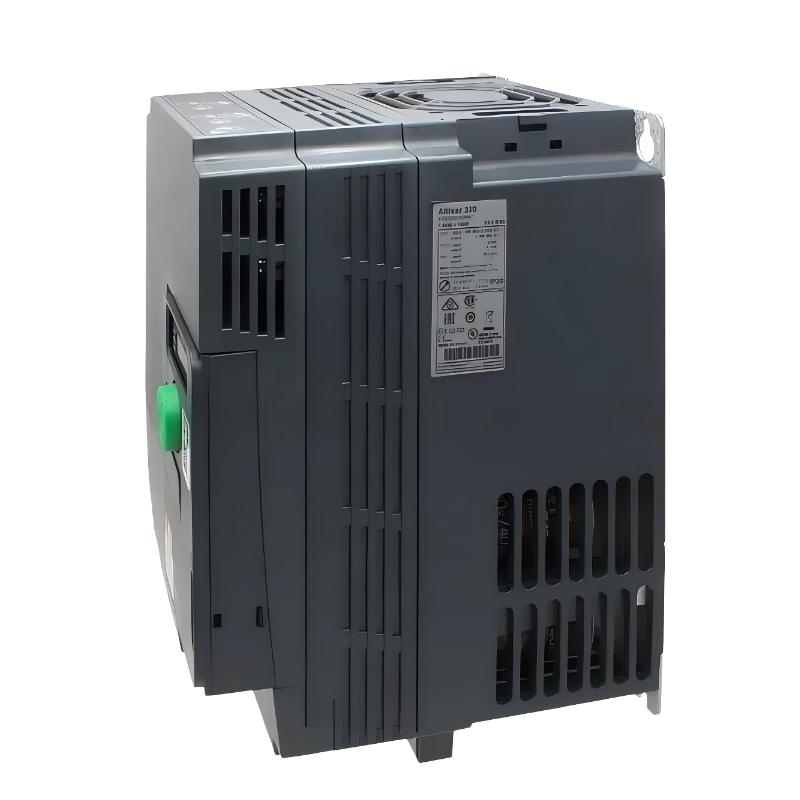

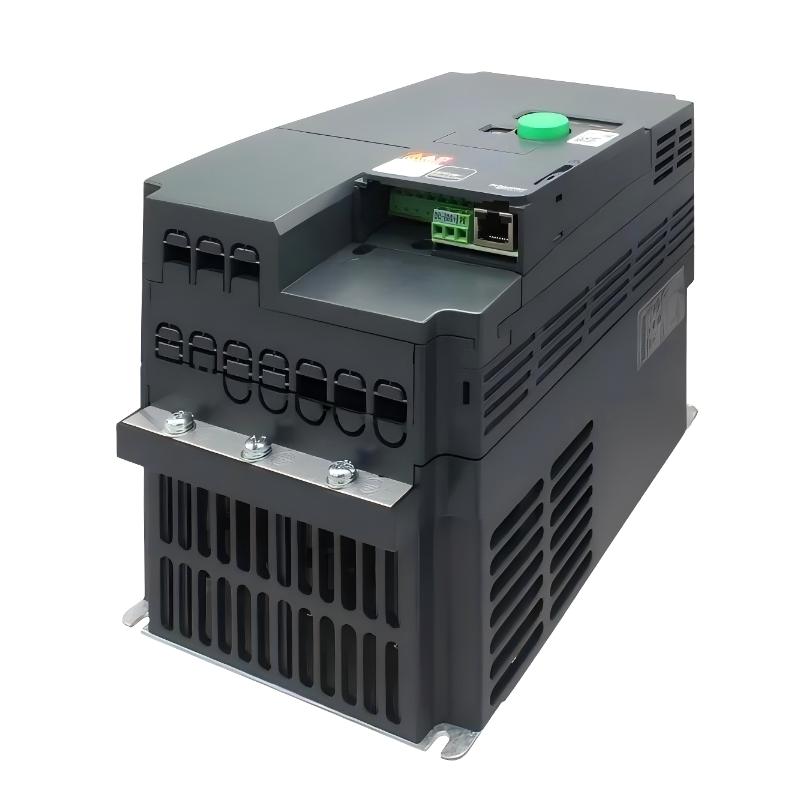

The Schneider ATV320U75N4C is a powerful compact variable speed drive from the Altivar Machine ATV320 series, designed for advanced industrial automation and OEM machinery. Combining a 7.5kW output with a compact footprint, this model offers an excellent balance between performance and space efficiency, making it ideal for modern control cabinets.
Engineered with advanced vector control and robust industrial design, the drive delivers precise torque, smooth speed regulation, and reliable operation even under heavy-duty conditions. Its flexible architecture supports scalable communication and integration into intelligent automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV320U75N4C |
| Product Type | Variable Speed Drive (VFD) |
| Series | Altivar Machine ATV320 |
| Rated Power | 7.5 kW |
| Input Voltage | 380–500 V AC (3-phase) |
| Rated Output Current | 17 A |
| Maximum Input Current | 26.5 A |
| Output Frequency | 0.1 – 599 Hz |
| Control Method | Sensorless Vector Control, V/F |
| Communication | Modbus, CANopen (expandable) |
| Digital Inputs | 7–9 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Protection Rating | IP20 |
| EMC Filter | Integrated |
| Overload Capacity | 170–200% torque |
| Operating Temperature | -10°C to +50°C (up to 60°C with derating) |
| Dimensions (H × W × D) | 232 × 150 × 178 mm |
| Weight | Approx. 3.6 kg |
| Mounting Type | Wall / Panel Mount |
Core specifications verified from industrial product data
Recommended Related Models
- ATV320U55N4C – 5.5 kW version for medium-duty applications
- ATV320U75N4B – Book-style version for ultra-slim cabinets
- ATV320D75N4C – Chassis type for advanced system integration
- ATV320U90N4C – Higher power model for heavy-duty systems
- ATV340U75N4 – High-end drive for dynamic motion control
