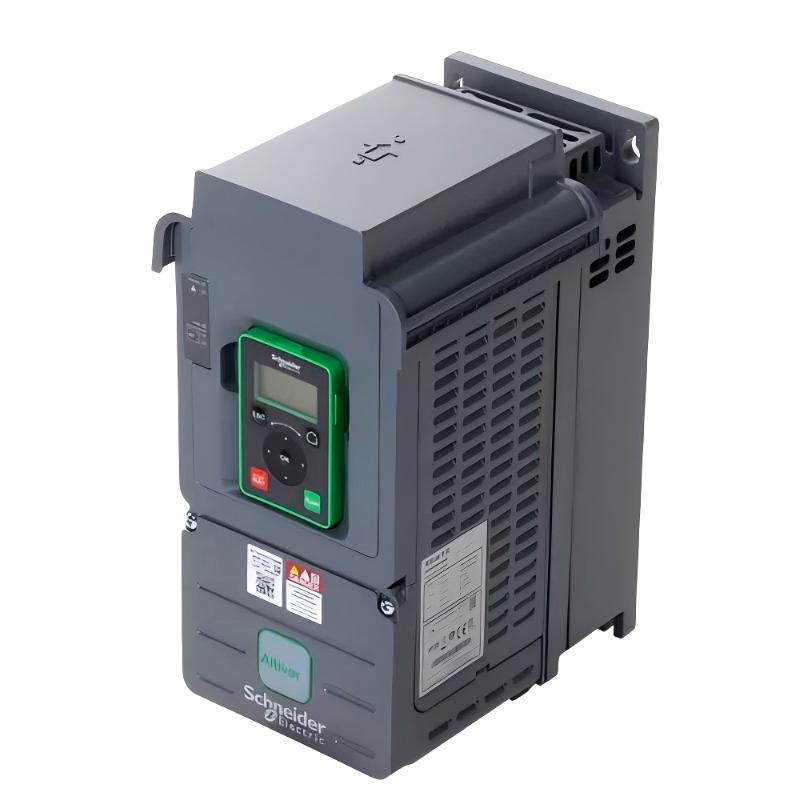

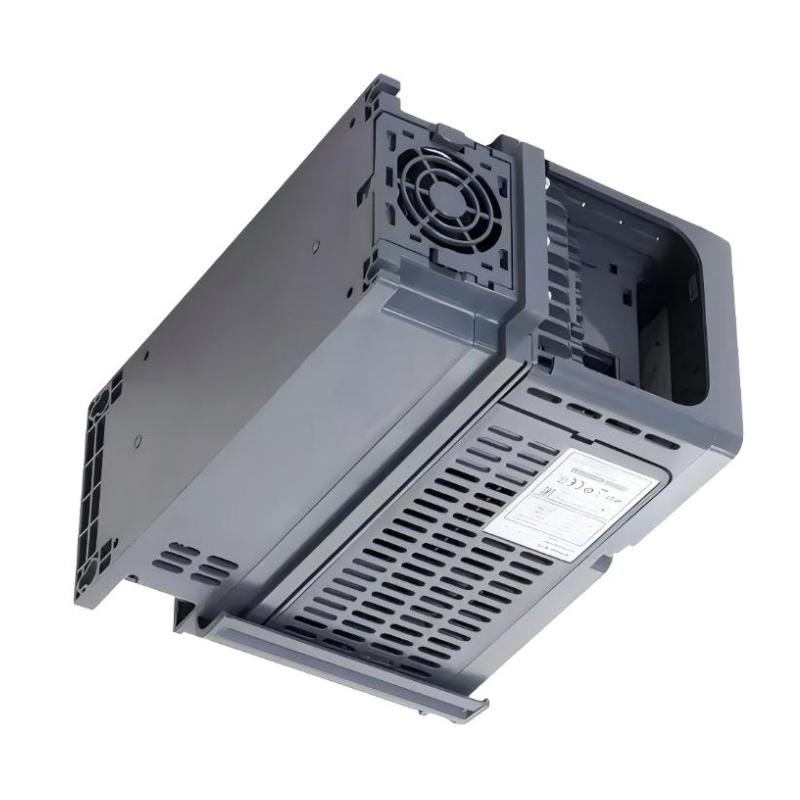

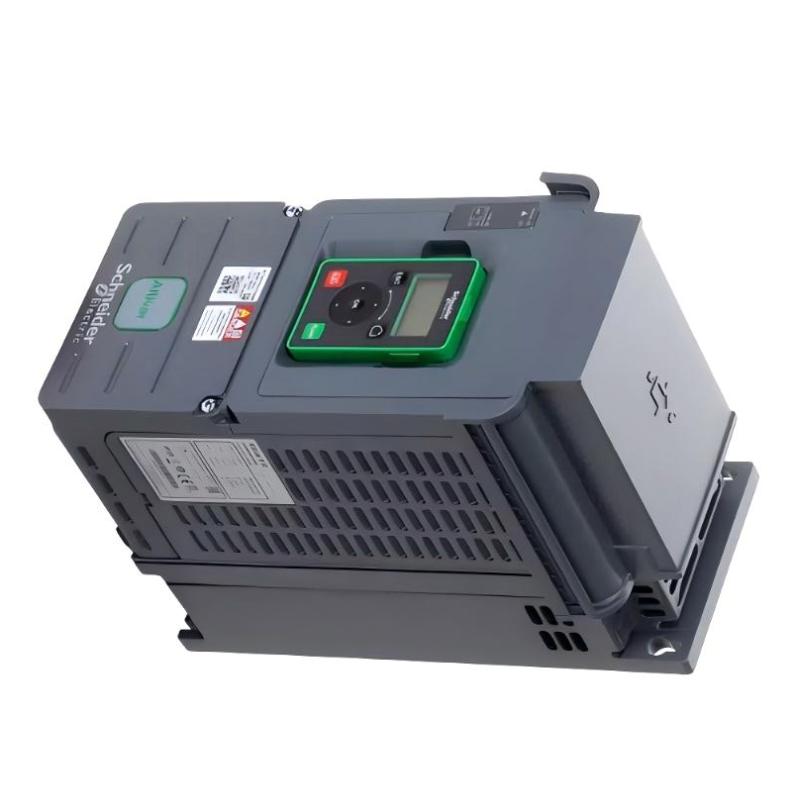

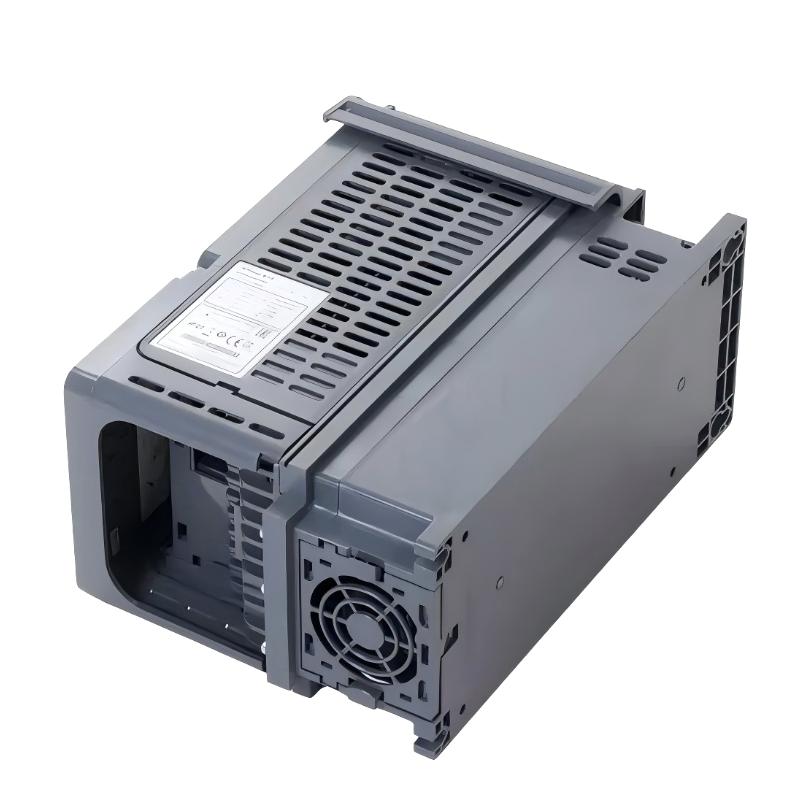

The Schneider ATV610U15N4 is a process-oriented variable frequency drive from the Easy Altivar 610 series, purpose-built for fluid management systems such as pumps, fans, and compressors. Designed with simplicity, reliability, and energy efficiency in mind, this drive provides stable motor control while significantly reducing operational energy costs.
With built-in Modbus communication, integrated EMC filter, and intuitive commissioning features, the ATV610U15N4 is an ideal solution for engineers seeking a dependable and cost-effective drive for continuous process applications. It is especially well-suited for water treatment, HVAC, and industrial process systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV610U15N4 |
| Product Type | Variable Speed Drive (VFD) |
| Series | Easy Altivar 610 |
| Rated Power | 1.5 kW (2 HP) |
| Input Voltage | 380–460 V AC (3-phase) |
| Rated Output Current | 5.7 A (380V, normal duty) |
| Output Frequency | 0.1 – 500 Hz |
| Control Method | V/F, Optimized Torque Control |
| Communication | Modbus RTU (built-in) |
| Digital Inputs | 6 |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Protection Rating | IP20 |
| EMC Filter | Integrated (IEC/EN 61800-3 C3) |
| Cooling Method | Forced convection |
| Operating Temperature | -15°C to +45°C |
| Dimensions (H × W × D) | 297 × 145 × 203 mm |
| Weight | Approx. 2.4 kg (shipping ~4 kg) |
| Mounting Type | Wall / Cabinet Mount |
Technical data verified from manufacturer datasheet and distributor specifications
