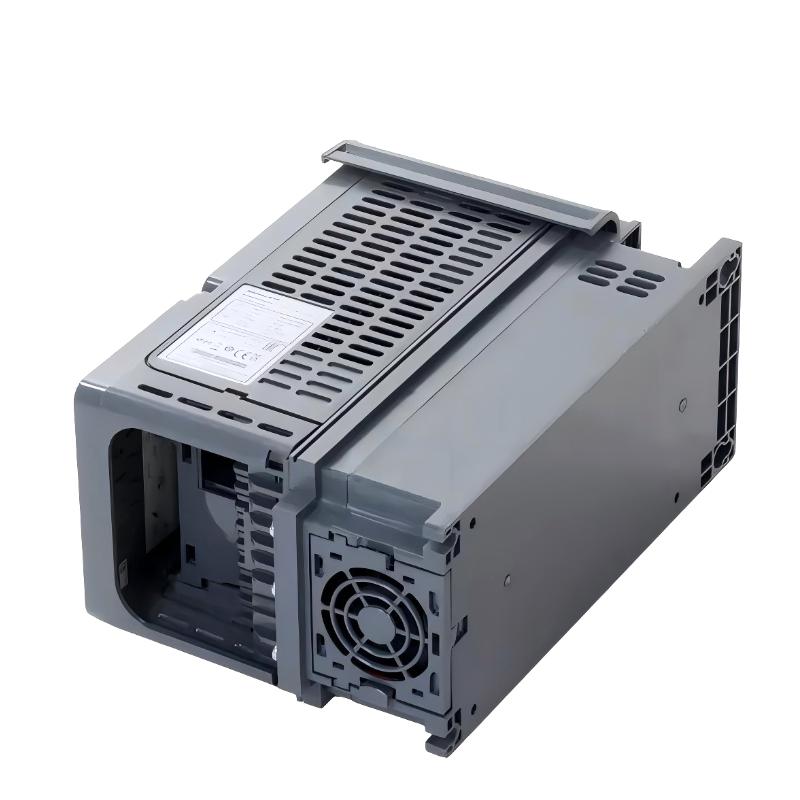

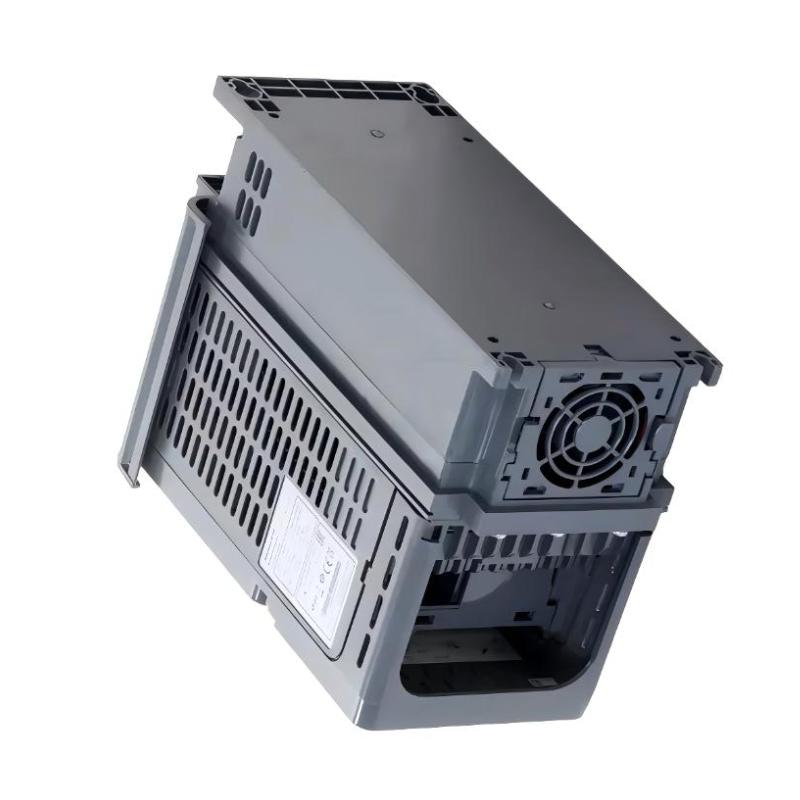

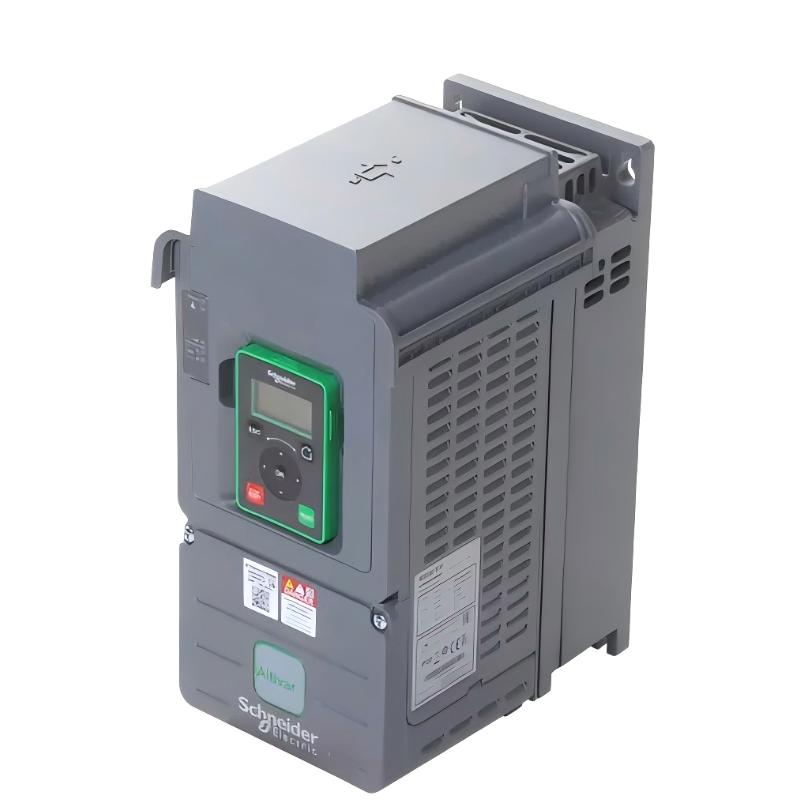

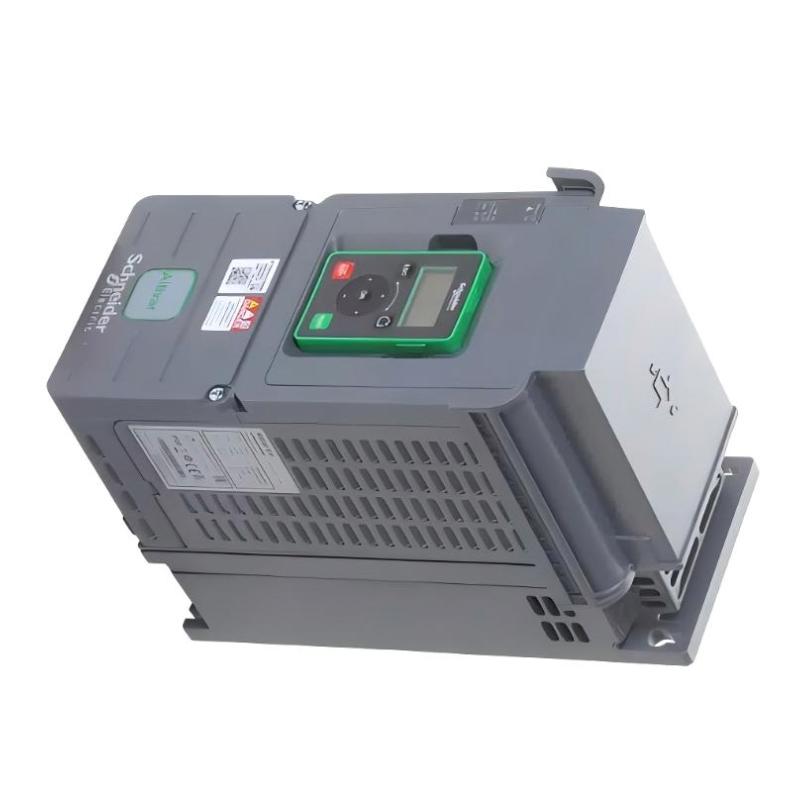

Schneider ATV610U30N4 Easy Altivar 610 Series 3kW Variable Frequency Drive for Energy-Efficient Pump, Fan and Process Automation Applications
Schneider ATV610U30N4 Easy Altivar 610 Series 3kW Variable Frequency Drive for Energy-Efficient Pump, Fan and Process Automation Applications
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV610U30N4 Product Origin:France Product Dimensions:297 × 145 × 203 mm Product Weight:2.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV610U30N4 is a process-focused variable frequency drive from the Easy Altivar 610 series, designed to deliver reliable, energy-efficient motor control for pumps, fans, compressors, and general process automation systems.
With its robust industrial design and simplified commissioning, this drive enables fast deployment while maintaining stable performance in continuous-duty environments. It is particularly well-suited for water treatment, HVAC systems, and fluid management applications where efficiency, uptime, and ease of integration are essential.
Technical Specifications
Parameter
Specification
Model
ATV610U30N4
Product Type
Variable Speed Drive (VFD)
Series
Easy Altivar 610
Rated Power
3.0 kW
Input Voltage
380–460 V AC (3-phase)
Rated Output Current
7.2 A (normal duty)
Output Frequency
0.1 – 500 Hz
Control Method
V/F, Optimized Torque Control
Communication
Modbus RTU (built-in)
Digital Inputs
6
Analog Inputs
3
Analog Outputs
2
Protection Rating
IP20
EMC Filter
Integrated (IEC/EN 61800-3 C3)
Cooling Method
Forced convection
Operating Temperature
-15°C to +45°C
Dimensions (H × W × D)
297 × 145 × 203 mm
Weight
Approx. 2.4 kg
Mounting Type
Wall / Cabinet Mount
Recommended Related Models
ATV610U22N4 – 2.2 kW version for medium applications
ATV610U37N4 – 3.7 kW model for higher load systems
ATV610D18N4 – 18.5 kW high-power process drive
ATV630U30N4 – Advanced process drive alternative
ATV320U30N4C – Machine automation drive for OEM systems
Popular Schneider Electric Models
Altivar 610 Process Drives
Altivar 630 Process Drives
Altivar 320 Machine Drives
Modicon M221 / M241 PLC
TeSys Motor Control Series
Applications
The ATV610U30N4 is engineered for process-driven industries requiring stable and efficient motor control:
Water supply and wastewater treatment systems
HVAC systems (fans and air handling units)
Pumping and fluid transfer applications
Industrial ventilation and compressors
Conveyor systems in process environments
Oil & gas auxiliary systems
Advantages
Process-Optimized Design: Specifically tuned for pump and fan applications with optimized torque control
Energy Efficiency: Reduces power consumption in variable torque systems, lowering operational costs
Integrated EMC Filter: Ensures compliance and minimizes electrical interference
Reliable Continuous Operation: Built for long-term industrial use with stable performance
Flexible Communication: Built-in Modbus with expansion options for system integration
Technical FAQs
1. What motor capacity does this drive support?
It supports motors up to 3 kW under normal duty conditions.
2. What is the input voltage range?
380–460 V AC, three-phase supply.
3. What applications is it designed for?
Primarily pumps, fans, compressors, and conveyors.
4. What is the output frequency range?
0.1 Hz to 500 Hz.
5. Does it support communication protocols?
Yes, Modbus RTU is built-in.
6. Is an EMC filter included?
Yes, an integrated EMC filter is standard.
7. Can it operate continuously?
Yes, it is designed for continuous industrial operation.
8. What is the protection rating?
IP20, suitable for control cabinet installation.
9. What type of motors are supported?
Three-phase asynchronous motors are primarily supported.
10. What is the difference between ATV610 and ATV320 series?
ATV610 is optimized for process applications (pumps/fans), while ATV320 targets machine automation.
