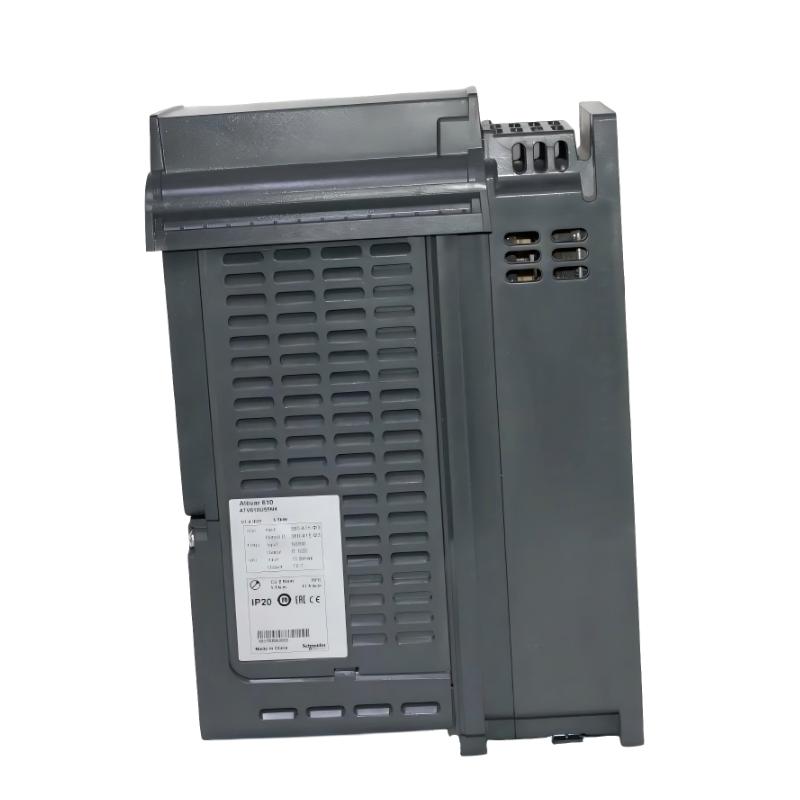

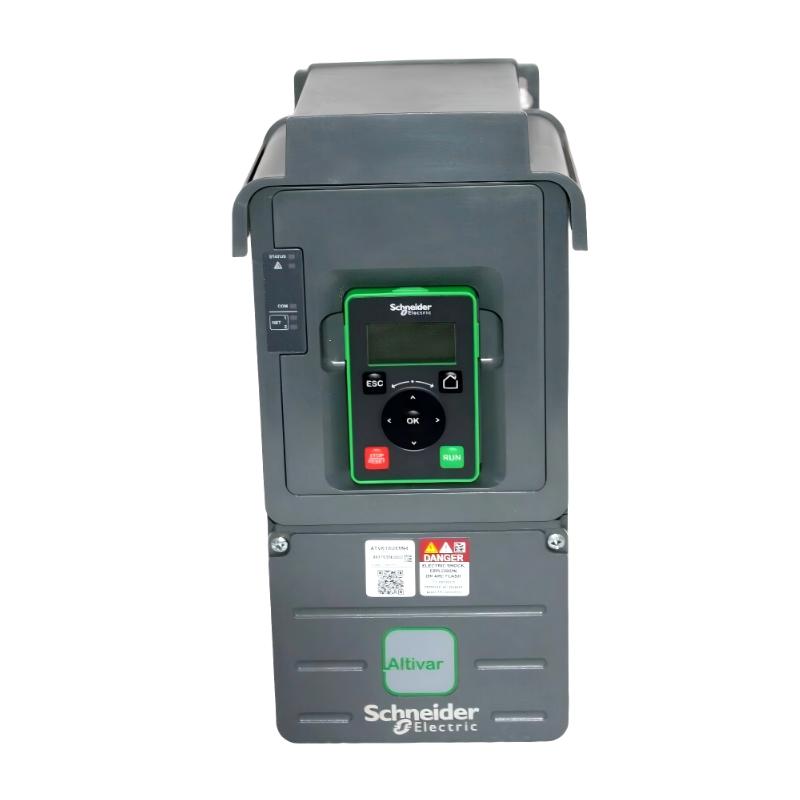

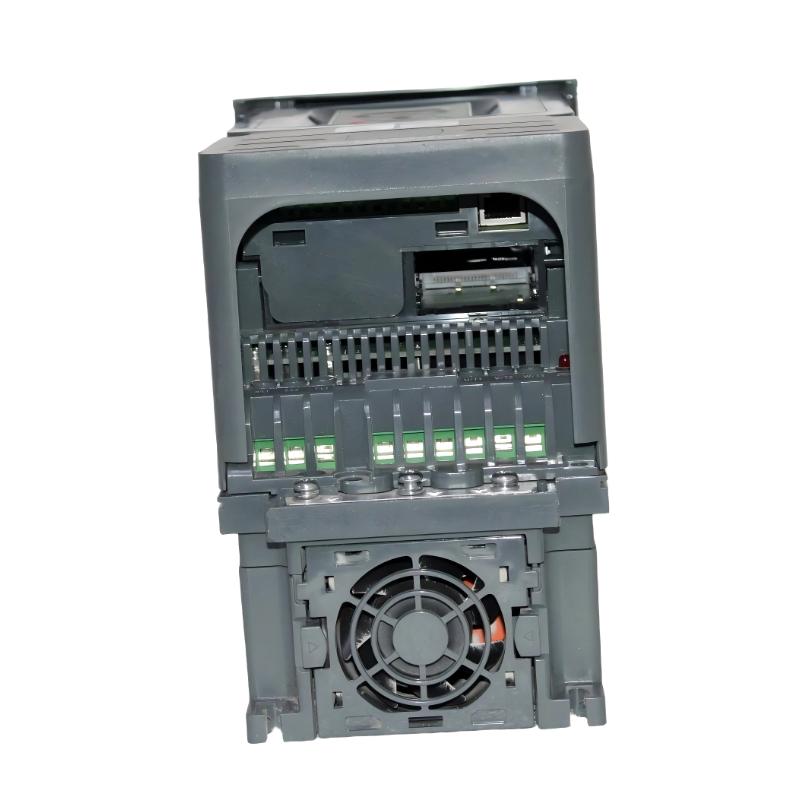

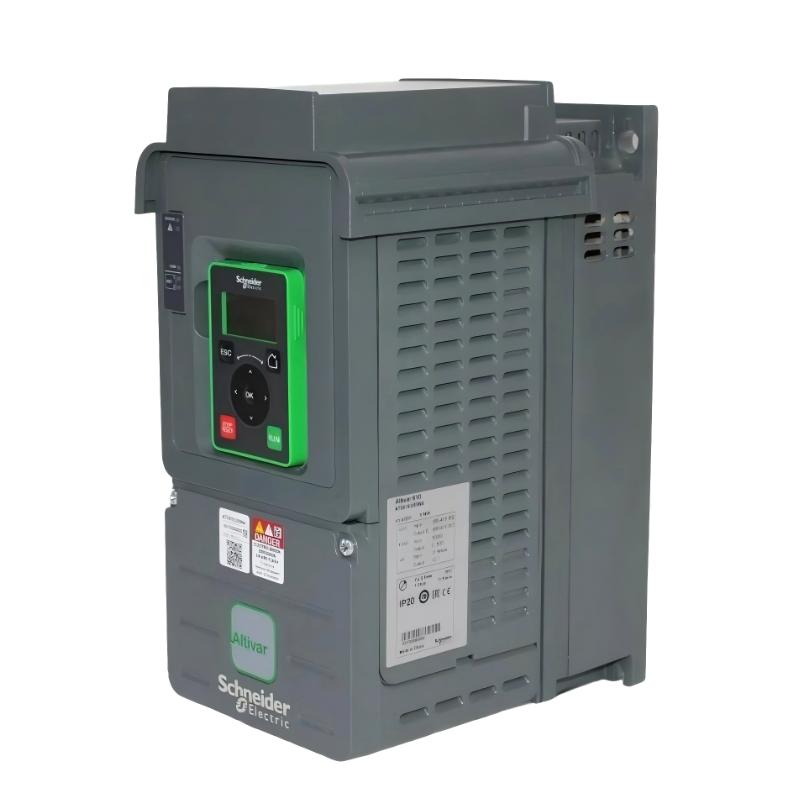

The Schneider ATV610U55N4 is a high-performance variable frequency drive from the Easy Altivar 610 series, purpose-built for process industries such as water treatment, HVAC, and fluid management systems. Delivering 5.5kW of power in a compact and durable design, it ensures reliable motor control for pumps, fans, compressors, and conveyors.
Designed for continuous-duty environments, this drive combines energy efficiency, ease of commissioning, and robust protection features. With integrated EMC filtering and built-in Modbus communication, it offers seamless integration into modern industrial control systems while reducing installation complexity and operating costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV610U55N4 |
| Product Type | Variable Speed Drive (VFD) |
| Series | Easy Altivar 610 |
| Rated Power | 5.5 kW (7.5 HP) |
| Input Voltage | 380–460 V AC (3-phase) |
| Rated Output Current | 12.7 A (normal duty) |
| Output Frequency | 0.1 – 500 Hz |
| Control Method | V/F, Optimized Torque Control |
| Communication | Modbus RTU (built-in) |
| Digital Inputs | 6 |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Protection Rating | IP20 |
| EMC Filter | Integrated (IEC/EN 61800-3 C3) |
| Cooling Method | Forced convection |
| Operating Temperature | -15°C to +45°C |
| Dimensions (H × W × D) | 297 × 145 × 203 mm |
| Weight | Approx. 4.1 kg |
| Mounting Type | Cabinet / Wall Mount |
Key specifications verified from manufacturer and distributor technical data
