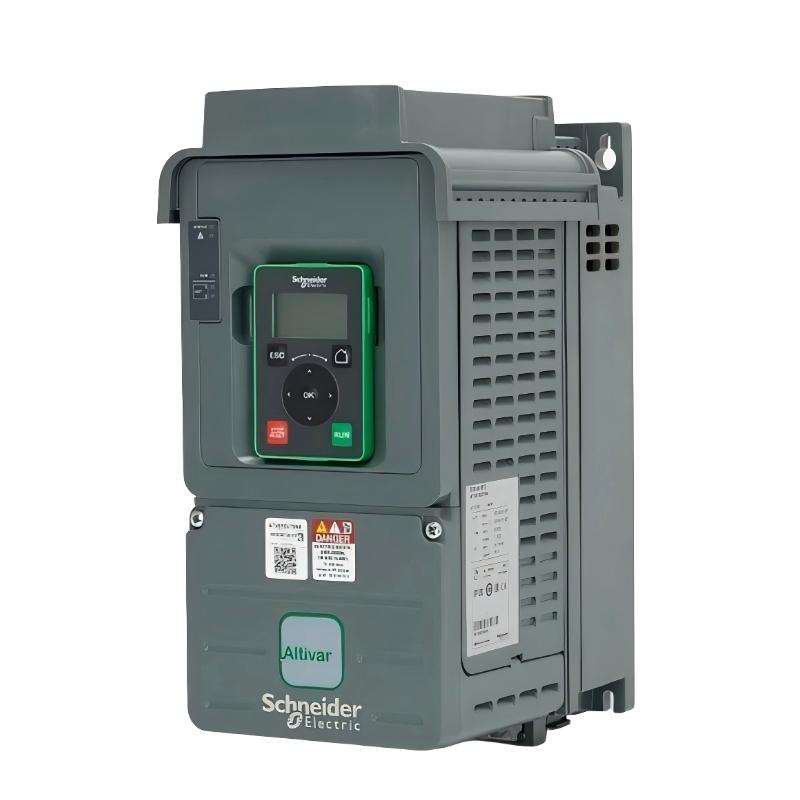

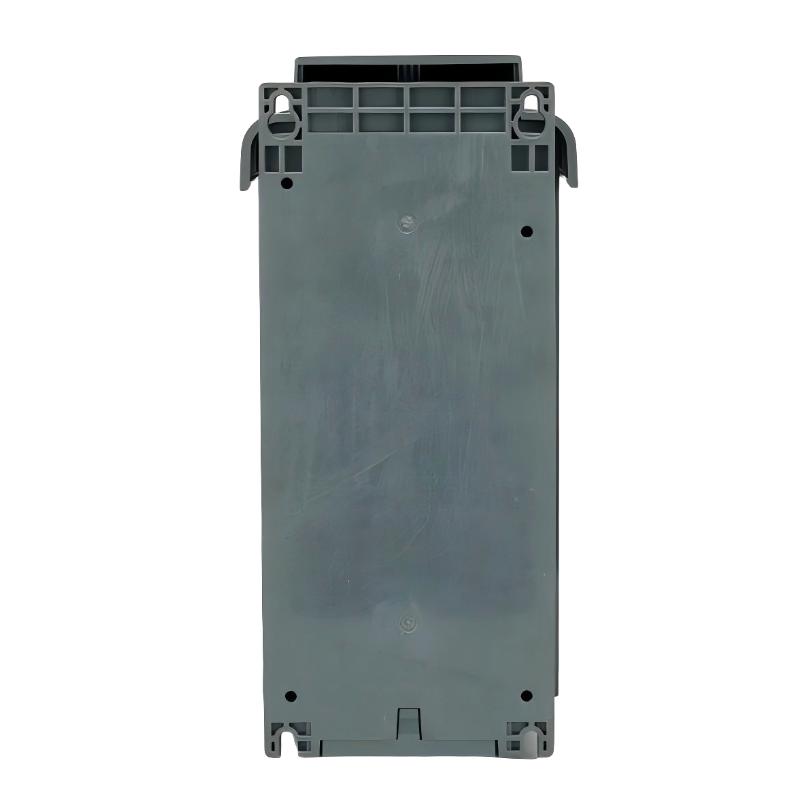

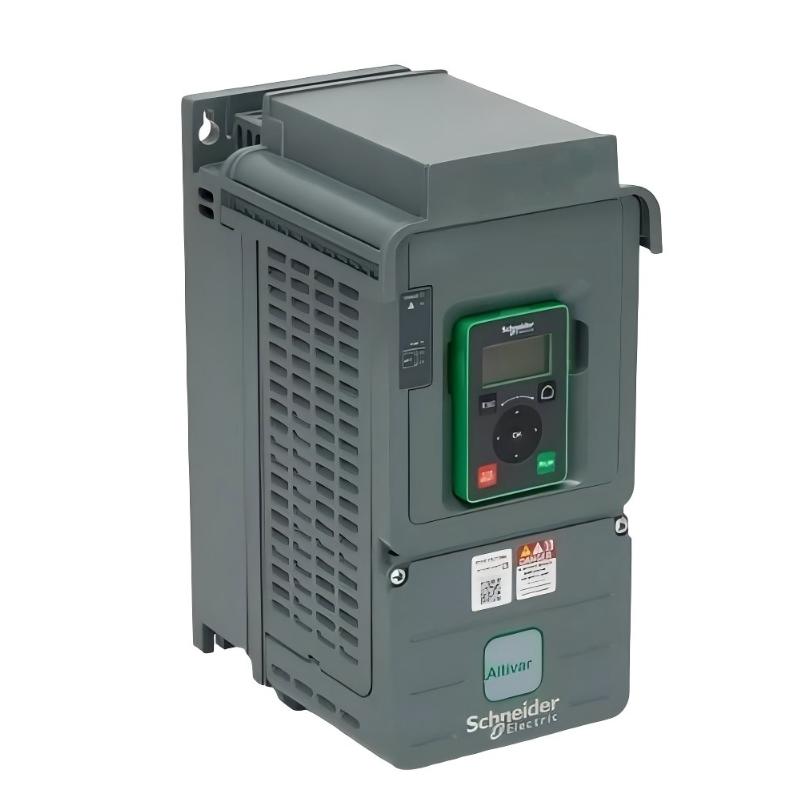

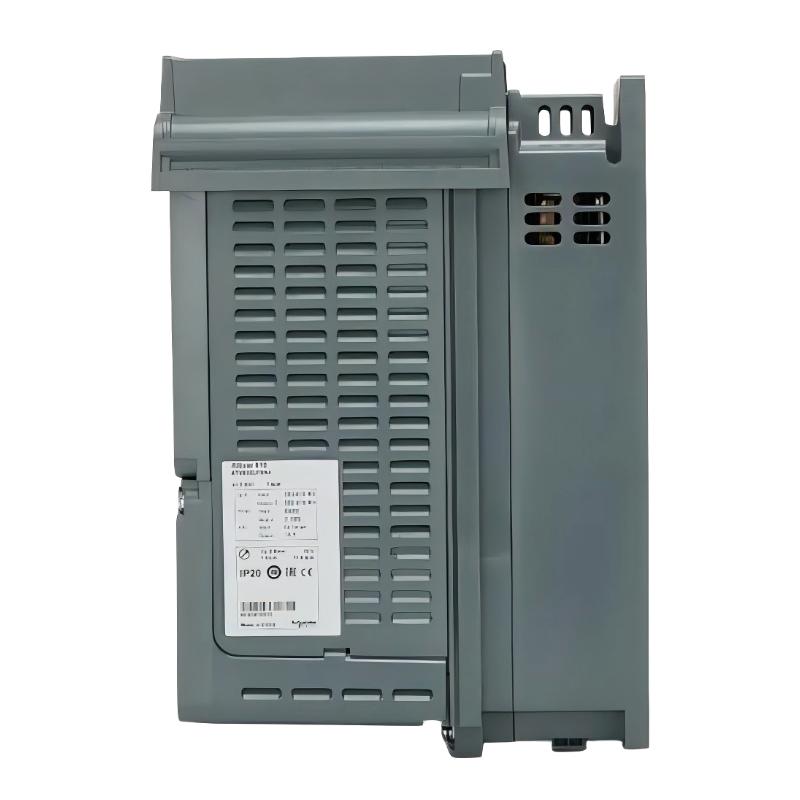

Schneider ATV610U75N4 Easy Altivar 610 Series 7.5kW Variable Frequency Drive for High-Efficiency Pump, Fan and Process Automation Systems
Schneider ATV610U75N4 Easy Altivar 610 Series 7.5kW Variable Frequency Drive for High-Efficiency Pump, Fan and Process Automation Systems
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV610U75N4 Product Origin: France Product Dimensions:297 × 145 × 203 mm Product Weight:4.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV610U75N4 is a high-power variable frequency drive from the Easy Altivar 610 series, purpose-built for process automation applications such as pumps, fans, compressors, and fluid handling systems. Delivering 7.5kW of output power, it is designed to ensure stable operation, energy savings, and long-term reliability in continuous-duty industrial environments.
With its plug-and-play commissioning, integrated EMC filter, and built-in Modbus communication, this drive simplifies installation while providing advanced control capabilities. It is widely trusted in water treatment, HVAC, oil & gas, and industrial processing systems where uptime and efficiency are critical.
Technical Specifications
Parameter
Specification
Model
ATV610U75N4
Product Type
Variable Speed Drive (VFD)
Series
Easy Altivar 610
Rated Power
7.5 kW (10 HP)
Input Voltage
380–460 V AC (3-phase)
Rated Output Current
15.8 A (normal duty)
Output Frequency
0.1 – 500 Hz
Control Method
V/F, Optimized Torque Control
Communication
Modbus RTU (built-in)
Digital Inputs
6
Analog Inputs
3
Analog Outputs
2
Protection Rating
IP20
EMC Filter
Integrated (IEC/EN 61800-3 C3)
Cooling Method
Forced convection
Operating Temperature
-15°C to +45°C
Dimensions (H × W × D)
297 × 145 × 203 mm
Weight
Approx. 4.1 – 4.6 kg
Mounting Type
Cabinet / Wall Mount
Recommended Related Models
ATV610U55N4 – 5.5 kW version for medium-duty applications
ATV610U90N4 – 9 kW model for higher power demands
ATV610D18N4 – 18.5 kW drive for large-scale systems
ATV630U75N4 – Advanced process drive with extended features
ATV320U75N4C – Machine-oriented drive for OEM automation
Popular Schneider Electric Models
Altivar 610 Process Drives
Altivar 630 Series Drives
Altivar 320 Machine Drives
Modicon M241 / M251 PLC
TeSys Motor Control Components
Applications
The ATV610U75N4 is engineered for process-intensive industries requiring stable and energy-efficient motor control:
Water supply and wastewater treatment systems
HVAC systems (fans, air handling units)
Pumping and fluid transfer applications
Industrial ventilation and compressors
Oil & gas auxiliary systems
Conveyor systems in process environments
Advantages
High Power Capability: Supports up to 7.5 kW motors for demanding applications
Energy Optimization: Reduces power consumption in variable torque systems such as pumps and fans
Integrated EMC Filter: Minimizes interference and ensures compliance
Reliable Continuous Operation: Designed for 24/7 industrial environments
Flexible Communication: Built-in Modbus with expansion capability
Technical FAQs
1. What motor capacity does this drive support?
It supports motors up to 7.5 kW (10 HP).
2. What is the input voltage range?
380–460 V AC, three-phase supply.
3. What applications is it designed for?
Pumps, fans, compressors, conveyors, and process automation systems.
4. What is the output frequency range?
0.1 Hz to 500 Hz depending on configuration.
5. Does it support communication protocols?
Yes, Modbus RTU is built-in, with optional expansion modules.
6. Is an EMC filter included?
Yes, an integrated EMC filter compliant with IEC standards is included.
7. What is the rated output current?
Up to approximately 15.8 A (normal duty).
8. Can it operate continuously?
Yes, it is designed for continuous industrial operation.
9. What type of motors are supported?
Primarily three-phase asynchronous motors.
10. What is the difference between ATV610 and ATV320?
ATV610 is optimized for process applications (pumps/fans), while ATV320 is designed for machine automation.
