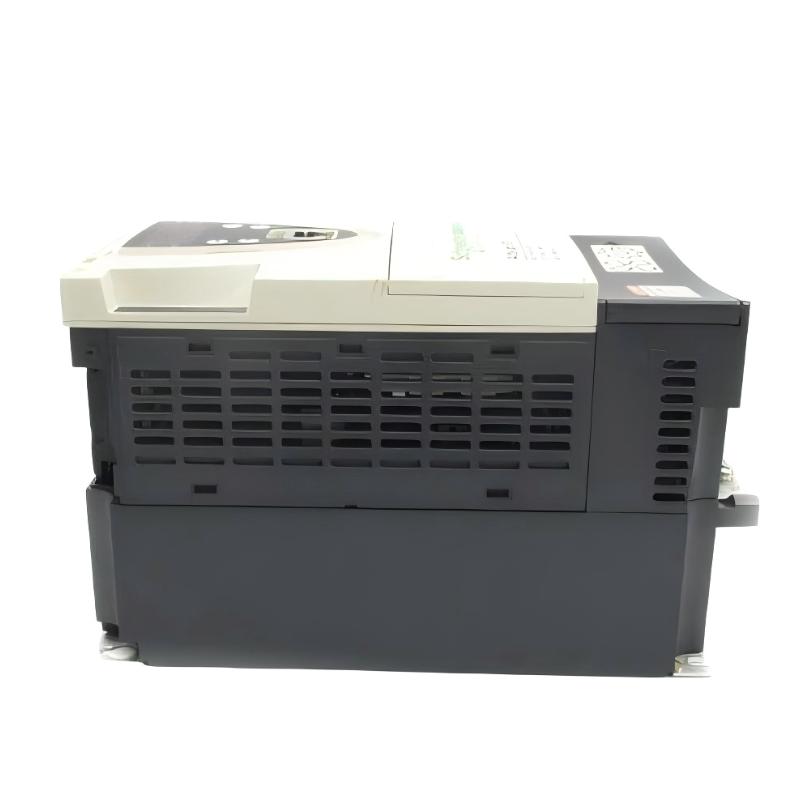

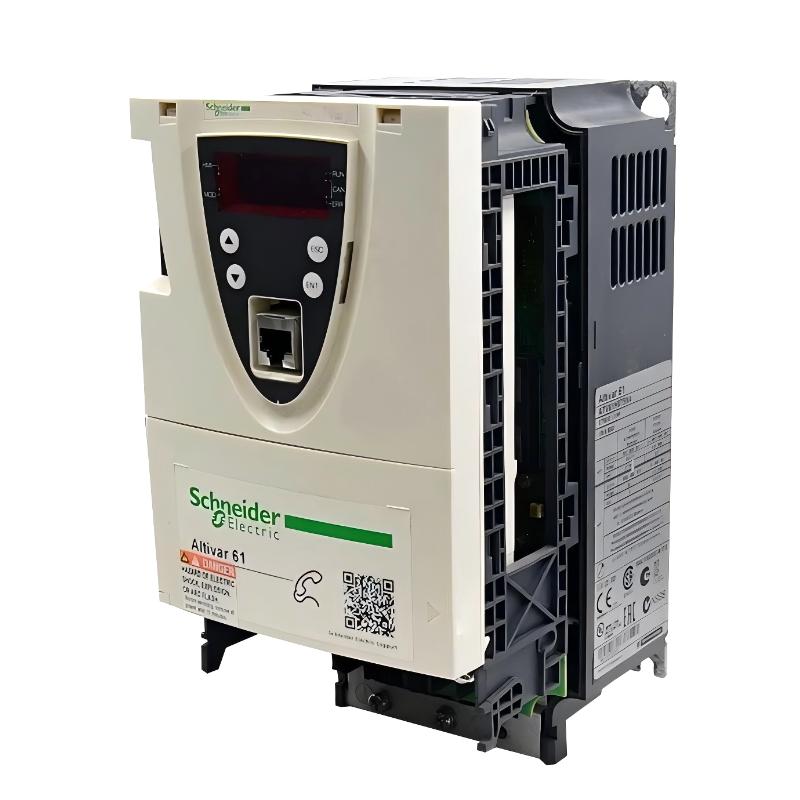

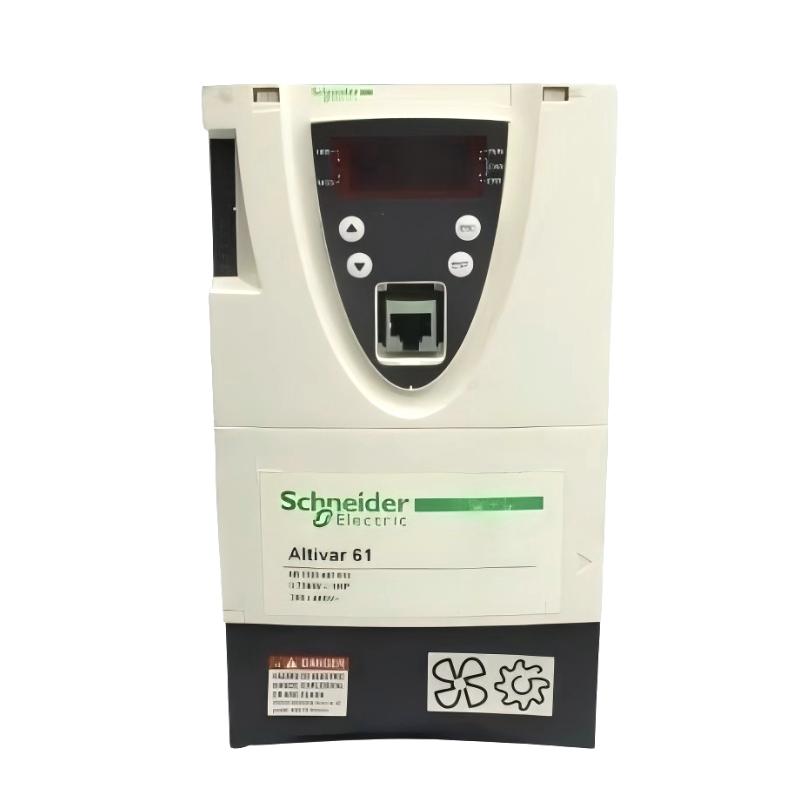

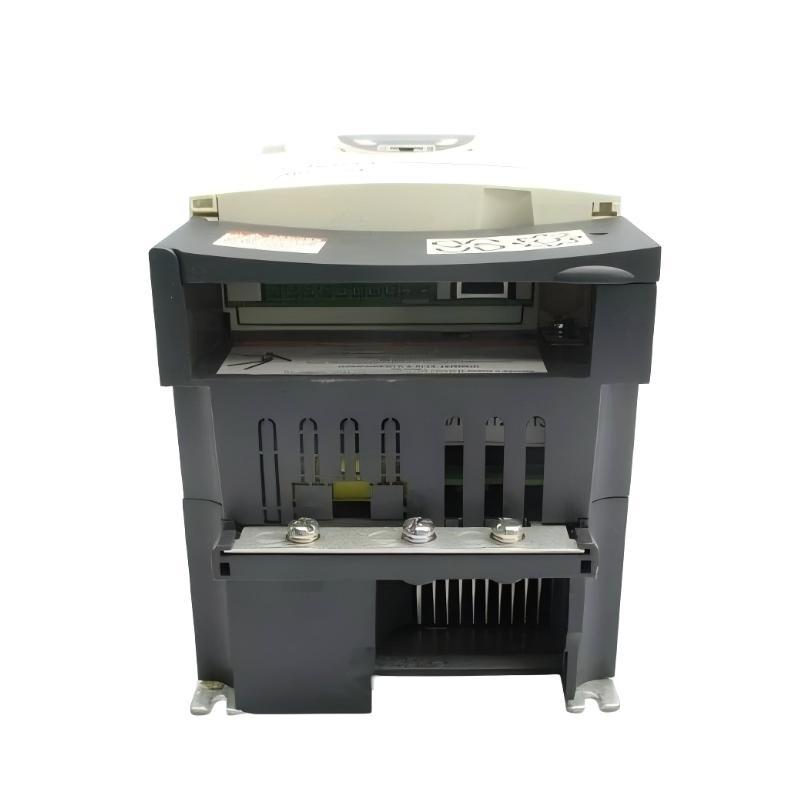

Schneider ATV61H075N4 Altivar 61 Series 0.75kW Variable Frequency Drive for Pumping and Ventilation Process Control
Schneider ATV61H075N4 Altivar 61 Series 0.75kW Variable Frequency Drive for Pumping and Ventilation Process Control
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV61H075N4 Product Origin: France Product Dimensions:230 × 130 × 175 mm Product Weight:3.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV61H075N4 is a reliable variable frequency drive from the Altivar 61 series, specifically designed for process applications such as pumps, fans, and ventilation systems. Known for its stability and energy-saving capabilities, this drive has been widely used in industrial environments where continuous operation and efficiency are critical.
With advanced motor control technologies and extensive communication options, the ATV61H075N4 enables precise speed regulation and seamless integration into automation systems. Although now discontinued, it remains a trusted solution in legacy systems and retrofit projects due to its proven performance and versatility.
Technical Specifications
Parameter
Specification
Model
ATV61H075N4
Product Type
Variable Frequency Drive (VFD)
Series
Altivar 61
Rated Power
0.75 kW (1 HP)
Input Voltage
380–480 V AC (3-phase)
Rated Output Current
2.3 A (380V) / 2.1 A (460V)
Output Frequency
0.1 – 500 Hz
Control Method
V/F Control, Sensorless Vector Control
Communication
Modbus, CANopen (expandable via option cards)
Protection Rating
IP20
EMC Filter
Integrated Class C2
Switching Frequency
1–16 kHz adjustable
Operating Temperature
Typically 0°C to +50°C
Dimensions (H × W × D)
230 × 130 × 175 mm
Weight
Approx. 3.0 kg
Mounting Type
Heat sink / Panel Mount
Recommended Related Models
ATV61H037N4 – 0.37 kW version for lighter applications
ATV61H075N4A – Variant with alternative configuration
ATV630U07N4 – Next-generation process drive replacement
ATV610U07N4 – Cost-effective modern alternative
ATV320U07N4C – Machine-oriented compact drive
Popular Schneider Electric Models
Altivar 61 Series Drives
Altivar 610 Process Drives
Altivar 630 Process Drives
Modicon M340 / M580 PLC
TeSys Motor Control Range
Applications
The ATV61H075N4 is optimized for process industries requiring stable and energy-efficient motor control:
Water and wastewater treatment systems
HVAC systems (fans, air handling units)
Pumping and fluid transfer systems
Industrial ventilation systems
Oil & gas auxiliary equipment
Building automation systems
Advantages
Process-Oriented Design: Specifically built for pumps and ventilation applications
Energy Efficiency: Optimized V/F control reduces energy consumption in variable torque loads
Flexible Communication: Supports a wide range of industrial protocols via expansion cards
Reliable Performance: Proven stability in continuous industrial operation
Integrated EMC Filter: Ensures compliance and reduces interference
Versatile Motor Support: Compatible with both asynchronous and synchronous motors
Technical FAQs
1. What motor capacity does this drive support?
It supports motors up to 0.75 kW (1 HP).
2. What is the input voltage range?
380–480 V AC, three-phase supply.
3. What applications is it designed for?
Mainly pumps, fans, and ventilation systems.
4. What control methods are available?
V/F control and sensorless vector control.
5. Does it support communication protocols?
Yes, Modbus and CANopen, with many optional fieldbus expansions.
6. Is an EMC filter included?
Yes, a Class C2 EMC filter is integrated.
7. What is the output frequency range?
Typically up to 500 Hz depending on configuration.
8. Is this model still in production?
No, it has been discontinued, with newer series like ATV610/ATV630 recommended.
9. What is the protection rating?
IP20, suitable for installation inside control cabinets.
10. Can it be used for retrofit projects?
Yes, it is widely used as a replacement in existing Altivar 61 systems.
