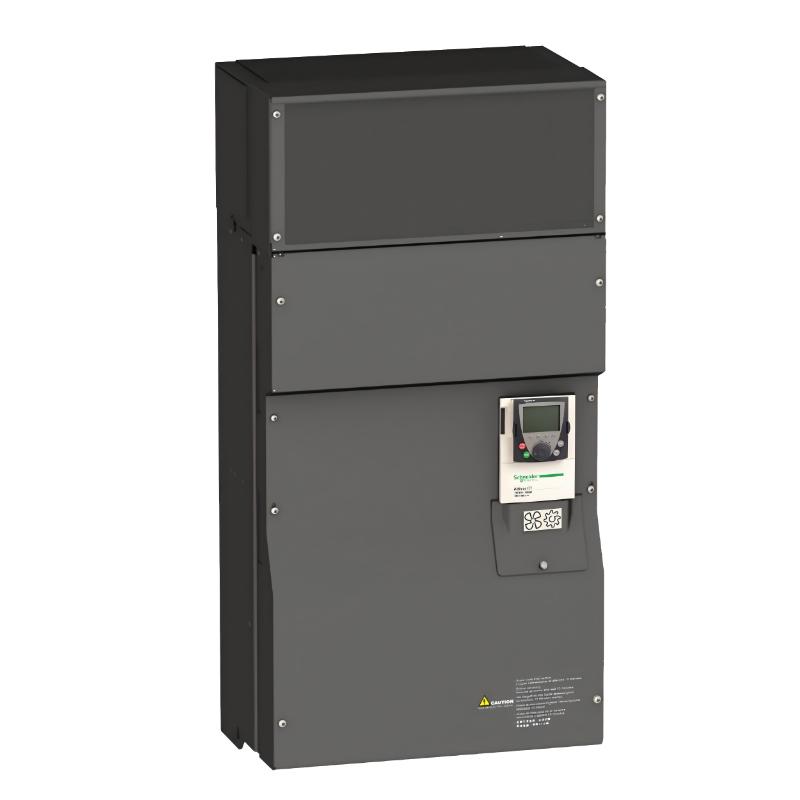

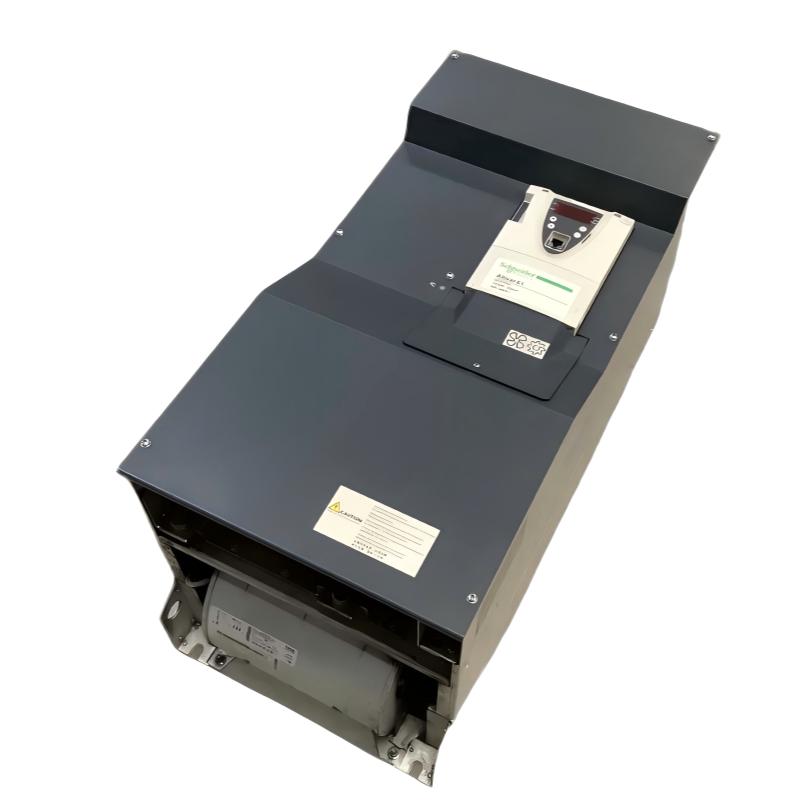

Schneider ATV61HC13N4 Altivar 61 Series 132kW (200HP) Heavy-Duty Variable Frequency Drive for Large-Scale Pumping and Ventilation Systems

Applications

The ATV61HC13N4 is designed for heavy-duty industrial environments requiring reliable and efficient motor control:

• Large water supply and wastewater treatment plants
• Industrial HVAC and ventilation systems
• Pumping stations and irrigation systems
• Oil & gas processing facilities
• Mining and heavy process industries
• Building management and infrastructure systems

Advantages

• High Power Performance: Supports up to 132 kW for large-scale industrial systems
• Process-Optimized Control: Designed specifically for pumps and ventilation applications
• Advanced Motor Control: Combines vector control and V/F for precise operation
• Flexible Communication: Wide range of fieldbus options including Ethernet/IP, Profibus, and BACnet
• Integrated EMC Filter: Reduces interference and ensures compliance
• Robust Industrial Design: Built for continuous operation in harsh environments

Technical FAQs

1. What motor capacity does this drive support?
It supports motors up to 132 kW (200 HP).

2. What is the input voltage range?
380–480 V AC, three-phase power supply.

3. What applications is it designed for?
Primarily pumps, fans, and ventilation systems in process industries.

4. What control methods are available?
Sensorless vector control and V/F control are supported.

5. Does it support communication protocols?
Yes, Modbus and CANopen are standard, with multiple optional fieldbus cards.

6. What is the rated output current?
Up to 224 A at 480 V and 239 A at 380 V.

7. What is the maximum output frequency?
Up to 500 Hz depending on configuration.

8. Is it suitable for continuous operation?
Yes, it is designed for heavy-duty, continuous industrial use.

9. What is the switching frequency range?
Adjustable between 2 kHz and 8 kHz.

10. Is this model still in production?
It has been discontinued, but remains widely used in maintenance and retrofit projects.
