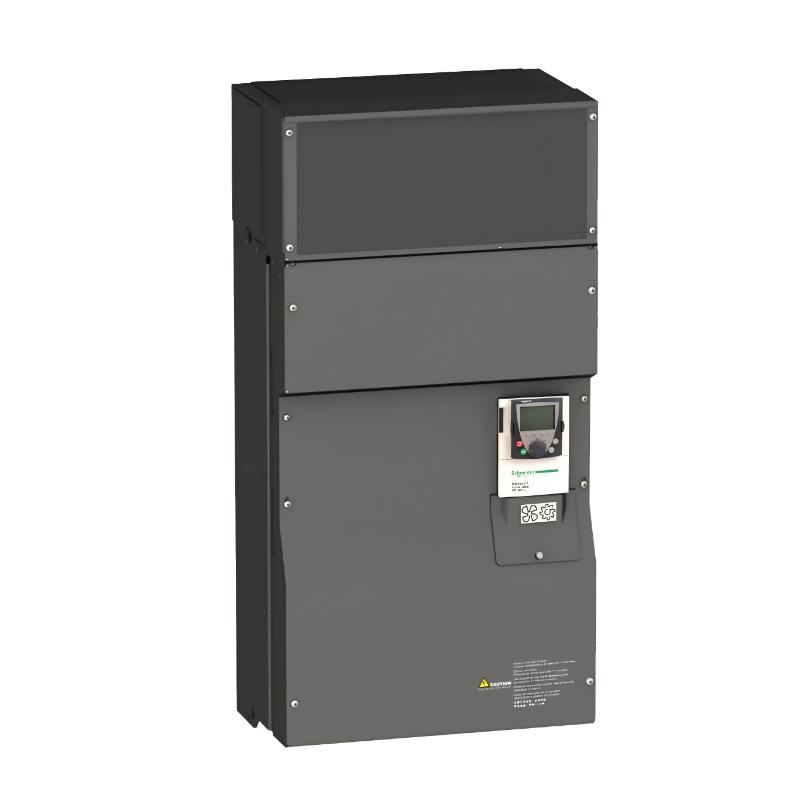

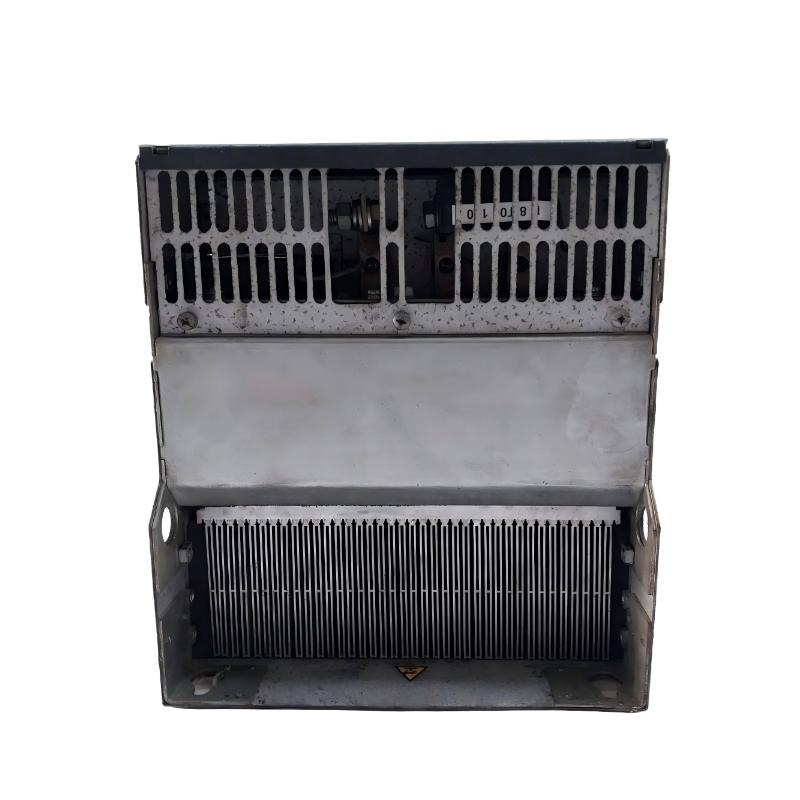

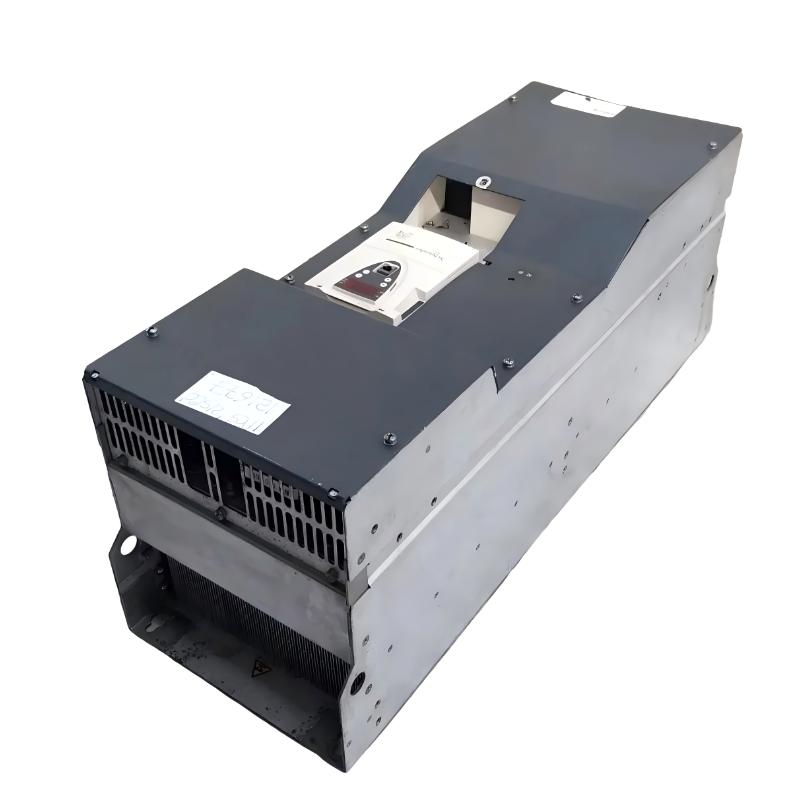

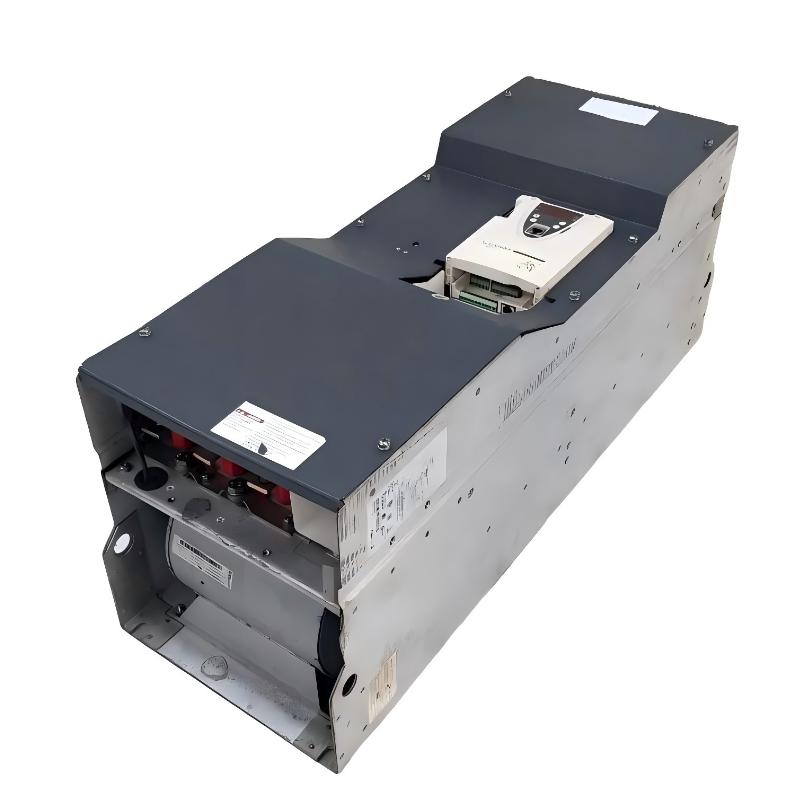

The Schneider ATV61HC16N4 is a high-capacity variable frequency drive from the Altivar 61 series, engineered for large-scale industrial process applications such as pumping, ventilation, and fluid management systems. With a powerful 160kW (250HP) output, this drive is designed to handle demanding workloads while maintaining stable, energy-efficient motor control.
Built for continuous-duty environments, the ATV61HC16N4 combines advanced motor control algorithms with extensive communication flexibility. It remains widely used in legacy installations and retrofit projects, offering dependable performance and seamless integration into complex automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV61HC16N4 |
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 61 |
| Rated Power | 160 kW (250 HP) |
| Input Voltage | 380–480 V AC (3-phase) |
| Rated Output Current | Approx. 289 A (380V) / 275 A (480V) |
| Continuous Output Current | Up to 314 A |
| Output Frequency | 0.1 – 500 Hz |
| Control Method | V/F Control, Sensorless Vector Control |
| Communication | Modbus, CANopen (expandable via fieldbus cards) |
| EMC Filter | Integrated Level 3 EMC filter |
| Switching Frequency | 2–8 kHz adjustable |
| Apparent Power | Approx. 190 kVA |
| Protection Rating | IP20 (expandable with kits) |
| Dimensions (H × W × D) | 1190 × 340 × 377 mm |
| Weight | Approx. 116 kg |
| Mounting Type | Panel / Heat sink mounting |
Technical data based on manufacturer and distributor specifications
Recommended Related Models
- ATV61HC13N4 – 132 kW version for slightly lower capacity systems
- ATV61HC20N4 – Higher power model for extended applications
- ATV610D160N4 – Next-generation Easy Altivar replacement
- ATV630D160N4 – Advanced process drive with enhanced diagnostics
- ATV320D110N4C – Machine automation alternative
