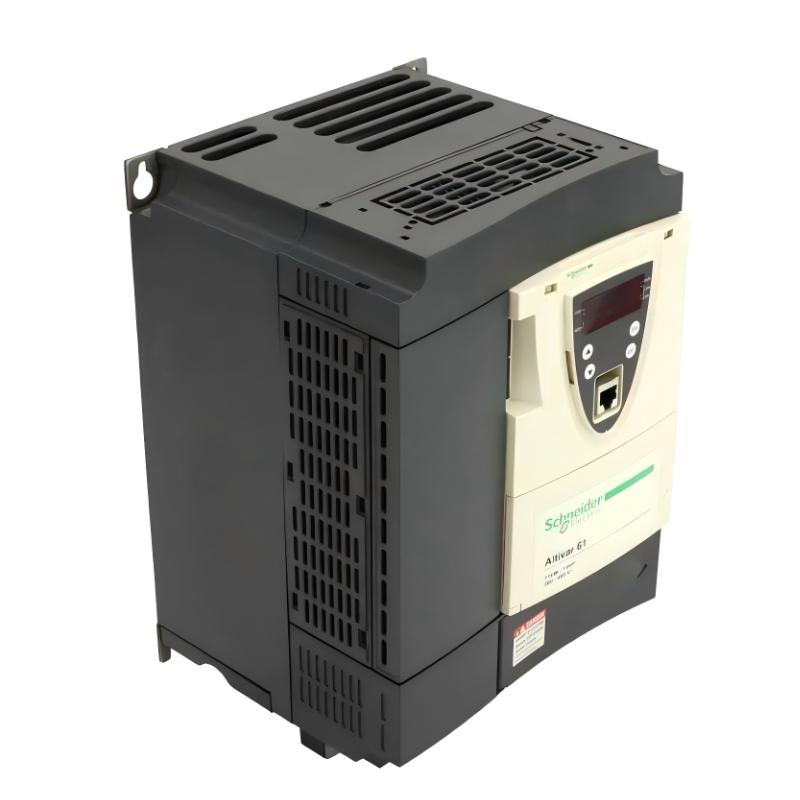

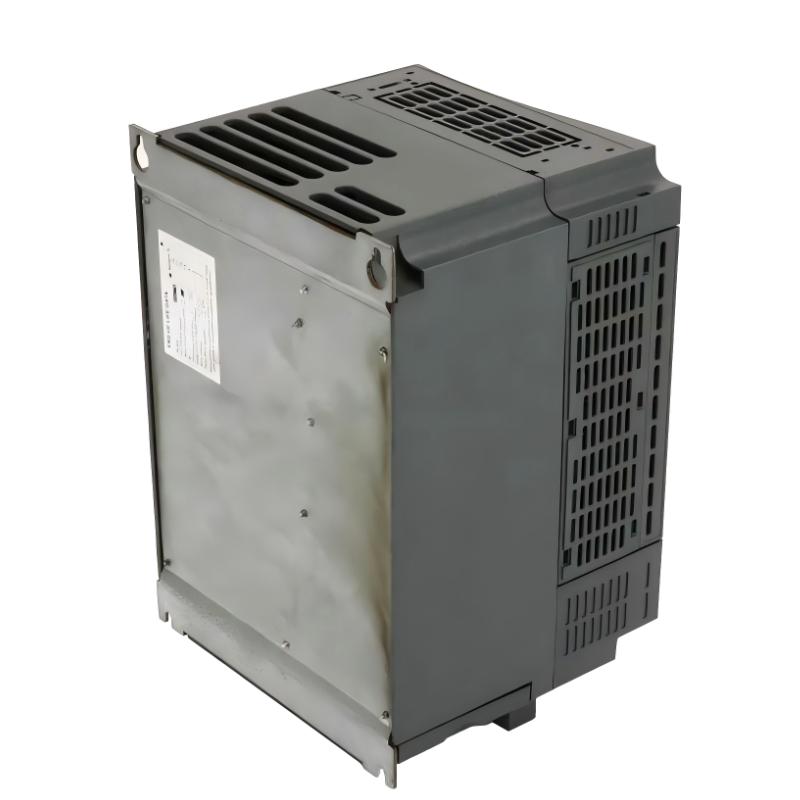

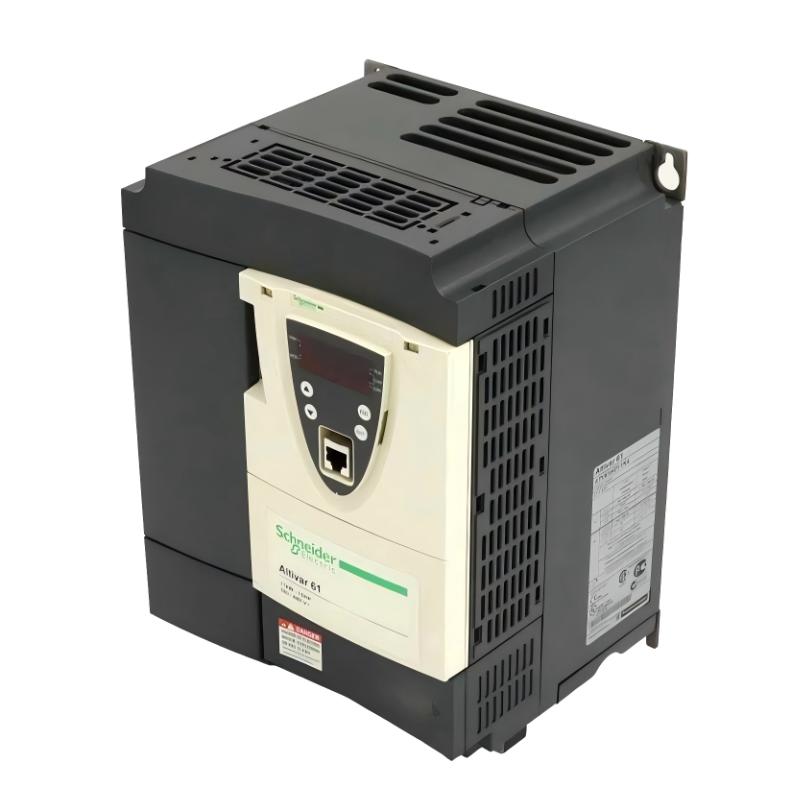

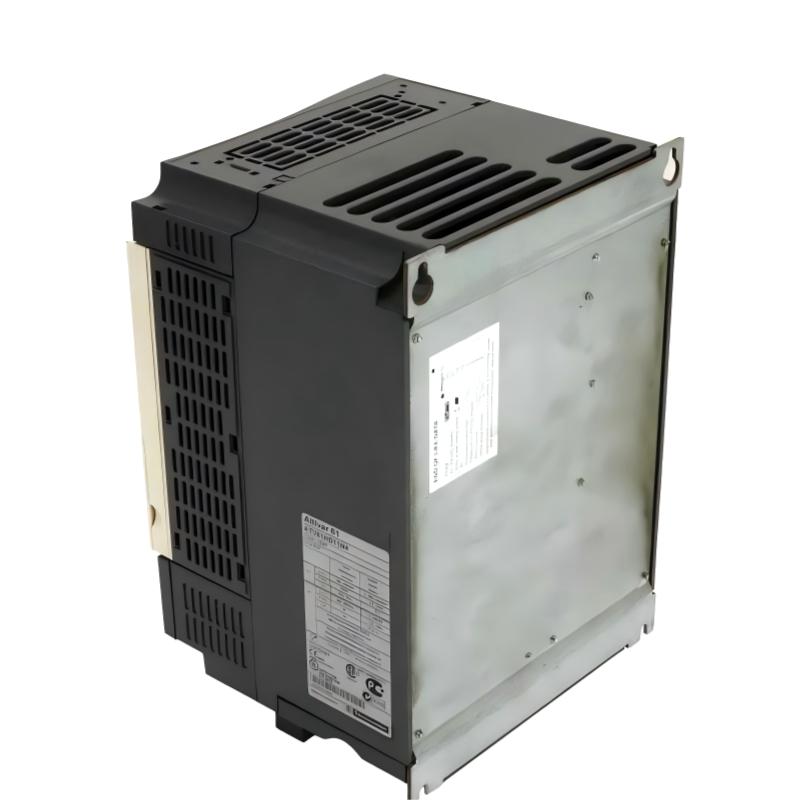

Schneider ATV61HD11N4 Altivar 61 Series 11kW (15HP) Variable Frequency Drive for Pumping and Ventilation Process Control
Schneider ATV61HD11N4 Altivar 61 Series 11kW (15HP) Variable Frequency Drive for Pumping and Ventilation Process Control
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV61HD11N4 Product Origin: France Product Dimensions:295 × 210 × 213 mm Product Weight:7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV61HD11N4 is a mid-range variable frequency drive from the Altivar 61 series, purpose-built for process applications such as pumps, fans, and HVAC systems. Known for its stability and energy-saving capabilities, this drive is widely used in industrial environments where continuous operation and precise motor control are essential.
Designed with advanced control algorithms and flexible communication options, the ATV61HD11N4 ensures smooth speed regulation, optimized energy consumption, and reliable long-term performance. As a legacy model, it remains highly востребован in retrofit and maintenance projects.
Technical Specifications
Parameter
Specification
Model
ATV61HD11N4
Product Type
Variable Frequency Drive (VFD)
Series
Altivar 61
Rated Power
11 kW (15 HP)
Input Voltage
380–480 V AC (3-phase)
Rated Output Current
27.7 A (380V) / 21 A (460V)
Line Current
36.6 A (380V) / 30 A (480V)
Output Frequency
0.1 – 500 Hz
Control Method
V/F Control, Sensorless Vector Control
Communication
Modbus, CANopen (expandable)
EMC Filter
Integrated (Class C2/C3)
Protection Rating
IP20
Switching Frequency
1–16 kHz adjustable
Operating Temperature
0°C to +50°C
Dimensions (H × W × D)
295 × 210 × 213 mm
Weight
Approx. 7 kg
Mounting Type
Heat sink / Panel Mount
Applications
The ATV61HD11N4 is optimized for variable torque applications requiring energy-efficient motor control:
Water supply and wastewater treatment systems
HVAC systems (fans, pumps, air handling units)
Industrial ventilation systems
Pumping and fluid transfer applications
Building management systems
Oil & gas auxiliary equipment
Advantages
Process-Oriented Design: Optimized specifically for pumps and fans
Energy Efficiency: Reduces power consumption in variable torque loads
Reliable Continuous Operation: Built for long-term industrial use
Flexible Communication: Supports multiple fieldbus protocols via expansion cards
