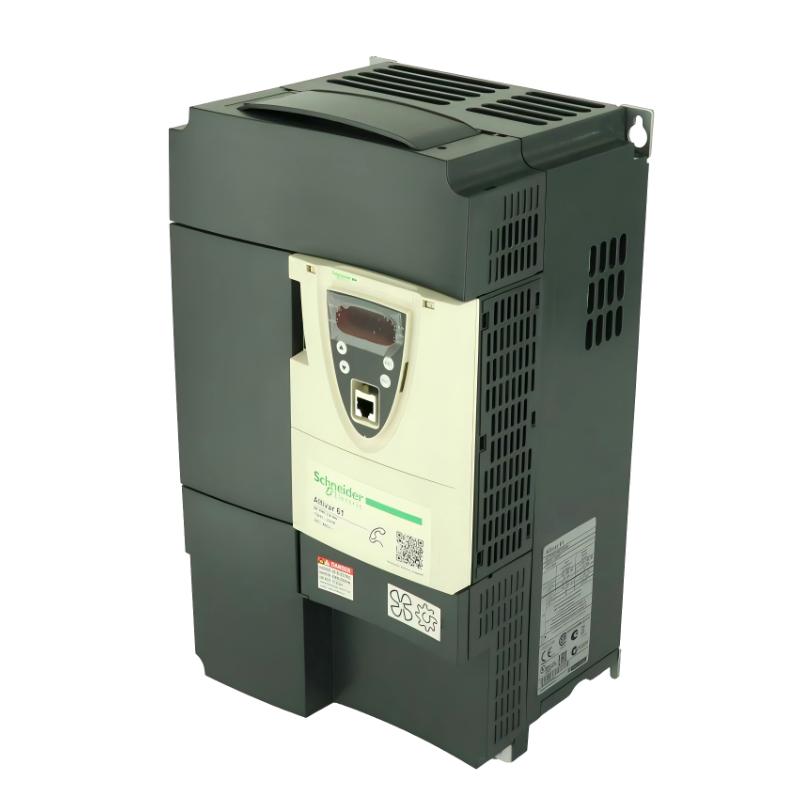

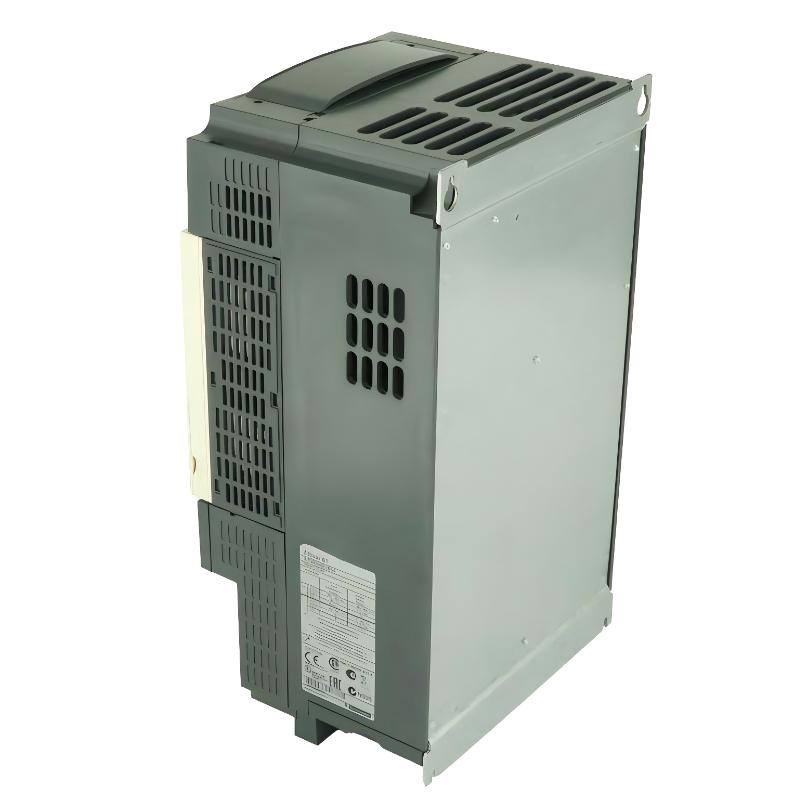

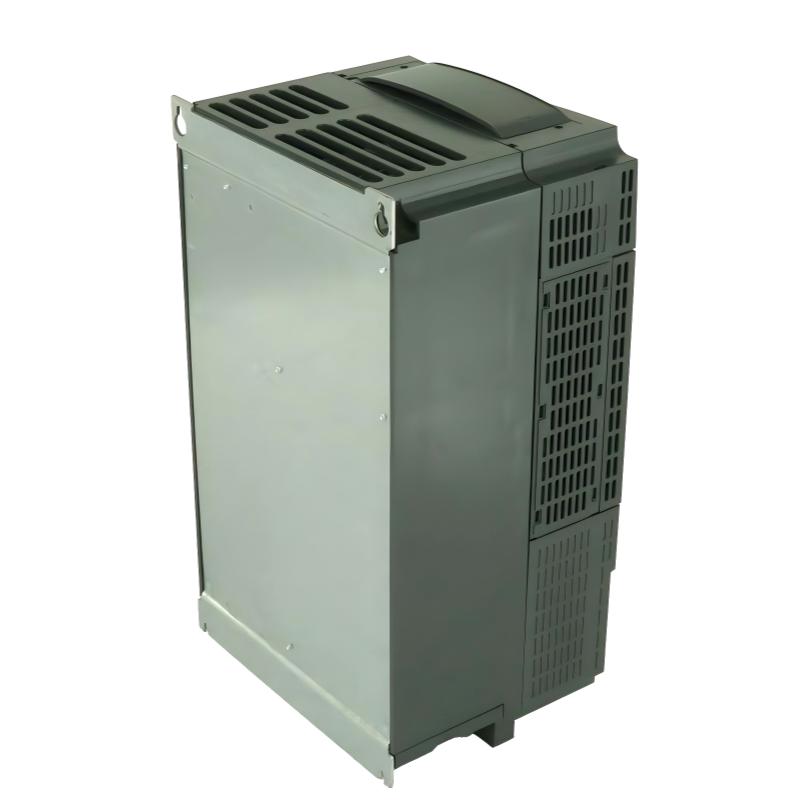

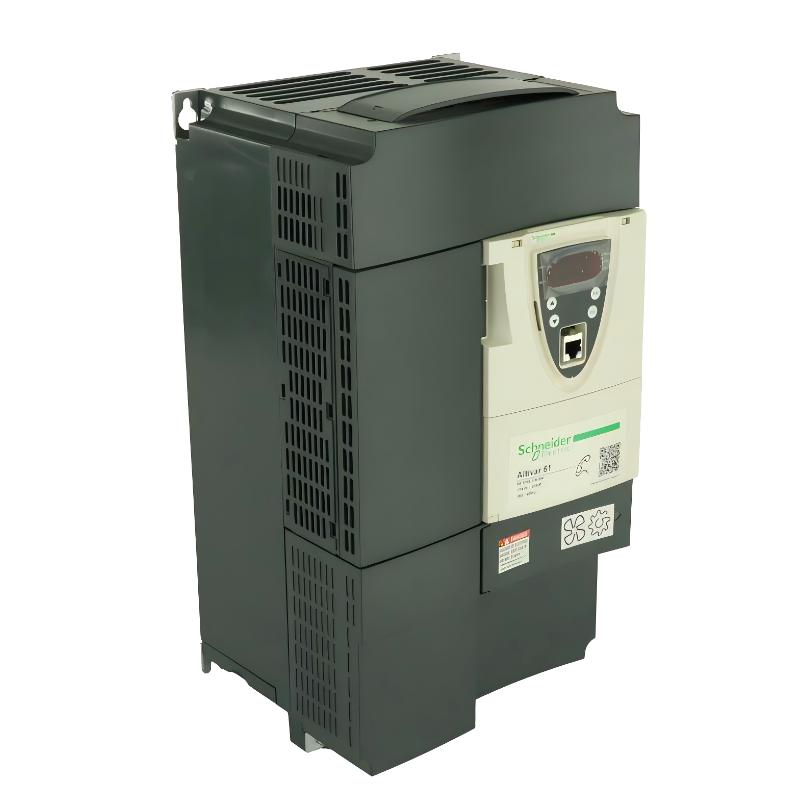

The Schneider ATV61HD15N4 is a mid-to-high power variable frequency drive from the Altivar 61 series, engineered specifically for variable torque applications such as pumps, fans, and HVAC systems. Delivering 15kW (20HP), this model is designed to ensure stable, energy-efficient motor control in industrial environments requiring continuous operation.
With its advanced motor control technology and flexible communication capabilities, the ATV61HD15N4 provides smooth speed regulation, optimized energy consumption, and reliable long-term performance. Although part of a legacy product line, it remains widely used in retrofit and maintenance projects due to its proven durability and compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV61HD15N4 |
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 61 |
| Rated Power | 15 kW (20 HP) |
| Input Voltage | 380–480 V AC (3-phase) |
| Rated Output Current | 33 A (380V) / 27 A (460V) |
| Line Current | 48 A (380V) / 39 A (480V) |
| Output Frequency | 0.1 – 500 Hz (up to ~599 Hz configurable) |
| Control Method | V/F Control, Sensorless Vector Control |
| Communication | Modbus, CANopen (expandable) |
| EMC Filter | Integrated (Class C2/C3) |
| Switching Frequency | 1–16 kHz adjustable |
| Protection Rating | IP20 |
| Dimensions (H × W × D) | 400 × 230 × 213 mm |
| Weight | Approx. 22 kg |
| Mounting Type | Panel / Heat sink mounting |
Key specifications verified from manufacturer and distributor data
