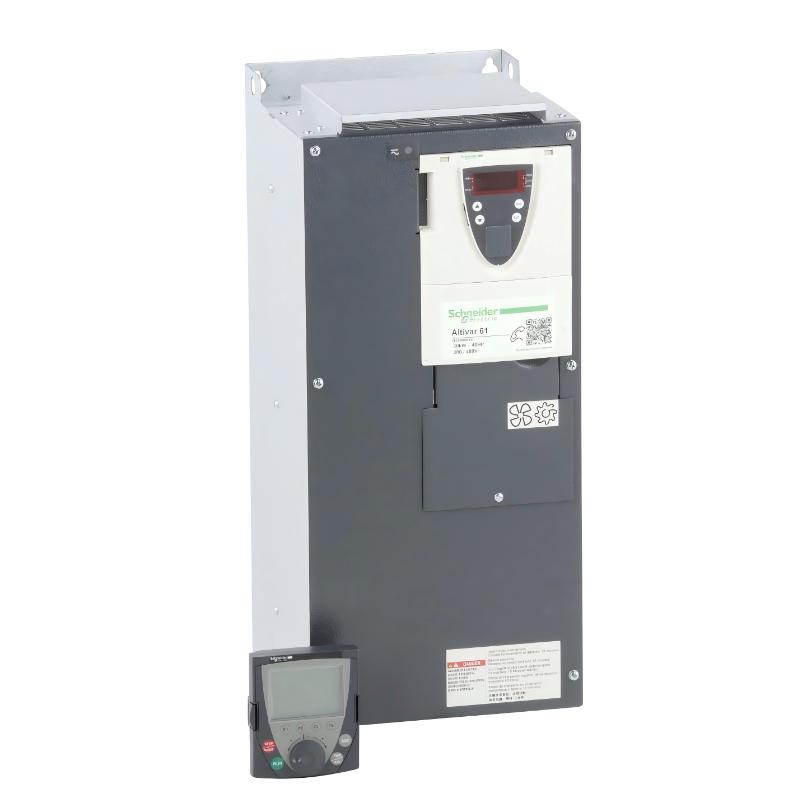

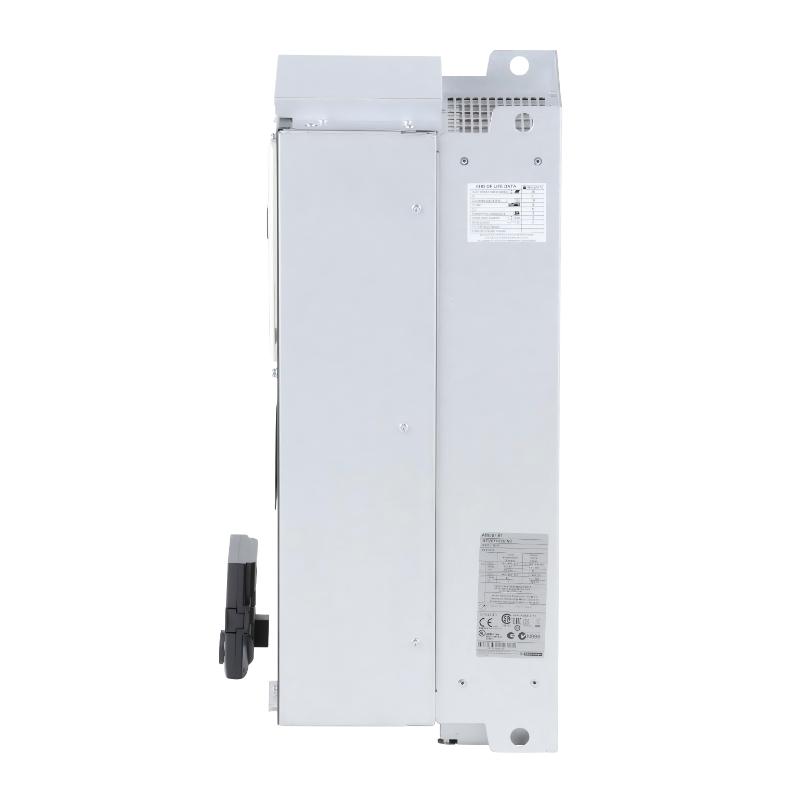

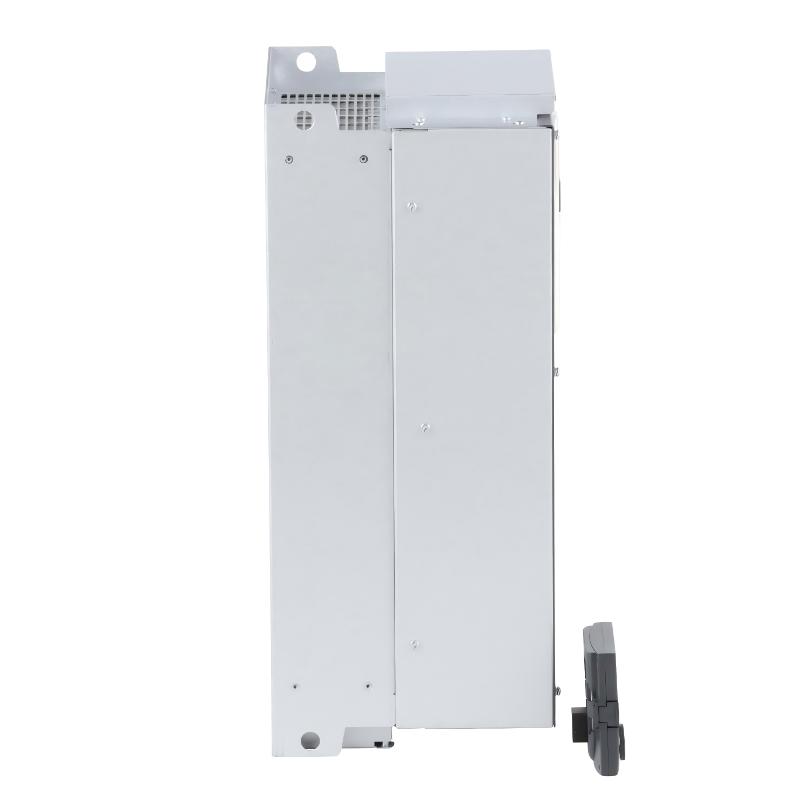

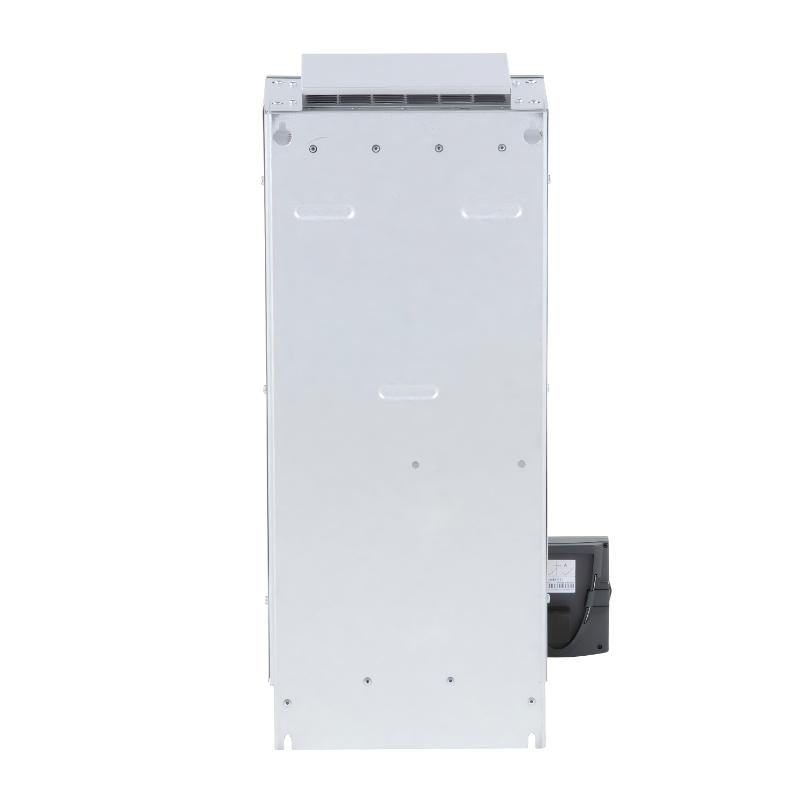

The Schneider ATV61HD30N4 is a high-capacity variable frequency drive from the Altivar 61 series, specifically engineered for demanding process applications such as pumps, fans, and ventilation systems. With a robust 30kW (40HP) output, this drive is designed to deliver reliable, energy-efficient motor control in continuous industrial operations.
Built with advanced control algorithms and strong industrial-grade components, the ATV61HD30N4 ensures smooth speed regulation, optimized torque performance, and seamless integration into automation systems. As a legacy model, it remains widely used in retrofit and maintenance projects due to its proven durability and compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV61HD30N4 |
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 61 |
| Rated Power | 30 kW (40 HP) |
| Input Voltage | 380–480 V AC (3-phase) |
| Rated Output Current | 66 A (380V) / 52 A (460V) |
| Line Current | 66 A (380V) / 56 A (480V) |
| Output Frequency | 0.1 – 599 Hz |
| Control Method | V/F Control, Sensorless Vector Control |
| Communication | Modbus, CANopen (expandable) |
| EMC Filter | Integrated Class C2/C3 |
| Switching Frequency | 1–16 kHz adjustable |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +50°C (up to 60°C with derating) |
| Dimensions (H × W × D) | 550 × 240 × 266 mm |
| Weight | Approx. 37 kg |
| Mounting Type | Panel / Heat sink mounting |
