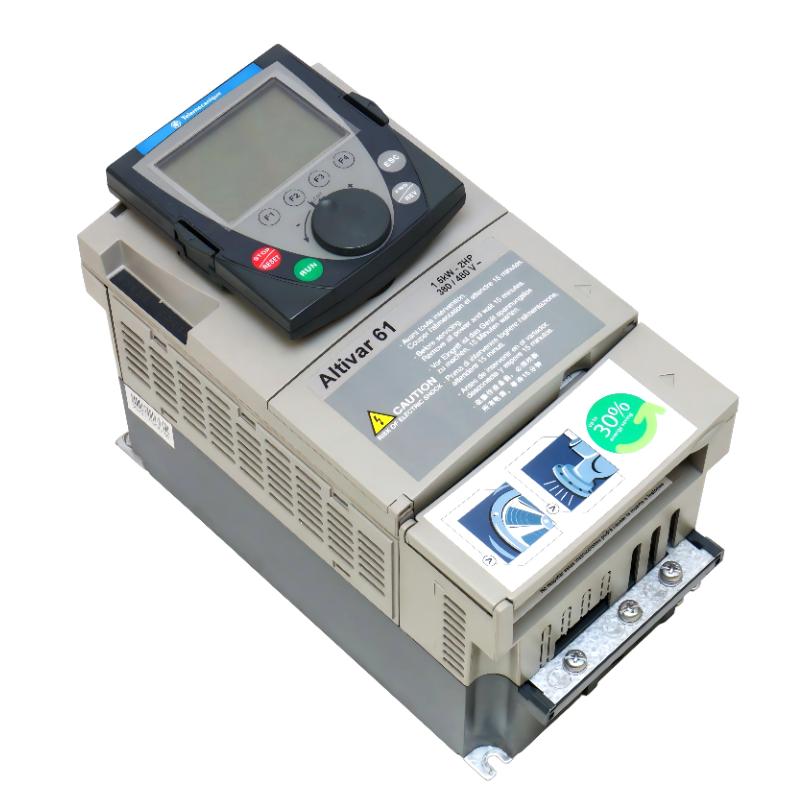

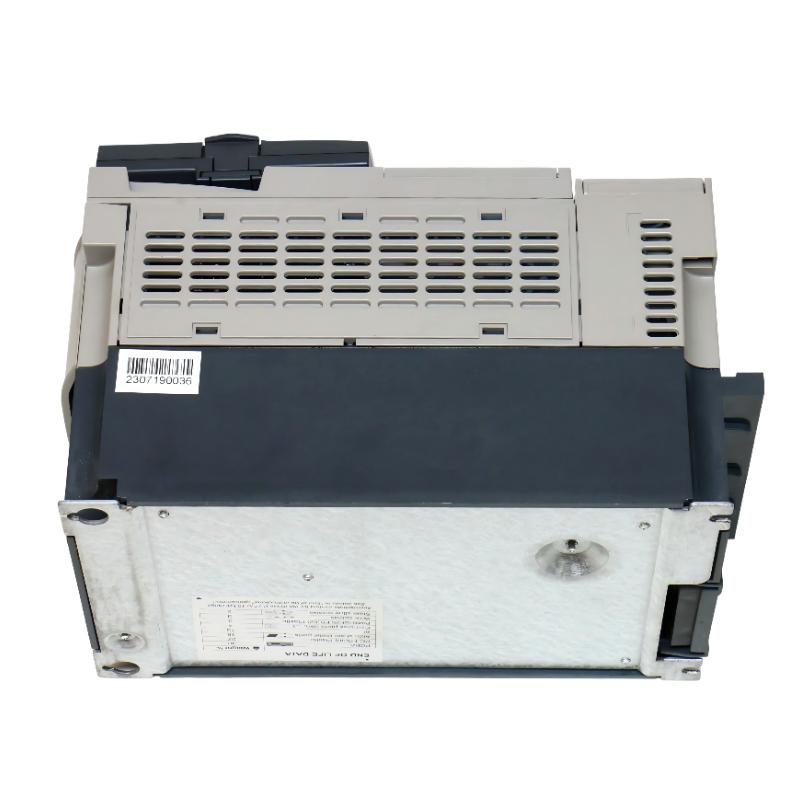

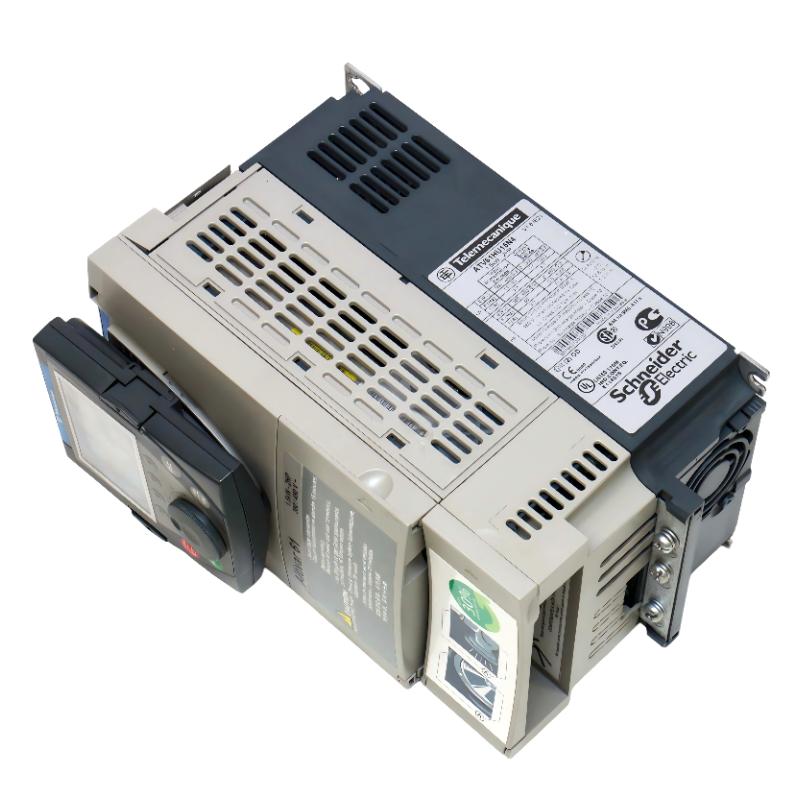

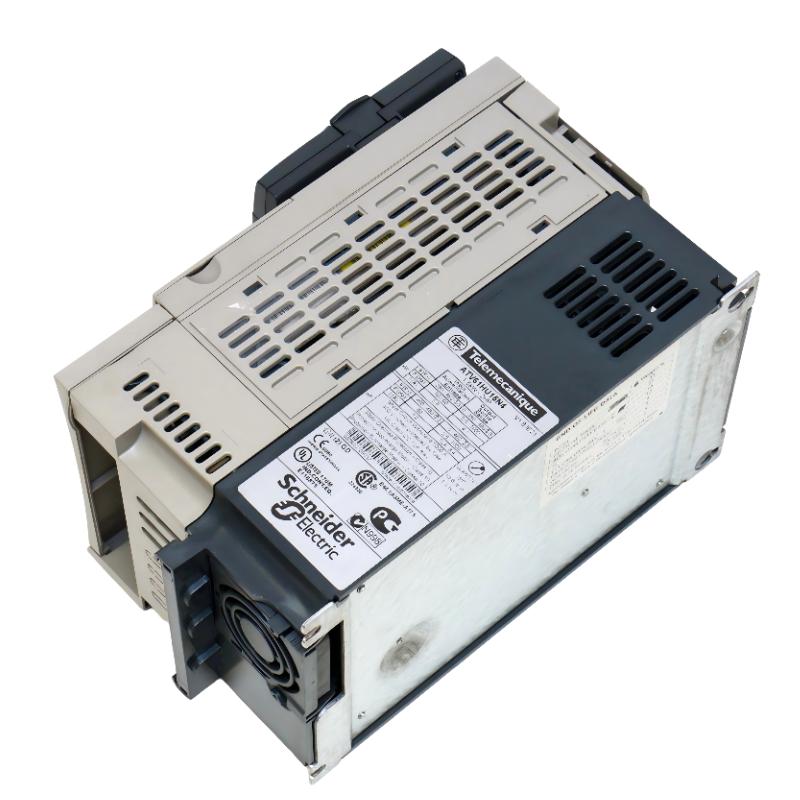

The Schneider ATV61HU15N4 is a compact and reliable variable frequency drive from the Altivar 61 series, specifically designed for process applications such as pumps, fans, and HVAC systems. With a rated power of 1.5kW (2HP), it delivers efficient and precise motor control while optimizing energy consumption in variable torque applications.
Engineered with advanced sensorless vector control and a process-oriented design, this drive ensures smooth speed regulation, stable torque output, and dependable operation in continuous-duty environments. As a legacy model, it remains widely used in retrofit and maintenance projects due to its proven performance and broad compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV61HU15N4 |
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 61 |
| Rated Power | 1.5 kW (2 HP) |
| Input Voltage | 380–480 V AC (3-phase) |
| Rated Output Current | 4.1 A (380V) / 3.4 A (460V) |
| Line Current | 5.8 A (380V) / 5.3 A (480V) |
| Output Frequency | 0.1 – 599 Hz |
| Control Method | V/F Control, Sensorless Vector Control |
| Communication | Modbus, CANopen (expandable via fieldbus cards) |
| EMC Filter | Integrated Level 3 EMC filter |
| Switching Frequency | 1–16 kHz adjustable |
| Apparent Power | 3.8 kVA |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +50°C |
| Dimensions (H × W × D) | 230 × 130 × 175 mm |
| Weight | Approx. 3 kg |
| Mounting Type | Panel / Heat sink mounting |
Recommended Related Models
- ATV61H075N4 – 0.75 kW version for lighter applications
- ATV61HD11N4 – 11 kW model for higher load systems
- ATV610U15N4 – Next-generation Easy Altivar replacement
- ATV630U15N4 – Advanced process drive alternative
- ATV320U15N4C – Machine-oriented compact drive
