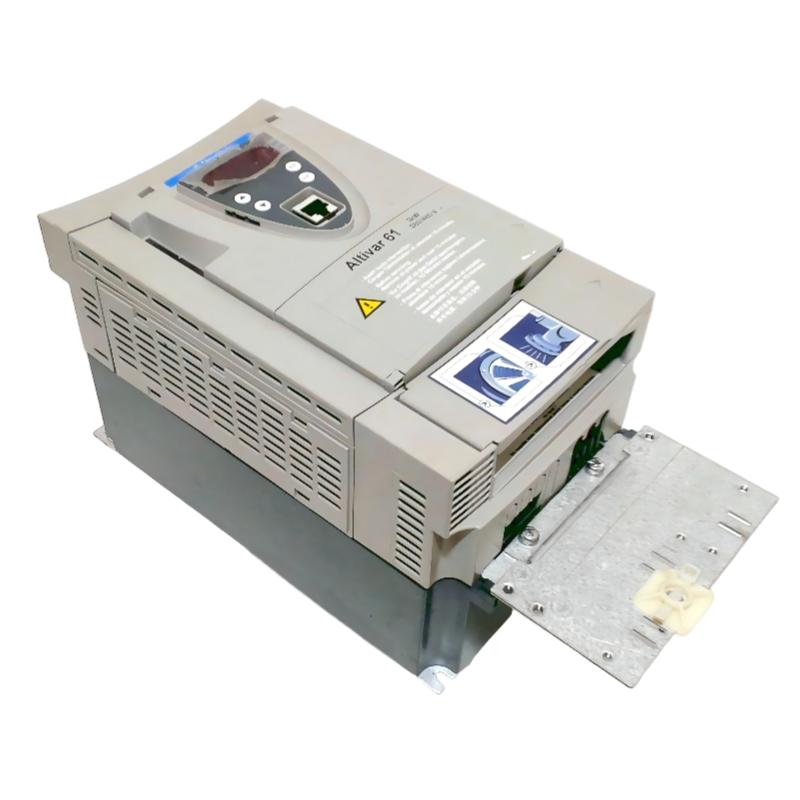

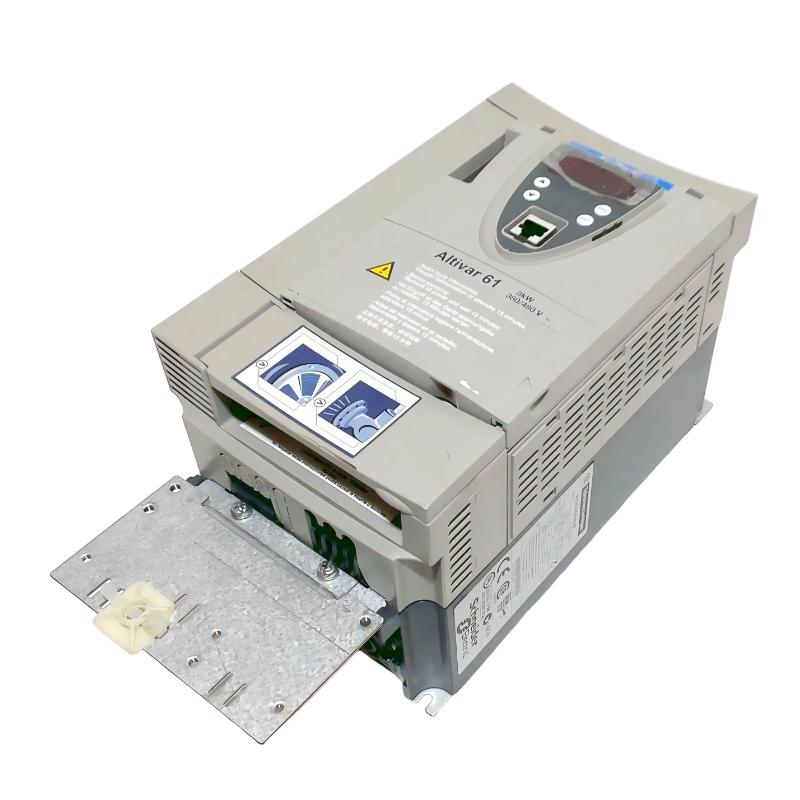

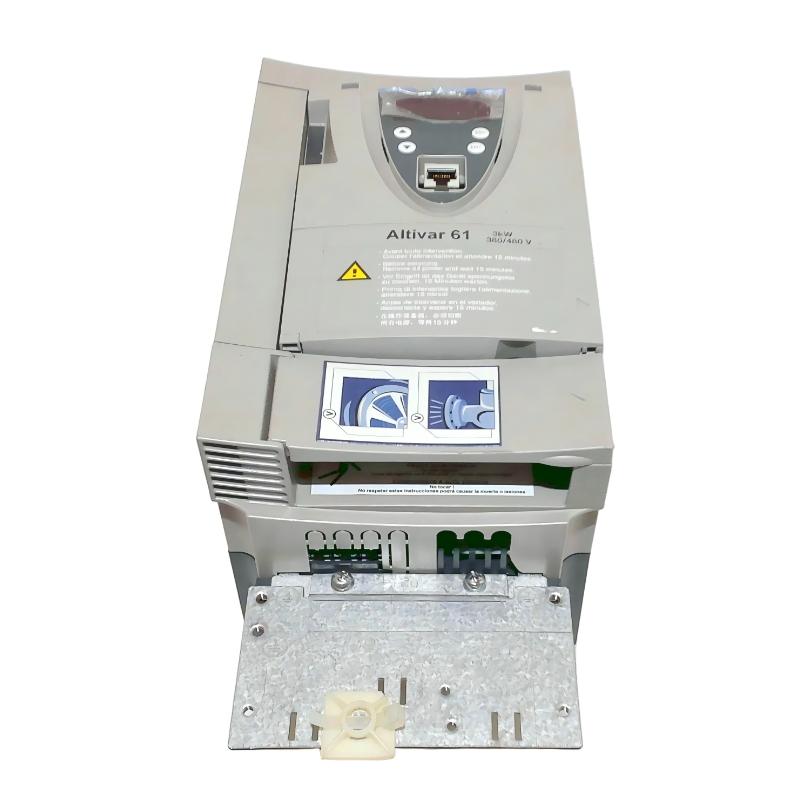

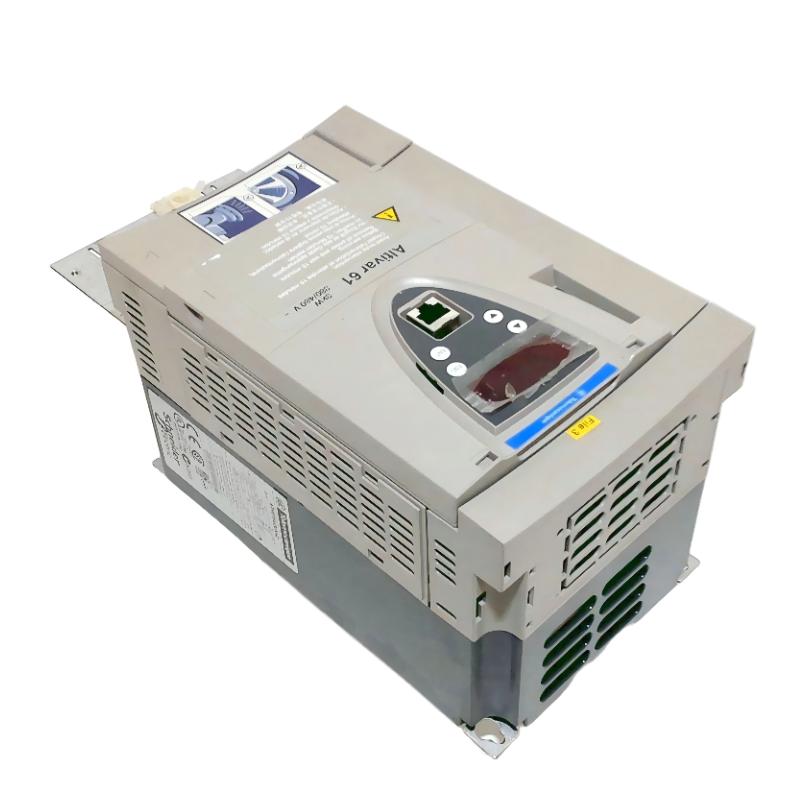

Schneider ATV61HU30N4 Altivar 61 Series 3kW (4HP) Variable Frequency Drive for Pump, Fan and HVAC Process Control
Schneider ATV61HU30N4 Altivar 61 Series 3kW (4HP) Variable Frequency Drive for Pump, Fan and HVAC Process Control
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV61HU30N4 Product Origin:France Product Dimensions:155 × 260 × 187 mm Product Weight:4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV61HU30N4 is a compact yet capable variable frequency drive from the Altivar 61 series, designed specifically for process applications such as pumps, fans, and ventilation systems. With a rated power of 3kW (4HP), it offers reliable and energy-efficient motor control for small to medium industrial systems.
Engineered with advanced sensorless vector control and process-optimized functions, this drive ensures smooth speed regulation, reduced energy consumption, and stable operation under variable load conditions. As part of a proven legacy platform, it remains widely used in retrofit and maintenance projects where reliability and compatibility are essential.
Technical Specifications
Parameter
Specification
Model
ATV61HU30N4
Product Type
Variable Frequency Drive (VFD)
Series
Altivar 61
Rated Power
3 kW (4 HP)
Input Voltage
380–480 V AC (3-phase)
Rated Output Current
10.7 A (380V) / 9 A (480V)
Continuous Output Current
~7.8 A
Output Frequency
0.1 – 599 Hz
Control Method
V/F Control, Sensorless Vector Control
Communication
Modbus, CANopen (expandable via fieldbus cards)
EMC Filter
Integrated Class C2
Switching Frequency
1–16 kHz adjustable
Apparent Power
~7 kVA
Protection Rating
IP20
Operating Temperature
Typically -10°C to +50°C
Dimensions (H × W × D)
Approx. 155 × 260 × 187 mm
Weight
Approx. 3.9–4 kg
Mounting Type
Heat sink / Panel Mount
Technical data consolidated from manufacturer and distributor specifications
Recommended Related Models
ATV61HU22N4 – 2.2 kW version for lighter applications
ATV61HD11N4 – 11 kW model for higher load requirements
