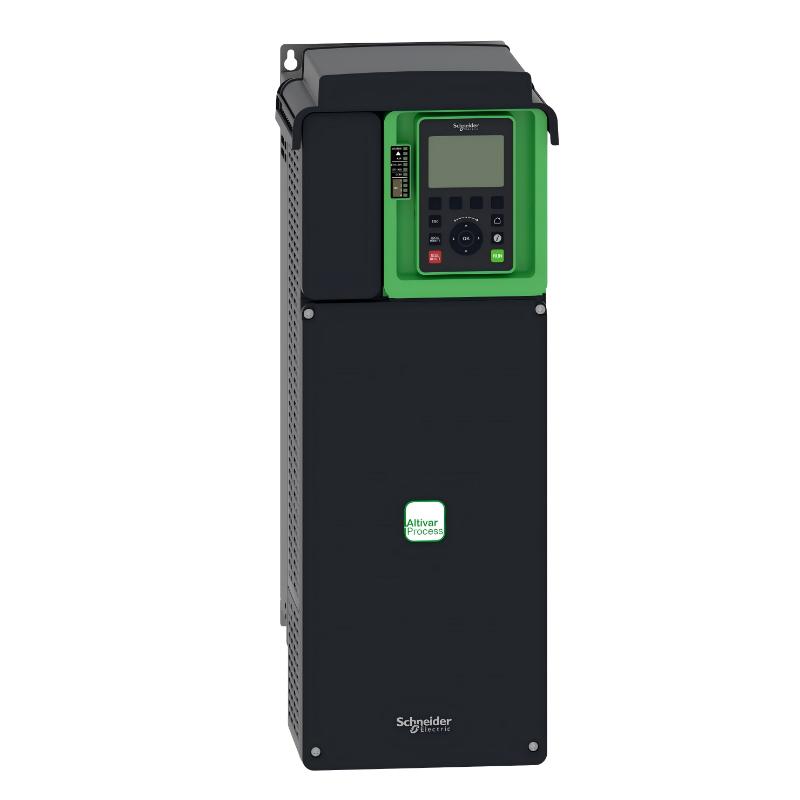

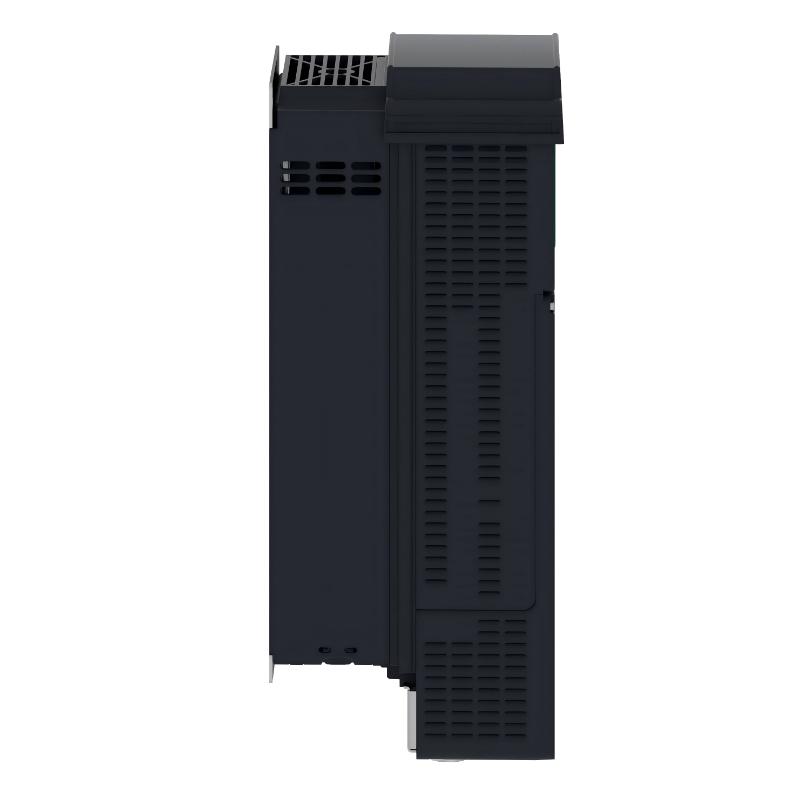

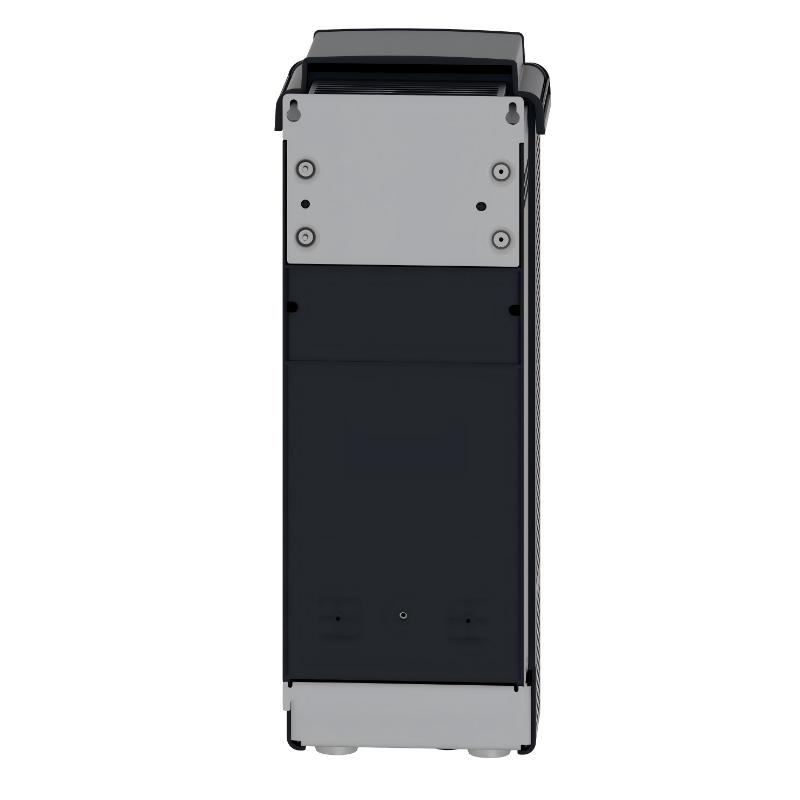

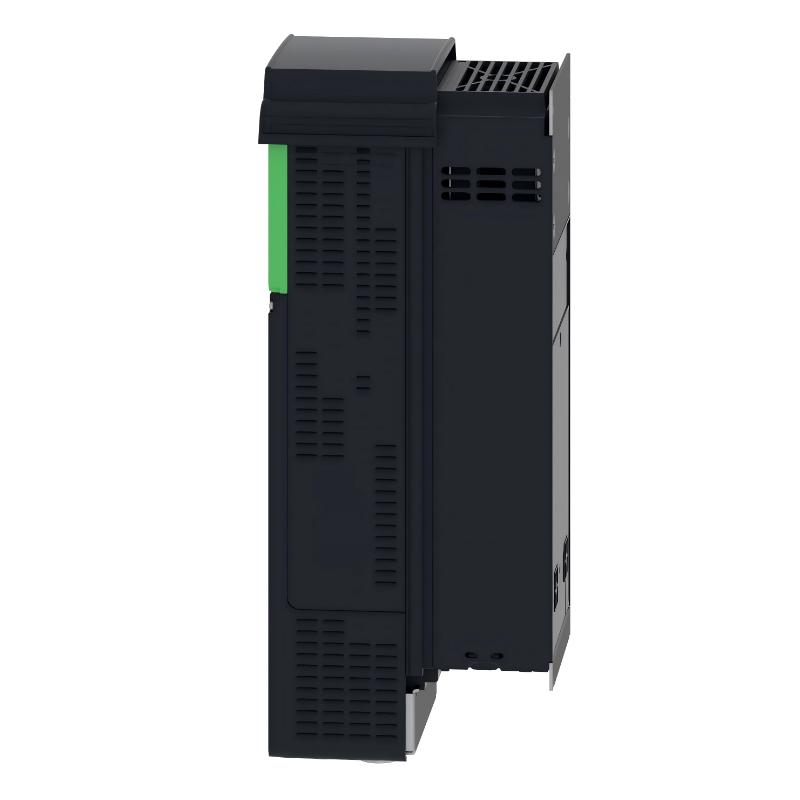

Schneider ATV630D15N4 Altivar Process ATV630 Series 15kW Intelligent Variable Speed Drive for Advanced Process Automation and Energy Management
Schneider ATV630D15N4 Altivar Process ATV630 Series 15kW Intelligent Variable Speed Drive for Advanced Process Automation and Energy Management
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV630D15N4 Product Origin:France Product Dimensions:546 × 211 × 232 mm Product Weight:13.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider ATV630D15N4 is a next-generation variable speed drive from the Altivar Process ATV630 series, designed to meet the evolving demands of modern industrial automation. With a rated power of 15kW, it is purpose-built for process applications such as pumps, fans, compressors, and fluid handling systems where efficiency, connectivity, and reliability are critical.
This model goes beyond traditional VFD functionality by integrating real-time energy monitoring, advanced diagnostics, and Ethernet-based communication. It represents a significant upgrade over legacy Altivar 61 drives, making it an ideal choice for Industry 4.0-ready systems and energy-conscious operations.
Technical Specifications
Parameter
Specification
Model
ATV630D15N4
Product Type
Variable Speed Drive (VFD)
Series
Altivar Process ATV630
Rated Power
15 kW (Normal Duty) / 11 kW (Heavy Duty)
Input Voltage
380–480 V AC (3-phase)
Rated Output Current
31.7 A (ND) / 23.5 A (HD)
Output Frequency
0.1 – 500 Hz
Control Method
V/F, Process Control, Vector Control
Communication
Ethernet, Modbus TCP, Modbus RTU
Safety
Safe Torque Off (STO), SIL 3
Protection Rating
IP21 (UL Type 1)
Cooling Method
Forced convection
Switching Frequency
2–12 kHz (adjustable)
Operating Temperature
-15°C to +50°C
Dimensions (H × W × D)
546 × 211 × 232 mm
Weight
Approx. 13.6 kg
Mounting Type
Wall / Panel Mount
Specifications consolidated from manufacturer and distributor technical data
Recommended Related Models
ATV630D11N4 – 11 kW version for lower load systems
ATV630D18N4 – 18.5 kW model for higher power demands
ATV610U15N4 – Cost-effective process drive alternative
ATV930D15N4 – High-end process drive with advanced analytics
ATV320D15N4C – Machine automation drive for OEM applications
Popular Schneider Electric Models
Altivar 630 Process Drives
Altivar 610 Series Drives
Altivar 320 Machine Drives
Modicon M580 PLC
EcoStruxure Automation Platform
Applications
The ATV630D15N4 is designed for intelligent process control and energy optimization:
Water and wastewater treatment plants
HVAC systems (fans, pumps, chillers)
Oil & gas processing systems
Mining and mineral processing
Food & beverage production
Industrial pumping and fluid transfer systems
Advantages
Advanced Energy Management: Built-in “Stop & Go” function can reduce energy usage by up to 30% in standby conditions
