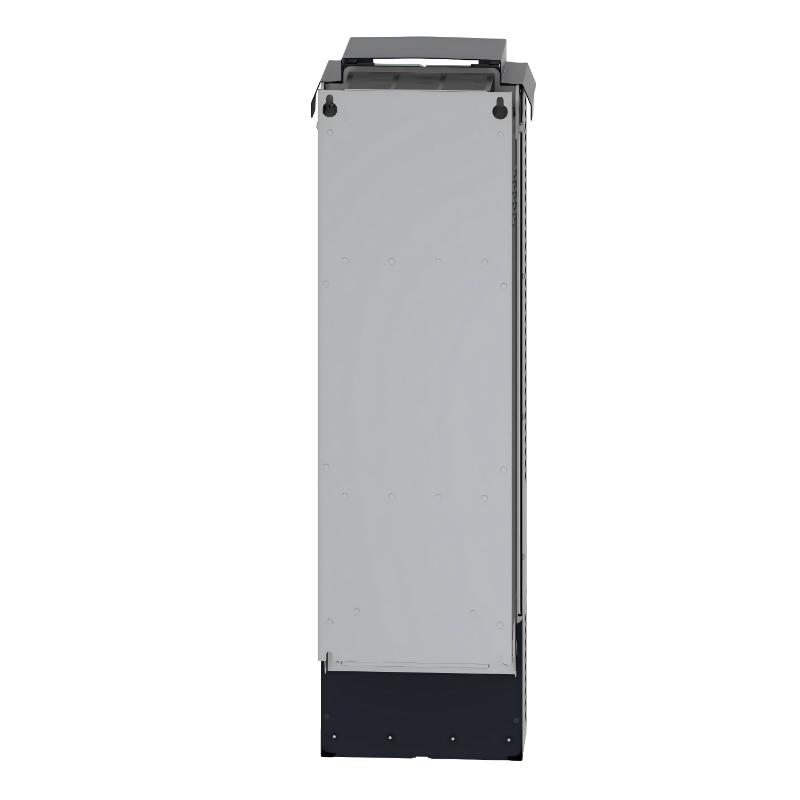

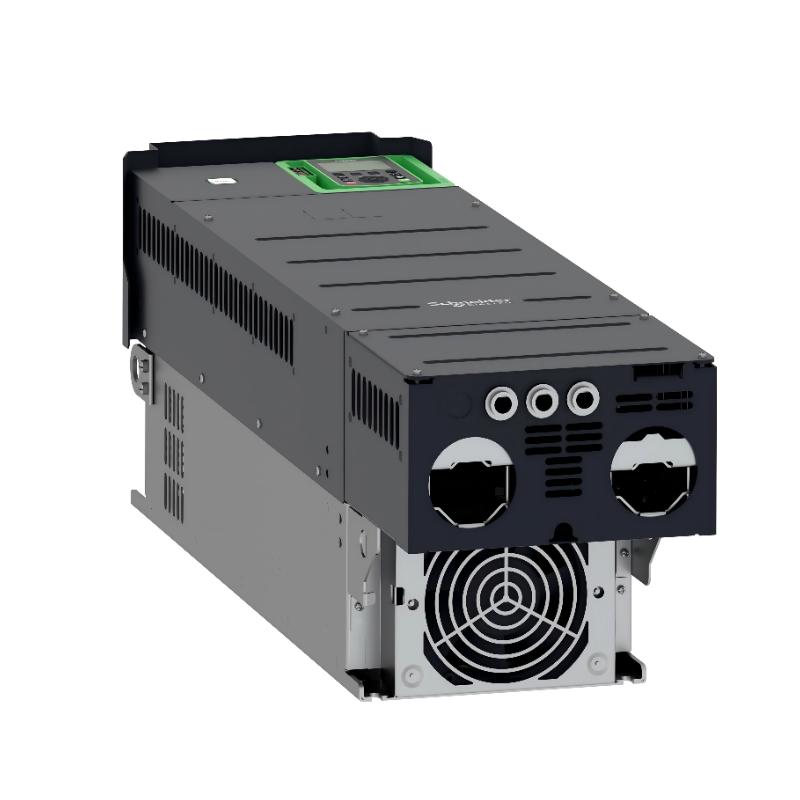

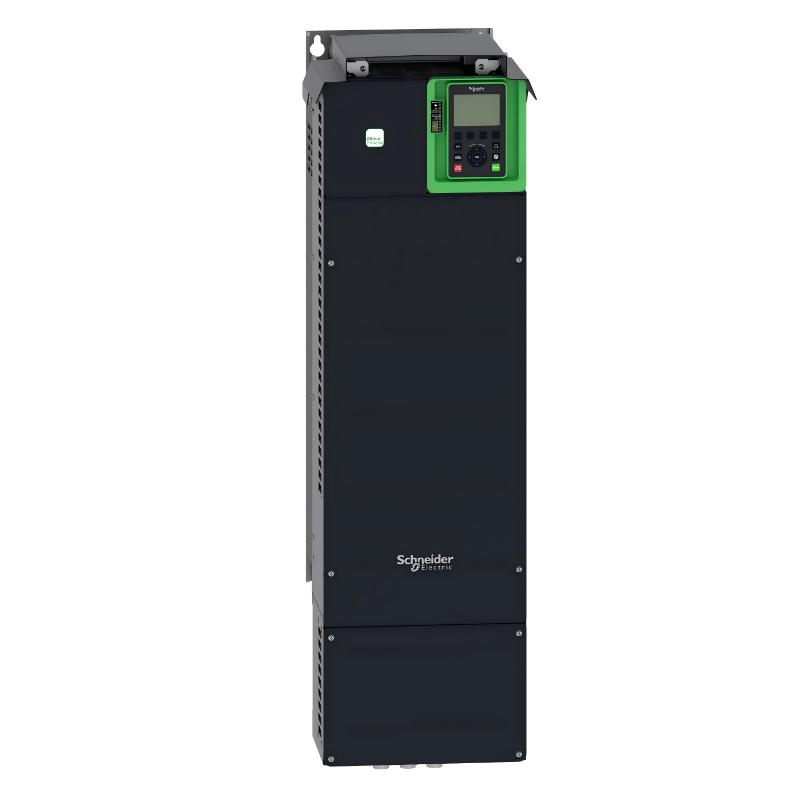

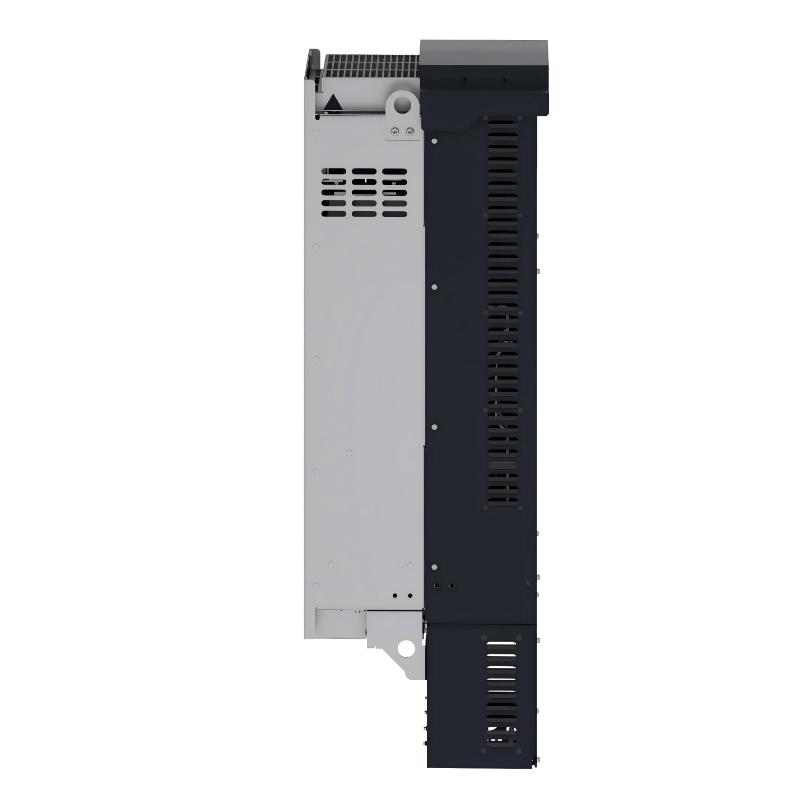

The Schneider ATV630D75N4 is a high‑capacity, intelligent variable frequency drive from the Altivar Process ATV630 series, designed for demanding industrial and utility applications such as pumps, fans, compressors, and fluid handling systems. With a rated output of 75 kW (100 HP) in normal duty and 55 kW (75 HP) in heavy‑duty service, it delivers precise, energy‑efficient motor control with built‑in connectivity and advanced process features.
As part of Schneider Electric’s modern ATV630 family, this drive integrates smart diagnostic tools, embedded energy monitoring, and Ethernet‑ready communication, making it a robust choice for Industry 4.0‑driven automation and energy management systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV630D75N4 |
| Product Type | Variable Speed Drive (VFD) |
| Series | Altivar Process ATV630 |
| Rated Power | 75 kW (100 HP) normal duty / 55 kW (75 HP) heavy duty |
| Input Voltage | 380–480 V AC (3‑phase) |
| Rated Output Current | ~131.3 A (380 V normal), ~112.7 A (480 V normal) |
| Output Frequency | 0.1 – 500 Hz |
| Control Methods | V/F control, Vector Control, Process Control |
| Communication | Ethernet, Modbus TCP, Modbus RTU/Serial |
| Safety Features | Safe Torque Off (STO), SIL 3 |
| EMC Filter | Integrated C3 category EN/IEC 61800‑3 filter |
| Protection Rating | IP21 / UL Type 1 |
| Cooling Method | Forced convection |
| Switching Frequency | 2.5 – 8 kHz (adjustable) |
| Operating Temperature | -15 °C to +60 °C (with derating) |
| Dimensions (H × W × D) | Approx. 922 × 290 × 323 mm |
| Weight | Approx. 58 kg |
| Mounting Type | Wall / Panel mount |
Normal and heavy duty ratings and current values based on industrial datasheets.
