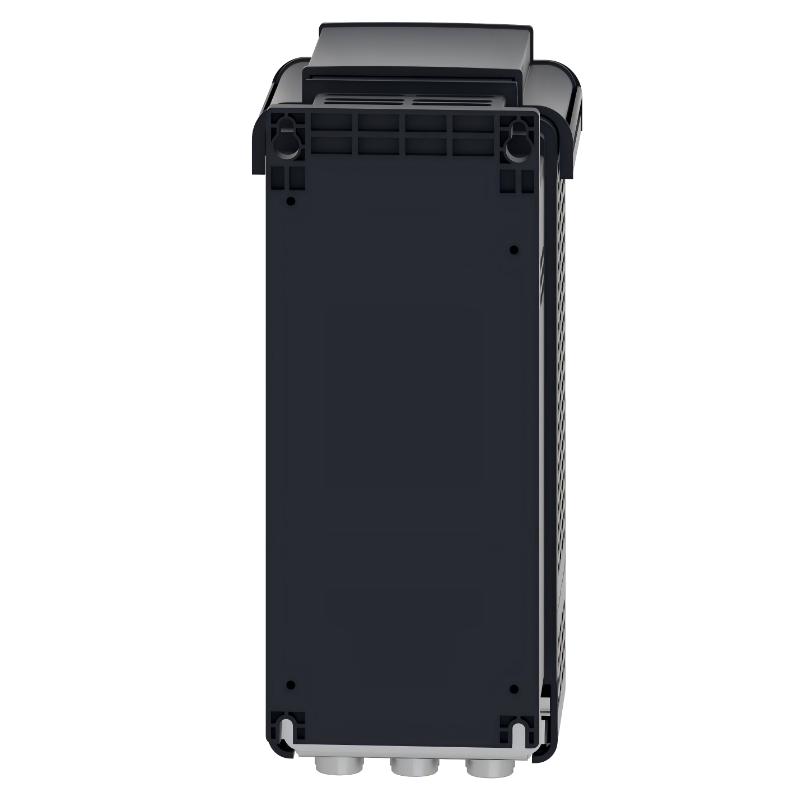

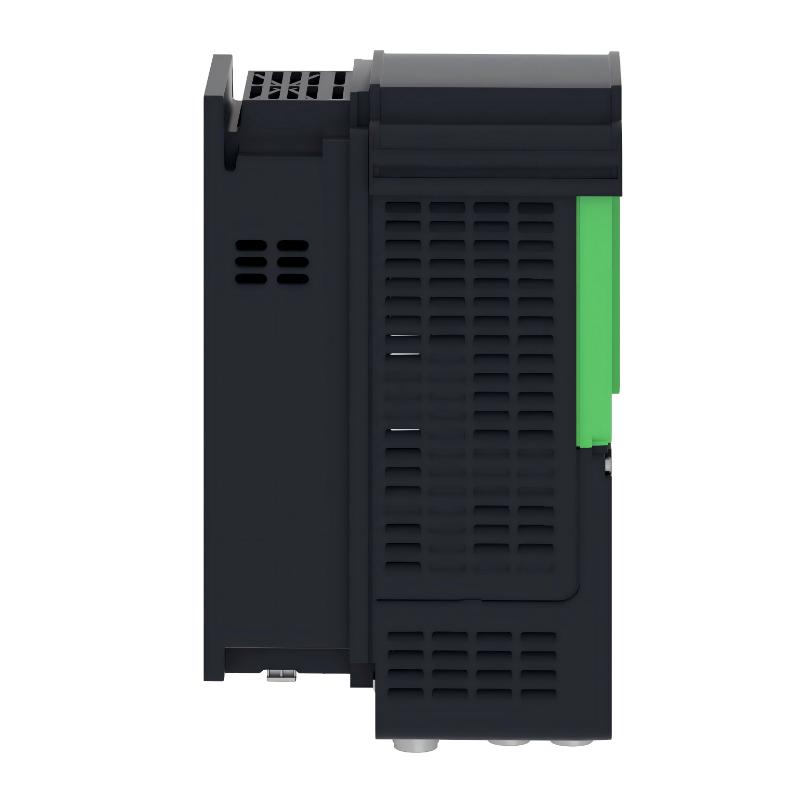

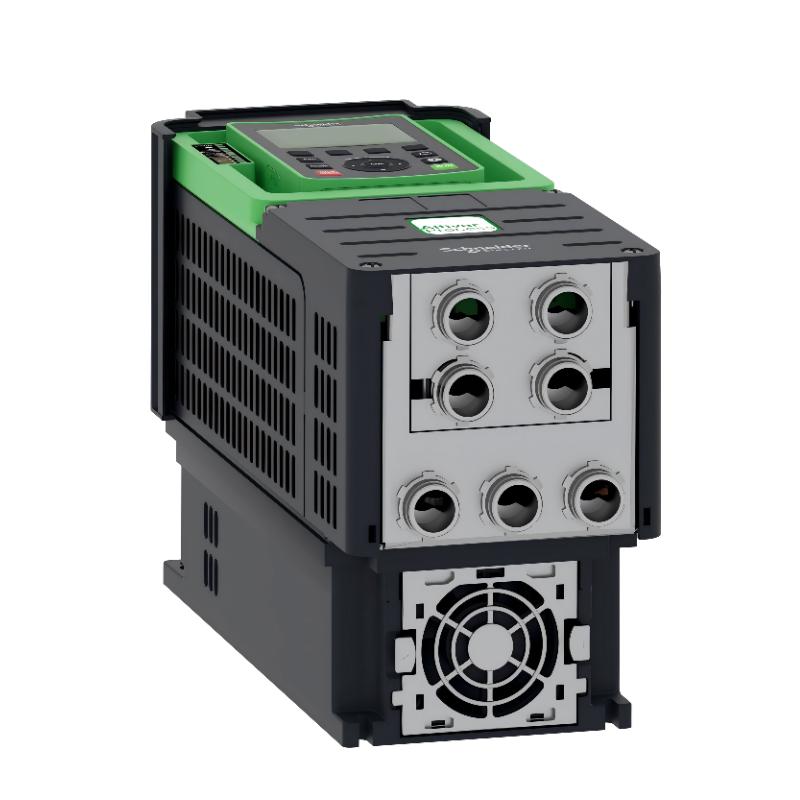

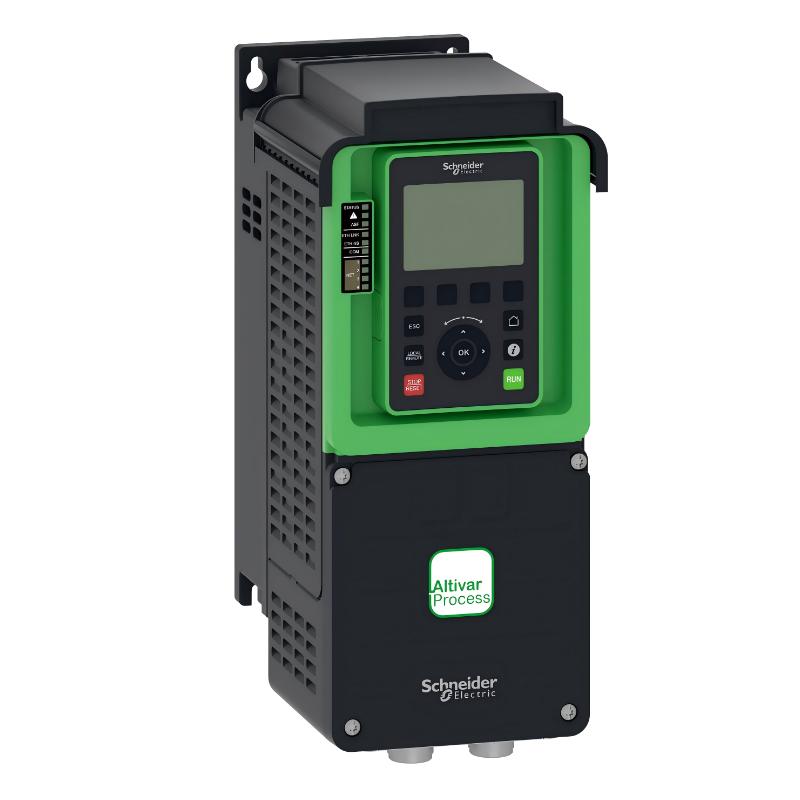

The Schneider ATV630U07N4 is a modern, compact variable frequency drive from the Altivar Process ATV630 series, engineered for smart motor control in demanding process and utility environments. Designed to replace older legacy drives, this model delivers intelligent energy management, embedded connectivity and advanced motor control for pumps, fans, compressors and fluid‑handling applications — all in a chassis‑mount, IP20/UL Type 1 package suitable for panel or wall installation.

Technical Specifications

Parameter	Specification
Model	ATV630U07N4
Product Type	Variable Frequency Drive (VFD)
Series	Altivar Process ATV630
Rated Power	0.75 kW (1 HP)
Input Voltage	380 – 480 V AC, 3‑phase
Output Current	~2.2 A (Normal Duty)
Rated Frequency	50 / 60 Hz
Max Output Frequency	~500 Hz
Control Methods	V/F, Sensorless Vector, Advanced Process Control
Communication	Ethernet, Modbus TCP, Modbus Serial (RJ45)
Safety Features	Safe Torque Off (STO) & Thermal/Current Protection
EMC Filter	Integrated (C2/C3)
Protection Rating	IP20 / UL Type 1
Mounting	Vertical Panel / Wall
Operating Temp	-15 °C to +60 °C
Dimensions (approx.)	350 × 144 × 203 mm
Weight	~4.5 kg

Recommended Related Models

ATV630U22N4ZU – 22 kW process drive for larger loads
ATV630U30N4 – 30 kW mid‑range Altivar drive
ATV630U75N4ZU – 75 kW high‑capacity drive
ATV630U75N4 – Economical 7.5 kW variant
ATV320U07N4C – Compact machine‑drive alternative

Popular Schneider Electric Models

Altivar 630 Series Process Drives
Altivar 610 Series Drives
Altivar 320 Machine Drives
Modicon M580 / M340 Programmable Controllers
TeSys Motor Control & Protection Solutions

Applications

The ATV630U07N4 is ideal for process automation and utility systems where precise speed control and energy efficiency are required:

Municipal water and wastewater pump control
HVAC systems (fans, chillers, air handlers)
Industrial ventilation and fluid transfer
Mining, minerals and metals processing
Food & beverage process lines
Building and infrastructure utility systems

Advantages

Modern Process Optimization: Built‑in measurement and energy control functions help reduce operating energy costs.
Smart Connectivity: Native Ethernet and Modbus protocols provide seamless integration with SCADA and automation networks.
Advanced Diagnostics: Embedded monitoring and predictive maintenance features improve uptime and system reliability.
Safe & Compliant: Includes Safe Torque Off (STO) and comprehensive thermal and short‑circuit protections.
Compact & Versatile: Lightweight design (~4.5 kg) for easy integration into industrial control cabinets.
Flexible Motor Support: Supports both asynchronous and synchronous motors with multiple control profiles.

Technical FAQs

1. What motor power rating can this drive handle?
It supports motors up to ~0.75 kW (≈1 HP).

2. What is the input voltage range?
380 – 480 V AC, three‑phase.

3. What communication interfaces are included?
Ethernet and Modbus (TCP + Serial) via RJ45.

4. Does it include safety features?
Yes — Safe Torque Off (STO) and comprehensive drive protection.

5. What is the maximum output frequency?
Up to ~500 Hz depending on configuration.

6. What is the typical weight of the unit?
Approximately 4.5 kg.

7. Can it be used for continuous duty applications?
Yes — designed for continuous industrial process use.

8. Is an EMC filter included?
Yes — integrated C2/C3 EMC filter compliant with IEC standards.

9. How does it differ from legacy ATV61 drives?
The ATV630U series adds modern connectivity, energy analytics, and advanced process control features.

10. What mounting orientation is recommended?
Vertical panel or wall mount with forced convection cooling.
