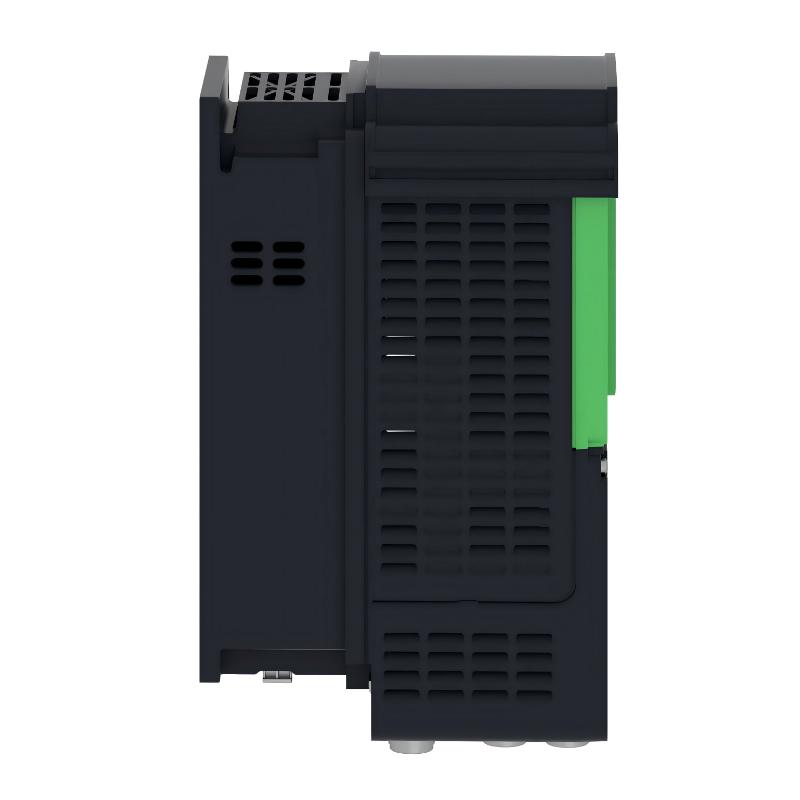

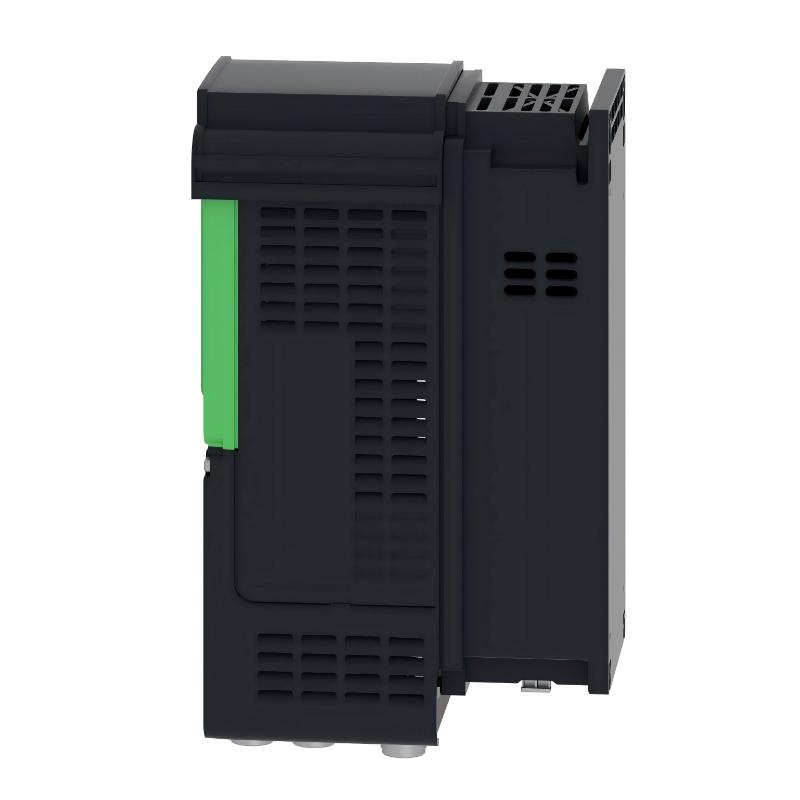

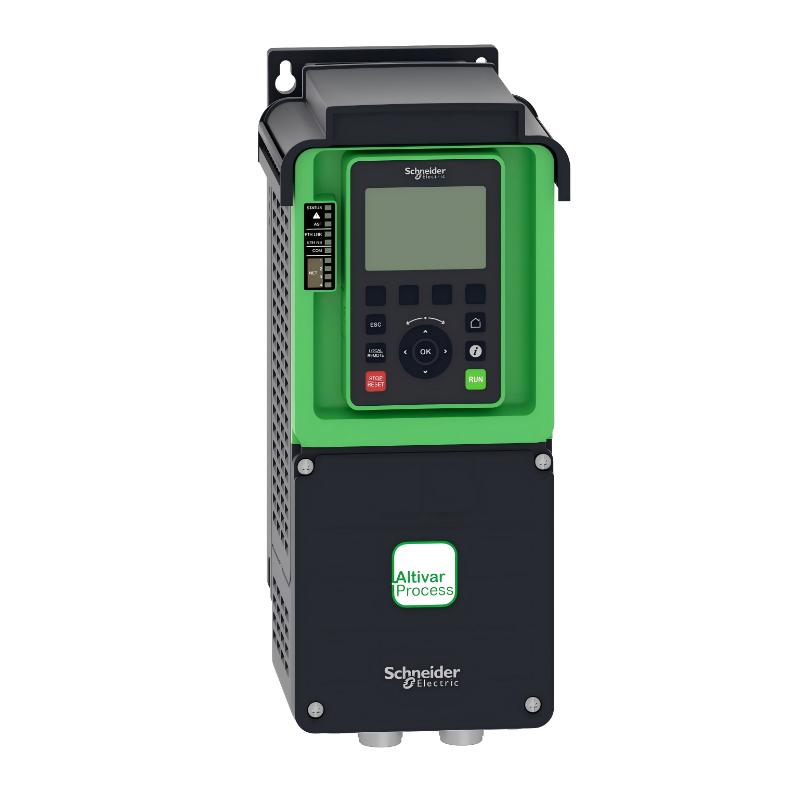

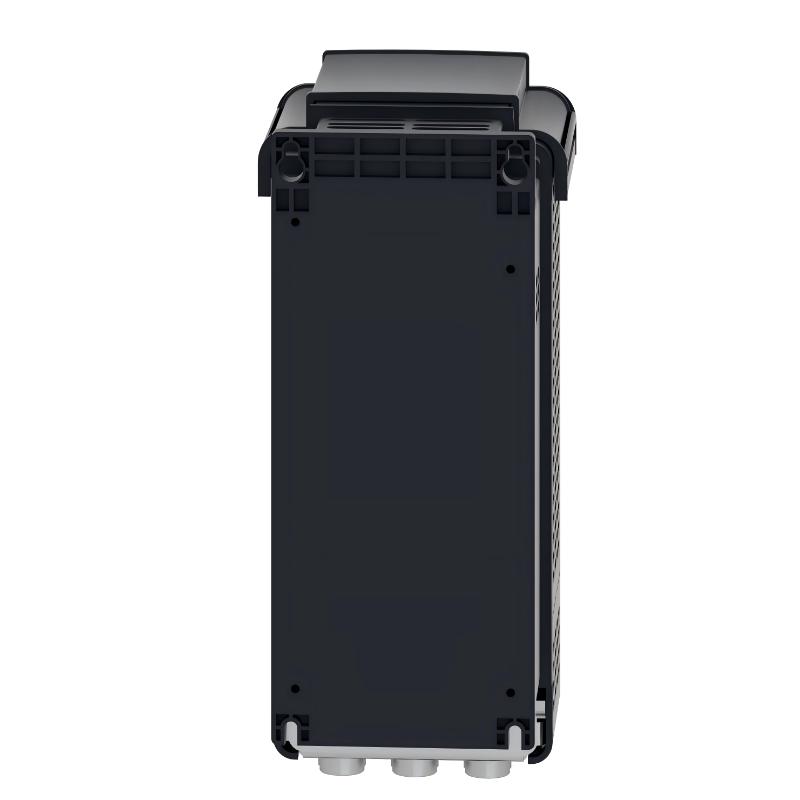

Schneider ATV630U15N4 Altivar Process ATV630 Series 15 kW (2 HP) Intelligent Variable Frequency Drive for Pumps, Fans, and Industrial Process Automation
Schneider ATV630U15N4 Altivar Process ATV630 Series 15 kW (2 HP) Intelligent Variable Frequency Drive for Pumps, Fans, and Industrial Process Automation
0.0
Points
Brand:Schneider PLC Item No.:Schneider ATV630U15N4 Product Origin:France Product Dimensions:350 × 144 × 203 mm Product Weight:4.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ATV630U15N4 is a compact, high‑efficiency variable frequency drive (VFD) from Schneider Electric’s Altivar Process ATV630 family. Designed for process and utility applications, this drive delivers intelligent motor control for medium‑duty systems such as pumps, fans, compressors, and other fluid‑handling equipment. Its advanced connectivity, embedded safety functions, and energy‑aware control make it a compelling choice for modern automation systems with a focus on reliability and operational efficiency.
Technical Specifications
Parameter
Specification
Model
ATV630U15N4
Product Type
Variable Frequency Drive (VFD)
Series
Altivar Process ATV630
Rated Power
1.5 kW (2 HP) normal duty / 0.75 kW (1 HP) heavy duty
Input Voltage
380 – 480 V AC, 3‑phase
Rated Output Current
~4.0 A (normal duty) / ~2.2 A (heavy duty)
Output Frequency
0.1 – 500 Hz
Control Methods
V/F control, Sensorless vector, Advanced process control
Communication
Ethernet, Modbus TCP, Modbus serial (RJ45)
Safety
Safe Torque Off (STO) SIL 3
EMC Filter
Integrated compliant with IEC standards
Protection Rating
IP21 / UL Type 1
Cooling Method
Forced convection
Operating Temperature
-15 °C to +60 °C
Dimensions (H × W × D)
~350 × 144 × 203 mm
Weight
Approx. 4.5 kg
Mounting Type
Wall / Panel mount
Recommended Related Models
Schneider ATV630U15N4 – Another SKU variant of the same 15 kW process drive (Refurbished / alternative merchant).
ATV630U07N4 – Compact 0.75 kW version for smaller loads.
ATV630U22N4 – 22 kW process drive for medium‑larger systems.
The ATV630U15N4 is engineered for intelligent motor control in a wide range of process and industrial settings:
Municipal water and wastewater pump control
HVAC systems (fans, chillers, air handling units)
Industrial ventilation and fluid transfer
Light manufacturing and utilities
Mining and material processing
Food & beverage process lines
Advantages
Energy‑Efficient Operation: Process‑optimized control profiles help reduce energy consumption and operational cost while improving motor life.
Smart Connectivity: Native Ethernet and Modbus TCP/serial support simplifies integration with SCADA, PLCs, and automation networks.
Built‑In Safety: Safe Torque Off (STO) capability enhances compliance and machine safety.
Advanced Diagnostics: Embedded monitoring and predictive features improve uptime and maintenance planning.
Flexible Motor Control: Supports both asynchronous and synchronous motor types with multiple control options.
Compact & Durable Design: IP21/UL Type 1 enclosure and forced convection ensure reliable performance in industrial environments.
Technical FAQs
1. What power range does this drive support?
It supports up to 1.5 kW (2 HP) under normal duty and 0.75 kW (1 HP) under heavy duty.
2. What is the input voltage range?
380 – 480 V AC, three‑phase.
3. What communication options are available?
Ethernet and Modbus (TCP and serial).
4. Does it include safety features?
Yes — Safe Torque Off (STO) with SIL 3 certification.
5. What is the maximum output frequency?
Up to 500 Hz.
6. Is an EMC filter integrated?
Yes, compliant with IEC electromagnetic standards.
7. What types of motors can it control?
It supports both standard induction (asynchronous) and synchronous motors.
8. Is it suitable for continuous duty operation?
Yes — designed for industrial‑grade continuous operation.
9. What mounting method is recommended?
Vertical wall or panel mounting with forced convection cooling.
10. How does this model compare to legacy drives?
ATV630U series drives offer improved connectivity, embedded safety functions, and advanced process intelligence compared to older ATV61 platforms.
