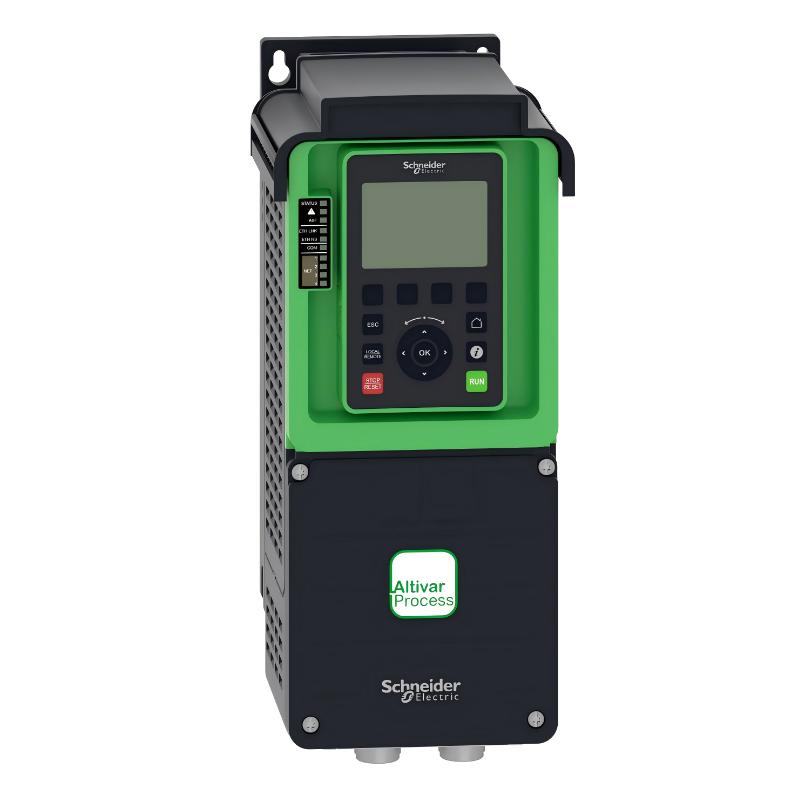

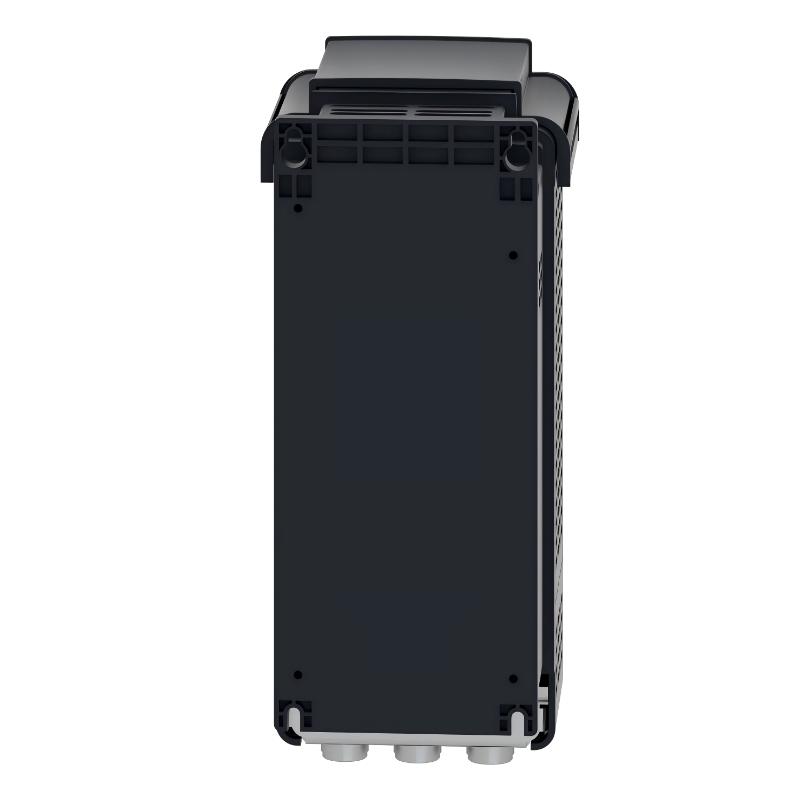

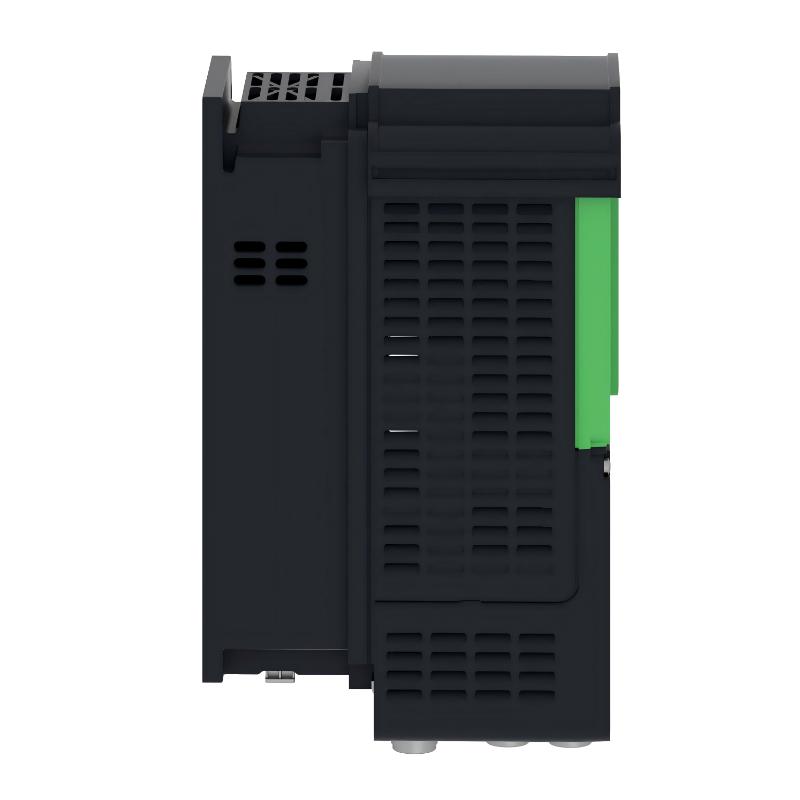

ATV630U30N4-4 ATV630U30N4-3 ATV630U30N4-1 ATV630U30N4-2

The Schneider ATV630U30N4 is a premium variable frequency drive designed for high-performance industrial motor control. Combining reliability, energy efficiency, and intelligent automation, it delivers precise speed and torque management for demanding applications. Its rugged design ensures continuous operation even in harsh industrial environments, making it a trusted solution for engineers seeking both performance and long-term durability.

Technical Specifications

Parameter	Specification
Input Voltage	380 – 480 V AC, 3-phase
Output Voltage	0 – 480 V AC
Rated Current	30 A
Motor Power	22 kW (30 hp)
Switching Frequency	2 – 16 kHz
Control Modes	V/F, Sensorless Vector, Closed-loop Vector
Communication Protocols	Modbus RTU, CANopen, Ethernet/IP
Protection Class	IP20 / IP21 standard, IP54 optional
Ambient Temperature	-10°C to 50°C
Dimensions (H × W × D)	540 × 250 × 210 mm
Weight	23 kg

Recommended Related Models

ATV630U22N4 – For smaller motor loads and compact installations
ATV630U40N4 – Higher power motors requiring advanced control
ATV630D30N4 – Dual-drive solution for synchronized multi-motor systems

Popular Schneider Models

ATV630D22N4 – Energy-efficient VFD for pumps and fans
ATV61HU30N4 – Flexible drive for HVAC and industrial motors
ATV630U15N4 – Cost-effective solution for standard motor control

Applications
The ATV630U30N4 excels in:

Industrial pumps and compressors
HVAC systems and ventilation control
Material handling and conveyor lines
Water treatment and wastewater management
Renewable energy motor integration

Advantages

Energy Saving: Optimizes motor performance to reduce power consumption
Reliable & Durable: Engineered for continuous operation in tough conditions
Advanced Control: Precise speed and torque management for critical processes
Scalable: Easy integration with multi-drive and automation networks
User-Friendly: Intuitive interface simplifies setup and monitoring

Technical FAQs

What is the maximum motor power supported?
Up to 22 kW (30 hp) at 380–480 V AC.
Which communication protocols are supported?
Modbus RTU, CANopen, and Ethernet/IP.
Does it support different control modes?
Yes, V/F, Sensorless Vector, and Closed-loop Vector.
What is the operating temperature range?
-10°C to 50°C.
Is the drive suitable for outdoor or dusty environments?
Standard IP20/IP21; IP54 option is available for dust and splash protection.
How easy is it to install and configure?
Quick Set function allows fast and intuitive commissioning.
Can braking and energy recovery be integrated?
Yes, optional braking modules and regenerative capabilities are supported.
What are the drive dimensions and weight?
540 × 250 × 210 mm; 23 kg.
Is it compatible with multi-drive systems?
Yes, it supports scalable networked drive configurations.
What safety features are built-in?
Overcurrent, overvoltage, thermal protection, and Safe Torque Off (STO) available.
