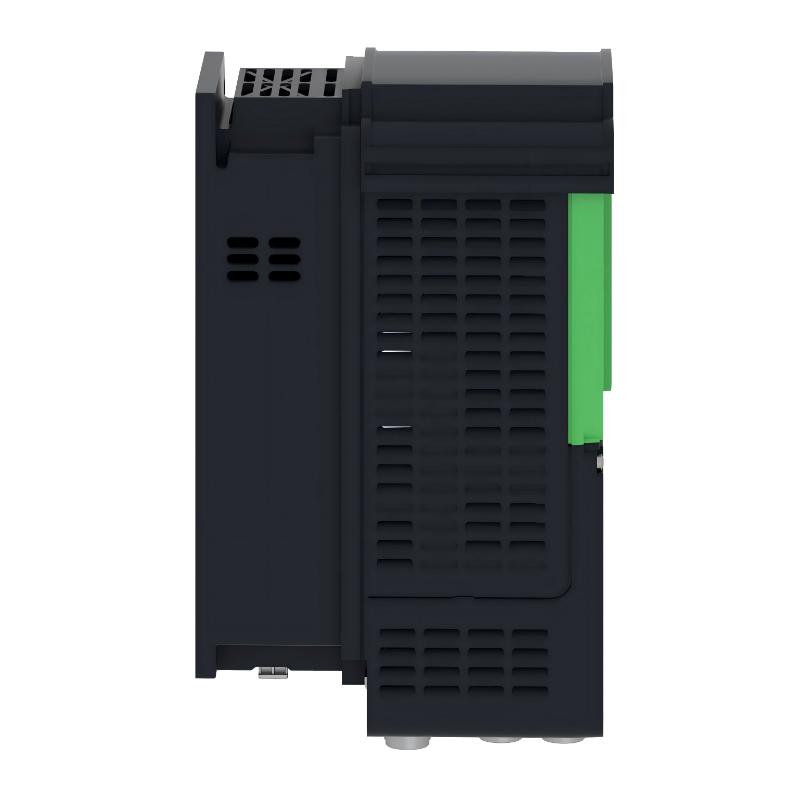

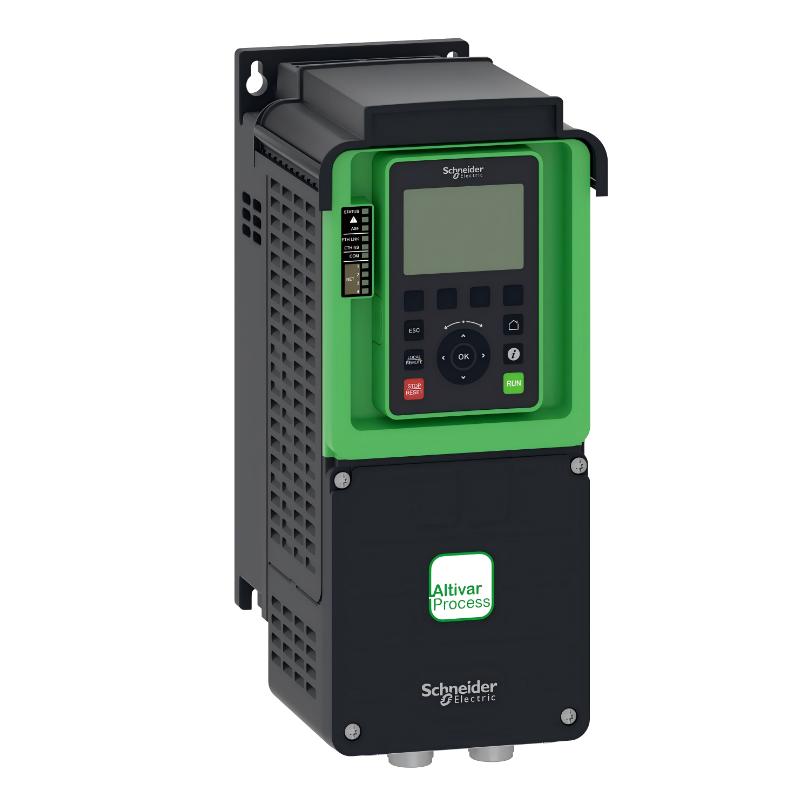

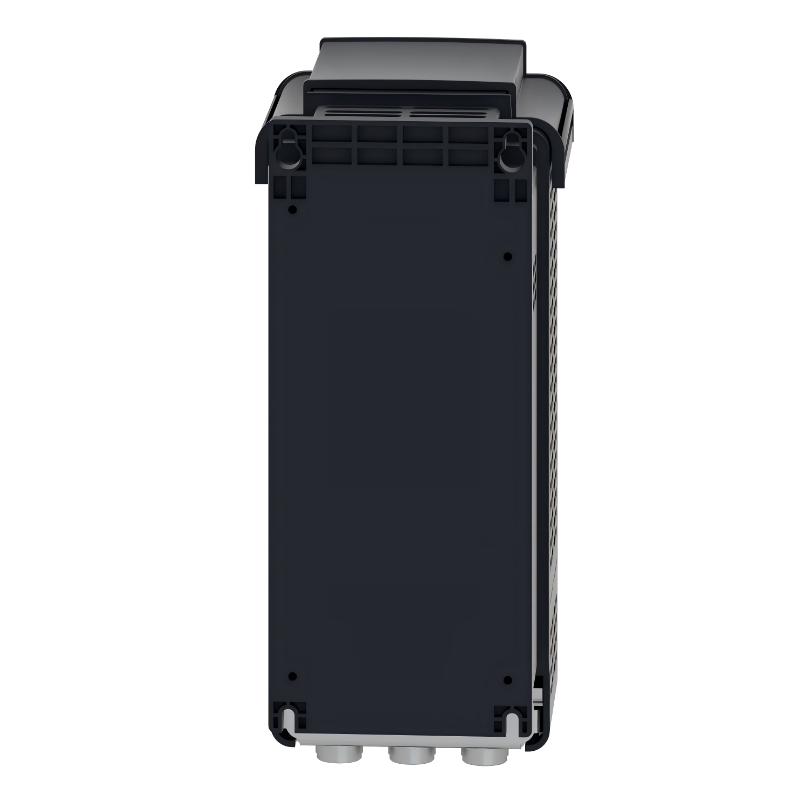

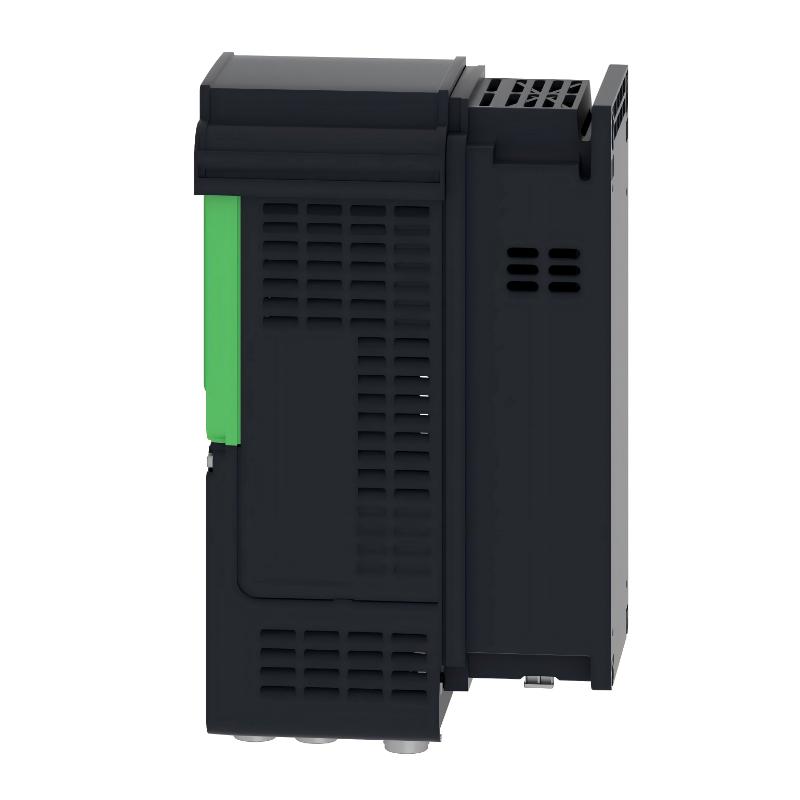

The Schneider Electric ATV630U40N4 is a high-performance 30 kW variable frequency drive engineered for demanding industrial motor control applications. Combining precision, reliability, and energy efficiency, this drive ensures optimal motor operation while minimizing energy consumption. Built for harsh industrial environments, the ATV630U40N4 delivers advanced control, intuitive setup, and seamless integration into automation networks. Ideal for pumps, fans, conveyors, and renewable energy systems, it provides a perfect balance of performance, durability, and cost-efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 40 A |
| Motor Power | 30 kW (40 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 / IP21 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 600 × 250 × 210 mm |
| Weight | 27 kg |
