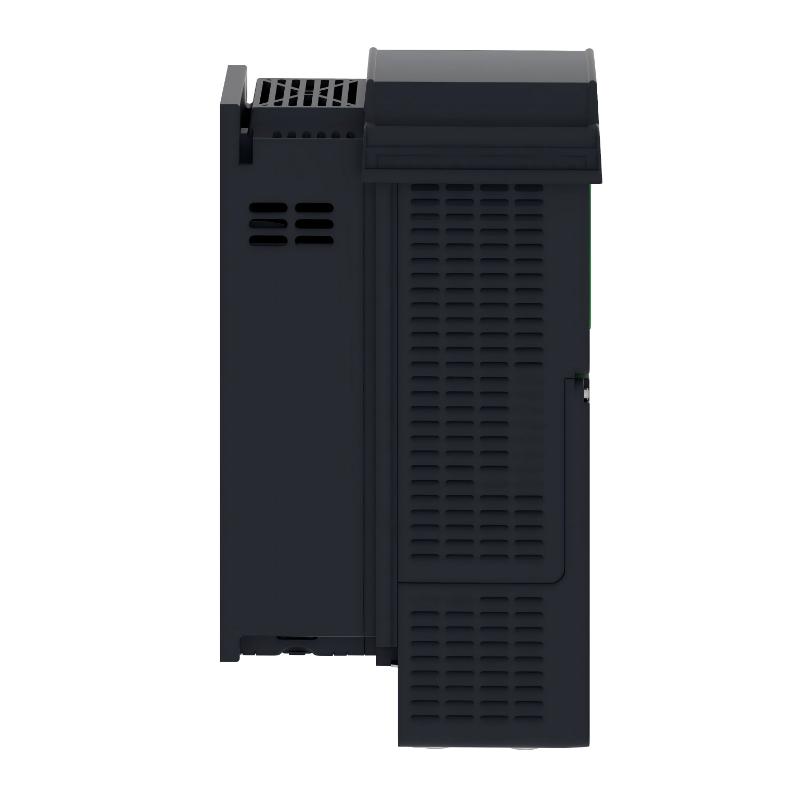

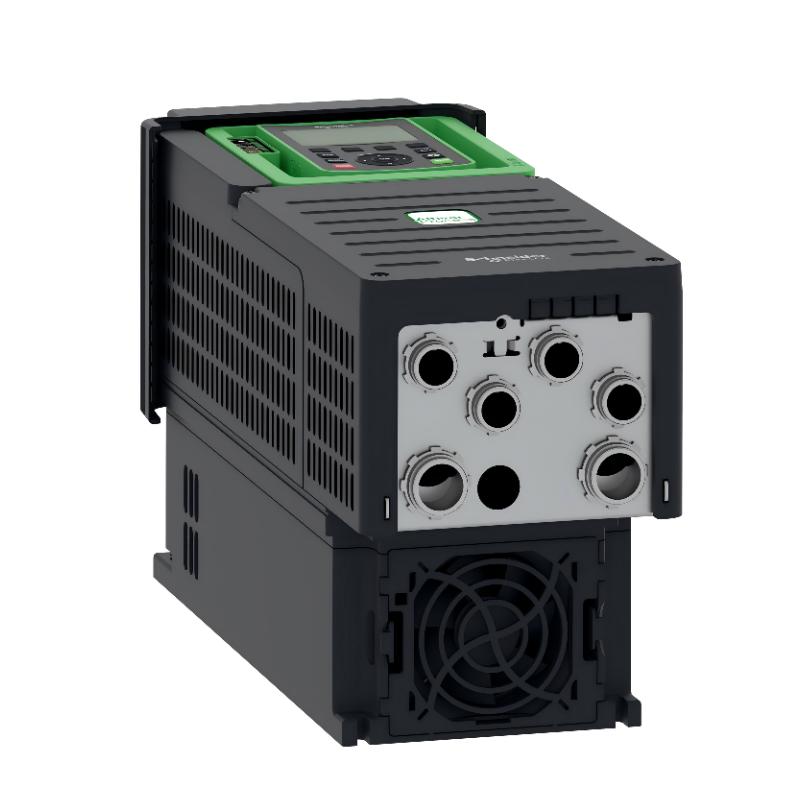

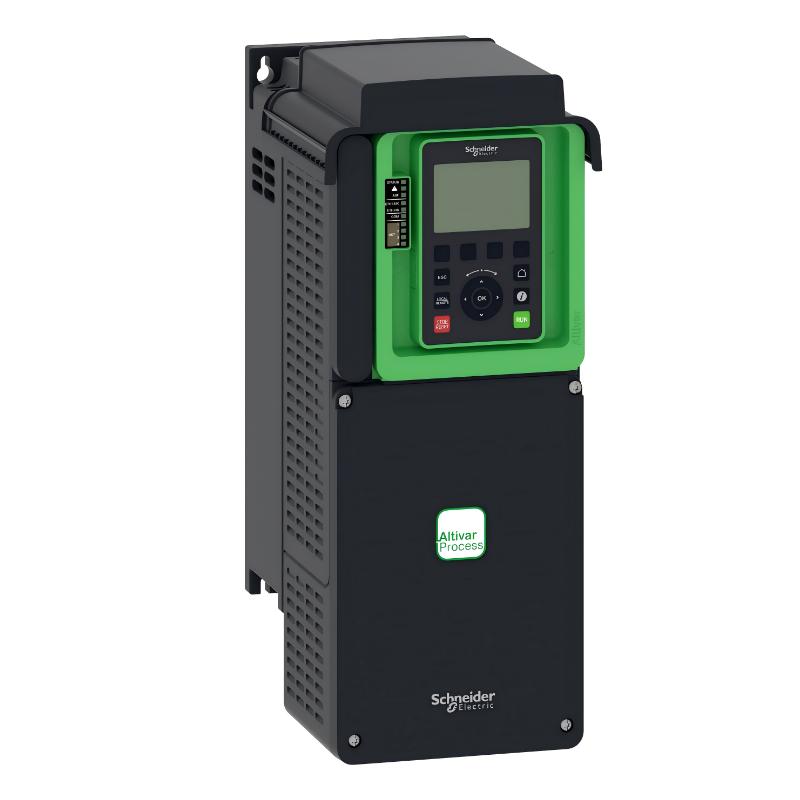

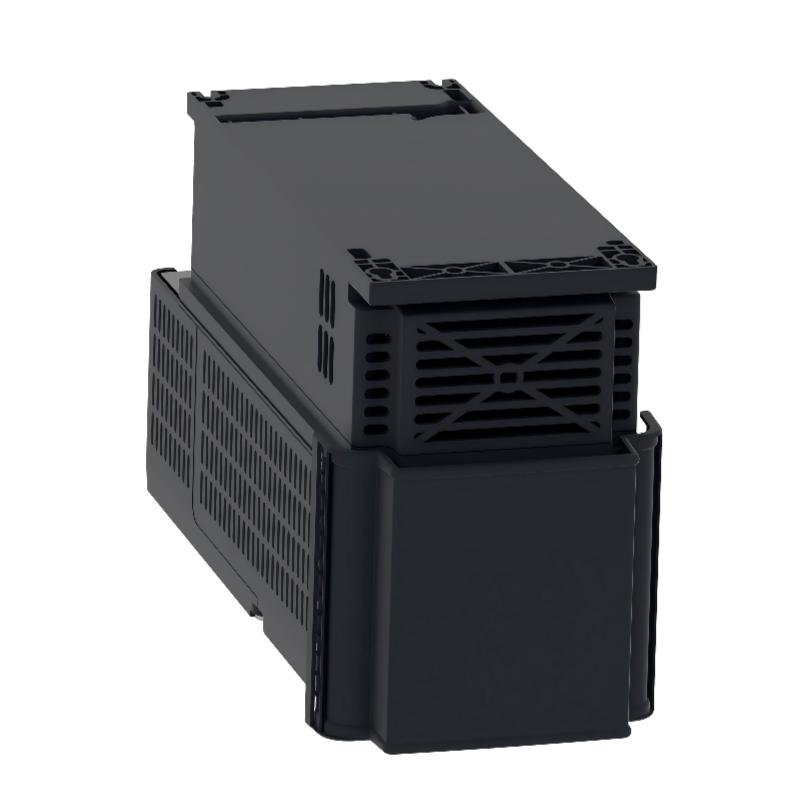

The Schneider Electric ATV630U75N4 is a high-power 55 kW variable frequency drive designed for demanding industrial motor control applications. Engineered for precision, reliability, and energy efficiency, this drive delivers superior motor performance while reducing energy consumption and operational costs. Ideal for heavy-duty pumps, fans, conveyors, and renewable energy systems, the ATV630U75N4 provides advanced automation features, intuitive operation, and robust protection in harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 75 A |
| Motor Power | 55 kW (75 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 / IP21 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 700 × 300 × 250 mm |
| Weight | 38 kg |
