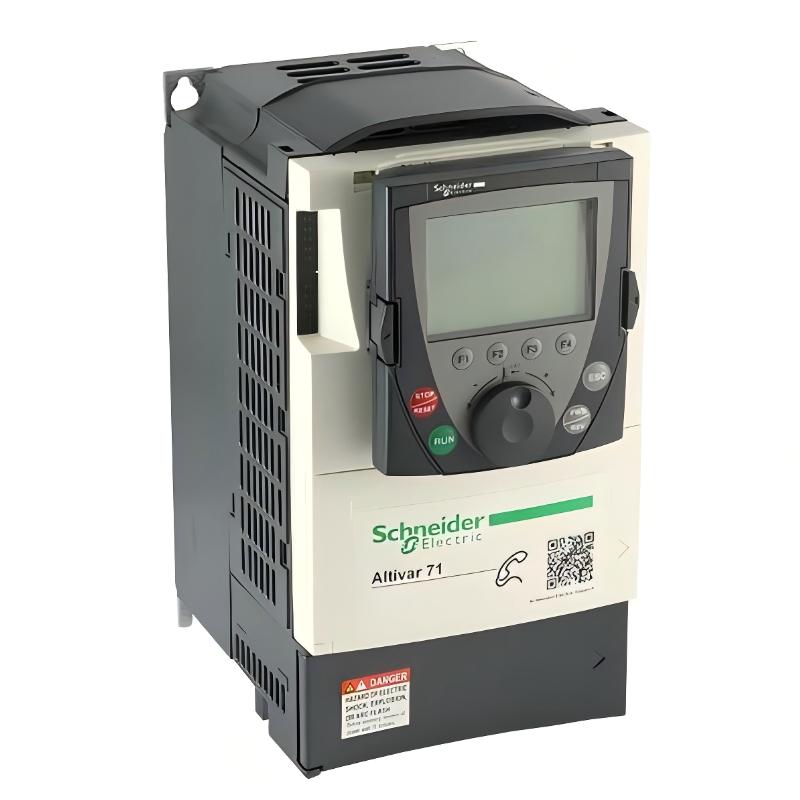

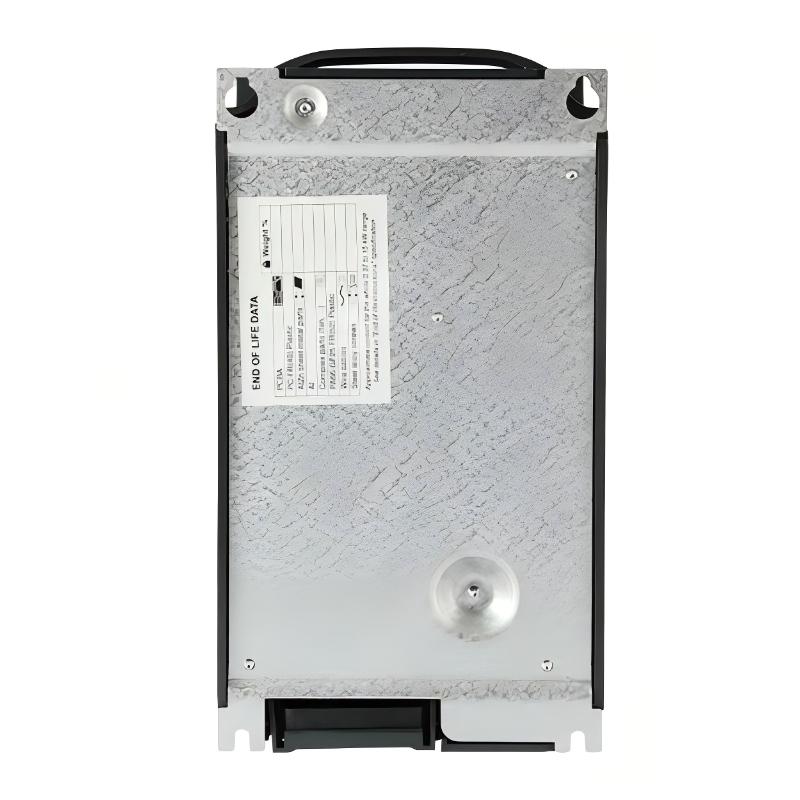

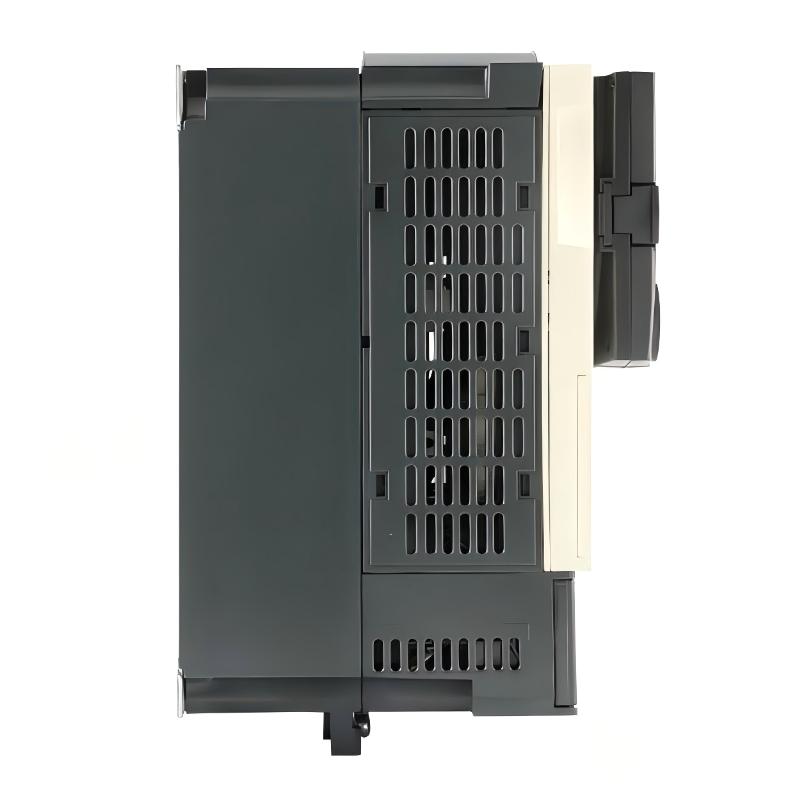

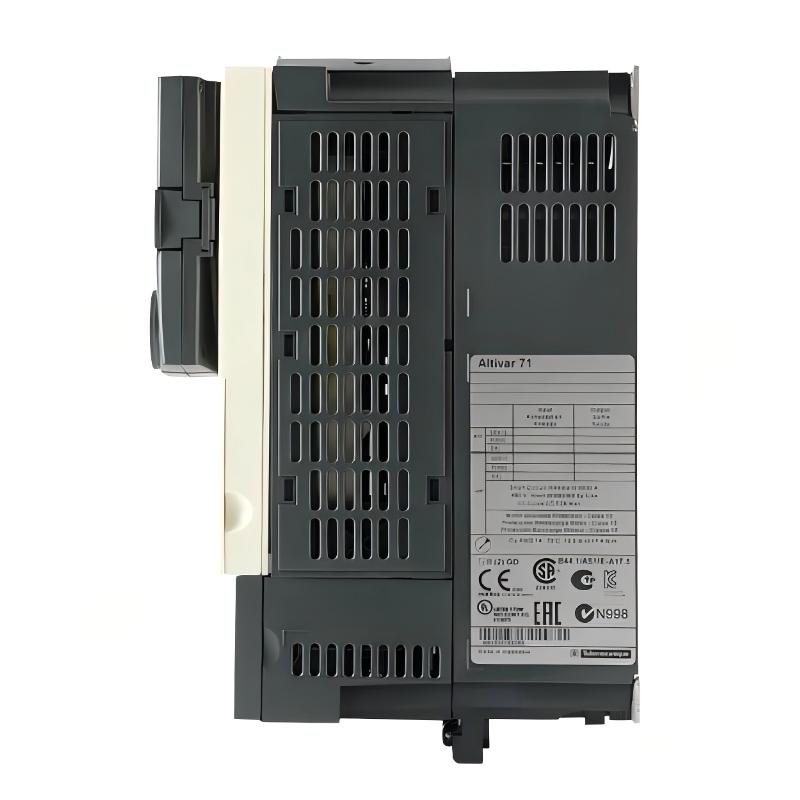

The Schneider Electric ATV71H075N4 is a high-performance 55 kW variable frequency drive designed for demanding industrial motor control applications. With advanced control algorithms, energy-efficient operation, and robust construction, it ensures precise speed and torque management even in harsh industrial environments. Ideal for large pumps, fans, conveyors, and complex automation systems, the ATV71H075N4 delivers reliable performance, reduced energy consumption, and enhanced operational efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 75 A |
| Motor Power | 55 kW (75 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP21 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 650 × 300 × 220 mm |
| Weight | 38 kg |
