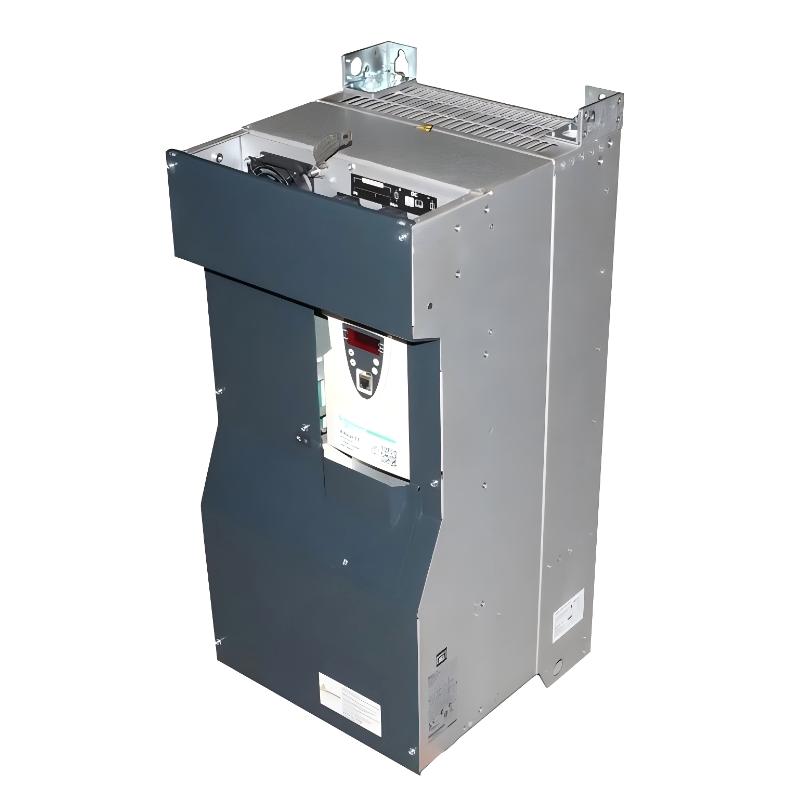

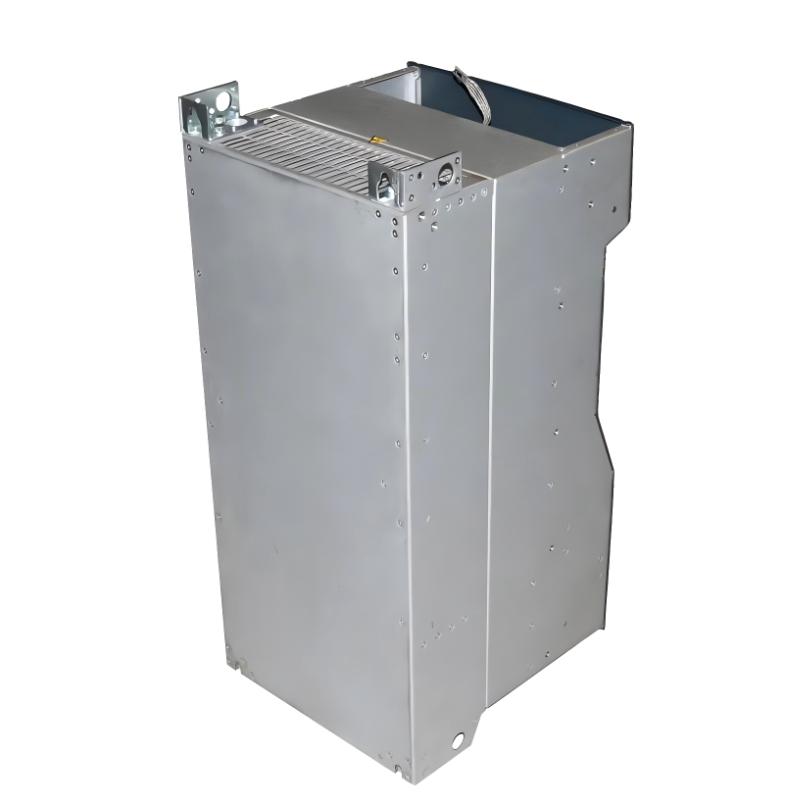

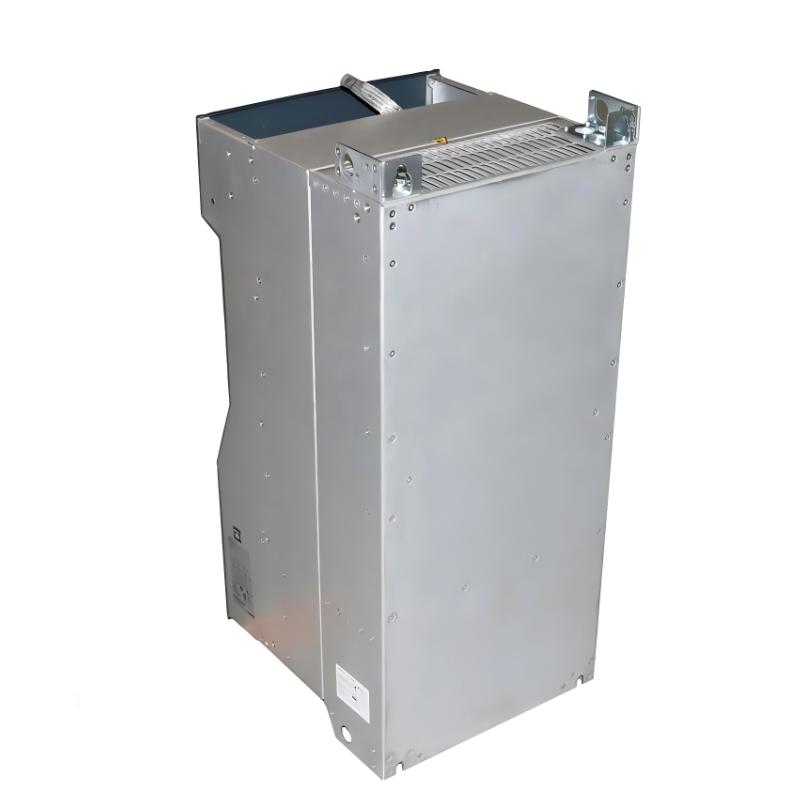

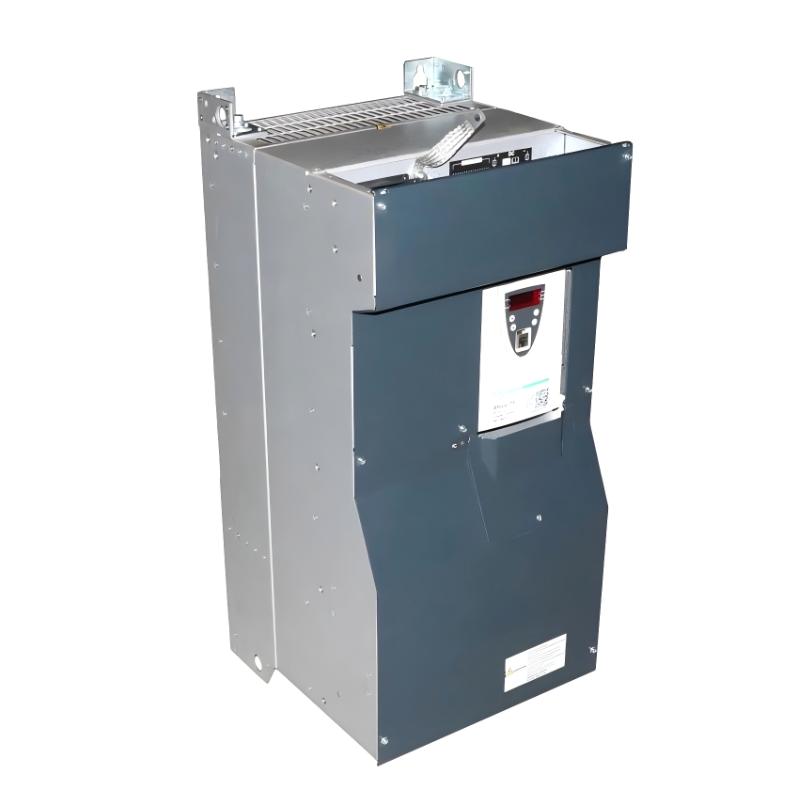

The Schneider Electric ATV71HC11N4 is a compact 7.5 kW variable frequency drive designed for precise motor control in demanding industrial applications. Combining energy efficiency, robust reliability, and advanced automation features, this drive ensures optimal performance even in constrained spaces. Ideal for pumps, fans, conveyors, and light industrial machinery, the ATV71HC11N4 delivers accurate speed and torque control while reducing energy consumption and operational costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 11 A |
| Motor Power | 7.5 kW (10 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 220 × 150 × 140 mm |
| Weight | 4.5 kg |
