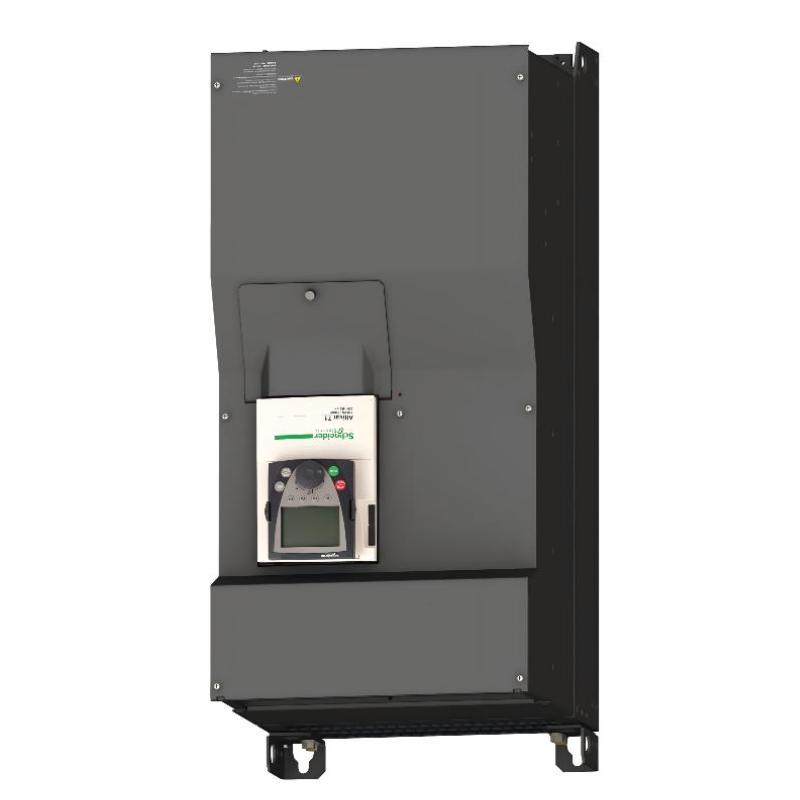

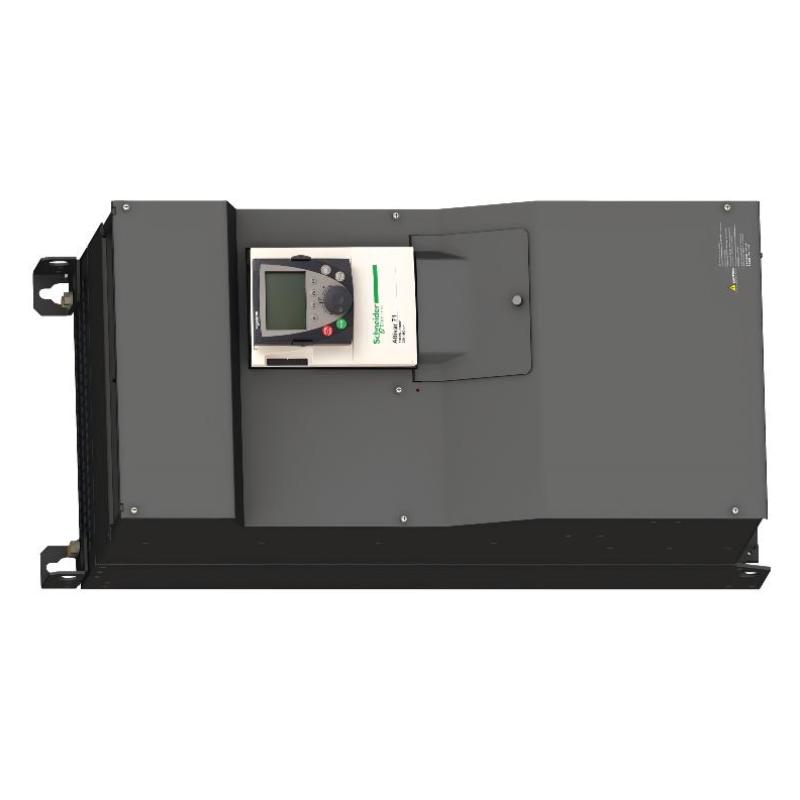

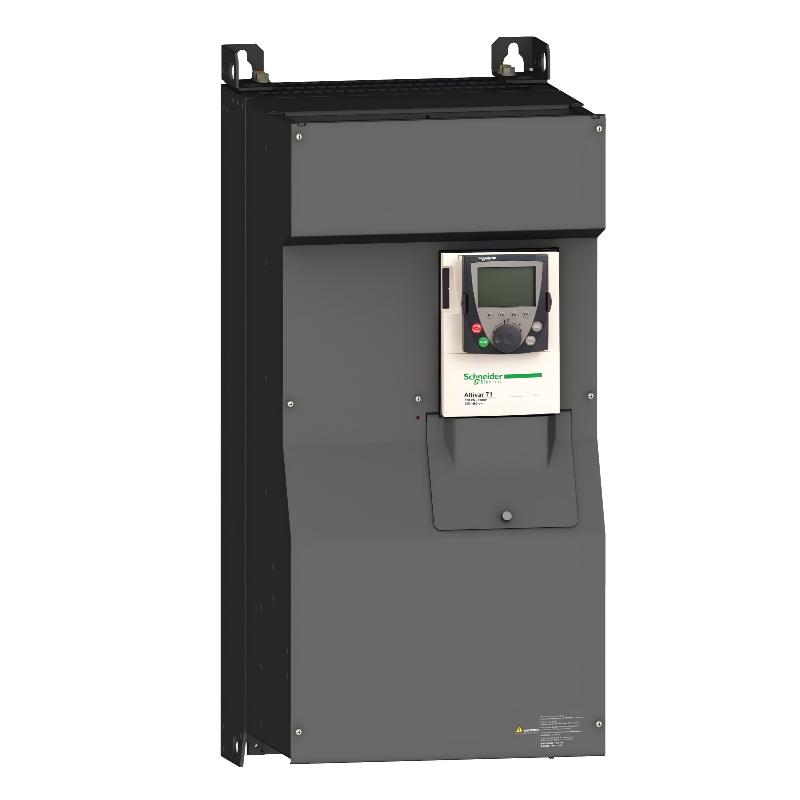

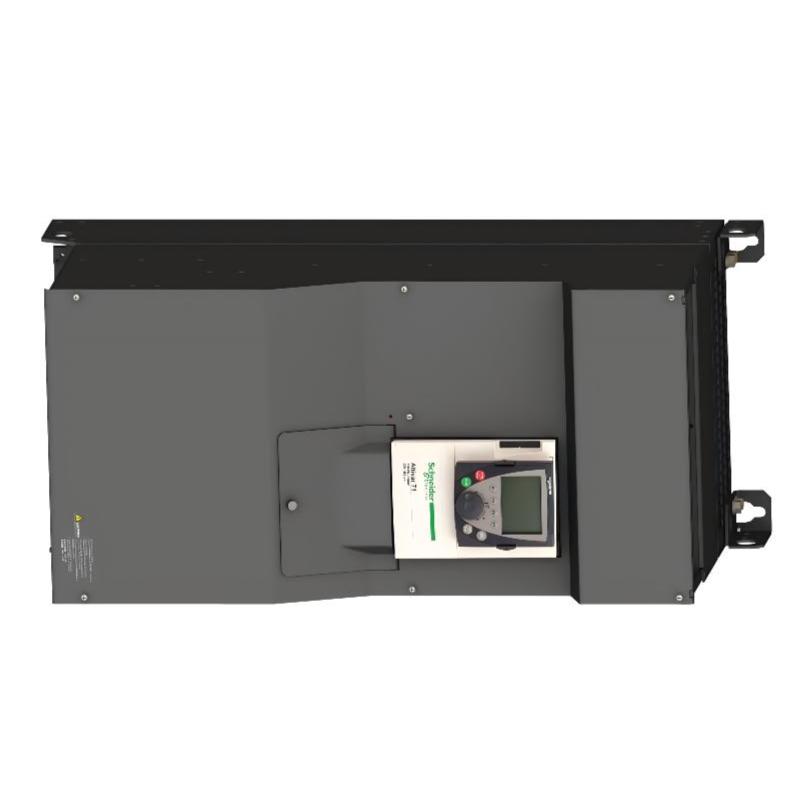

The Schneider Electric ATV71HC16N4 is a compact 11 kW variable frequency drive engineered for precise motor control in demanding industrial environments. Designed for efficiency, reliability, and ease of integration, this drive delivers accurate speed and torque management while reducing energy consumption. Ideal for pumps, fans, conveyors, and light industrial machinery, the ATV71HC16N4 provides advanced automation capabilities, compact design, and robust protection for optimal operational performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 16 A |
| Motor Power | 11 kW (15 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 240 × 150 × 160 mm |
| Weight | 6.0 kg |
