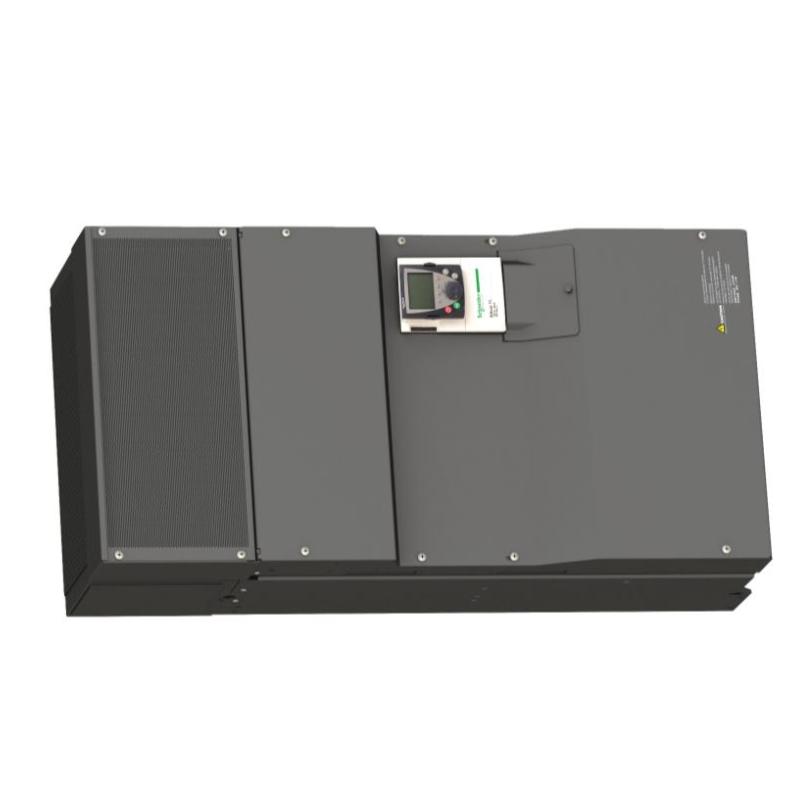

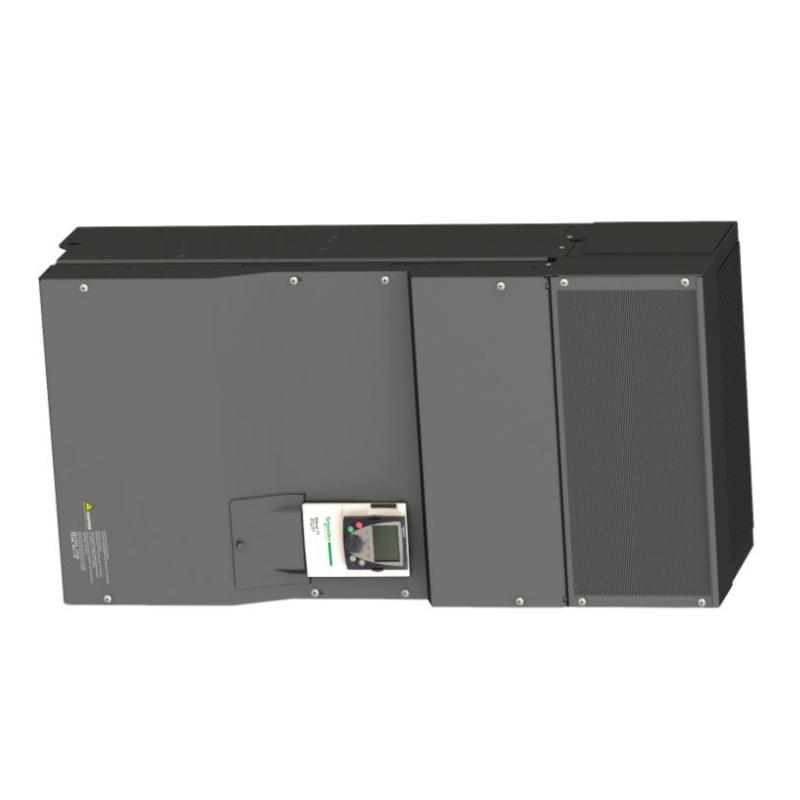

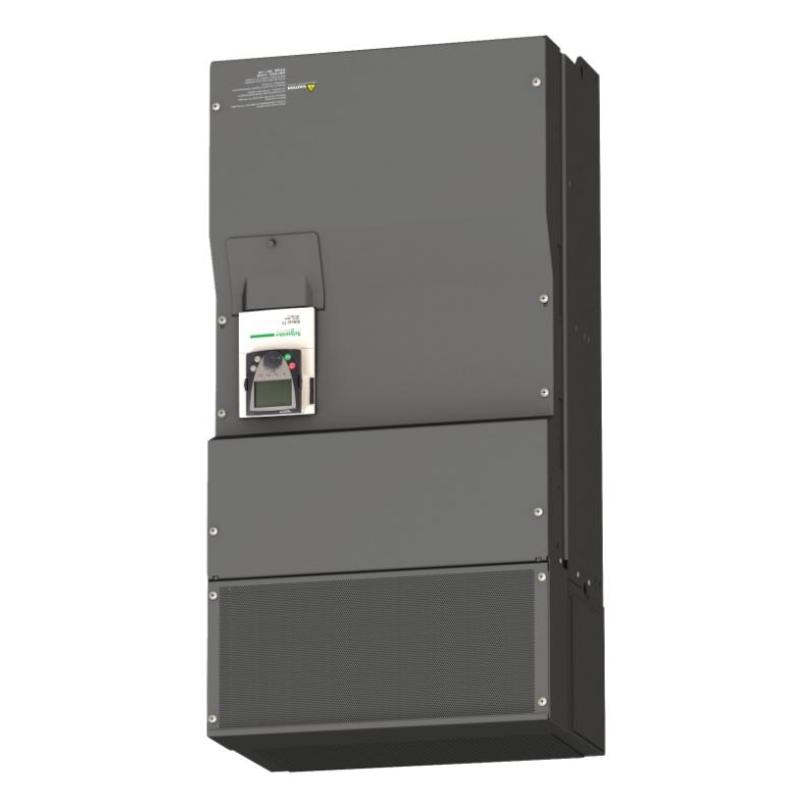

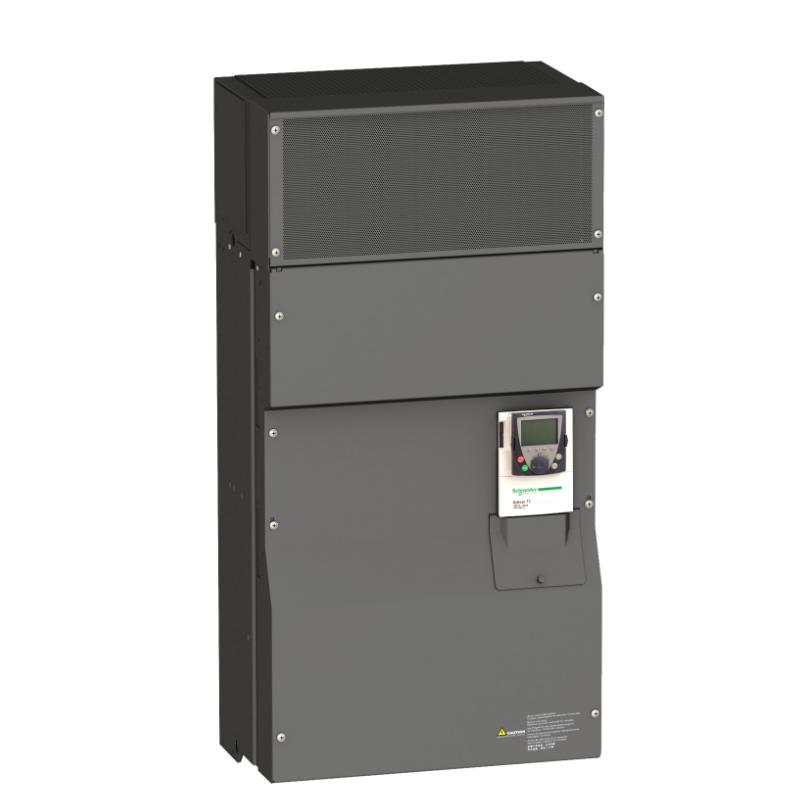

The Schneider Electric ATV71HC25N4 is a robust 18.5 kW variable frequency drive designed for precise motor control in demanding industrial applications. Combining advanced automation features, energy efficiency, and a compact form factor, this drive ensures optimal performance and reliability even in constrained spaces. Ideal for pumps, fans, conveyors, and medium industrial machinery, the ATV71HC25N4 delivers accurate speed and torque control while reducing energy costs and enhancing operational efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 25 A |
| Motor Power | 18.5 kW (25 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 350 × 200 × 180 mm |
| Weight | 10 kg |
