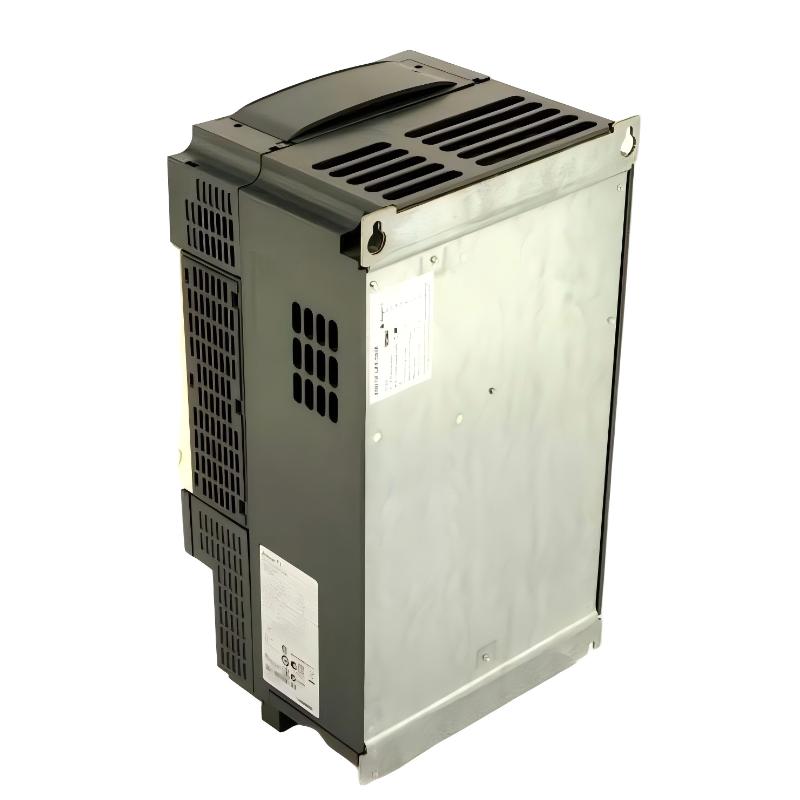

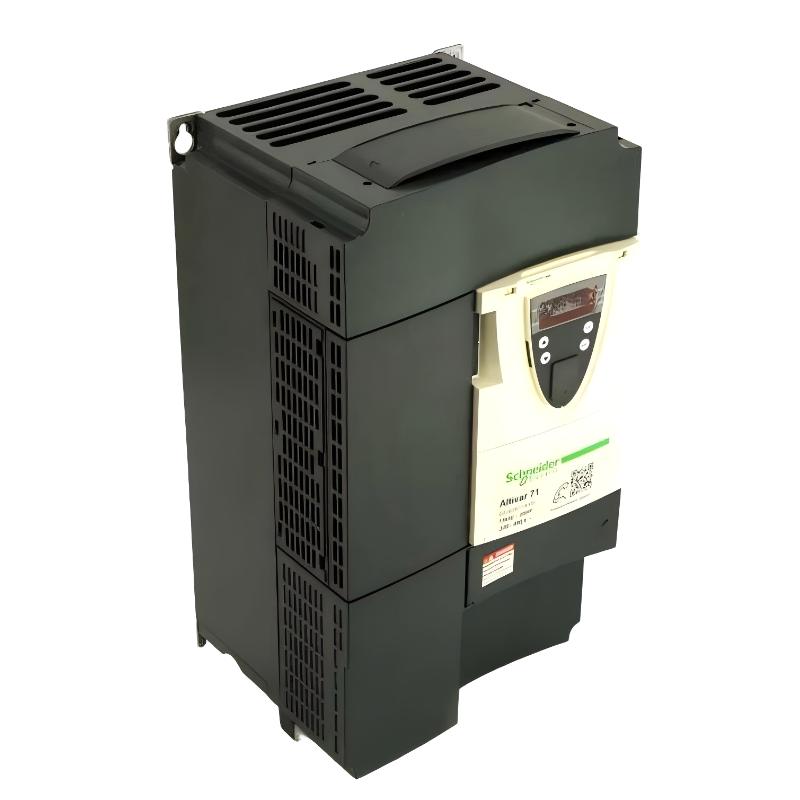

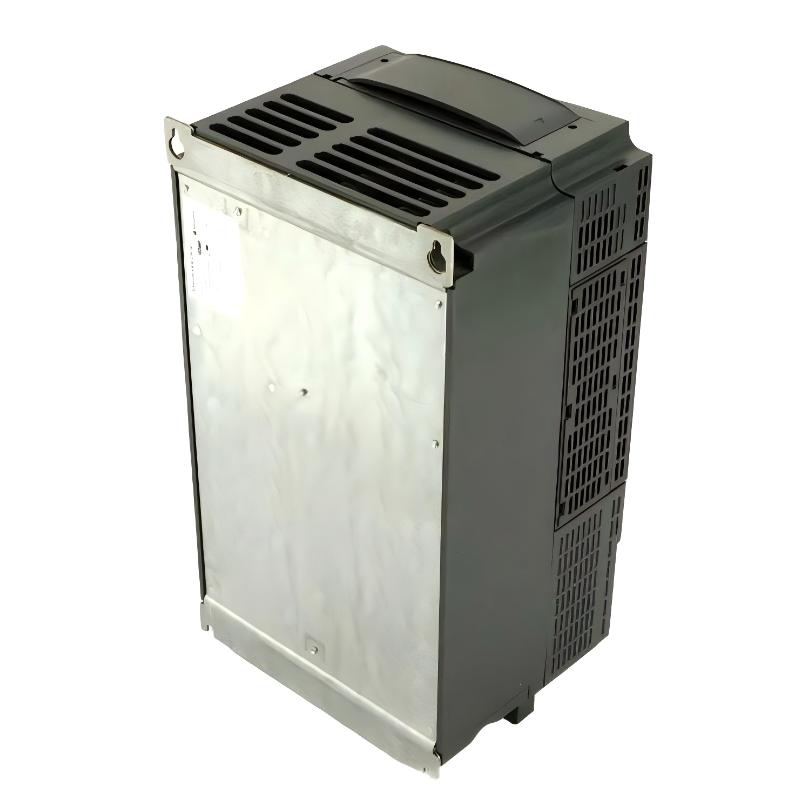

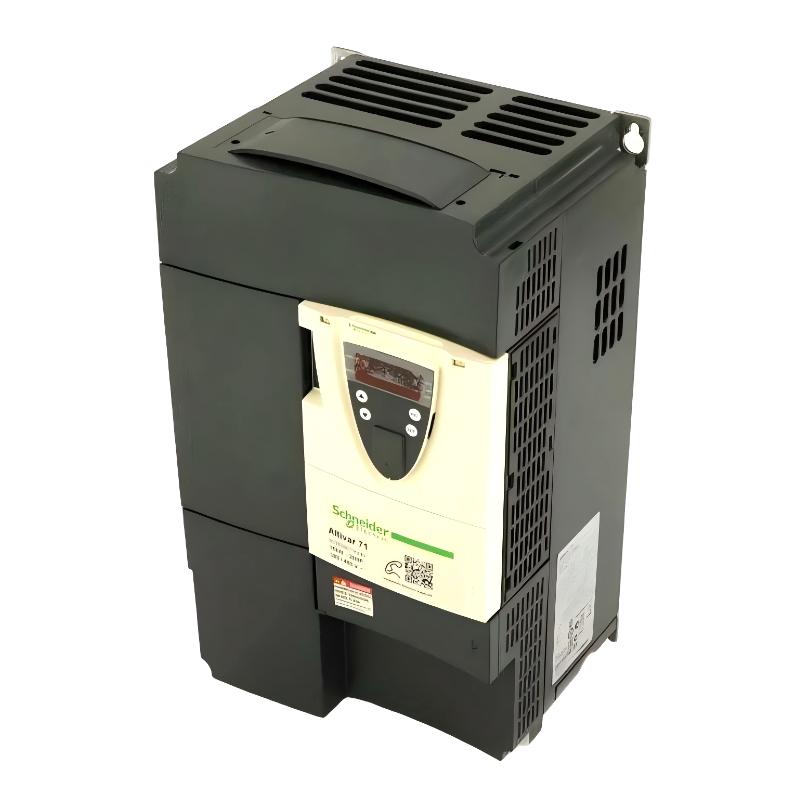

The Schneider Electric ATV71HD15N4 is a robust 11 kW variable frequency drive engineered for high-performance industrial motor control. Designed for demanding applications, this drive combines energy efficiency, reliability, and precision, ensuring optimal operation even in challenging industrial environments. Ideal for pumps, fans, conveyors, and medium-duty machinery, the ATV71HD15N4 delivers accurate speed and torque management while reducing energy consumption and operational costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 15 A |
| Motor Power | 11 kW (15 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 240 × 150 × 160 mm |
| Weight | 5.5 kg |
