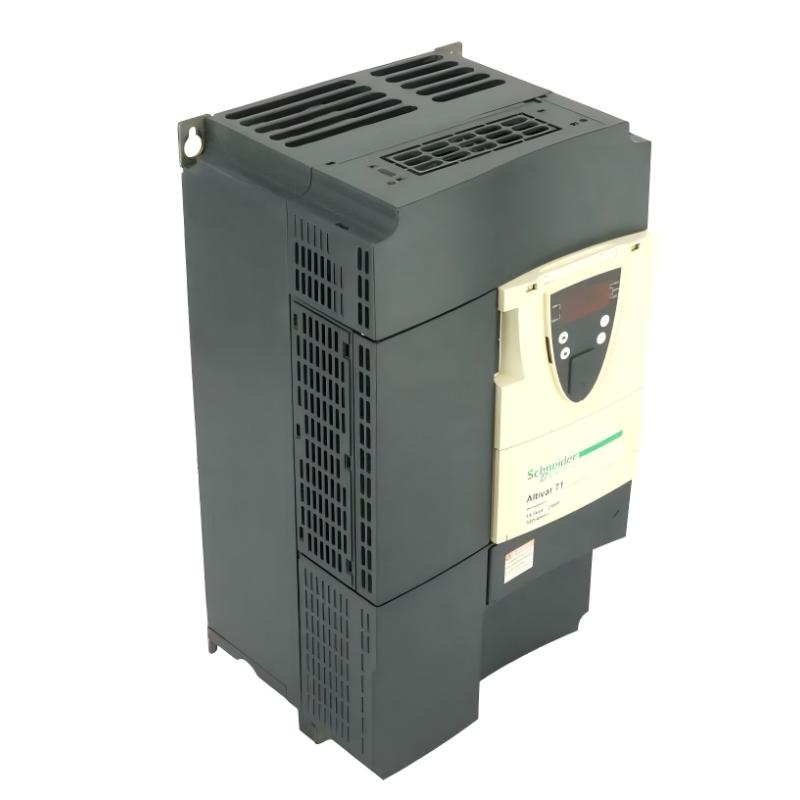

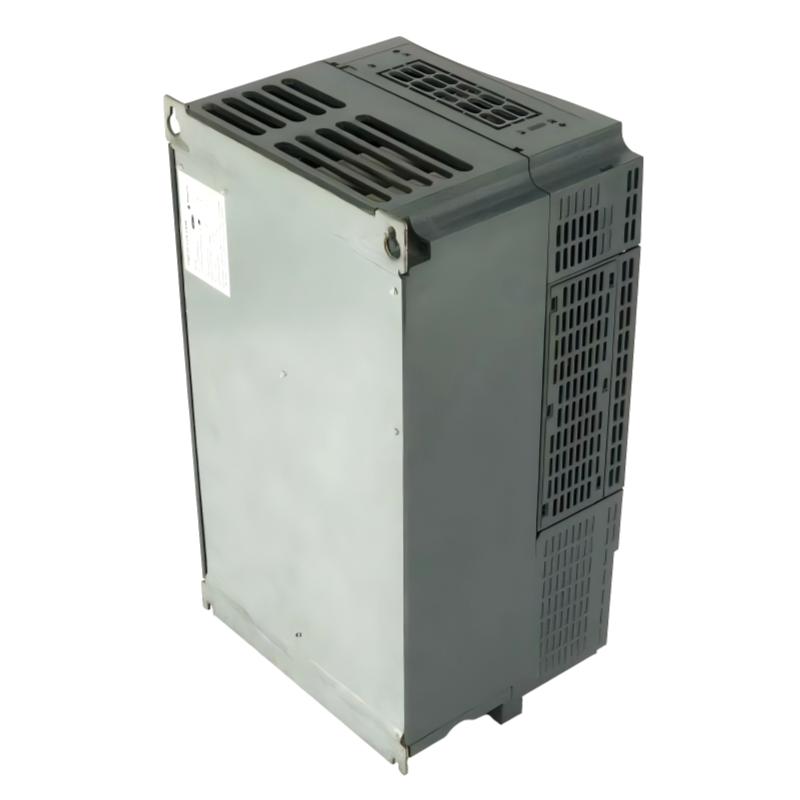

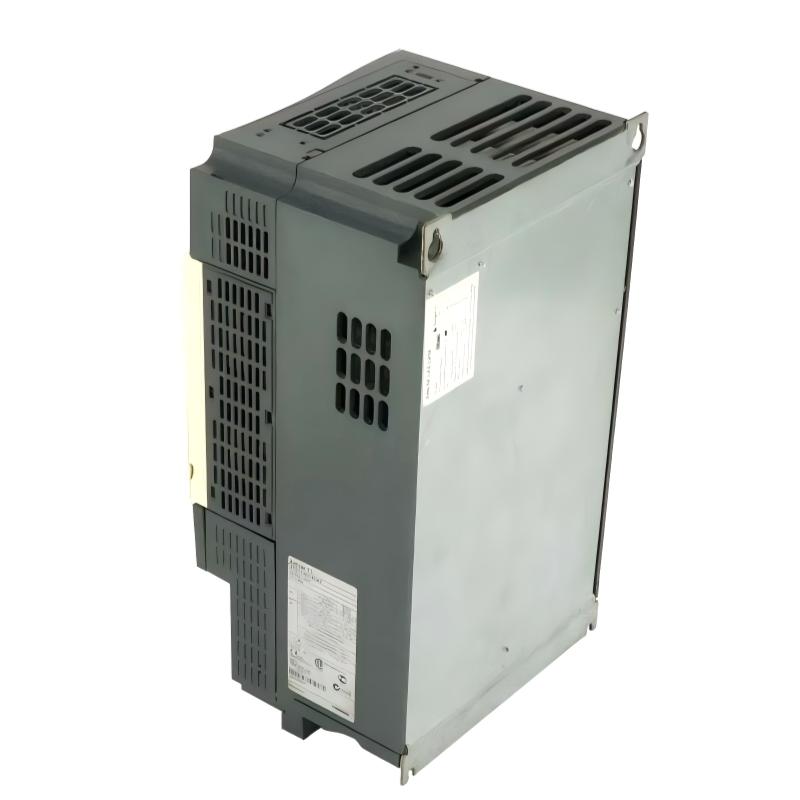

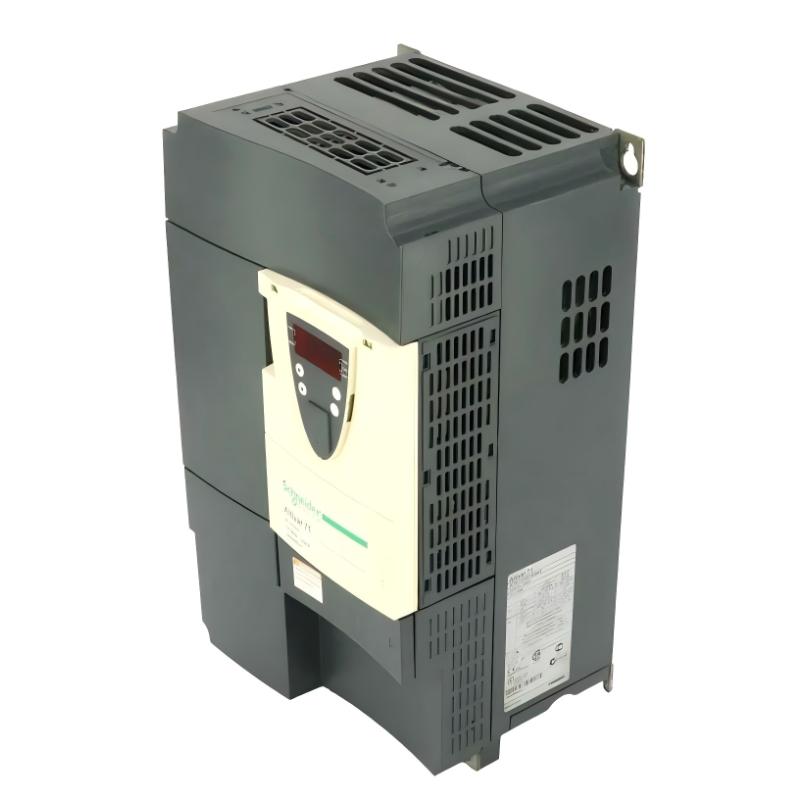

The Schneider Electric ATV71HD18N4 is a robust 15 kW variable frequency drive engineered for high-performance industrial motor control. Designed to combine precision, energy efficiency, and durability, this drive ensures reliable operation even in demanding industrial environments. Ideal for pumps, fans, conveyors, and medium-duty machinery, the ATV71HD18N4 delivers accurate speed and torque management while optimizing energy consumption and enhancing operational efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 18 A |
| Motor Power | 15 kW (20 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 270 × 150 × 180 mm |
| Weight | 7.2 kg |
Recommended Related Models
- ATV71HD15N4 – 11 kW for slightly smaller motor loads
- ATV71HD22N4 – 18.5 kW for higher power applications
- ATV71H018D4 – Dual-drive configuration for synchronized multi-motor systems
