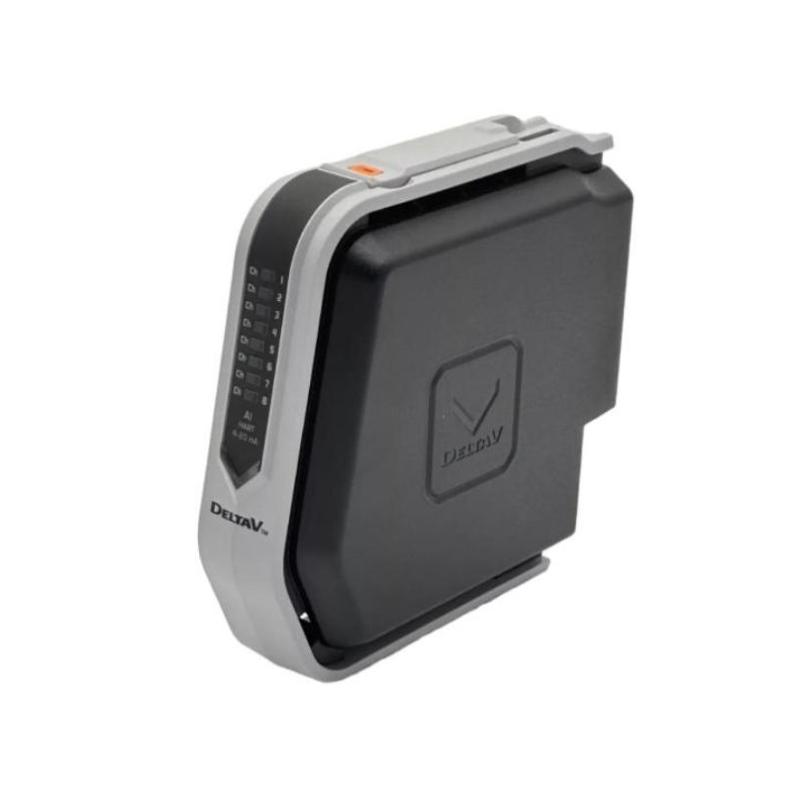

Emerson KJ3222X1-BK1 8-channel Analog Input Module
Emerson KJ3222X1-BK1 8-channel Analog Input Module
0.0
Points
Brand:Emerson Module Item No.:KJ3222X1-BK1 Product Origin:USA Product Dimensions:112 × 40 × 101 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Emerson KJ3222X1-BK1 Analog Input Module delivers precise and reliable signal acquisition for DeltaV™ control systems. With 8-channel input capability and HART communication support, it ensures accurate monitoring of critical process variables while enabling advanced diagnostics. Its rugged design and seamless integration make it a dependable choice for modern industrial automation environments.
Technical Specifications
Parameter
Specification
Model
KJ3222X1-BK1
Product Type
8-channel Analog Input Module
Dimensions
112 × 40 × 101 mm
Weight
0.25 kg
Input Channels
8 Channels
Signal Type
4–20 mA (HART supported)
Compatible Series
Emerson DeltaV™
Suggested Alternatives
Model
Product Name
Emerson KJ3221X1-BA1
Analog Output Module
Emerson KJ3001X1-BA1
Analog Input Module
Emerson KJ3222X1-BK2
Analog Input Module
Emerson KJ3202X1-BA1
Digital Input Module
Frequently Selected Together
Model
Product Name
Emerson KJ2001X1-BA1
Controller M2
Emerson KJ2201X1-BA1
Intelligent Logic Solver
Emerson KJ4001X1-CA1
Power Supply Module
Emerson KJ1501X1-BC1
System Power Supply
Application Scenarios
• Designed for high-precision analog signal acquisition in Emerson DeltaV™ distributed control systems.
• Interfaces with field transmitters measuring pressure, temperature, flow, and level.
• Widely applied in oil & gas, chemical processing, and power generation industries.
• Supports integration with HART-enabled smart instruments for enhanced diagnostics.
• Ideal for system expansion or upgrading legacy analog input modules.
• Supports industry-standard 4–20 mA signals with HART communication.
• High accuracy and resolution ensure reliable process measurements.
• Robust industrial design suitable for harsh environments.
• Seamless integration with DeltaV™ system architecture.
• Hot-swappable capability minimizes downtime during maintenance.
Technical FAQs
1. What is the primary function of this module?
It collects analog signals from field devices and converts them into digital data for the control system.
2. How many input channels does it support?
It supports 8 analog input channels for simultaneous signal acquisition.
3. What signal types are supported?
Primarily 4–20 mA signals with HART communication capability.
4. Is it compatible with DeltaV systems?
Yes, it is specifically designed for Emerson DeltaV distributed control systems.
5. Can it communicate with smart field devices?
Yes, HART protocol support enables communication with intelligent instruments.
6. What industries typically use this module?
Oil & gas, chemical, power generation, and industrial automation sectors.
7. Does it support high-accuracy measurements?
Yes, it offers high precision and stable signal acquisition performance.
8. Can it be used for system upgrades?
Yes, it is commonly used to replace or expand existing analog input modules.
9. Is it suitable for continuous operation?
Yes, it is designed for reliable 24/7 industrial operation.
10. Does it require frequent maintenance?
No, it is designed for long-term, low-maintenance operation.
