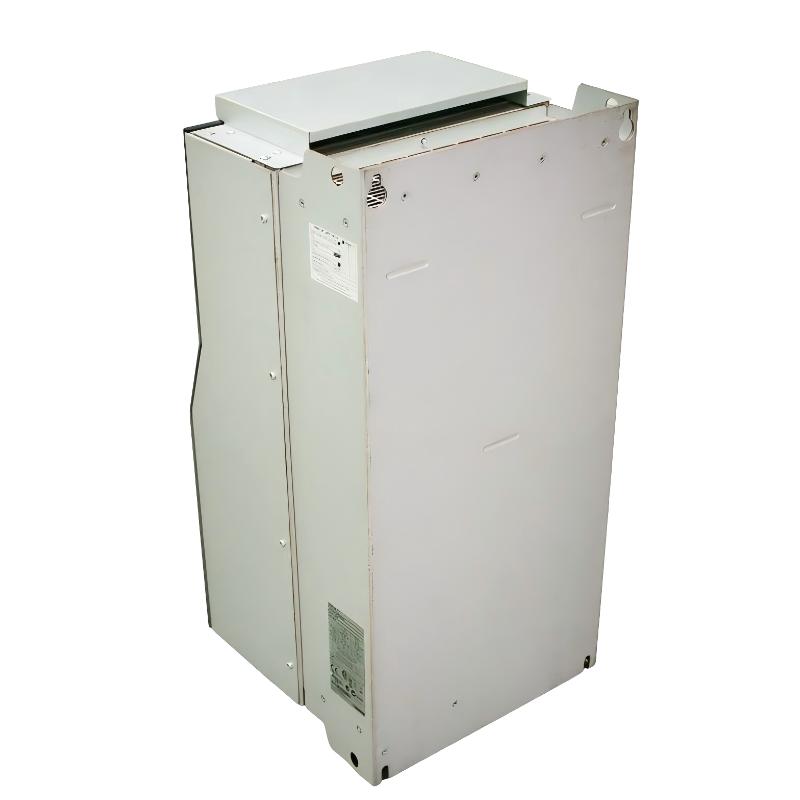

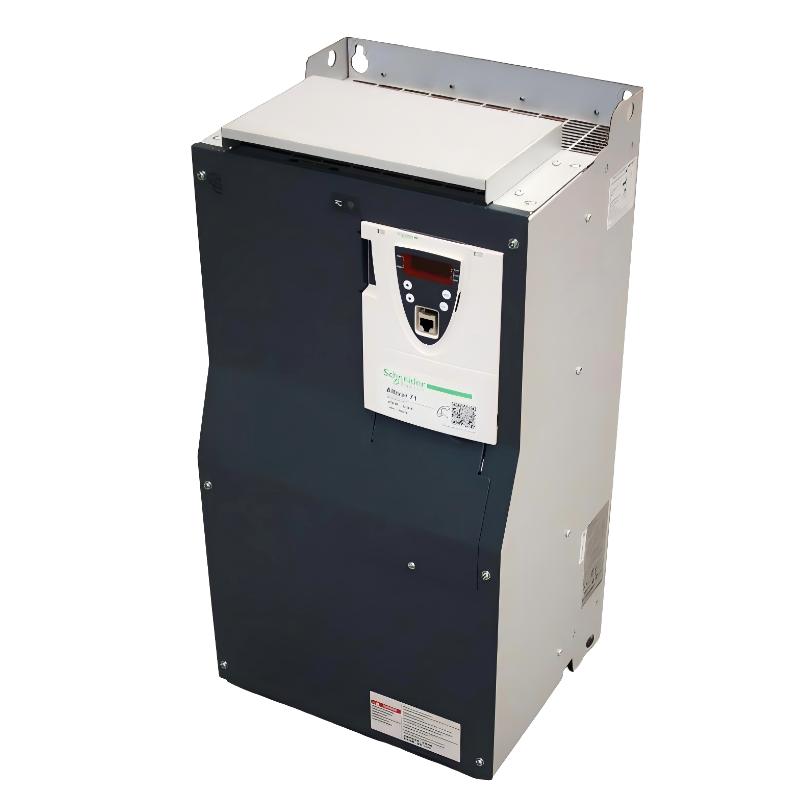

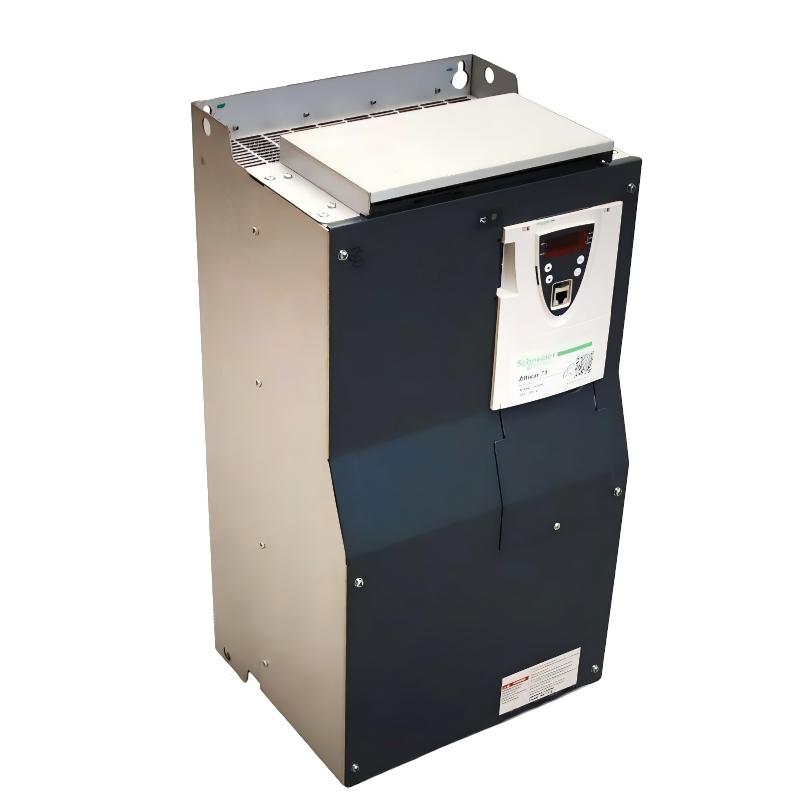

The Schneider Electric ATV71HD45N4 is a powerful 45 kW variable frequency drive engineered for demanding industrial applications. Combining precision, energy efficiency, and robust reliability, this drive is ideal for heavy-duty machinery, large pumps, fans, and conveyors. The ATV71HD45N4 ensures accurate speed and torque control, optimized energy usage, and enhanced operational efficiency for industrial environments where performance and durability are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 95 A |
| Motor Power | 45 kW (60 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 550 × 270 × 230 mm |
| Weight | 45 kg |
