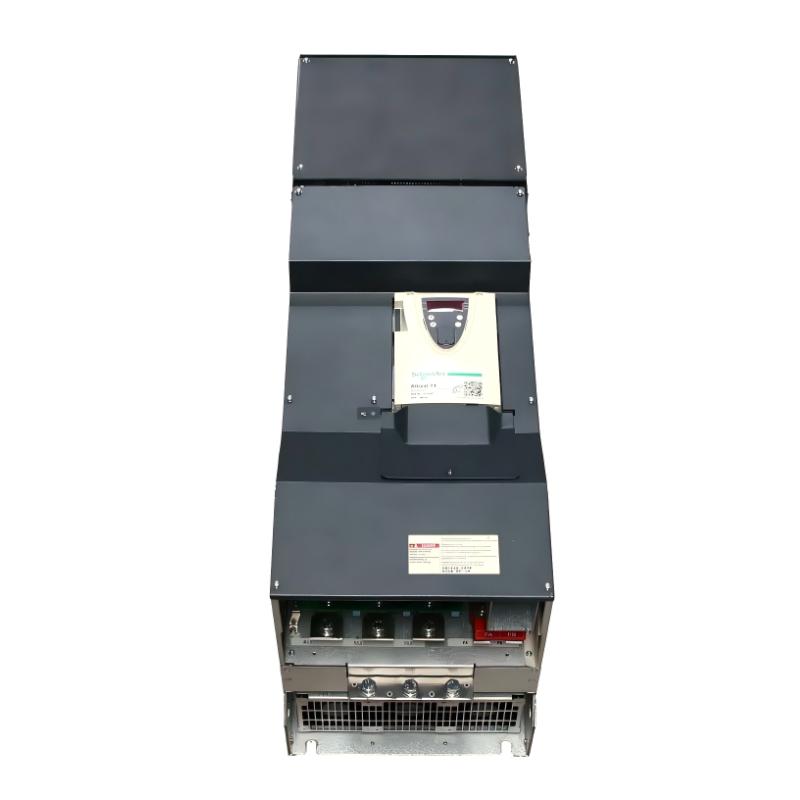

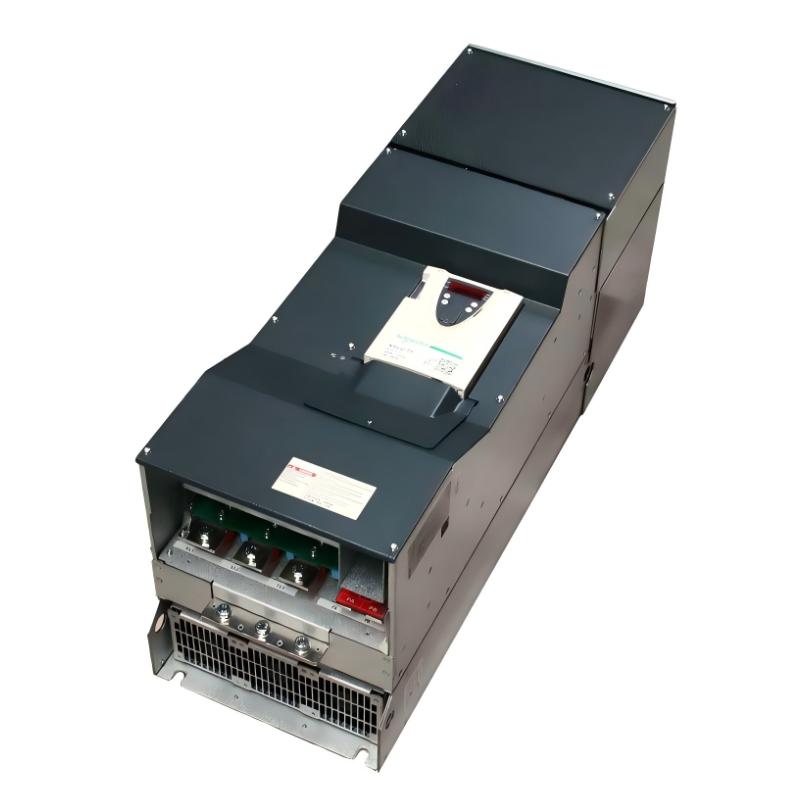

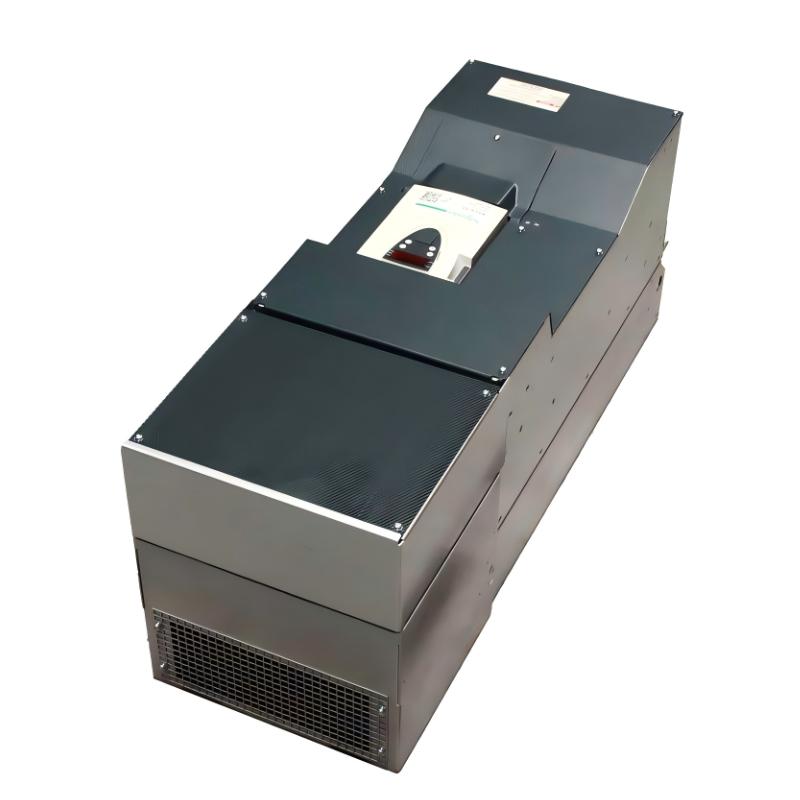

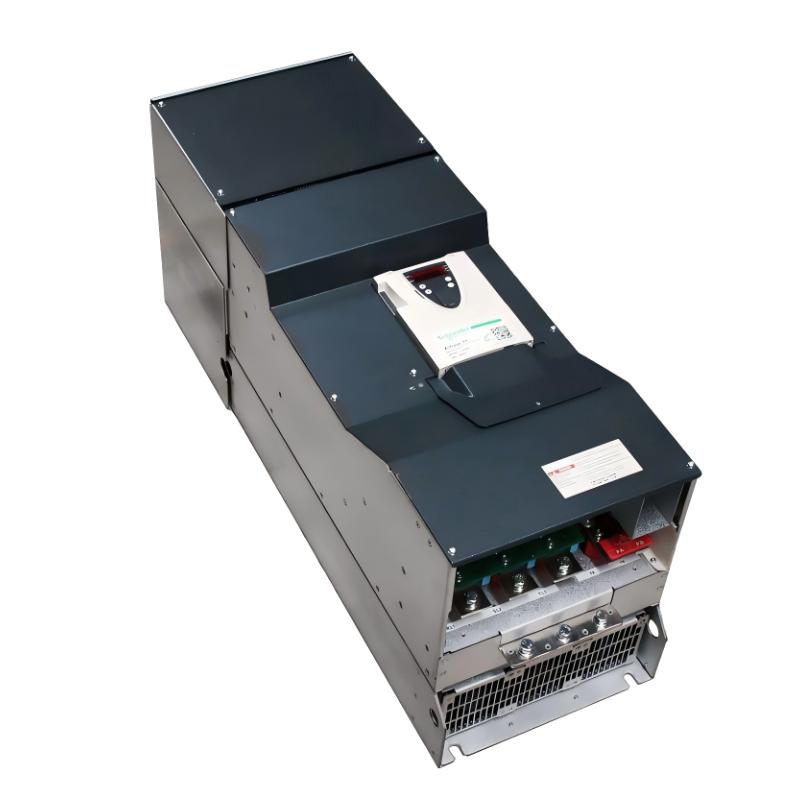

The Schneider Electric ATV71HD90N4 is a high-performance 90 kW variable frequency drive engineered for heavy-duty industrial applications. Designed for maximum efficiency, precision, and reliability, this drive handles large pumps, fans, conveyors, and industrial machinery with ease. The ATV71HD90N4 ensures accurate speed and torque control while minimizing energy consumption, reducing operational costs, and maintaining peak performance in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 165 A |
| Motor Power | 90 kW (120 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 800 × 400 × 320 mm |
| Weight | 120 kg |
