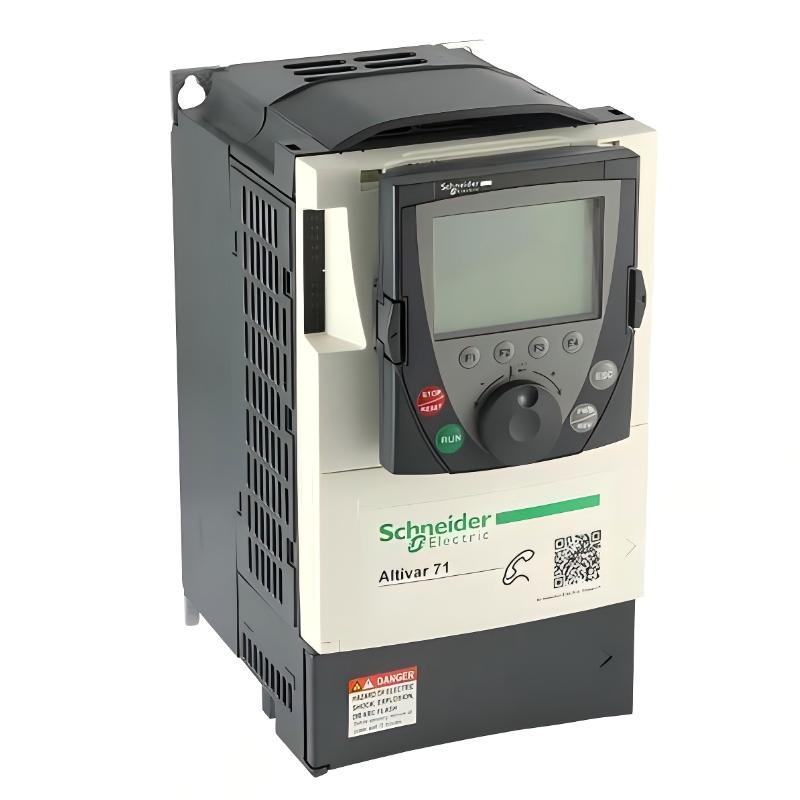

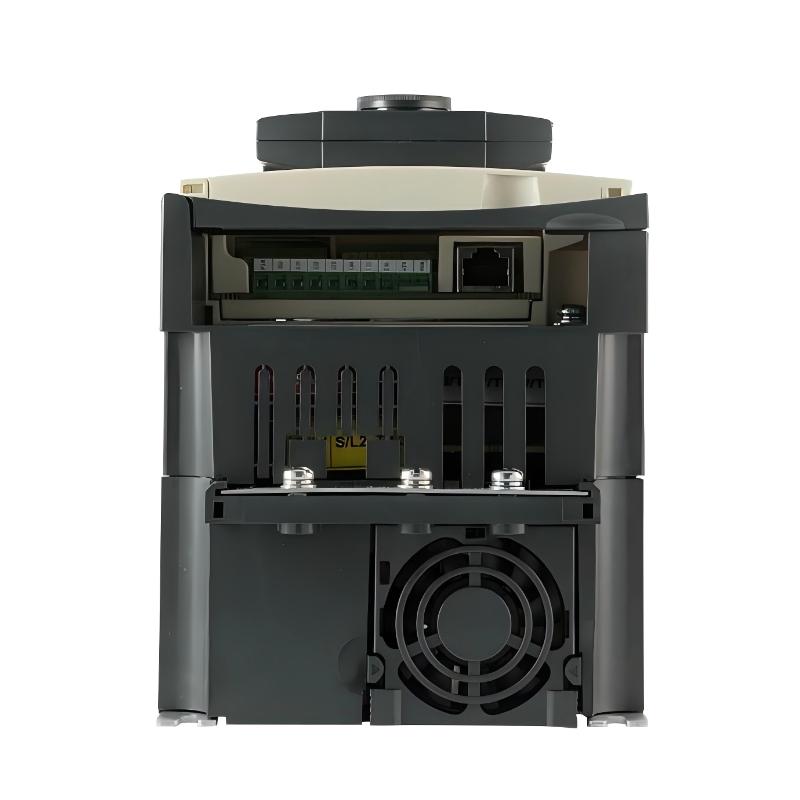

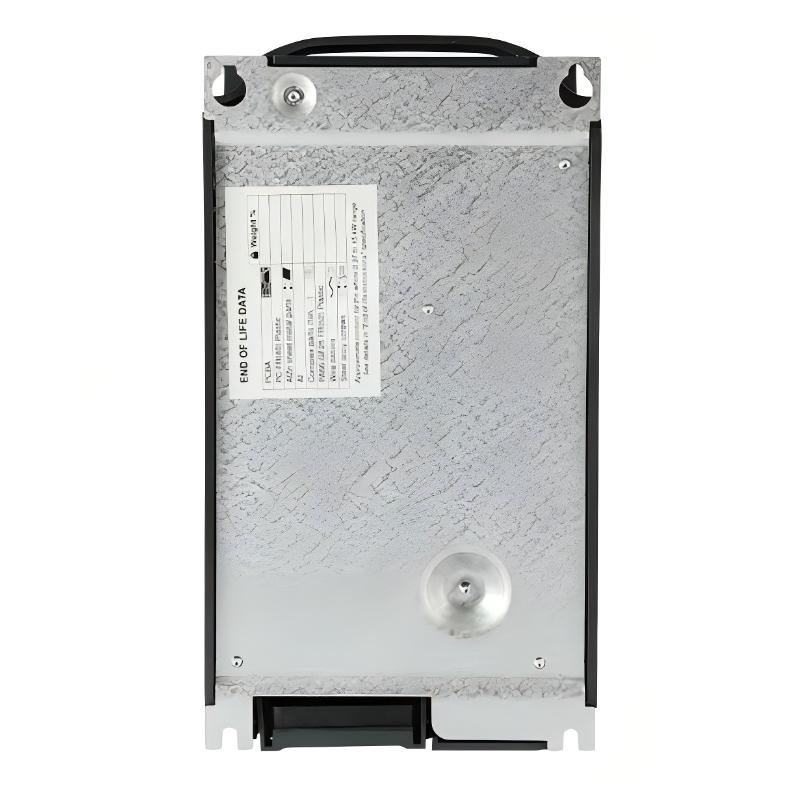

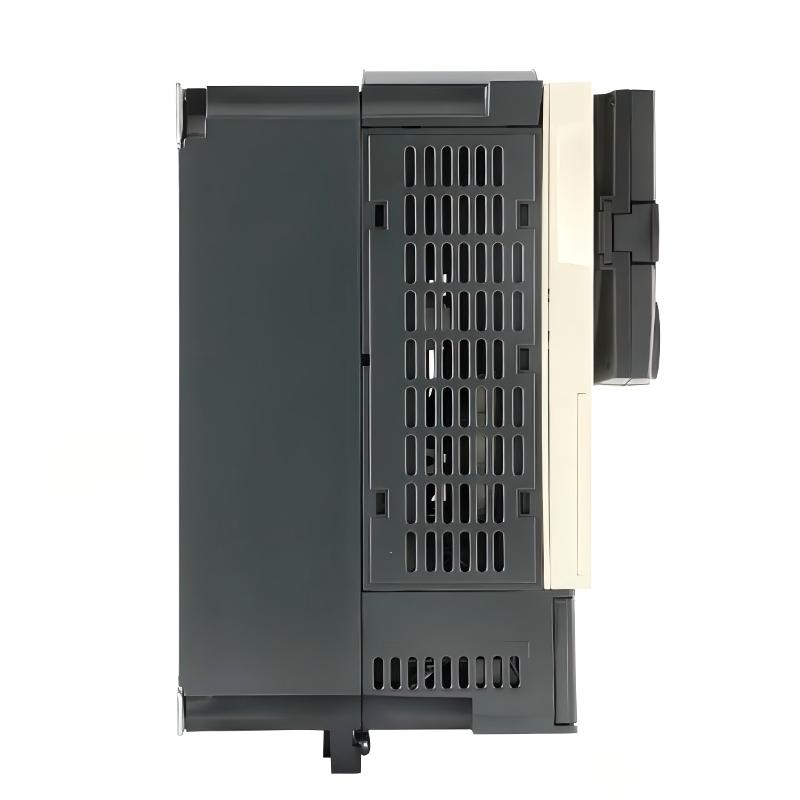

The Schneider Electric ATV71HU15N4 is a compact 15 kW variable frequency drive designed for industrial applications requiring reliable and precise motor control. This drive offers energy-efficient operation, advanced speed and torque management, and robust performance for medium-sized pumps, fans, conveyors, and other industrial machinery. Ideal for factories and industrial plants where space is limited but performance cannot be compromised, the ATV71HU15N4 ensures smooth motor operation and optimized energy usage.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 28 A |
| Motor Power | 15 kW (20 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 360 × 140 × 210 mm |
| Weight | 12 kg |
