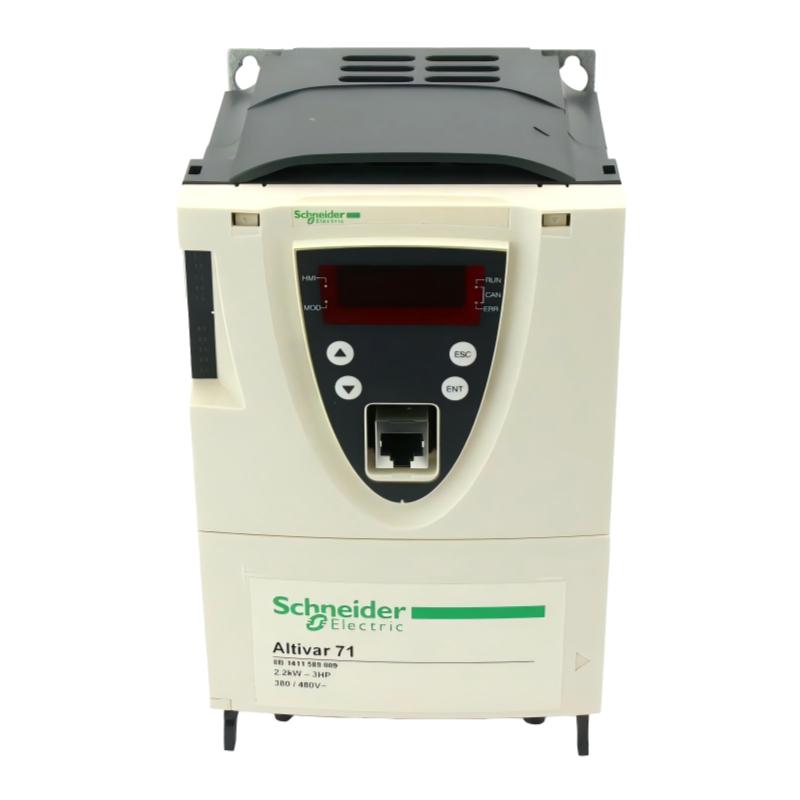

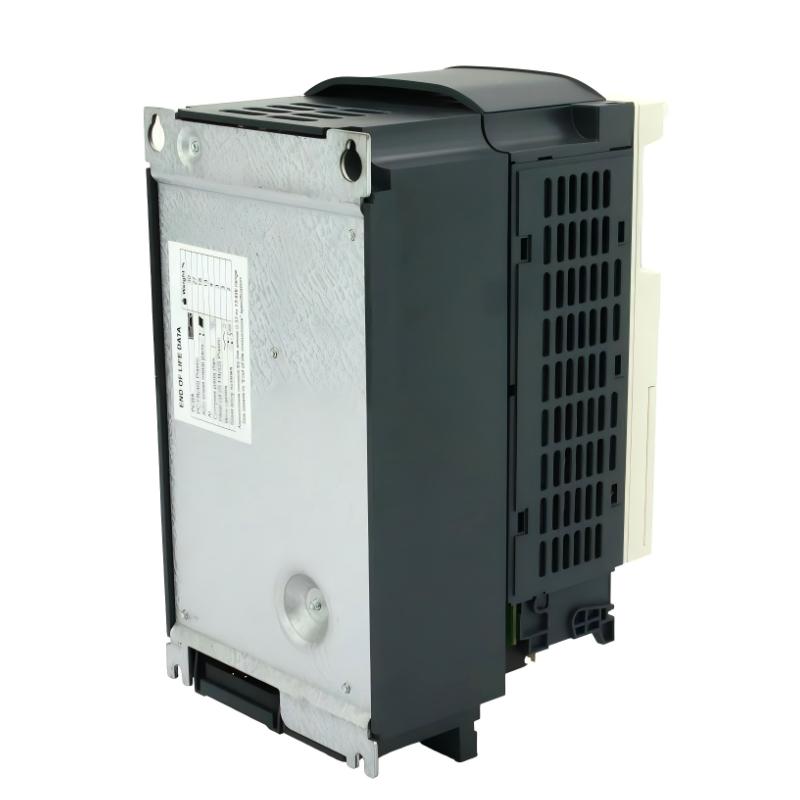

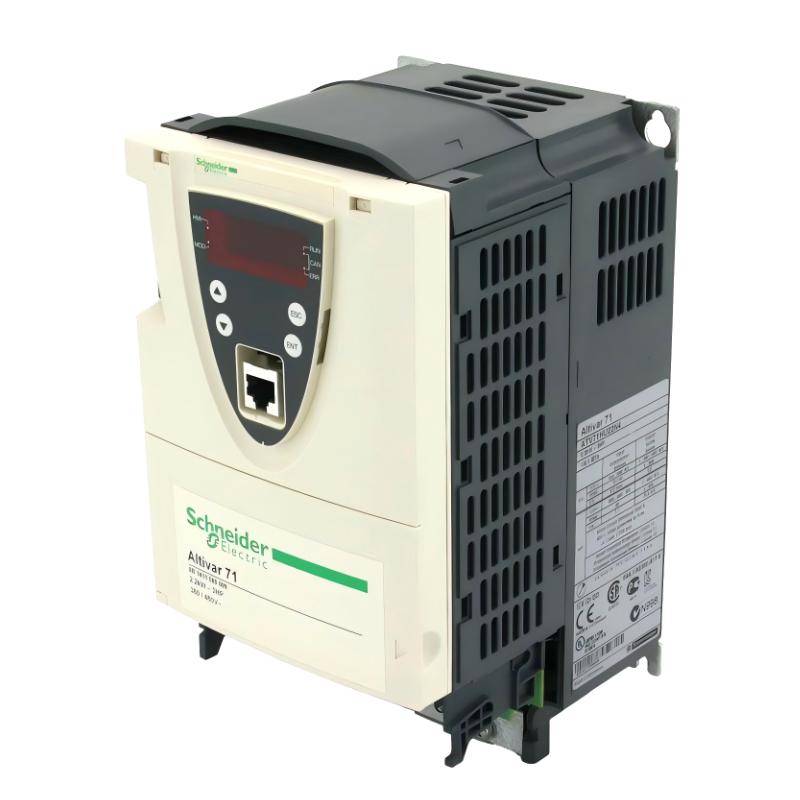

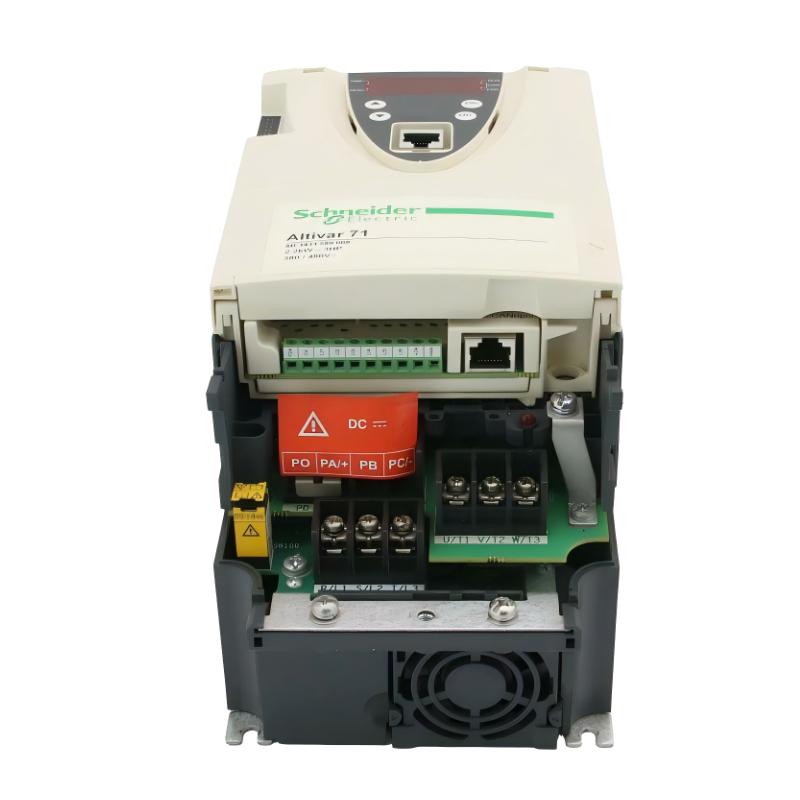

The Schneider Electric ATV71HU22N4 is a compact 22 kW variable frequency drive designed for industrial applications that demand reliable, precise, and energy-efficient motor control. Built for medium to heavy industrial machinery, including pumps, fans, and conveyors, this drive delivers smooth operation, reduces energy consumption, and ensures high reliability. The ATV71HU22N4 is perfect for industrial plants requiring efficient performance in a compact footprint without compromising functionality.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 38 A |
| Motor Power | 22 kW (30 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 400 × 160 × 220 mm |
| Weight | 18 kg |
Recommended Related Models
- ATV71HU15N4 – 15 kW for slightly lower motor loads
- ATV71HU30N4 – 30 kW for higher motor loads
- ATV71H022D4 – Dual-drive configuration for multi-motor synchronization
Popular Schneider Models
- ATV71HC22N4 – 22 kW compact high-performance drive
- ATV630U22N4 – 22 kW industrial drive for standard motors
- ATV71HU15N4 – 15 kW drive for medium industrial motors
