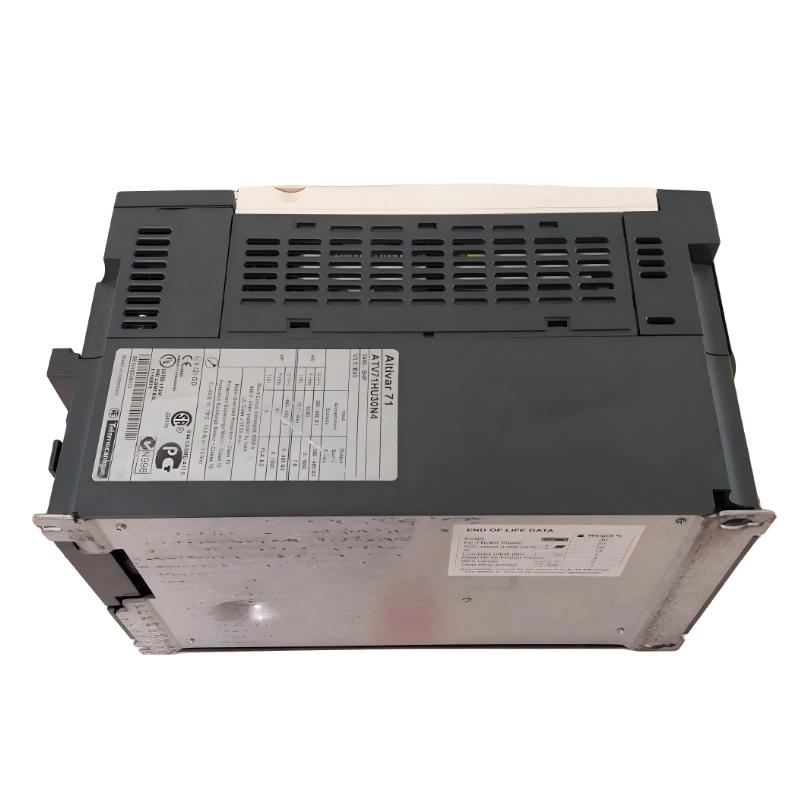

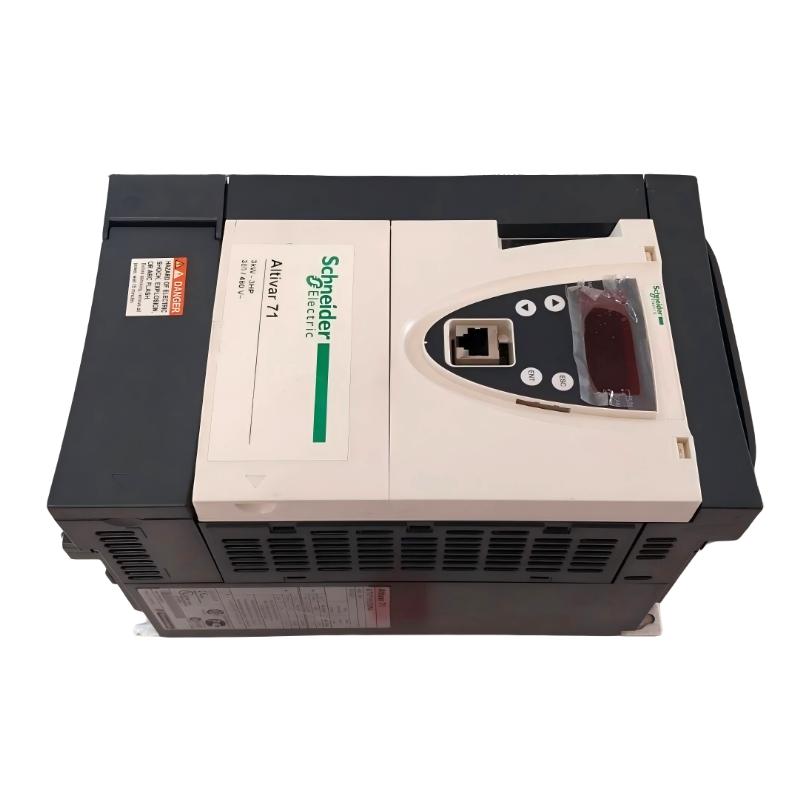

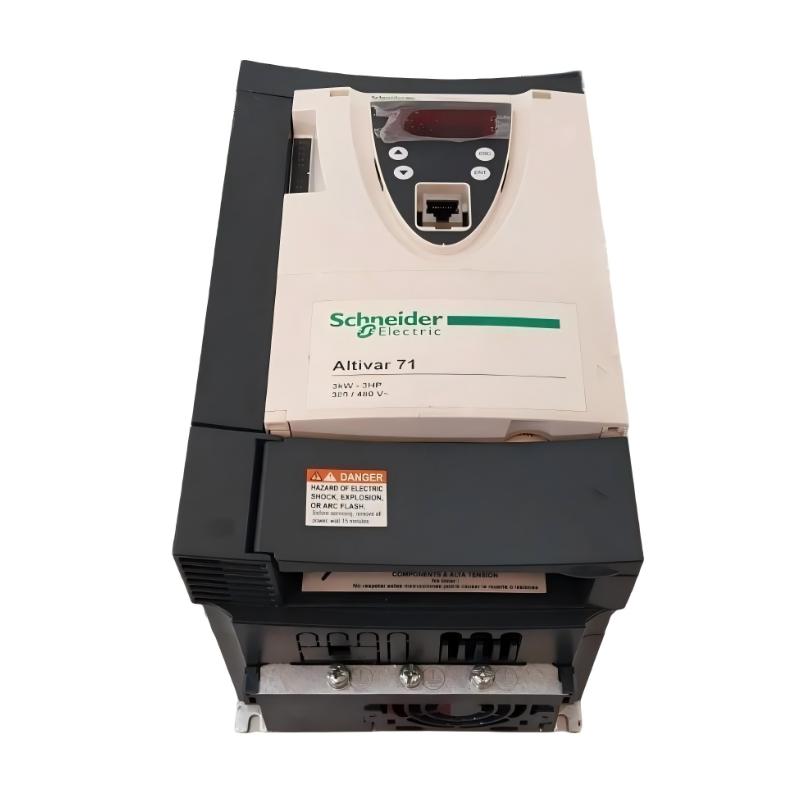

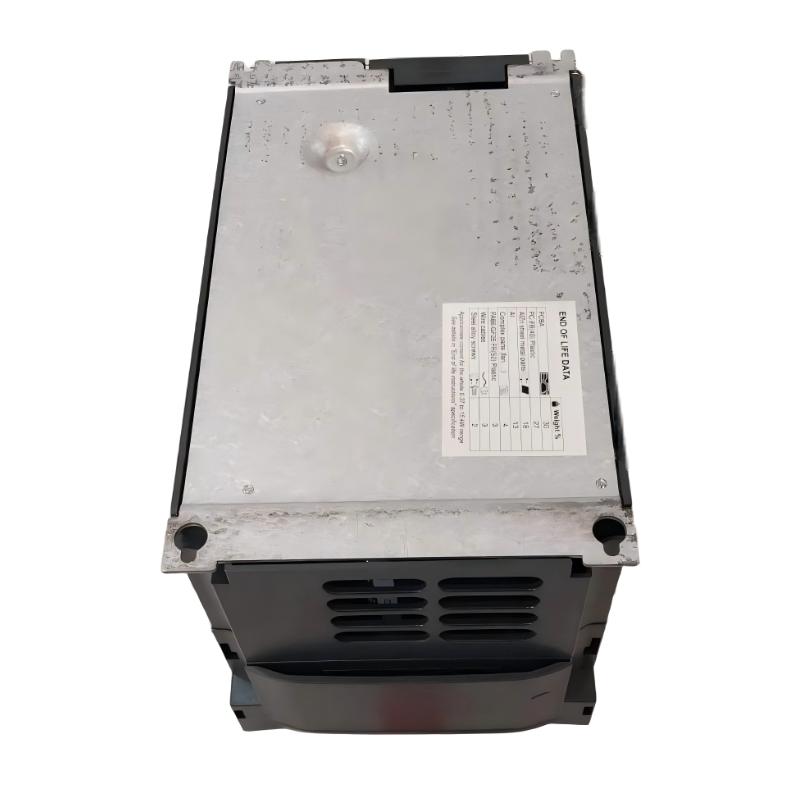

The Schneider Electric ATV71HU30N4 is a 30 kW high-performance variable frequency drive engineered for medium to heavy industrial applications. Designed to provide precise motor control, robust reliability, and energy-efficient operation, this drive is perfect for pumps, fans, conveyors, and other industrial machinery. The ATV71HU30N4 ensures smooth operation, optimized energy consumption, and reduced operational costs while maintaining top-tier performance in industrial environments with space constraints.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 52 A |
| Motor Power | 30 kW (40 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 450 × 180 × 240 mm |
| Weight | 24 kg |
