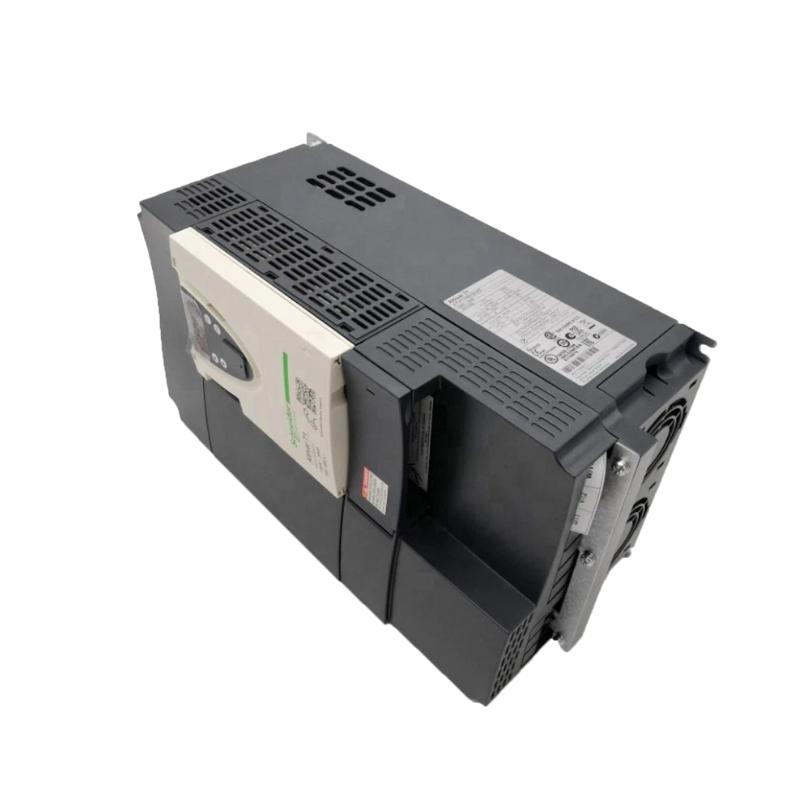

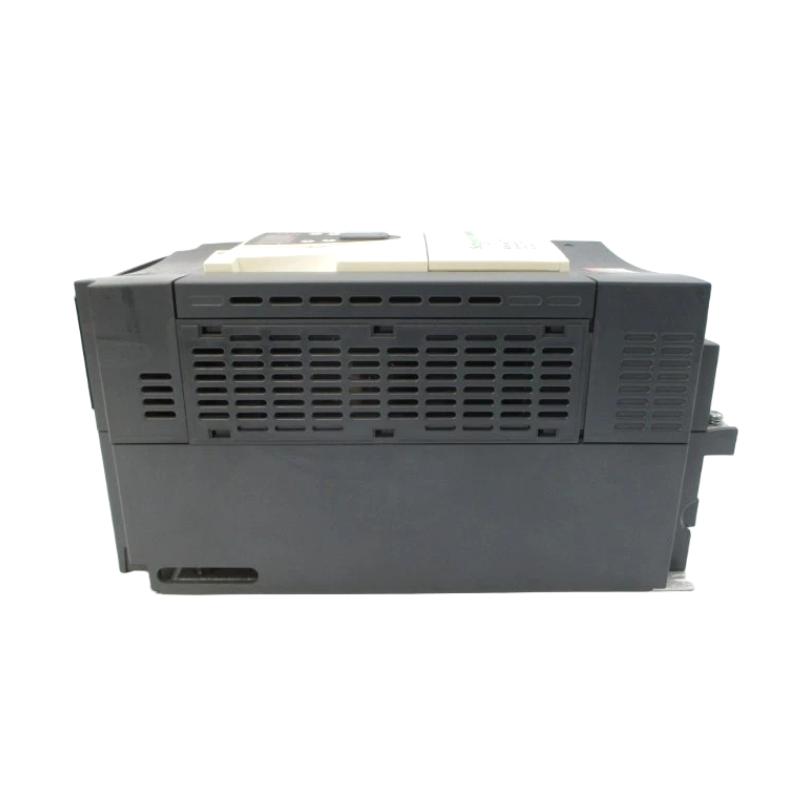

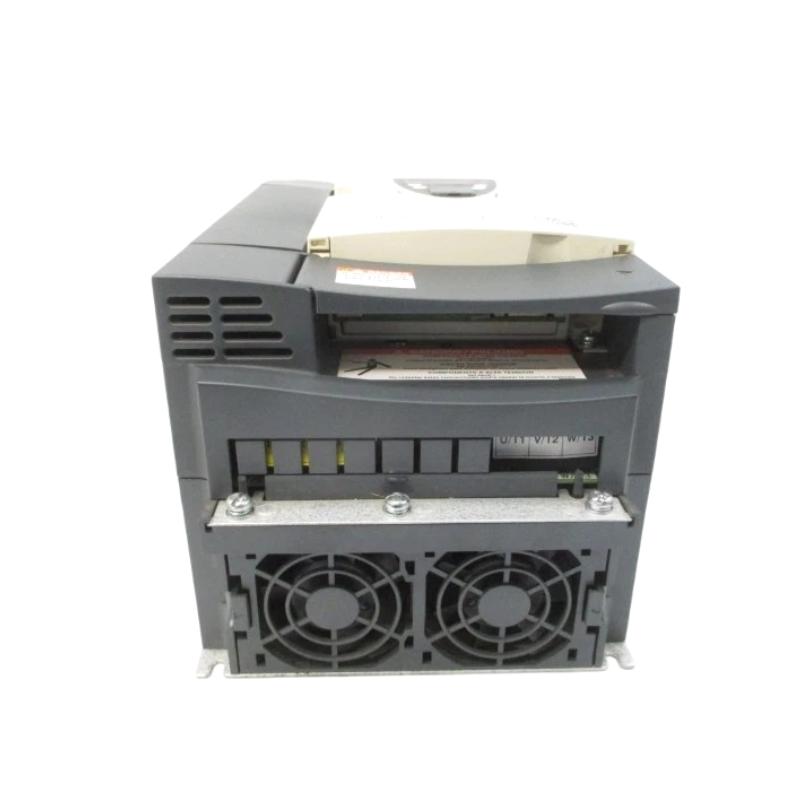

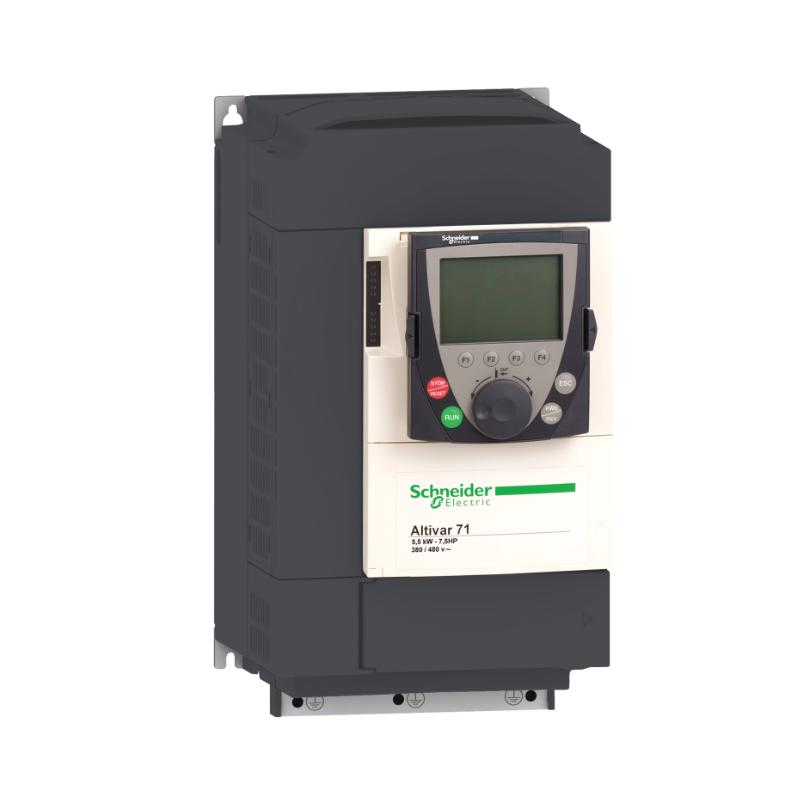

The Schneider Electric ATV71HU55N4 is a 55 kW high-performance compact variable frequency drive designed for medium-to-heavy industrial applications. Ideal for pumps, fans, conveyors, and compressors, this drive provides precise speed and torque management while optimizing energy consumption. The ATV71HU55N4 ensures smooth operation, high reliability, and reduced operational costs, making it a perfect solution for factories and industrial plants where space is limited but performance cannot be compromised.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 95 A |
| Motor Power | 55 kW (75 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 600 × 220 × 300 mm |
| Weight | 46 kg |
