Brand:Emerson Module Item No.:KL4502X1-MA1 Product Origin:USA Product Dimensions:120 x 12 x 70 mm Product Weight:0.14 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

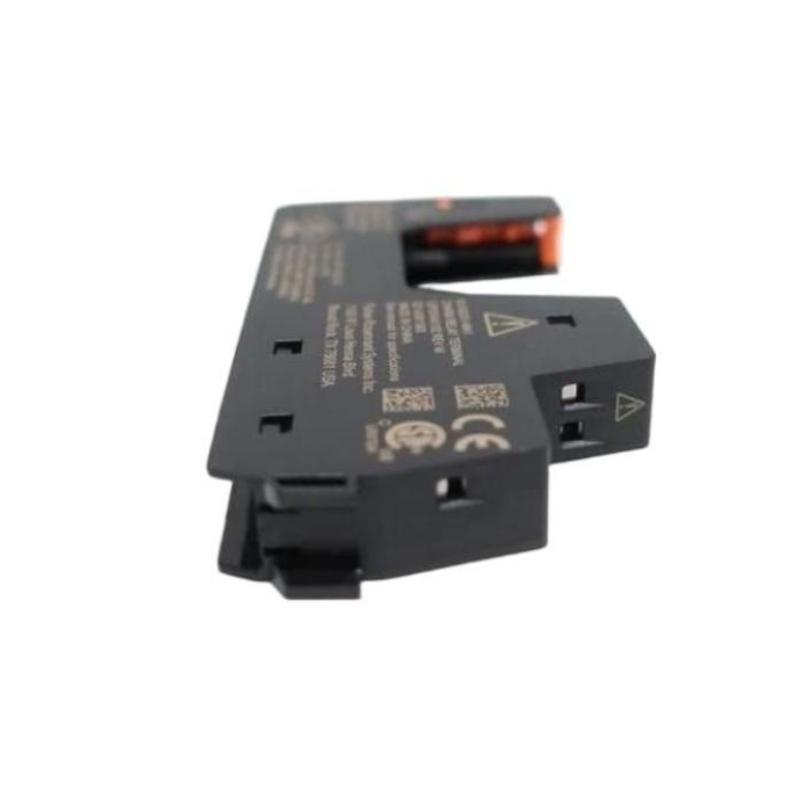

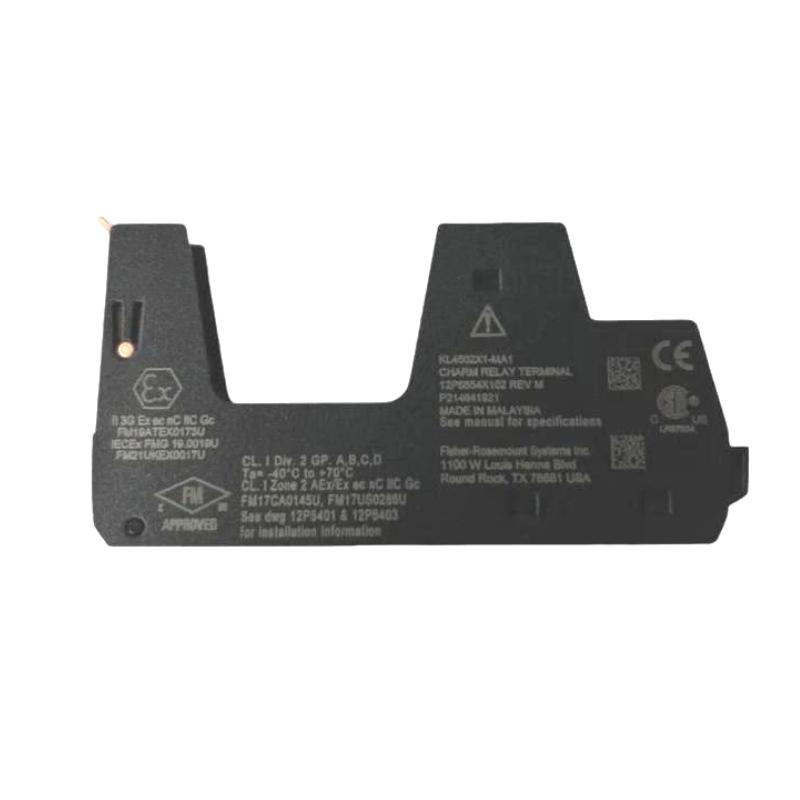

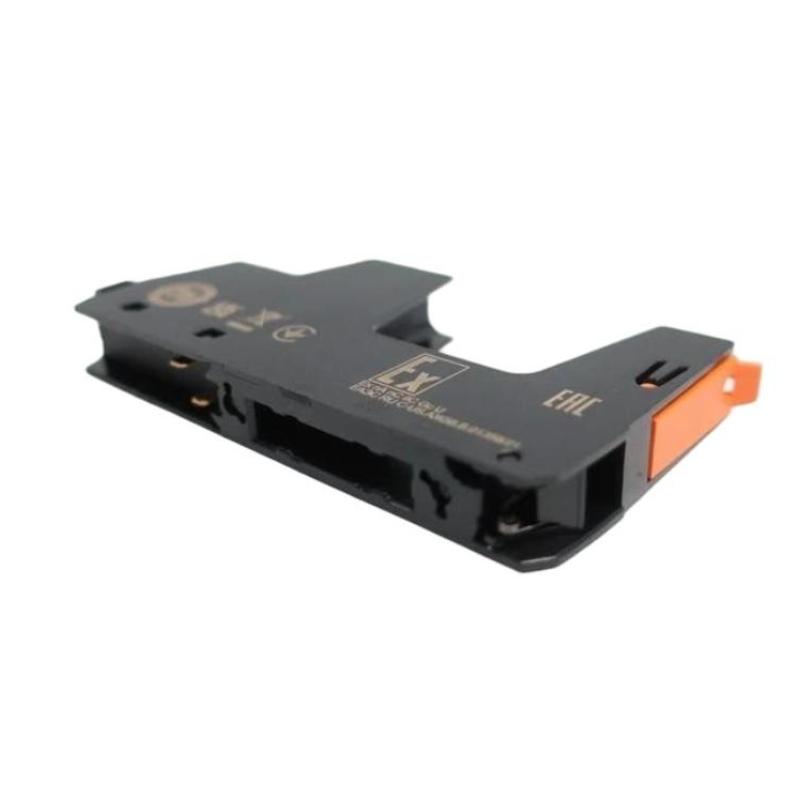

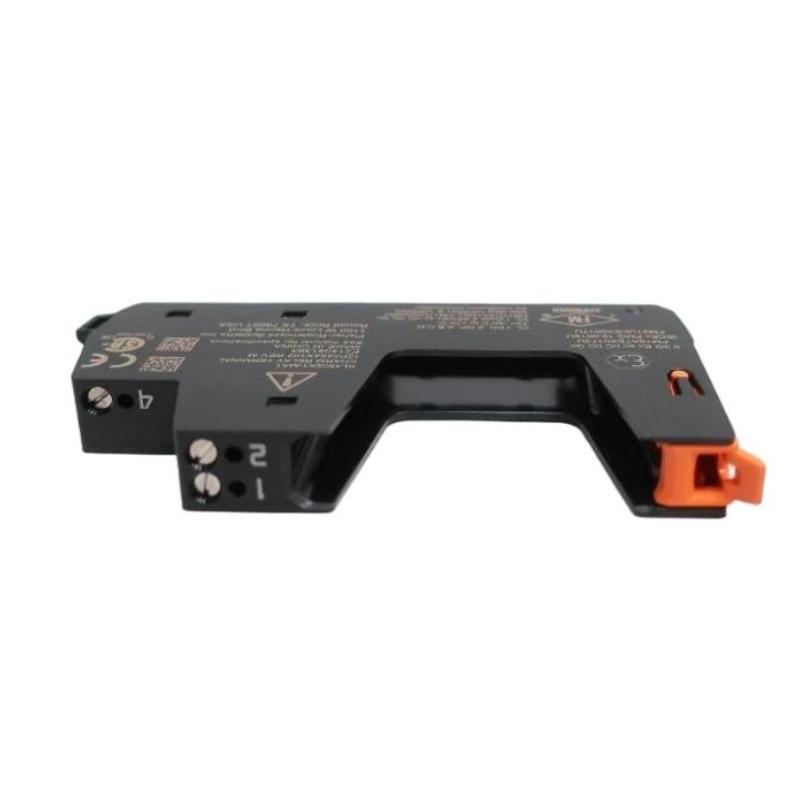

The Emerson KL4502X1-MA1 Terminal Blocks provide a compact, reliable, and organized solution for connecting field signals to DeltaV™ I/O modules. Engineered for durability and secure connections, these terminal blocks simplify installation, reduce wiring errors, and enhance system reliability in demanding industrial environments.
Technical Specifications
Parameter
Specification
Model
KL4502X1-MA1
Product Type
Terminal Blocks
Dimensions
120 × 12 × 70 mm
Weight
0.14 kg
Compatible Series
Emerson DeltaV™ I/O Modules
Suggested Alternatives
Model
Product Name
Emerson KL4501X1-BB1
Address Plug
Emerson KL4502X1-BA1
Terminal Block
Emerson KL4001X1-BB2
Standard Terminal Block
Emerson KL4503X1-MA1
Field I/O Terminal Block
Frequently Selected Together
Model
Product Name
Emerson KJ3222X1-BK1
8-channel Analog Input Module
Emerson KJ4001X1-CB1
Output Module with Terminal Blocks
Emerson KJ3243X1-BB2
DP Interface Card
Emerson KL4501X1-BB1
Address Plug
Application Scenarios
• Provides secure wiring connections for Emerson DeltaV™ I/O modules.
• Facilitates organized signal distribution within I/O racks or terminal assemblies.
• Commonly used in oil & gas, chemical, and power generation industries.
• Ideal for system expansions, retrofits, and field wiring tasks.
• Supports reliable operation in industrial environments with high vibration or electrical noise.
Key Advantages
• Compact and lightweight design for efficient installation.
• High-quality terminals ensure reliable signal transmission.
• Rugged construction suitable for industrial conditions.
• Simplifies wiring and reduces potential errors during installation.
• Compatible with Emerson DeltaV™ I/O modules for seamless integration.
• Enhances system reliability by providing stable and secure connections.
Technical FAQs
1. What is the primary function of this terminal block?
It provides secure and organized connections for field signals to DeltaV I/O modules.
2. Is it compatible with all DeltaV I/O modules?
It is designed for specific Emerson DeltaV I/O modules requiring terminal connections.
3. Can it be installed in high-vibration environments?
Yes, it is ruggedly constructed to withstand industrial vibrations.
4. Does it support system expansion?
Yes, it is ideal for adding or upgrading I/O connections in DeltaV systems.
5. What type of signals can it handle?
Analog and digital process signals from field devices.
6. Is maintenance required?
No, it is designed for long-term, low-maintenance operation.
7. How is installation performed?
It is mounted directly onto the I/O module or terminal assembly with standard fittings.
8. Can it prevent wiring errors?
Yes, its organized terminal layout reduces the risk of miswiring.
9. What are the dimensions and weight?
120 × 12 × 70 mm; 0.14 kg.
10. Is it suitable for harsh industrial conditions?
Yes, it is engineered for reliable operation in industrial environments with temperature and electrical stresses.
