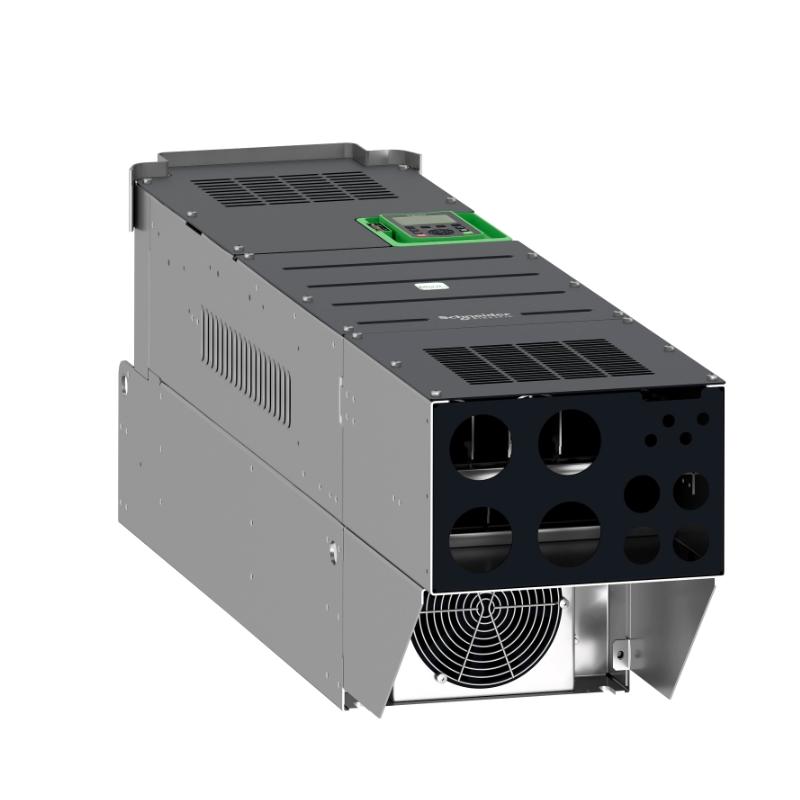

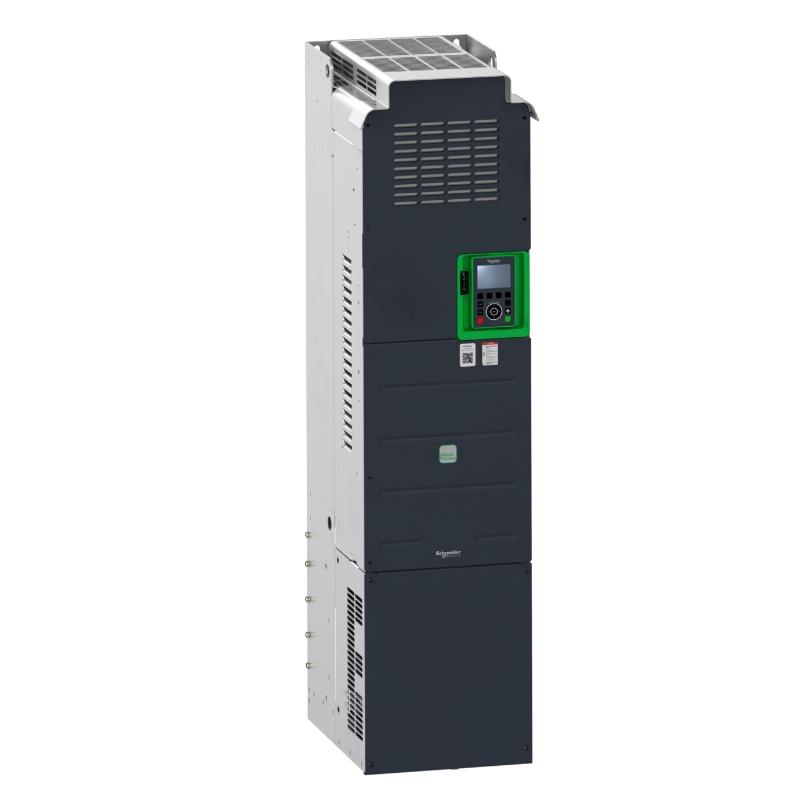

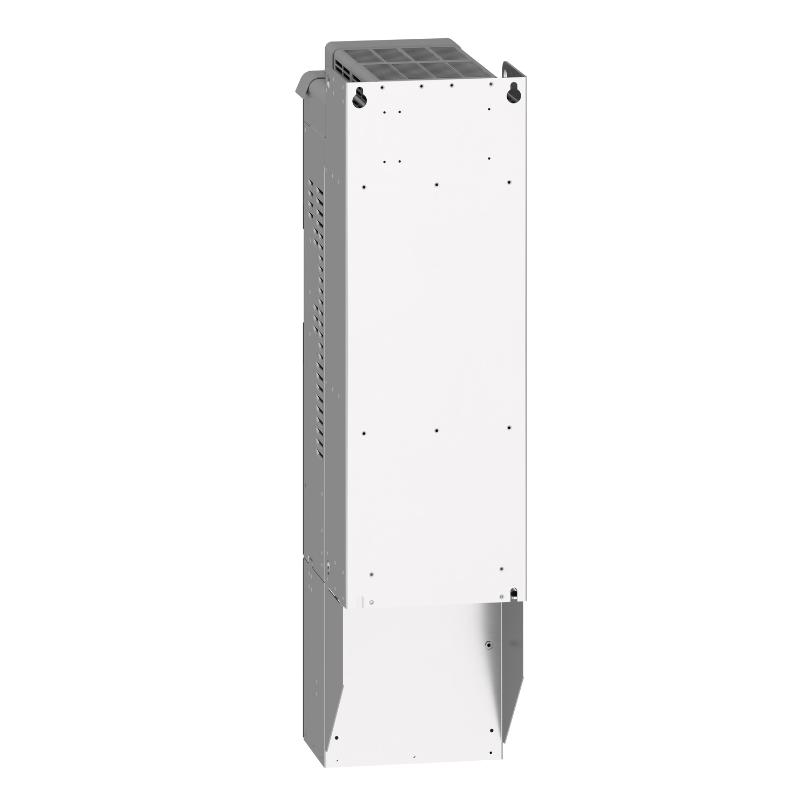

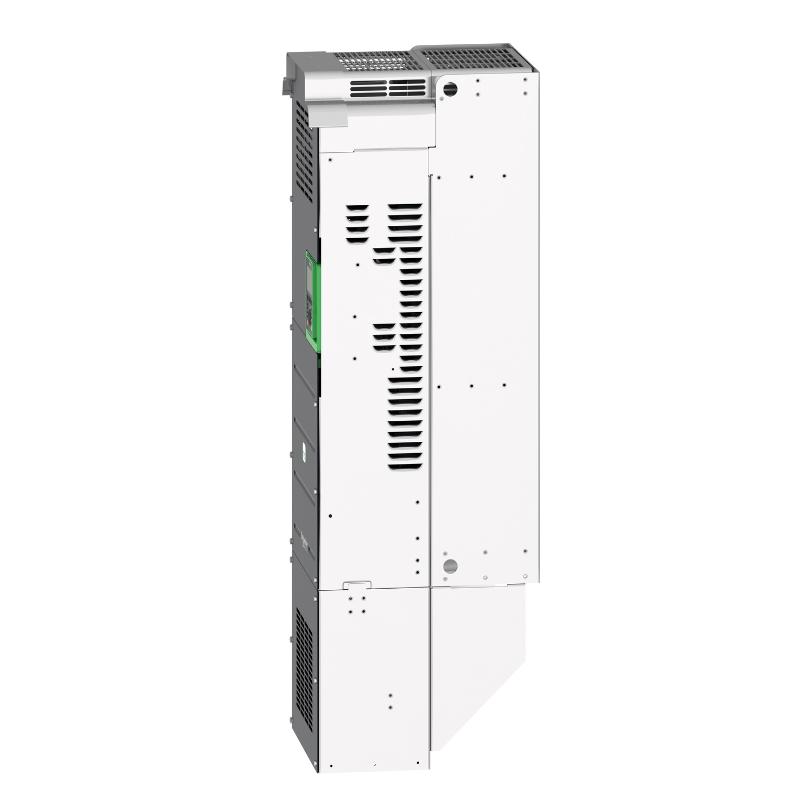

The Schneider Electric ATV930C11N4 is a flagship Altivar Process ATV900 series variable frequency drive engineered for high-demand industrial environments. With a power rating of up to 110 kW, this drive is purpose-built for process industries such as oil & gas, mining, water treatment, and heavy manufacturing.
It delivers advanced motor control, superior energy efficiency, and real-time process optimization. Designed for both asynchronous and synchronous motors, the ATV930C11N4 ensures consistent performance, reduced downtime, and seamless integration into modern automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | ~165 – 211 A |
| Motor Power | 110 kW (150 hp) |
| Overload Capacity | 120% (normal duty), 150% (heavy duty) |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen |
| Protection Class | IP00 (cabinet mounting) |
| EMC Filter | Integrated (Class C3) |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 1205 × 320 × 393 mm |
| Weight | Approx. 95 – 120 kg |
Note: Dimensions confirmed from industrial listings; weight may vary by configuration.
