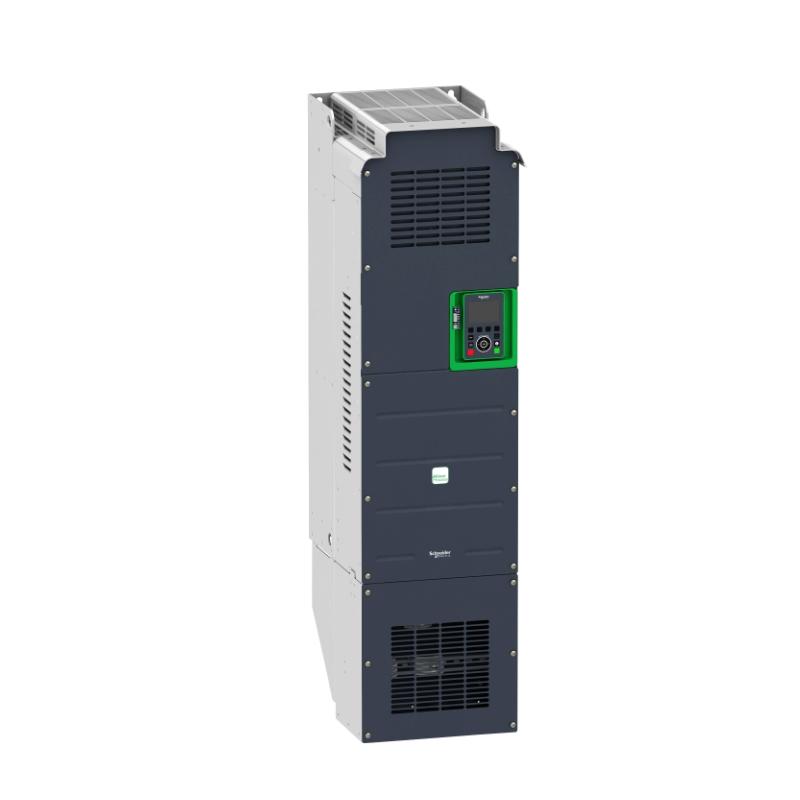

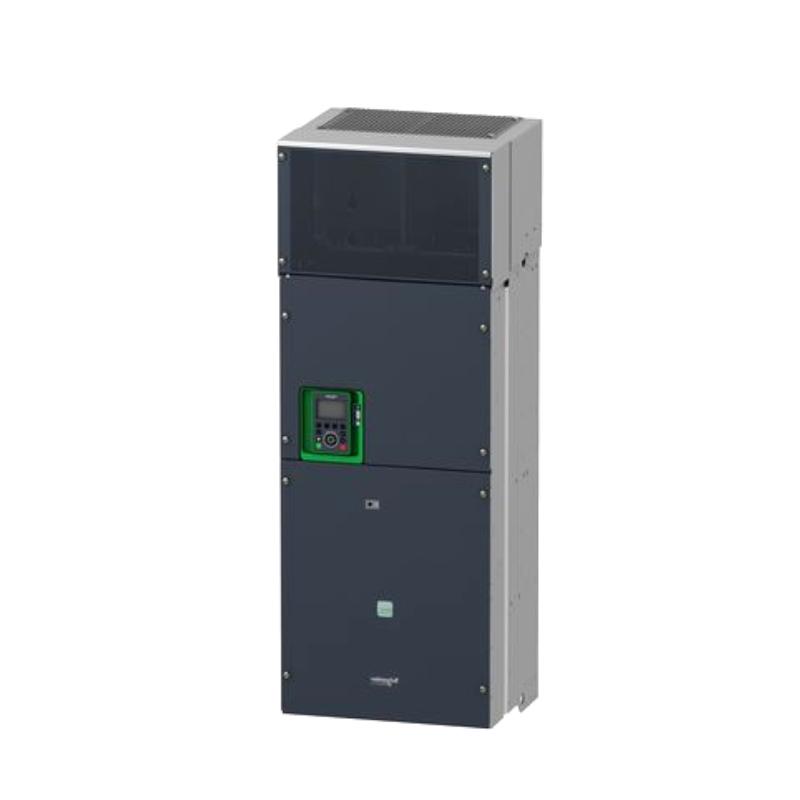

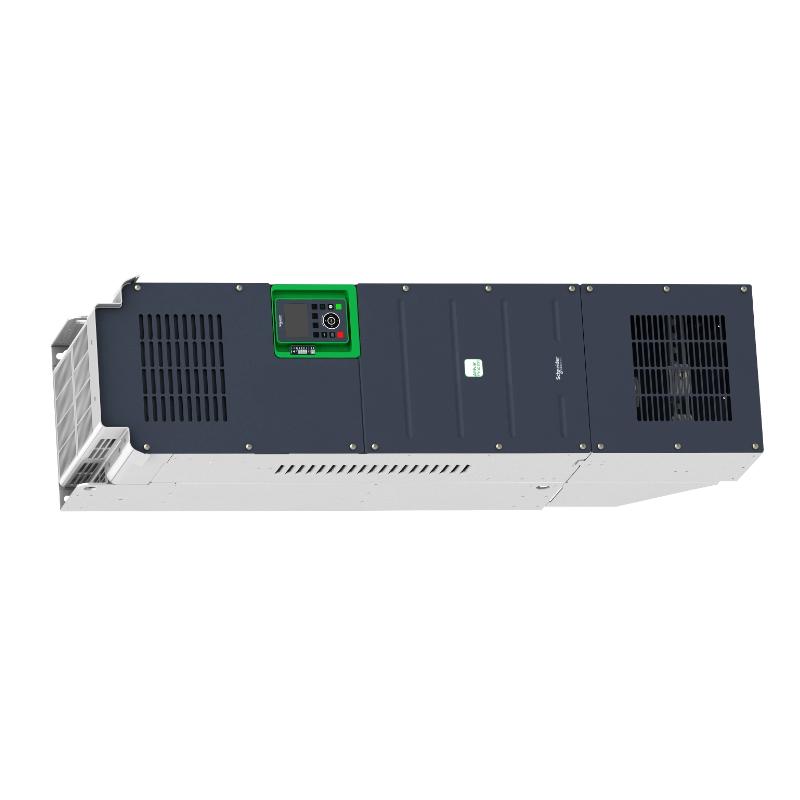

The Schneider Electric ATV930C11N4C is a high-end Altivar Process ATV900 series variable frequency drive engineered for process-critical industrial environments. With a power rating of 110 kW (150 HP), this model is specifically designed for applications requiring continuous operation, advanced diagnostics, and optimized energy performance.
What distinguishes the “C” version is its IP21 wall-mounted enclosure, making it ideal for installations where cabinet space is limited while still requiring reliable environmental protection. It delivers precise motor control, predictive maintenance capabilities, and seamless integration into modern automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | Up to 211 A |
| Motor Power | 110 kW (150 hp) |
| Overload Capacity | 120% (ND), 150% (HD) |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen |
| Mounting Type | Wall-mounted (IP21 enclosure) |
| Protection Class | IP21 |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | Approx. 1200 × 320 × 400 mm |
| Weight | Approx. 100 – 120 kg |
Recommended Related Models
- ATV930C11N4 – IP00 cabinet version for panel integration
- ATV930C13N4C – 132 kW for higher process capacity
- ATV930D90N4 – Compact version for lower power applications
