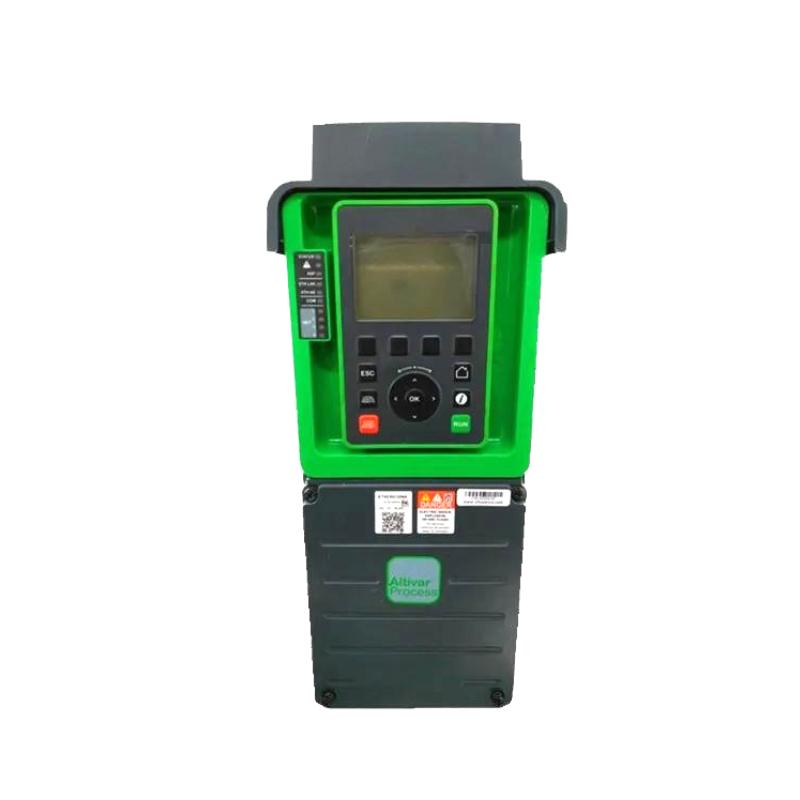

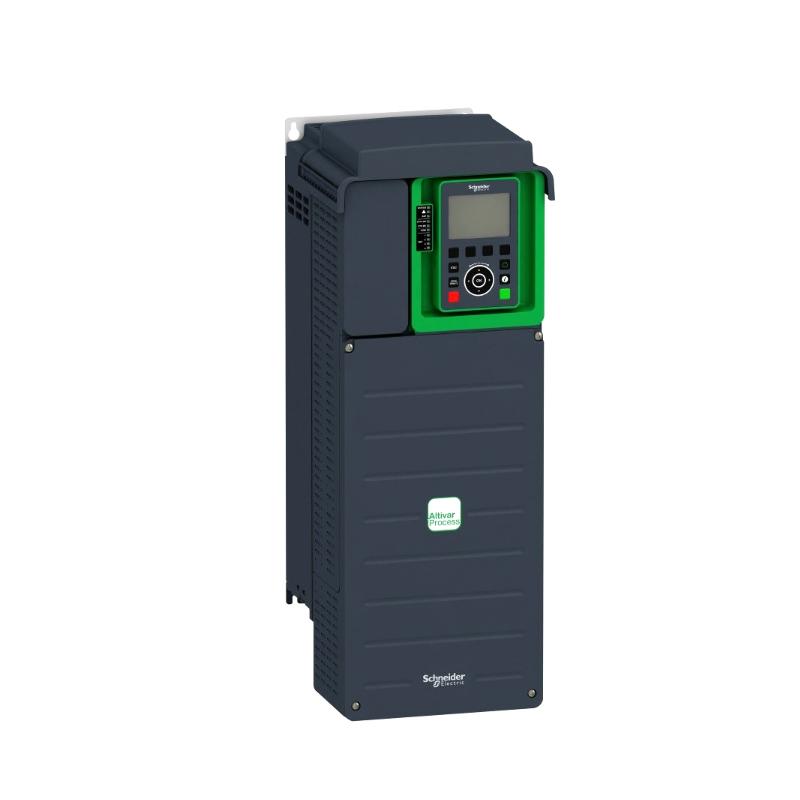

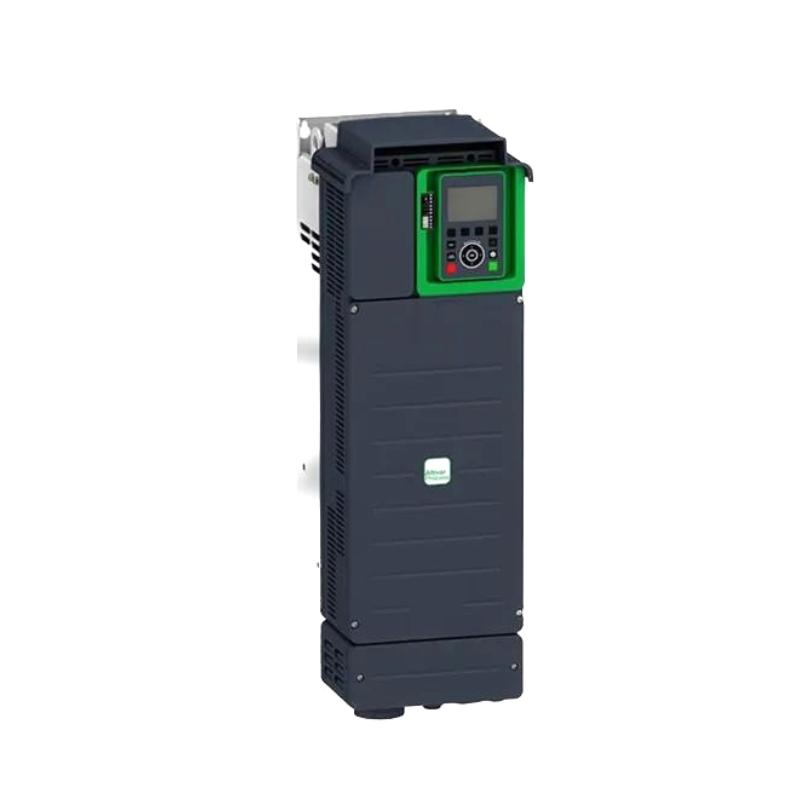

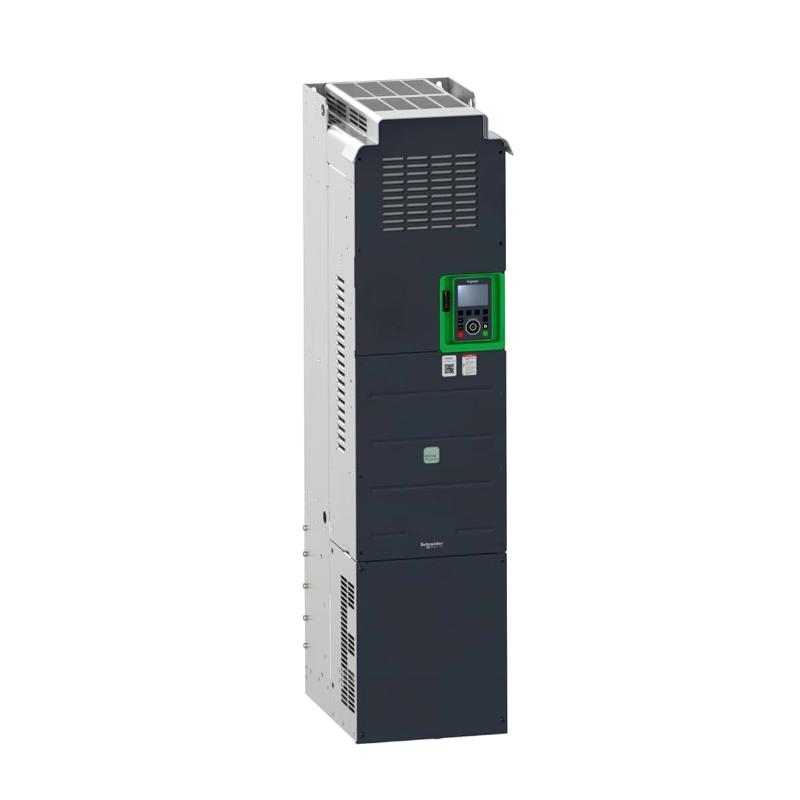

The Schneider Electric ATV930C13N4 is a high-capacity Altivar Process ATV900 series variable frequency drive engineered for process-intensive industries. With a rated power of 132 kW (200 HP), this drive is built to deliver precise motor control, high efficiency, and continuous operation in demanding environments such as oil & gas, mining, and water treatment.
Designed for both asynchronous and synchronous motors, it integrates advanced diagnostics, energy monitoring, and process optimization tools—helping operators improve uptime while reducing lifecycle costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | Up to ~210 A |
| Motor Power | 132 kW (200 hp) |
| Overload Capacity | 120% (normal duty), 150% (heavy duty) |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen |
| Protection Class | IP20 (panel / wall mounting) |
| Integrated Features | PID control, energy monitoring, EMC filter |
| Ambient Operating Temperature | 0°C to 40–50°C |
| Dimensions (H × W × D) | Approx. 1205 × 320 × 393 mm |
| Weight | Approx. 120 – 128 kg |
Recommended Related Models
- ATV930C11N4 – 110 kW version for slightly lower power requirements
- ATV930C22N4 – 220 kW for large-scale industrial systems
- ATV930C13N4C – IP21 wall-mounted enclosure version
