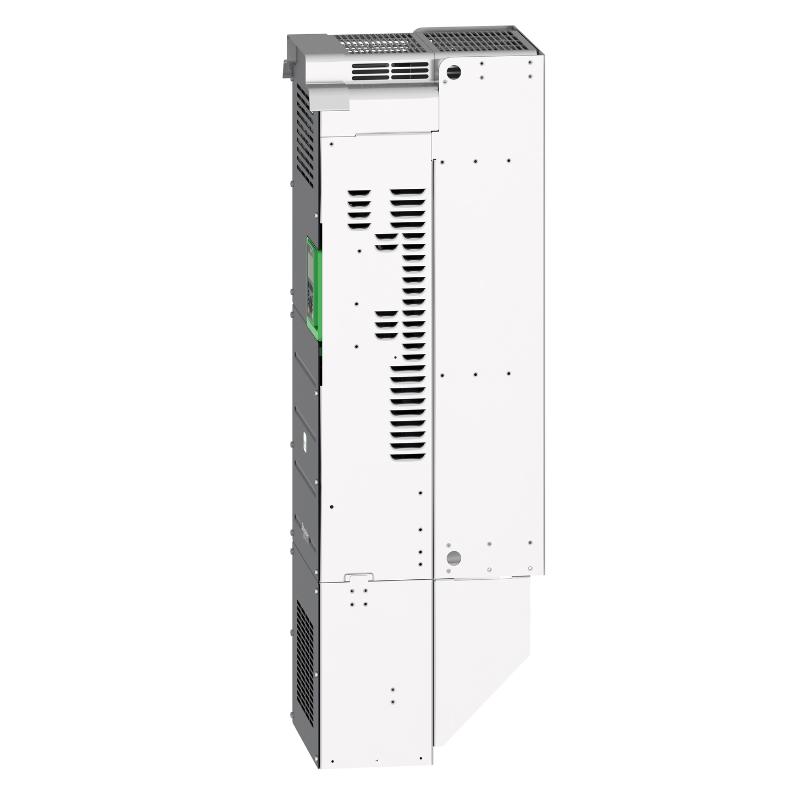

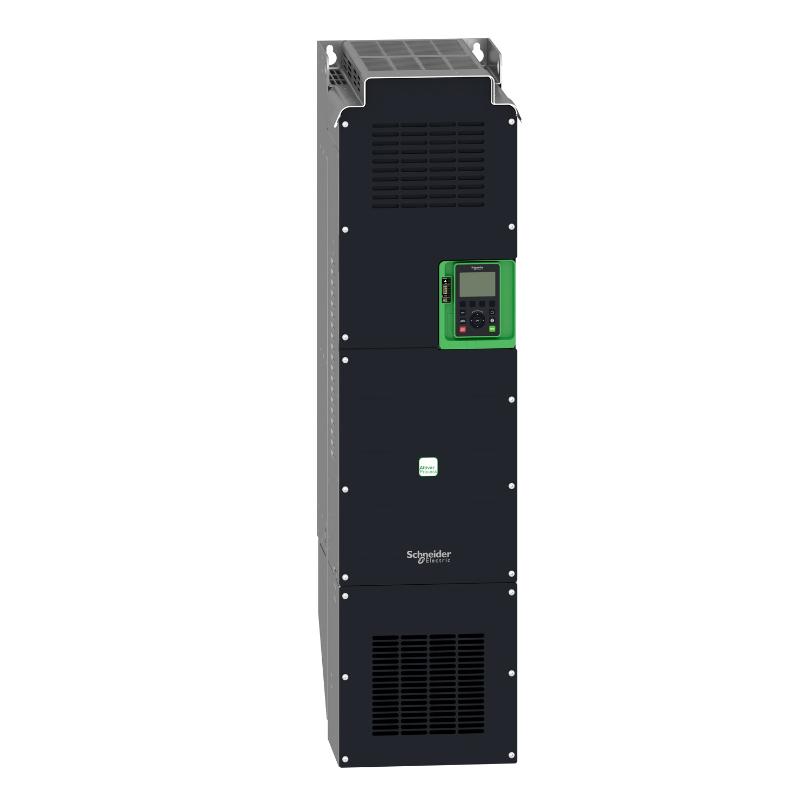

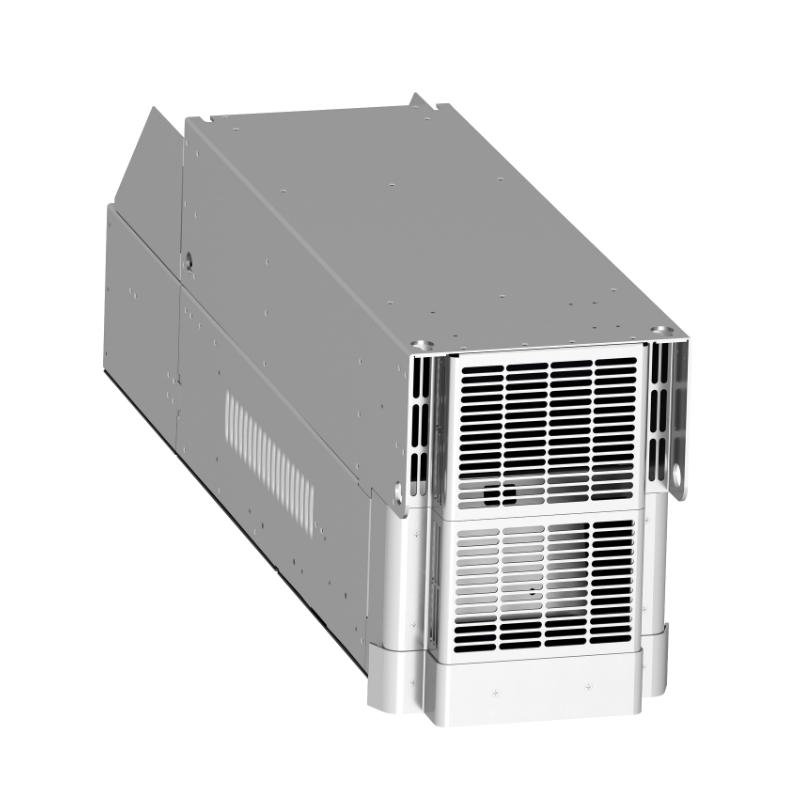

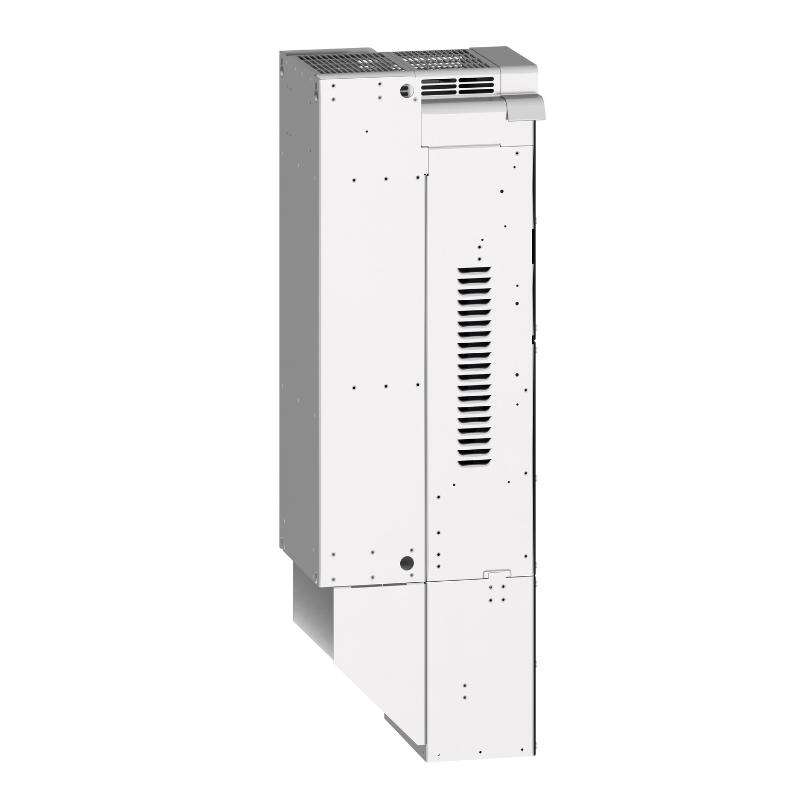

The Schneider Electric ATV930C16N4 is a powerful 160 kW Altivar Process ATV900 series variable frequency drive built for the most demanding industrial environments. Designed for process industries such as oil & gas, mining, and water treatment, this drive combines precision motor control, energy optimization, and advanced diagnostics.
It supports both asynchronous and synchronous motors, delivering consistent torque and speed control while improving overall system efficiency and reducing downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | ~250 A (typical for this class) |
| Motor Power | 160 kW (250 hp) |
| Overload Capacity | 120% (ND), 150% (HD) |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen |
| Protection Class | IP20 |
| Integrated Features | PID control, EMC filter, energy monitoring |
| Ambient Operating Temperature | 0°C to 40–50°C |
| Dimensions (H × W × D) | Approx. 1200 × 320 × 400 mm |
| Weight | Approx. 130 – 138 kg |
Confirmed: 160 kW power rating and IP20 design
